High-Speed 52,000 BPH ISO Certified Filling Line Precision & Efficiency for Modern Bottling Plants

High-Speed 52,000 BPH ISO Certified Filling Line– Precision & Efficiency for Modern Bottling Plants

Shanghai Peiyu Packaging Technology Co.,Ltd.

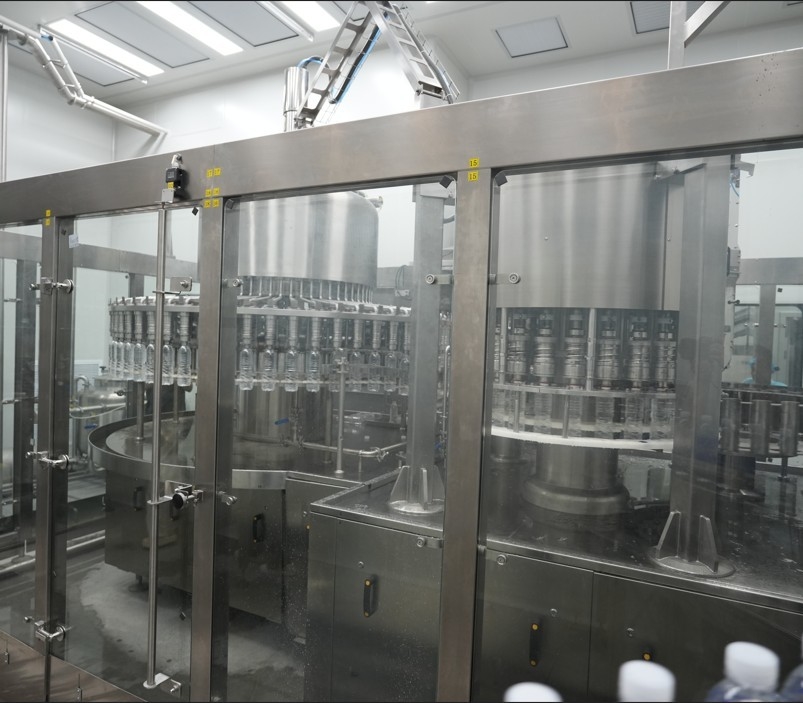

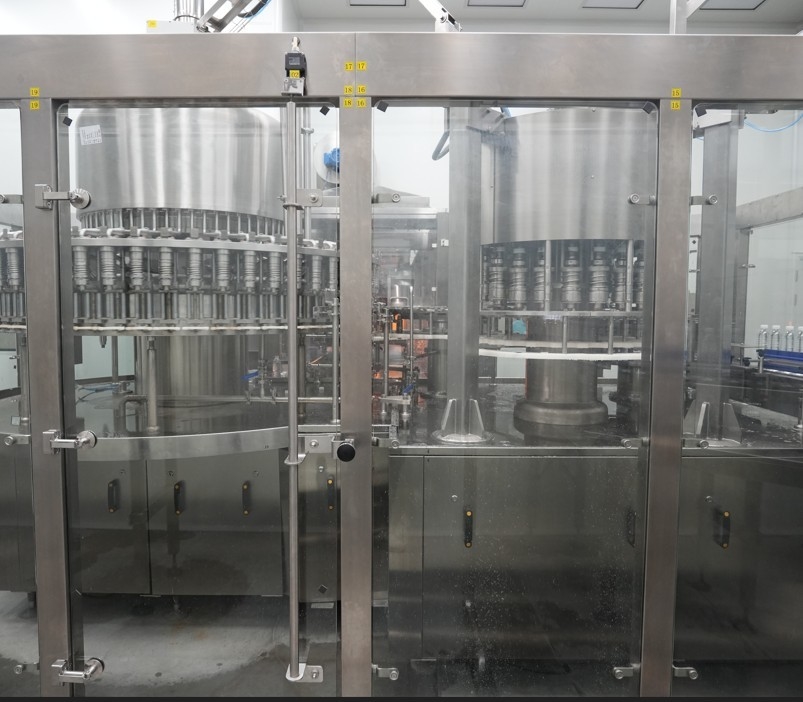

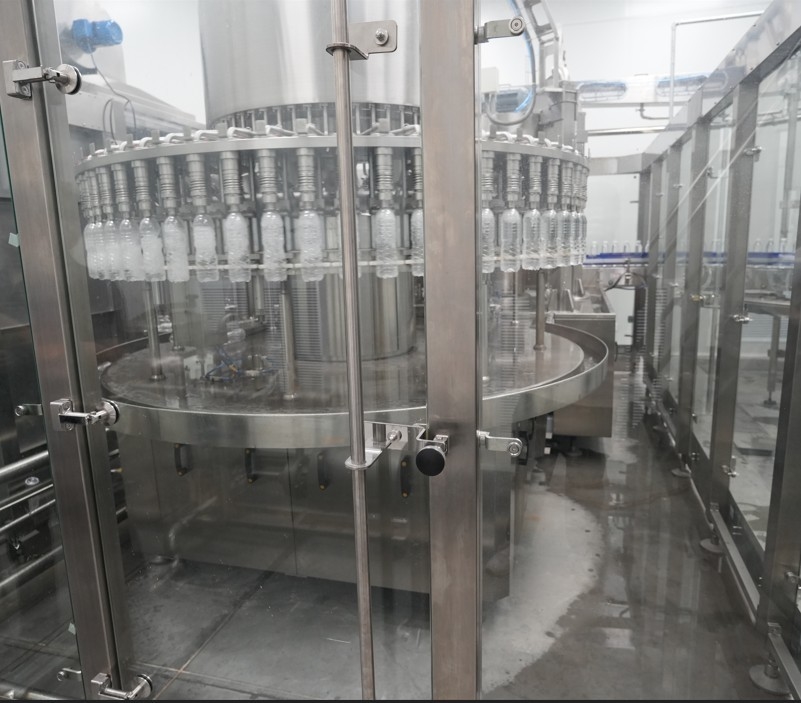

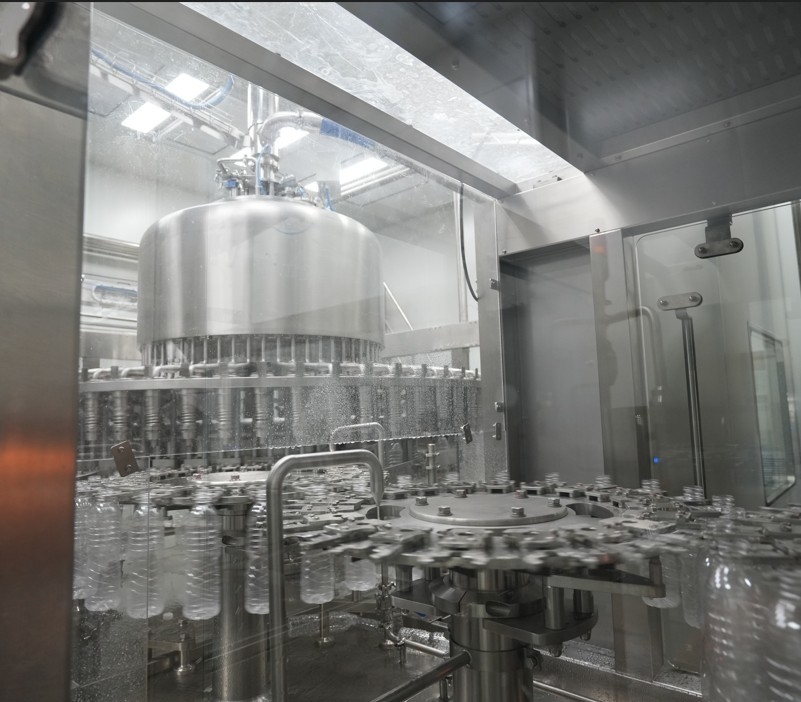

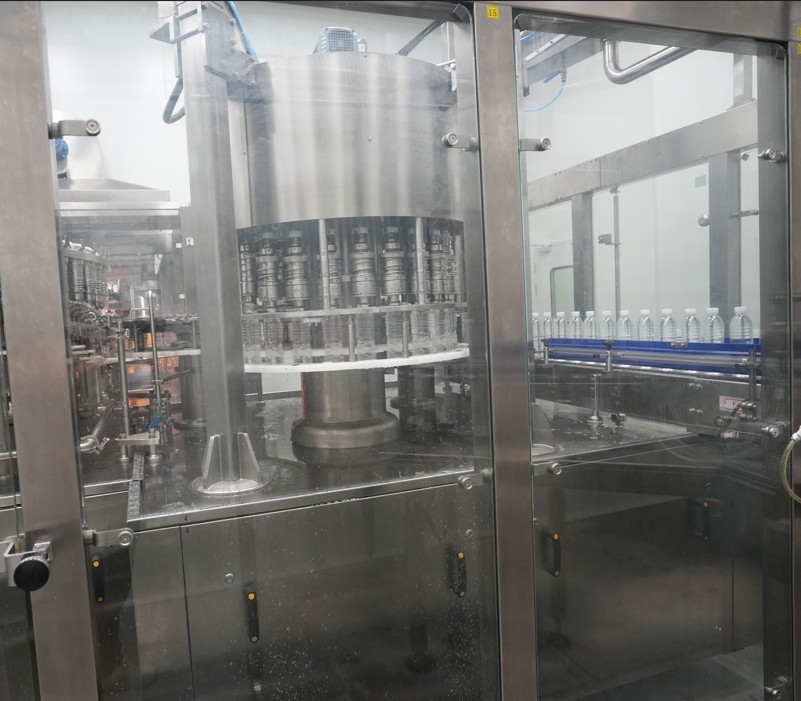

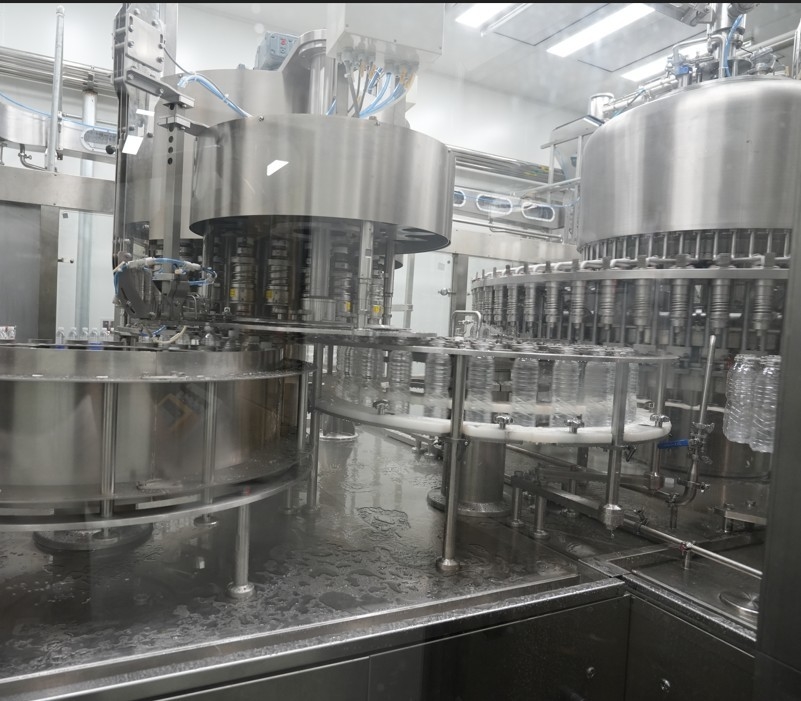

Our high-speed bottled water filling machine is engineered for beverage manufacturers seeking unmatched productivity, hygiene, and reliability. Designed for PET bottles (0.2L-5L) and 5-gallon jugs, this fully automated system achieves speeds up to 20,000 bottles per hour (BPH) while maintaining <±1% filling accuracy.

Key Features & Advantages
Ultra-Hygienic Design

316L stainless steel contact parts, CIP/SIP cleaning compatibility.

FDA-compliant seals, dust-proof servo motors, and HEPA-filtered air rinsing.

Intelligent Filling Technology

Gravity/volumetric filling with auto-level correction.

No-drip nozzles and infrared bottle positioning to minimize waste (<0.5% spillage).

Energy-Saving Operation

Servo-driven conveyors reduce power consumption by 30% vs. conventional fillers.

Quick-changeover design (under 15 minutes for bottle size adjustments).

Durability & Low Maintenance

IP65-rated electrical components, self-lubricating bearings.

Remote diagnostics via IoT-enabled touchscreen HMI (language-selectable).

Technical Specifications
Parameter Specification
Capacity 12,000–60,000 BPH (adjustable)
Filling Accuracy ±0.5% (100ml–5L), ±1% (5-gallon)
Bottle Types Round/square PET, 3/5-gallon jugs
Power Supply 380V/50Hz (60Hz optional), 15kW
Air Pressure 0.6–0.8MPa, 0.5m³/min
Dimensions L5.2m × W2.1m × H2.4m (main unit)
Certifications CE, ISO 9001/22000, FDA, GMP

FAQ
Q: What’s the minimum order quantity (MOQ)?
A: MOQ is 1 unit, with optional pilot testing before shipment.

Q: Can it handle carbonated water?
A: Yes – ask about our pressurized filler version with CO2 injection.

Q: How is after-sales support handled?
A: We provide 24/7 online support, on-site technician dispatch (optional), and a 2-year warranty.

Q: What’s the lead time?
A: 30–45 days after deposit, depending on customization.

Q: Is the machine compatible with recycled PET (rPET) bottles?
A: Absolutely – our anti-jam star wheels accommodate varying bottle thicknesses.

Why Choose Our Filling Machine?
EU/US Compliance: Meets FSMA, EU 1935/2004, and EPA energy standards.

Future-Proof Upgrades: Modular design allows adding capping, labeling, or UV sterilization modules.

Sustainability: 98% water recovery system, compatible with solar-powered plants.

Ideal for natural spring water, purified water, or electrolyte beverage producers, this machine delivers a <1% defect rate and ROI within 14 months for mid-to-large bottlers.

Request a Free Performance Simulation – Share your bottle specs, and we’ll provide a customized throughput report!
