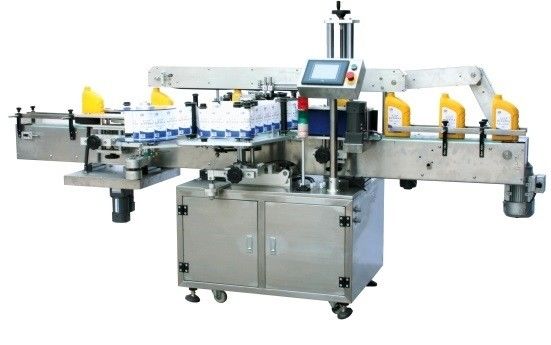

Linear Sticker Self Adhesive Labeling Machine 4.5L Bottle 9000-12000BPH

4.5L 9000-12000BPH High Speed ​​Linear Self-adhesive sticker Label Machine

Applicable bottle types: Applicable to various shapes of bottles, cans, and boxes, including but not limited to round cans, flat bottles, flat labels, etc.

Applicable bottle materials: PET/PE/PP bottles, glass bottles, etc.

Labeling speed range: 6000BPH-50000BPH

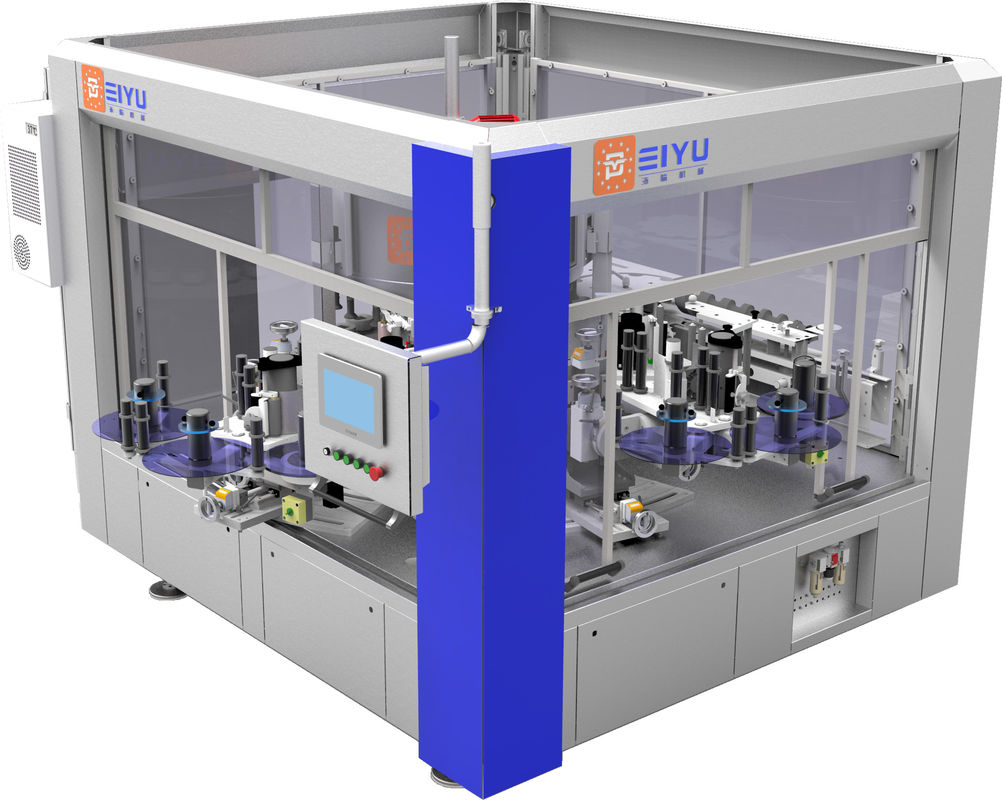

Labeling machine types: linear self-adhesive labeling machine, rotary self-adhesive labeling machine, visual positioning labeling machine, traceability code labeling machine, flat labeling machine;

1.Equipment principle and structural features

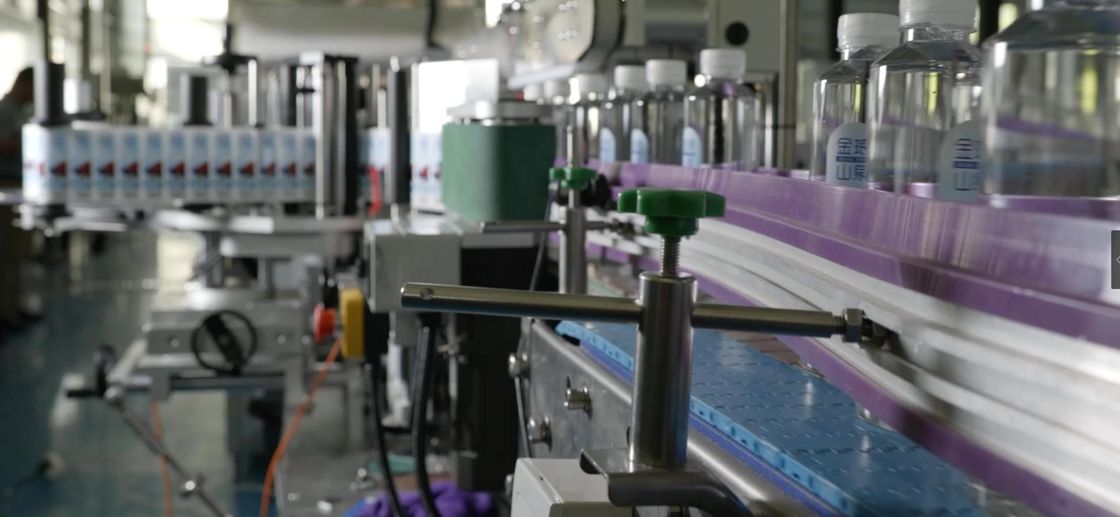

Put different packaging objects into the conveyor belt of the labeling machine, and the conveyor belt drives the bottles into the bottle separation area, and then passes through the correction machine and the pressing mechanism to bring the bottles into the labeling area. After entering the labeling area, the visual fiber detects the bottle and transmits the photoelectric signal to the PLC. After the PLC processes it, the output signal is transmitted to the servo motor, and the servo motor outputs the label. The label is attached to the bottle through the rolling mechanism. The labeled object is brought into the next process or container by the conveyor belt of the labeling machine.

The sticker labeling machine is suitable for glass bottles, PET, plastic bottles, cans and other round and square bottles. The machine adopts humanized design, flexible and convenience to adjust, and easy to operate, the low-speed torque is large, the labeling environment is clean and hygienic, the performance is stable, and the maximum capacity is up to 600 bottles/min.
The main motor adopts frequency converter speed regulation which can achieve stepless speed regulation. Controlled by the PLC, the machine has automatic speed regulating function according to the bottle stacking status of the bottle conveying line. It has bottle accumulate protection function.Labeling the sticker number from 1 to 3 sheets, label size height less than 120mm, length not greater than 220mm.The mechanical structure of the equipment is reasonable, the transmission of the rotary main structure is stable, and three labeling stations, two star wheels and one screw bottle-dividing mechanism, there are also attached with automatic bottle stopper. The bottle holder adopts advanced and flexible servo motor transmission mode, which can change the rotation position and angle of the bottle holder at any time according to the material characteristics, and it can flexibly meet the different material labeling requirements of customers in the future. The conversion parts such as the star wheel, the guide plate and the screw adopt a simple and quick disassembly structure. Bottle type is convenient and quick to replace (just need to change the changed parts), that can reduce labor intensity. The servo mechanism can accurately and stably control the rotation angle and position of the bottle type (easy to replace bottle type in the future). The diameter of the bottle turntable cirele: Ф960mm; the number of pressure bottle heads: 20pcs; the star wheel station: 10 sets; the labeling machine adopts automatic frequency conversion control technology, without limit shifting adjustment, that can meet the smooth and accurate labeling at various speeds, and the technology can match the control system of entire production line.

2.Motor system:
The motor adopts imported labeling system, Delta PLC and function module, and imported stepping motor. The label output stability and synchronization are extremely high, the response speed is as fast as 300 times/minute, and the torque is strong, and it never loses step.

3.Taiwan Delta microcomputer control system:
As long as the machine is turned on, the system has completed all labeling calculations and preparations, and the perfect product can be labeled by pressing the start button.

4.Operation method:
A. It adopts imported touch-screen human-machine interface, with full Chinese and English display. You can easily go online by following the instructions on the display screen without any experience, which greatly shortens the training time of personnel; the production speed can be set arbitrarily, and the production speed can be automatically adjusted to match the speed of any production line for the most efficient production operation.
B. If there is an abnormal fault: such as label exhaustion, tape breakage, ribbon exhaustion, count setting arrival, mechanical abnormality, etc., it will automatically stop and issue an alarm.

5.Mechanical design:

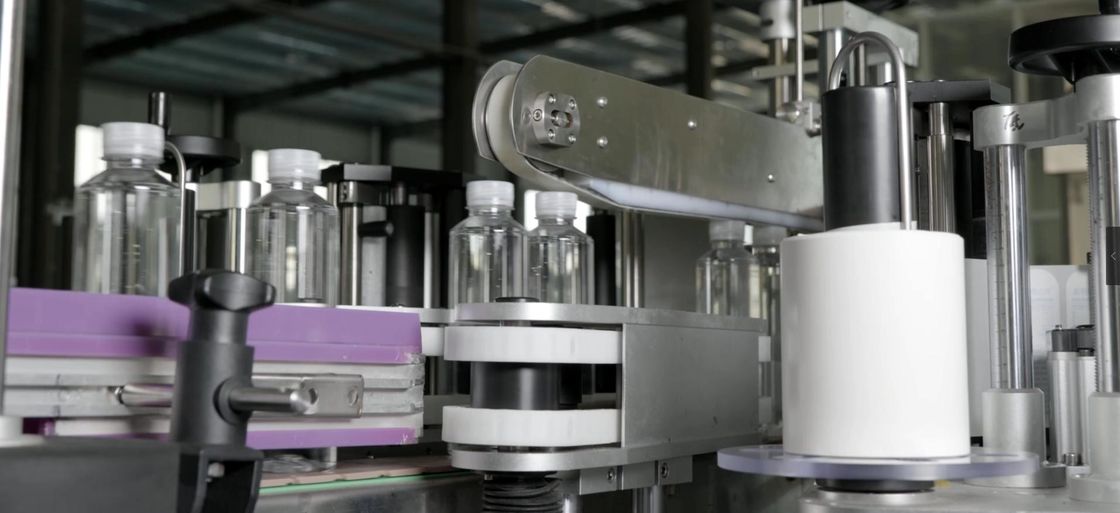

1)Super wear-resistant label rolling mechanism, made of special rubber material, durable and non-wear.
2)Accurate differential bottle separation mechanism, bottle separation accuracy up to ±5mm, no need to replace accessories when changing bottles of different specifications, saving costs and easy adjustment.
3)The stable and durable machine base and various parts are all standardized modular design with full interchangeability, 24-hour operation, ensuring safety and stability.
4)The chassis is made of stainless steel SUS304 material and T6 aluminum alloy, which will never rust and meet GMP specifications.

6.Main technical parameters:
Voltage specification: AC220V 50/60HZ
Power consumption: 1500W
Labeling speed: 200～～250 bottles/min (speed adjustable, depending on the size of the object and the length of the label)
Labeling accuracy: +1mm (depending on the product characteristics, hardness and roundness)
Object range: height 40mm～～400mm (can be customized according to customer requirements)
Label specifications: width 15mm～～150mm height 10～～200mm (special specifications can be customized)
Inner diameter of paper roll: Φ76mm Outer diameter of paper roll: Φ350 (maximum)
Weight: 280KG
Packing size: 2800X1300X1500mm

7.Self-adhesive sticker Label machine configuration:

Note: The configuration in the above solution is our company's regular configuration. If affected by the delivery cycle of external suppliers, our company will choose a brand with the same configuration at its discretion, and the company will not make any additional notification.

8.Quotation and delivery time for Linear Sticker Self Adhesive Labeling Machine 4.5L Bottle 9000-12000BPH:

(1).Quotation validity period: 1 month;
(2).Payment method: T/T, L/C.
(3).Customers provide the product and packaging samples required for factory trial free of charge;
(4).Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.

9.Quality Assurance for Linear Sticker Self Adhesive Labeling Machine 4.5L Bottle 9000-12000BPH:
(1).The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2).The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3).The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4).The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5).The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.

10.Equipment warranty for Linear Sticker Self Adhesive Labeling Machine 4.5L Bottle 9000-12000BPH:
(1).After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2).If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3).After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life;

11.Packaging and transportation for Linear Sticker Self Adhesive Labeling Machine 4.5L Bottle 9000-12000BPH:
(1).Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2).Transportation method: land transportation, sea transportation.
