Robotic Empty Can Glass Bottle Depalletizer Equipment 36000CPH
High Speed and High Stability 36000CPH Empty Can Depalletizer
Shanghai Peiyu Packaging Technology Co.,Ltd.
Depalletizers are divided into empty can/bottle/box depalletizers and full can/bottle/box depalletizers.
Scope of Application
Used in food and beverage industry, chemical industry, etc.; equipped with three-in-one filling lines to depalletize various bottles, cans and boxes.
Capacity Range
2-3 layers per minute, 600-800 cans per minute.
1. Empty Can Depalletizer Equipment Introduction

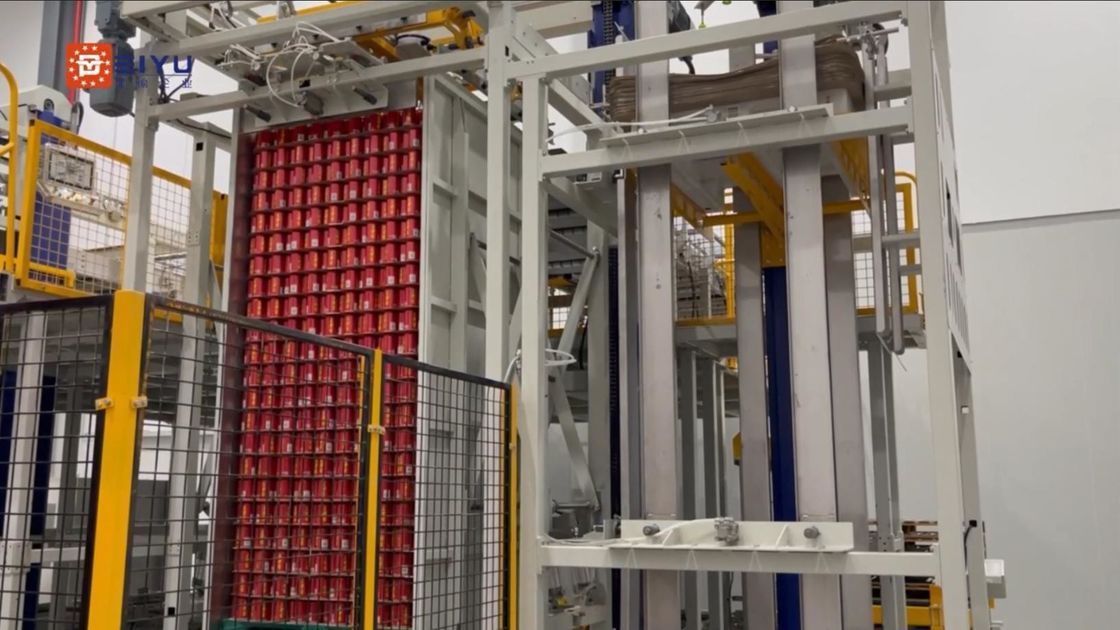

High position de-palletizer are mainly used for empty bottles (tin cans, glass bottles, etc.). It mainly consists of conveying line, suction insert plate, unloading mechanism, main frame, stack receiver, bottle net chain, single column storage insert plate and etc.
- The conveyor line is driven by chain, the movement is stable and reliable, and more than two products can be pre-stored in the position.
- The equipment has a clip and suction insert plate device, which can make the automatic dc-palletizing, and the empty can de-palletizers automatic collects the insert plate and pallet after the de-palletization is completed.
- The whole machine is controlled by PLC linkage control, with the touch-screen operating system, it is very easy and convenient to operate, and it can handle exception problem quickly.
The low position bottles de-palletizer is use for automatically unload the empty bottles from the stack layer by layer. The hydraulic lifting platform is placed below the ground, and the height of the entrance conveyor and exit height is lower than high position de-palletizer. This model is mostly semi-automatic, the price cheap. Hydraulic lifting, it is stable and reliable, the PLC and touch screen electrical control system, with the function of fault alarm, equipment operation and maintenance very easy.
2. Equipment Features
- Suitable for unloading empty aluminum bottles/cans/PET/glass cans.
- The main frame requires a gantry frame type, a square tube welded base, and a carbon steel plate thickness of more than 6mm.
- The main drive and lifting chain are RS60 double-row high-strength chains.
- The main drive is a well-known brand with a brake motor reducer.
- The stacking conveyor line is RS80 single-row high-strength chain, the conveying speed can be variable frequency speed regulation, and the stacking position can store more than 2 stacks of products.
- The door panels on both sides of the main unloading position are automatically adjusted when entering the stack. The two door panels are carbon steel welded, and the surface is attached with 2.5T SUS304.
- The can conveyor is a high-strength small-pitch plastic steel module mesh belt, and the body plate is 2.5T SUS304.
- It is required to automatically suck and release the collection partition when unloading the can, and it is required to have an adjustment clipboard mechanism to unload the cans in one layer to prevent cans from falling.
- Empty pallets are automatically collected, and the lifting drive is a brake motor reducer, and the lifting movement is smooth.
- The artificial platform is a carbon steel structure, and the surface is covered with anti-slip patterned aluminum plate.
- The unloading height is 2500mm, which can be adjusted according to customer requirements.
- The whole machine is controlled by PLC linkage, automatically in place, positioning, automatic lifting, automatic suction and release of partitions, automatic unloading of cans, and automatic collection of empty pallets. It is required to be simple to operate and able to quickly handle abnormal problems.
3. Equipment Composition
This machine consists of a full stack input device, a lifting device, a can shaping and pushing device, a cardboard suction device, an empty pallet collection device, an empty can conveyor belt, a manual platform device, a safety device and an automatic control device.
The lifting of this machine is automatically controlled by a PLC computer to rise in layers and automatically position. The can body is automatically and orderly discharged by an electric eye, the partition is automatically sucked and released, and the empty pallets are automatically stacked.
Certification and Customer Cases
4. Main Equipment Parameters
| Machine speed |
600-800 cans/minute (depending on can type) |
| Maximum load per layer |
250Kg |
| Maximum load per pallet |
1500Kg |
| Maximum stacking height per stack |
2400mm (can be designed according to customer requirements) |
| Installation power |
20Kw |
| Air pressure |
7bar |
| Air consumption |
800L/min |
| Power supply |
Power supply 380V × 50 Hz × 3
Control power supply 220V × 50 Hz × 2 |
| Machine size |
12000mm long × 5000mm wide × 4500mm high |
5. Peiyu Electrical Configuration
| Main configuration |
Brand |
| PLC |
Inovance |
| Touch screen |
Weiluntong or Schneider |
| Servo motor and controller system |
Inovance |
| Frequency converter |
Inovance |
| Proximity electronic switch |
SICK or equivalent brand |
| Pneumatic components |
Festo or equivalent brand |
| Voltage regulator |
Festo or equivalent brand |
| Air switch |
Schneider or equivalent brand |
| Motor protector |
Schneider or equivalent brand |
| Contactor |
Schneider or equivalent brand |
| Button |
Schneider or equivalent brand |
| Intermediate relay |
Schneider or equivalent brand |
| Phase loss protector |
Schneider or equivalent brand |
| Terminal |
Phoenix |
6. Quotation and Delivery Time
- Quotation validity period: 1 month
- Payment method: T/T, L/C
- Customers provide the product and packaging samples required for factory trial free of charge
- Delivery time: 60 working days from the receipt of customer deposit and product packaging samples
7. Quality Assurance
- The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials
- The company guarantees that after proper installation and debugging, the equipment will reach the various technical performance indicators within 15 days of operation
- The company guarantees that within the quality assurance period, it will be responsible for defects caused by design, manufacturing, or materials
- The equipment quality assurance period is 12 months after acceptance
- The company guarantees the mechanical performance, product quality and consumption indicators of the equipment
8. Equipment Warranty
- 12-month warranty after acceptance, with 24-month warranty for control system (standard Huichuan brand)
- Maintenance personnel will arrive at customer's site within 48 hours for repairs (except for force majeure)
- After warranty period, lifetime technical support and spare parts supply available
9. Packaging and Transportation
- Packaging uses new and sturdy special packaging boxes or fixed frames
- Suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof
- Transportation methods: land transportation, sea transportation
