Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology

Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology

fully automatic beans sterilizer

sterilization retort with shake rotary

direct principle technology sterilizer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

customized

Contact Us
Request A Quote
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology
Product Details
Model NO.:
Customized
Customized:
Customized
Scale:
Large
Automation:
Automatic
Principle:
Shake Rotary Direct
Structure:
Tunnel
Operation:
Continuous
Energy:
Heat Sterilization
Property:
Physical Sterilization
Type:
High Voltage Electric Field Sterilization Equipment
Diameter:
DN1200
Length:
6000mm
Dimension:
6600X1500X2000mm
Material:
SUS304
Material Thickness:
8mm
Transport Package:
Film Package
Specification:
DN1200
Trademark:
Peiyu
Origin:
China
Supply Ability:
500 Sets/Year
Package Size:
1.00cm * 1.00cm * 1.00cm
Package Gross Weight:
1.000kg
Customization:
Available
After-sales Service:
24h Online Remote Technical Service /Customer Site
Warranty:
12 Months
Shipping Cost:
Contact The Supplier About Freight And Estimated Delivery Time.
 :
Support Payments In USD
Secure Payments:
Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:

fully automatic beans sterilizer

,

sterilization retort with shake rotary

,

direct principle technology sterilizer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
30 pcs per month
RELATED PRODUCTS
Good price Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology online Video

Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology

Get Best Price
Good price Continuous Operation Fully Automatic Sterilizer Autoclave Sterilization Retort with Enhanced Highly Secure Capabilities online Video

Continuous Operation Fully Automatic Sterilizer Autoclave Sterilization Retort with Enhanced Highly Secure Capabilities

Get Best Price
Good price 24h Online Remote Technical Service Diameter DN1200 Fully Automatic Canned Food Sterilization Meat Sterilization Machine online Video

24h Online Remote Technical Service Diameter DN1200 Fully Automatic Canned Food Sterilization Meat Sterilization Machine

Get Best Price
Good price Heat Sterilization Fully Automatic Static Retort Pressure Sterilizer Batch Retort 6600X1500X2000mm Ideal for Food Processing online Video

Heat Sterilization Fully Automatic Static Retort Pressure Sterilizer Batch Retort 6600X1500X2000mm Ideal for Food Processing

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology
Product Description
Introduction to the configuration of the autoclave

The pot body is made of SUS304 stainless steel

  • Double-door vertical hydraulic upper-opening structure
  • Basket per pot
  • The insulation of the pot body is made of SUS304 stainless steel
  • Using high temperature hot water to exhaust air
  • All gas connections and lines required for the sterilizer are connected with open wires and outsourced cables
  • Working pressure: 0.3Mpa
Safety device for the tank
  • Safety valve
  • Safety interlock
  • Emergency button
  • Alarm light and alarm buzzer
  • Alarm system
HMI
  • The sterilization status (temperature, pressure, valve status, liquid level, door opening status) can be checked at any time
  • You can edit the sterilization formula by yourself
  • Use a paperless recorder to monitor and record all the processing data in the retort
  • Pot temperature, pot pressure, sterilization time, high and low temperature and liquid level alarm
  • Automatic control of the sterilization process, dynamic tracking and recording of the operating status of the sterilizer, parameters of the sterilization process, alarm records, etc.

Please refer to the configuration list for the detailed configuration of the wall thickness of the sterilizer process tank, valve instrument, PLC, and paperless recorder

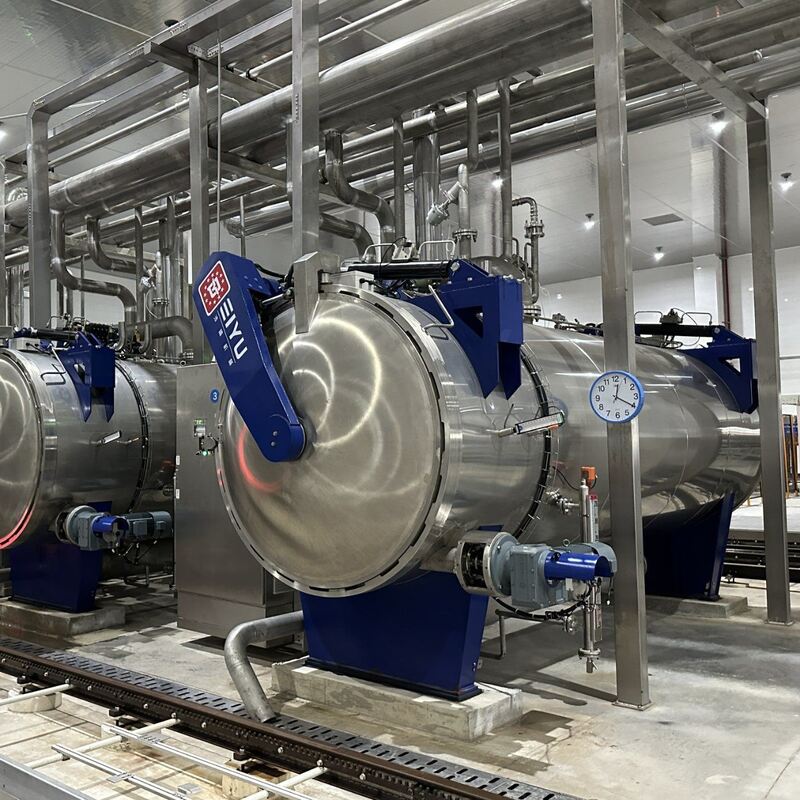

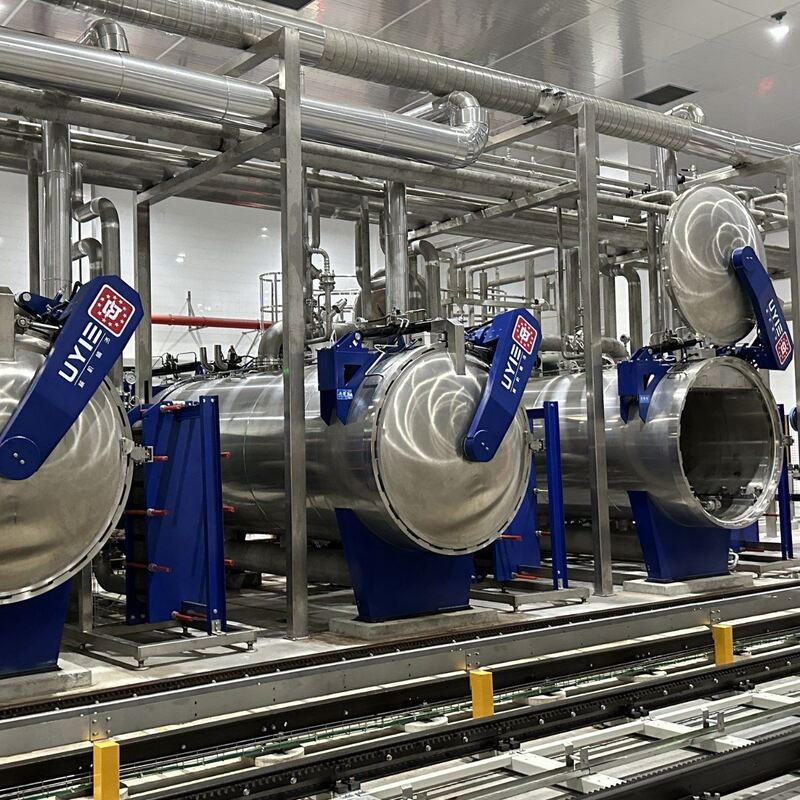

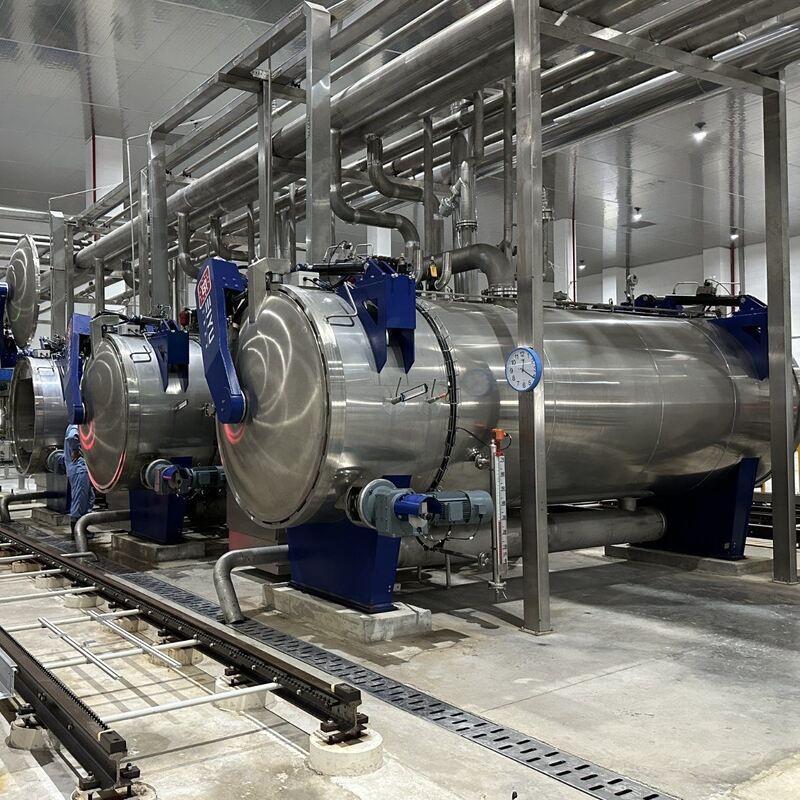

Detailed Photos
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 0 Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 1 Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 2
Product Parameters
Items unit DN1200# DN1300# DN1500# DN1600# DN1800# DN1900#
Total length mm 6600 6600 7700 7700 8800 9800
Total width mm 3500 1700 2000 2200 2400 2800
Total hight mm 2000 2200 2400 2600 2800 3000
Certifications
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 3
Electrical components
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 4
Work shop
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 5 Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 6
Our customers
Physical Sterilization Fully Automatic Beans Sterilizer Cans Sterilization With Shake Rotary Direct Principle Technology 7
