Name: SUS304 Stainless Steel Automatic Control Sterilization Retort Autoclave with DN1200 Diameter
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: customized
Availability: InStock

Home > Products > Sterilization Retort >

SUS304 Stainless Steel Automatic Control Sterilization Retort Autoclave with DN1200 Diameter

sterilization retort for pet food

canned meat retort autoclave

pet food sterilizer with warranty

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

customized

Request A Quote

Product Details

Model NO.:

SPCFM. CON

Scale:

Large

Automation:

Automatic

Principle:

Shake Rotary Direct

Structure:

Tunnel

Operation:

Continuous

Energy:

Heat Sterilization

Property:

Physical Sterilization

Type:

High Voltage Electric Field Sterilization Equipment

Diameter:

DN1200

Length:

6000mm

Dimension:

6600X1500X2000mm

Material:

SUS304

Material Thickness:

8mm

Working Pressure:

0.3Mpa

Highlight:

sterilization retort for pet food

canned meat retort autoclave

pet food sterilizer with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

10-20 workdays

Payment Terms

L/C,T/T

Supply Ability

30 pcs per month

marketing@pyspc.com

Contact Now

Product Description

Wet Pet Food Canned Meat Sterilizer Retort Autoclave

Advanced retort autoclave system designed for sterilizing wet pet food products including canned meats, olives, artichokes, and green beans with precision and reliability.

Autoclave Configuration & Features

SUS304 stainless steel pot body construction
Double-door vertical hydraulic upper-opening structure
Single basket per pot design
SUS304 stainless steel insulation
High temperature hot water exhaust system
Open wire and outsourced cable connections for all gas lines
Working pressure: 0.3Mpa

Safety Systems

Safety valve protection
Safety interlock mechanism
Emergency stop button
Alarm light and buzzer system
Comprehensive alarm monitoring

Control & Monitoring

HMI interface for real-time monitoring of temperature, pressure, valve status, liquid level, and door status
Customizable sterilization formula editing
Paperless recorder for comprehensive data monitoring and recording
Automatic process control with dynamic tracking of operating status
Complete parameter and alarm record keeping

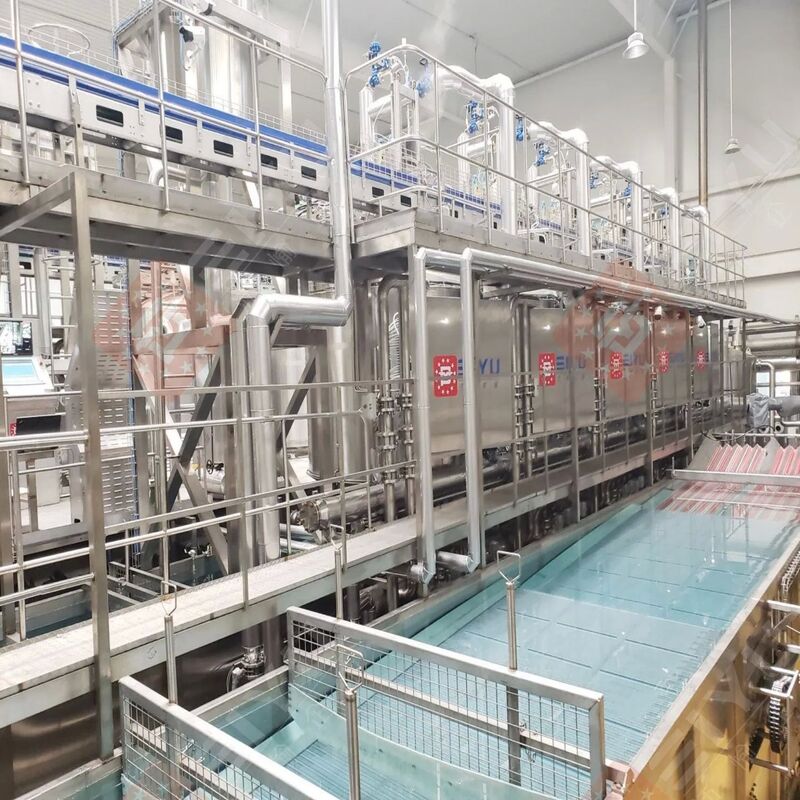

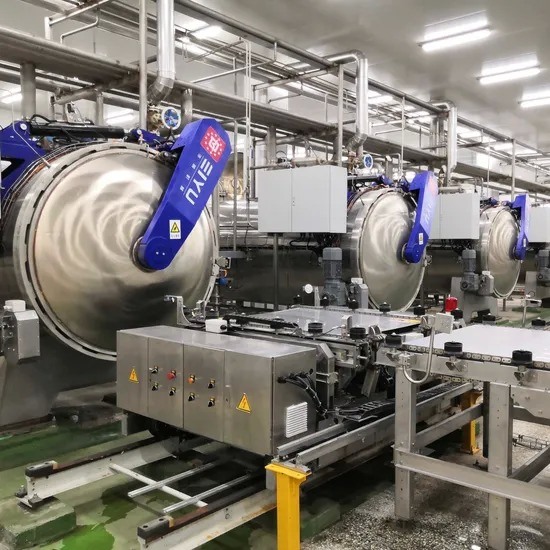

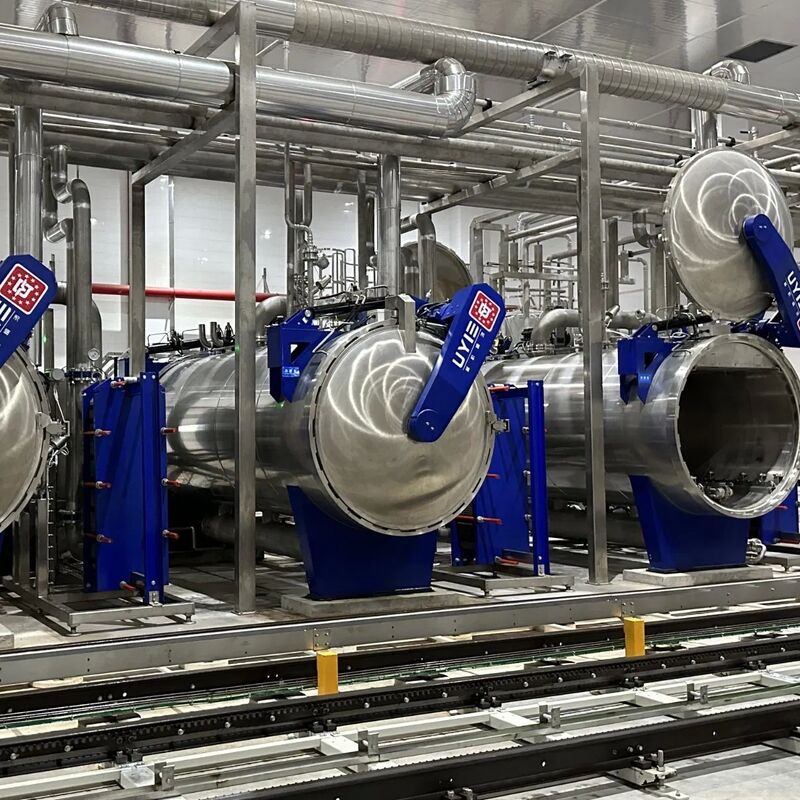

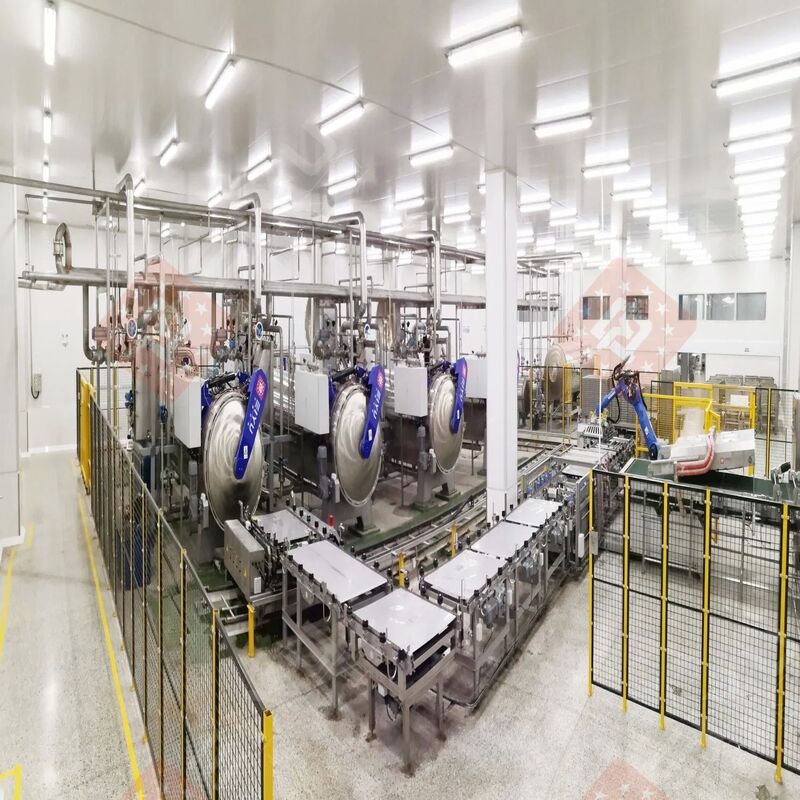

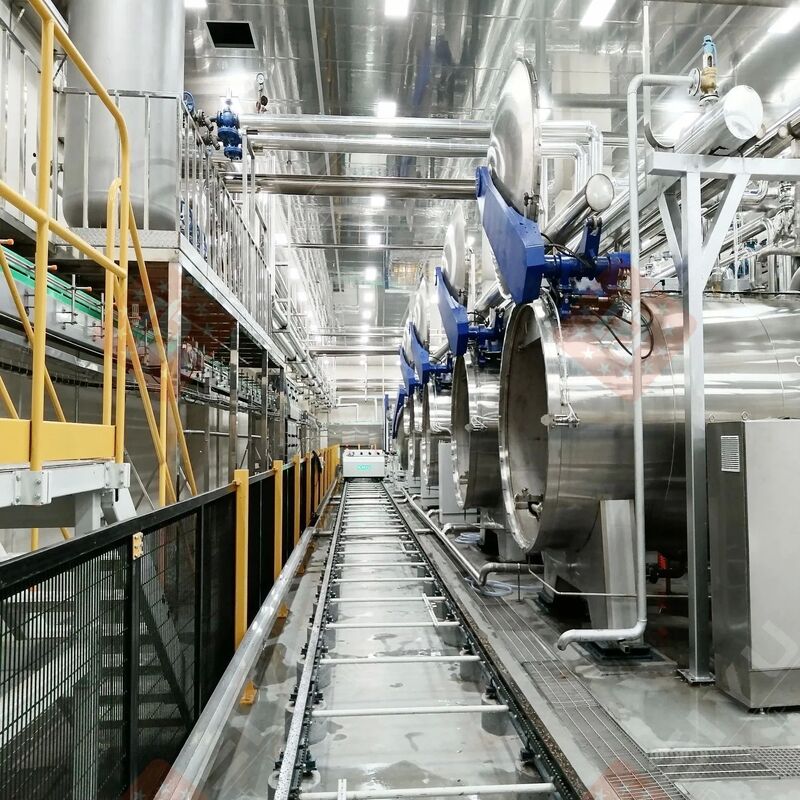

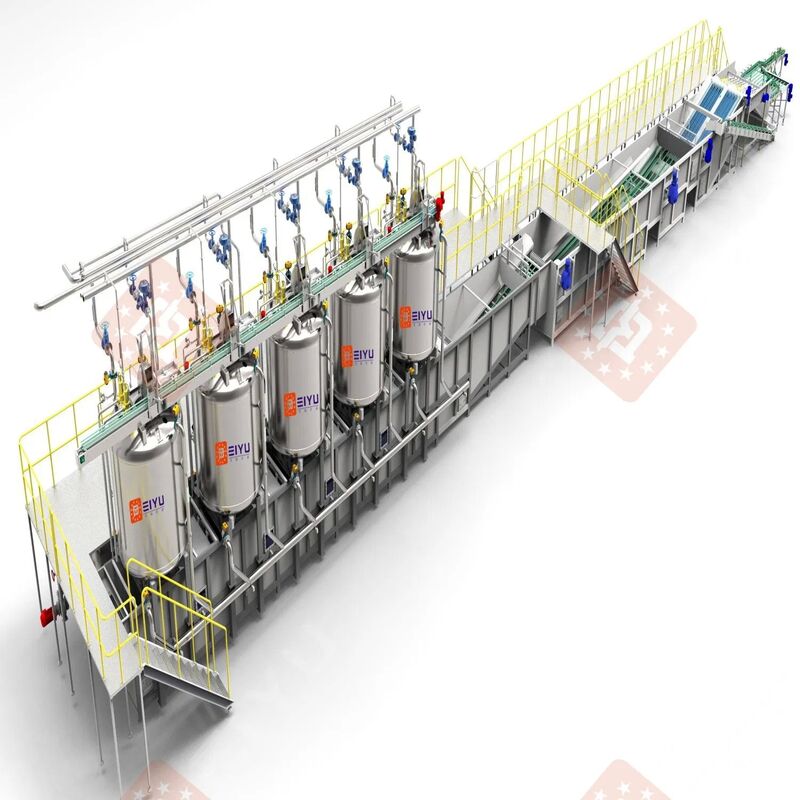

Product Images

Technical Specifications

Items	Unit	DN1200#	DN1300#	DN1500#	DN1600#	DN1800#	DN1900#
Total length	mm	6600	6600	7700	7700	8800	9800
Total width	mm	3500	1700	2000	2200	2400	2800
Total height	mm	2000	2200	2400	2600	2800	3000

Certifications & Components

Manufacturing Facility

Our Customers
