Name: Fully Automatic SUS304 Stainless Steel DN1200 Sterilization Retort Autoclave for Industrial Use
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: Customized
Availability: InStock

Home > Products > Sterilization Retort >

Fully Automatic SUS304 Stainless Steel DN1200 Sterilization Retort Autoclave for Industrial Use

fully automatic sterilization retort machine

steam sterilization retort production line

industrial retort sterilization equipment

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterperis

Model Number:

Customized

Request A Quote

Product Details

Model NO.:

SPC

Scale:

Large

Automation:

Automatic

Principle:

Shake Rotary Direct

Structure:

Tunnel

Operation:

Continuous

Energy:

Heat Sterilization

Property:

Physical Sterilization

Type:

High Voltage Electric Field Sterilization Equipment

Diameter:

DN1200

Length:

6000mm

Dimension:

6600X1500X2000mm

Material:

SUS304

Material Thickness:

8mm

Working Pressure:

0.3Mpa

Highlight:

fully automatic sterilization retort machine

steam sterilization retort production line

industrial retort sterilization equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

30 pcs per month

marketing@pyspc.com

Contact Now

Product Description

Fully Automatic Steam Sterilization Retort Production Line

Advanced industrial sterilization system designed for efficient and reliable processing of packaged goods using steam sterilization technology.

System Configuration & Features

Pot body constructed from SUS304 stainless steel for durability and corrosion resistance
Double-door vertical hydraulic upper-opening structure for easy access
Single basket per pot configuration
Insulation made of SUS304 stainless steel
High temperature hot water exhaust system
All gas connections and lines feature open wiring with outsourced cables
Working pressure: 0.3Mpa

Safety Systems

Safety valve protection
Safety interlock mechanism
Emergency stop button
Visual alarm light and audible buzzer
Comprehensive alarm system

Control & Monitoring

HMI interface for real-time monitoring of sterilization status including temperature, pressure, valve status, liquid level, and door opening status
Customizable sterilization formula editing capability
Paperless recorder for comprehensive data monitoring and recording
Automatic control of sterilization process with dynamic tracking
Complete recording of operating status, process parameters, and alarm history

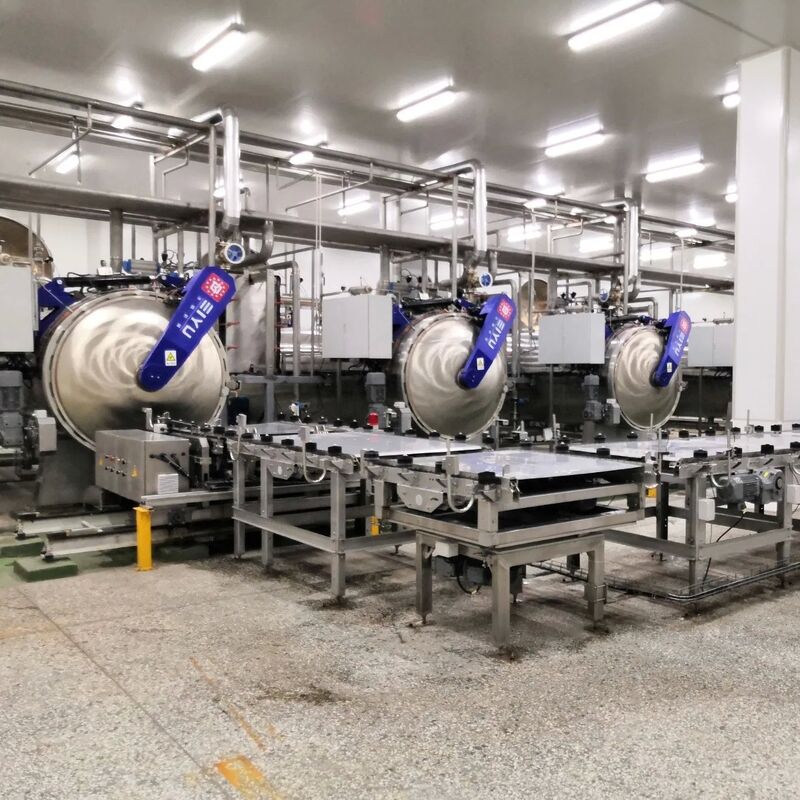

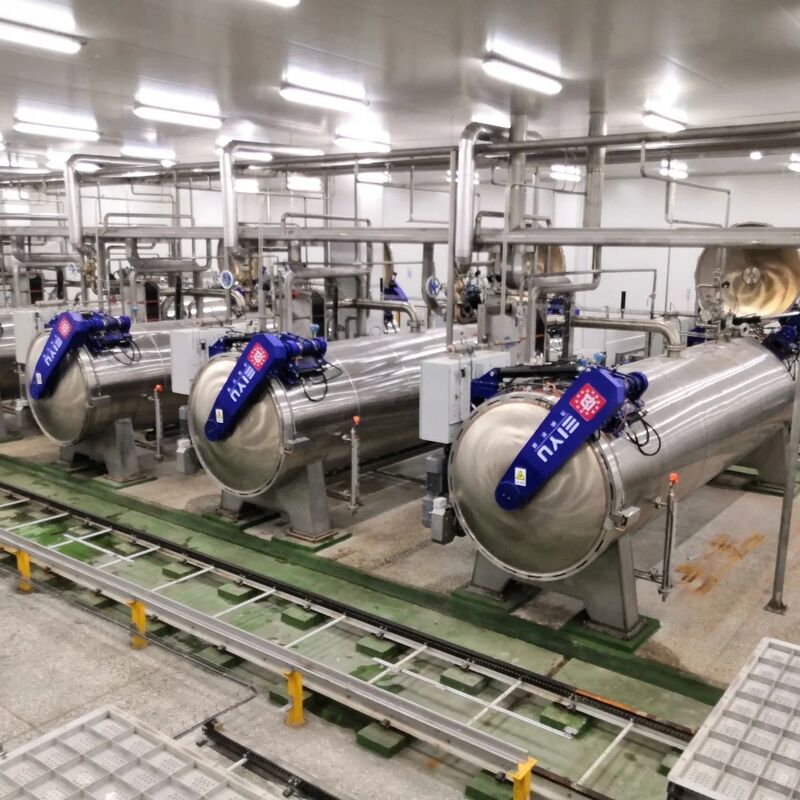

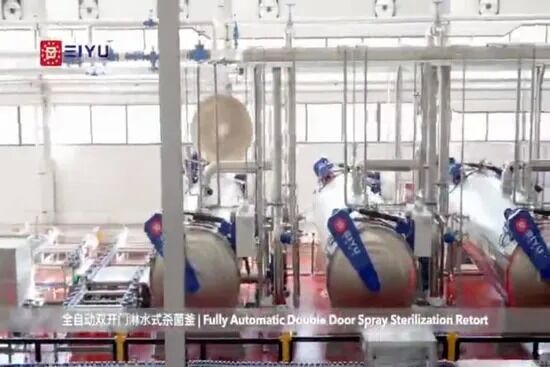

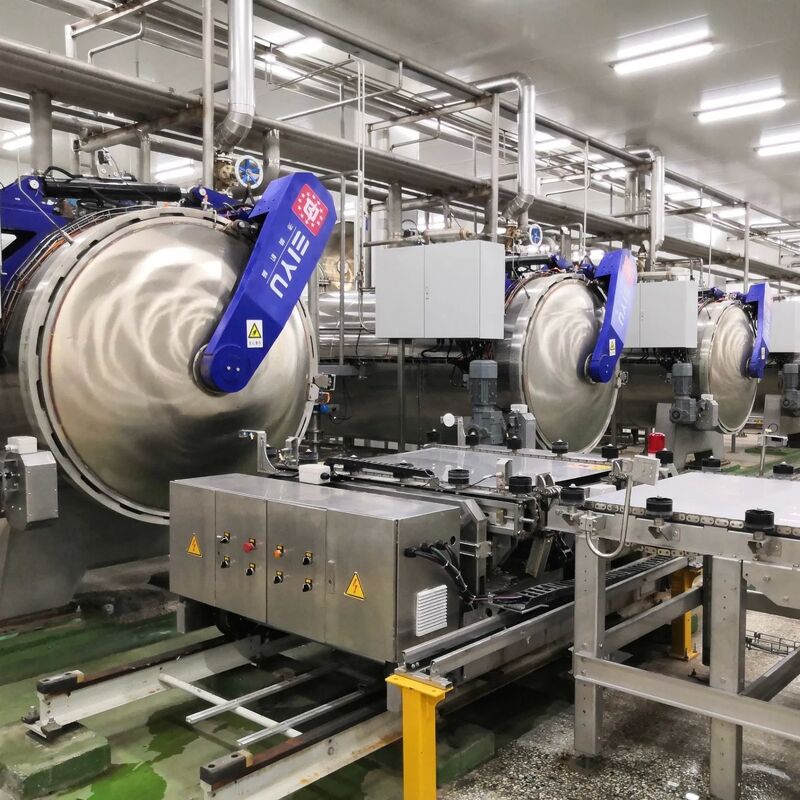

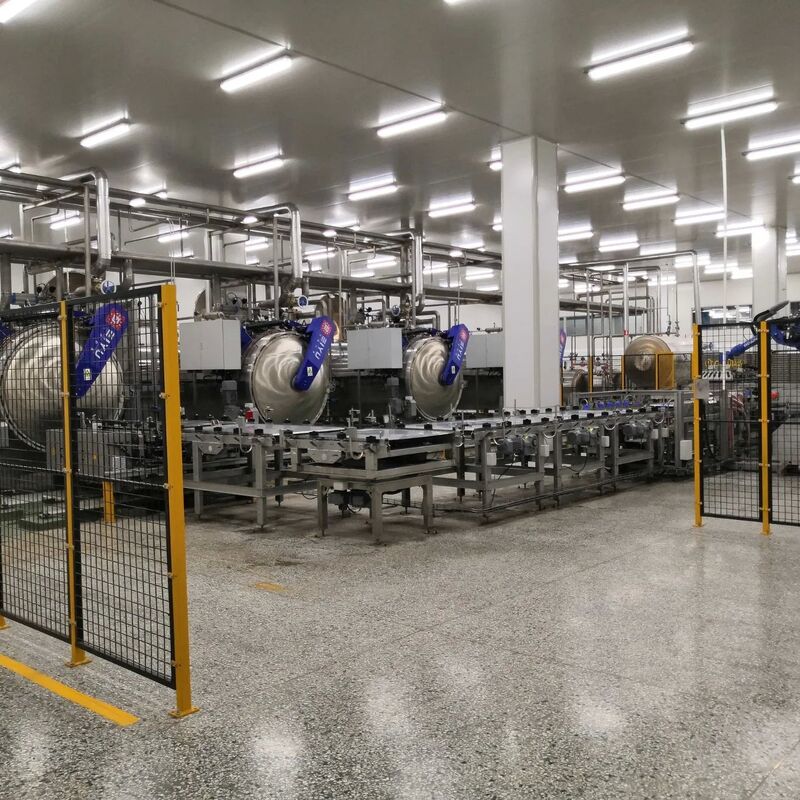

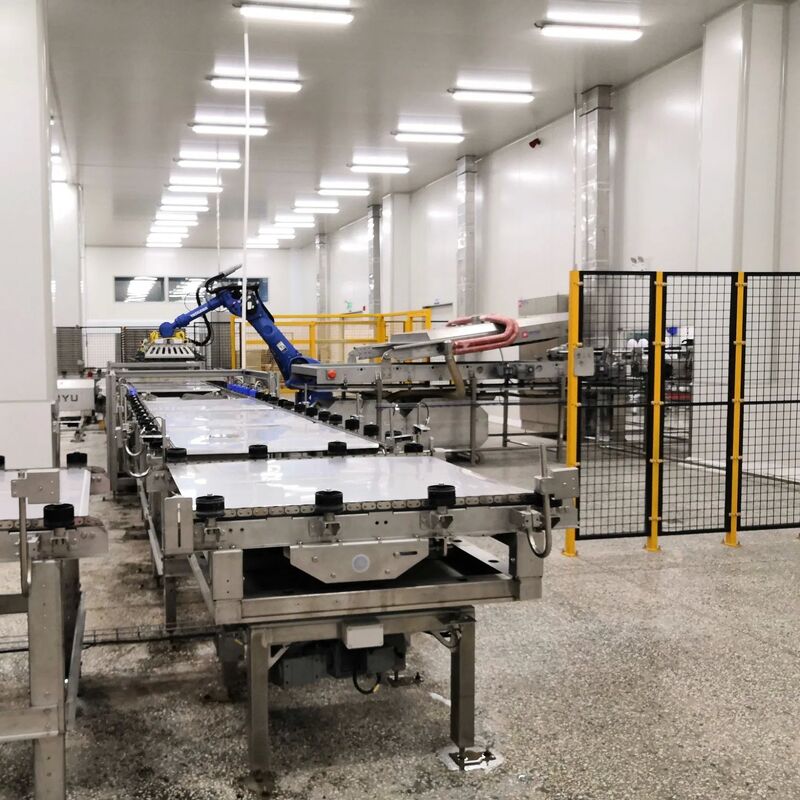

Product Images

Technical Specifications

Items	Unit	DN1200#	DN1300#	DN1500#	DN1600#	DN1800#	DN1900#
Total Length	mm	6600	6600	7700	7700	8800	9800
Total Width	mm	3500	1700	2000	2200	2400	2800
Total Height	mm	2000	2200	2400	2600	2800	3000

Certifications & Components

Manufacturing Facility

Customer References
