Name: Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > Products > Sleeve Labeler >

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 9000-72000bph

sleeve labeling machine for cans

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Product Details

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75mm ~ 280mm

Packaging Verticality:

≤0.25°

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Material:

PVC, PET, OPS

Label Spacing:

≥5mm

Label Core Diameter:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Voltage:

AC380V, 50/60HZ, 3 Phases

Labeling Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Pressure:

0.2-0.4MPa

Highlight:

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 9000-72000bph

sleeve labeling machine for cans

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

Get Best Price

Video

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

40,000 Bottles Per Hour Single Head Sleeve Labeling Machine

Product Overview

High-speed sleeve labeling machine with production capacity up to 72,000 bottles per hour, suitable for various bottle types and materials including PET, PE, PP, glass, and metal containers.

Key Features

Wide Compatibility: Handles square, flat, and round bottles from 50mm to 95mm diameter
High Speed: 9,000-72,000 bottles per hour production capacity
Advanced Technology: Hob cutting system eliminates label burrs
Precision Labeling: ≥99.9% qualified rate with ≤0.25° packaging verticality
Modular Design: Customizable for various production line requirements

Technical Specifications

Parameter	Specification
Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100mm)
Bottle Dimensions	50-95mm diameter, 75-280mm height
Label Specifications	45-240mm length, 0.045-0.06mm thickness (PVC/PET/OPS)
Power Requirements	AC380V, 50/60Hz, 3 phases (26KW machine + 1.6KW furnace)
Dimensions	400021002750mm (LWH)

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control	Inovance, China
Pneumatic Components	SMC
Proximity Switches	SICK/Keyence or equivalent
Terminals	Phoenix

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Floor-standing transparent observation frame
Modular bottle separation screw system
Main conveyor with labeling head
Label brushing mechanism
Roller label punching assembly
Steam shrinking furnace (3-5 stage configuration)

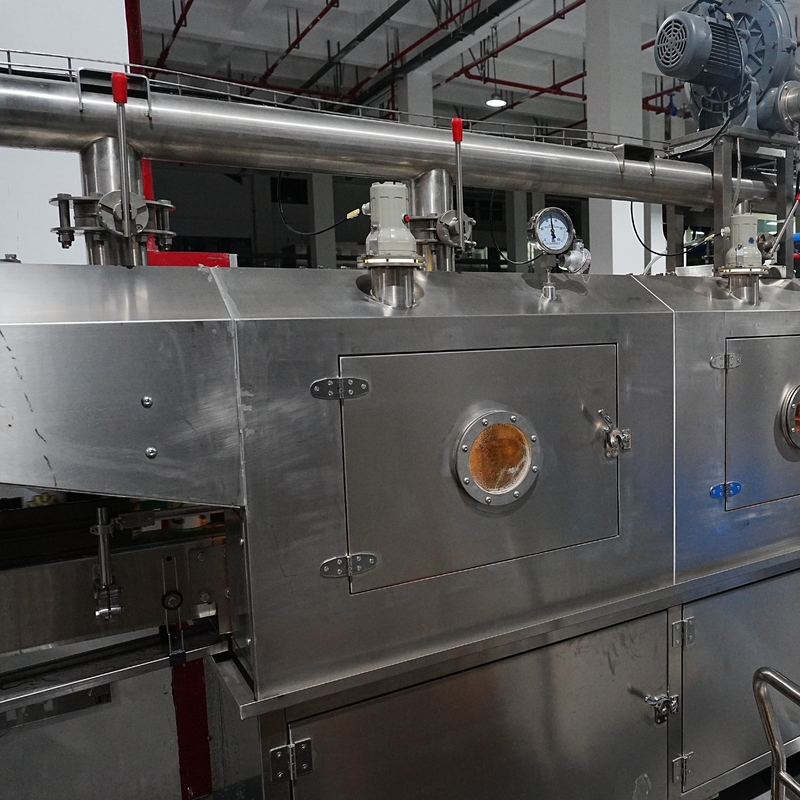

Steam Shrinking Furnace Features

Temperature Control System

3-5 zone proportional valve control with adjustable nozzle configuration for optimal shrinking performance

Energy Saving Design

Two-stage pressure reduction system with Japanese valves and automatic steam flow adjustment based on production speed

Condensation Management

Double-layer insulation with integrated water tray and centralized drainage system

Manufacturer Information

Peiyu Enterprise operates multiple manufacturing facilities in China with 60,000m² production base, equipped with advanced processing equipment including laser cutting machines and precision machining centers. The company holds ISO9001 certification and European CE certification, supplying packaging solutions to global brands in food, beverage, pharmaceutical, and cosmetic industries.
