High-Speed Automatic Sleeve Labeling Machine Model 450 & 460
Shanghai Peiyu Packaging Technology Co., Ltd.
Key Specifications
Applicable Bottle Types: Round, oval, square, and special-shaped bottles
Applicable Materials: PET/PE/PP bottles, glass bottles, cans
Labeling Speed: 12,000 - 60,000 BPH
Equipment Overview
Peiyou High-Speed Sleeve Labeling Machine (7-15 Servo High-Performance 4th Generation Motion Control)
Key Technologies
- Label Cutting Accuracy and Stability
- Labeling Accuracy and Precision
- Label Feeding Control
- Drive Components
- Cutter Head Components
- Brushing Down Components
- Center Column
Technical Features
Label Cutting Accuracy: ±0.5mm precision with microsecond-level probe control
Labeling Precision: Touchscreen parameter setup with real-time fine-tuning capability
Label Feeding: Multi-order feeding curve with 6-servo independent control electronic cam technology
Drive System: Five-axis integrated machining with efficient transmission
Cutter Head: Helical gear transmission with self-lubricating plastic/steel gear combination
Brushing Mechanism: Independent servo motor control with timing belt transmission
Center Column: Imported high-wear-resistant material with four-axis machining precision

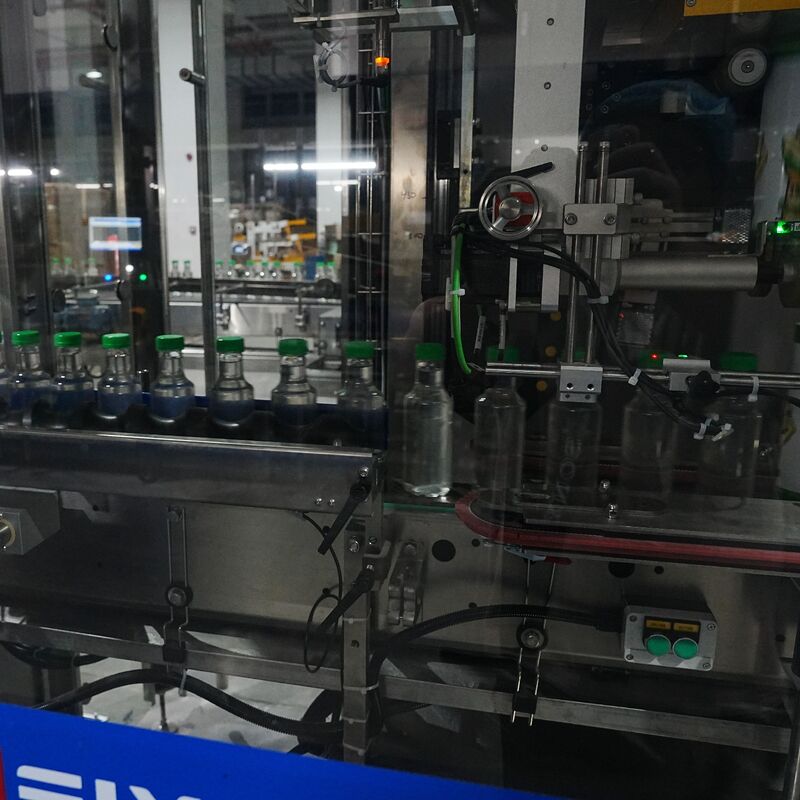

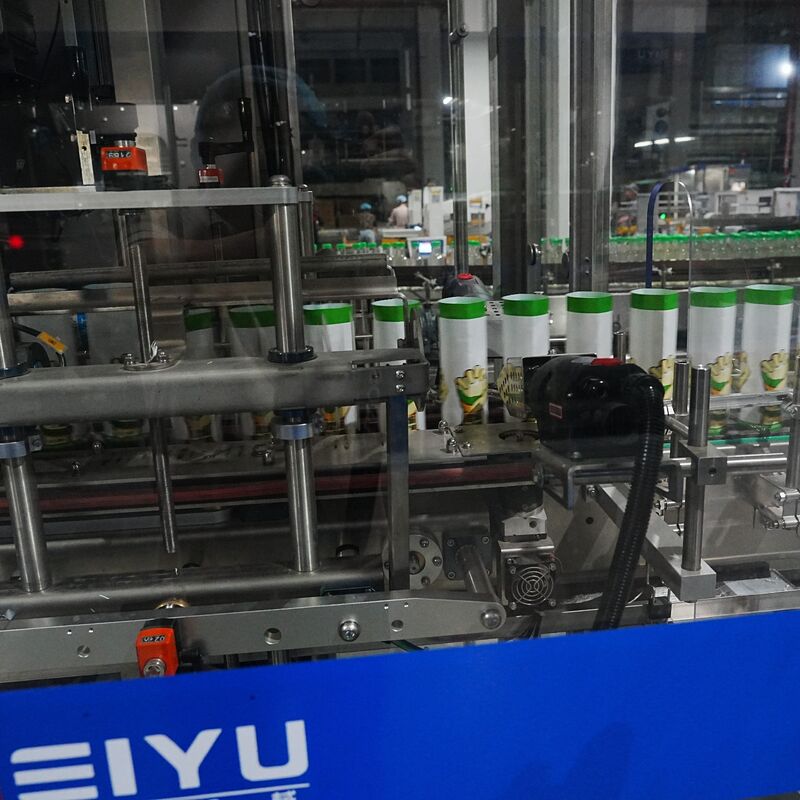

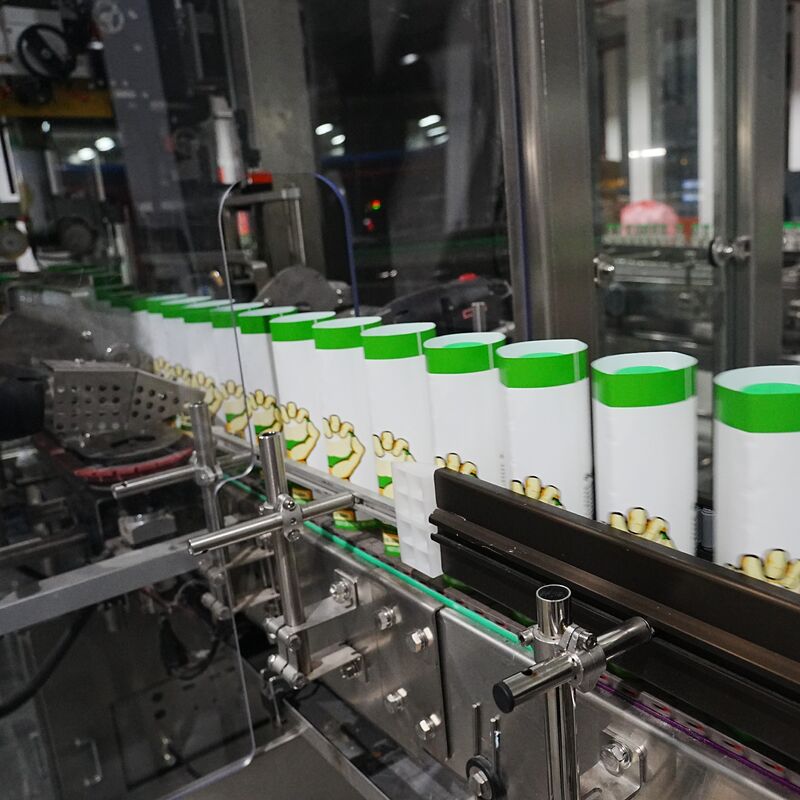

Machine Structure
- Floor-standing material rack (2-roll capacity)
- Rotatable touch screen for multi-angle operation
- Integrated transparent frame for visual monitoring
- Modular bottle separation screw system
- Main conveyor system
- Labeling machine head
- Label brushing mechanism
- Steam shrink tunnel
Component Configuration
| Component |
Brand |
| PLC |
Inovance, China |
| Servo Motor & Control System |
Inovance, China |
| Inverter |
Inovance, China |
| Proximity Electronic Switch |
SICK/Keyence or equivalent |
| Touch Screen |
HMI Schneider or equivalent |
| Air Switch |
Schneider or equivalent |
| Motor Protector |
Schneider or equivalent |
| Contactor |
Schneider or equivalent |
| Button |
Schneider or equivalent |
| Intermediate Relay |
Schneider or equivalent |
| Phase Loss Protector |
Schneider or equivalent |
| Terminal |
Phoenix |
| Ordinary Reducer |
Hengchi/Domestic precision reducer |
| Pneumatic Components |
SMC |
Application Scenarios
Water production lines, beverage production lines, canned food production lines, pet food production lines, beer production lines, liquid seasoning production lines
Certifications & Customer Cases

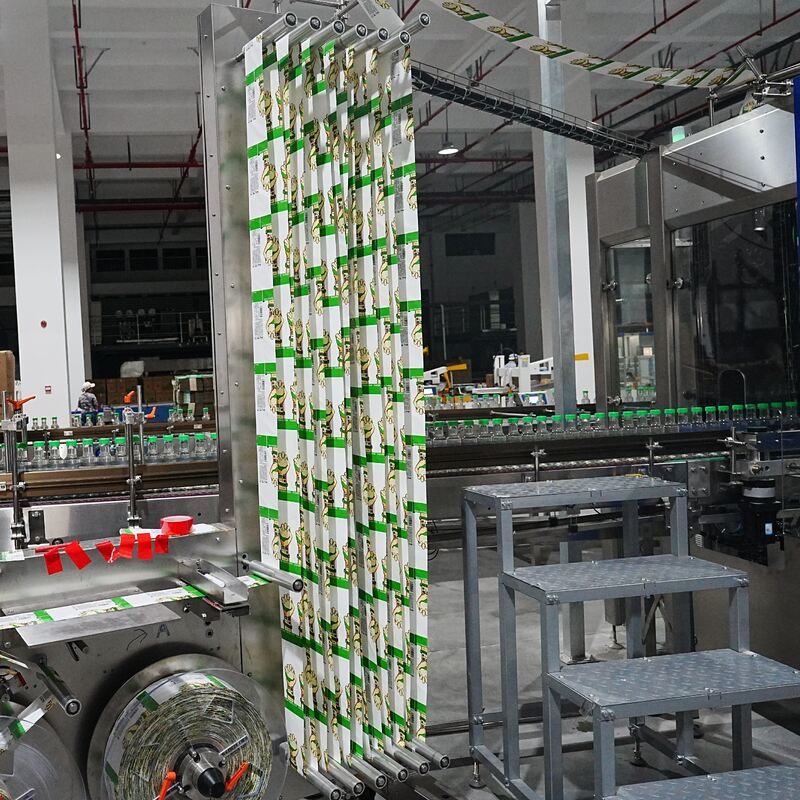

Multi-Roll Label Feeding System
Features & Advantages
- Enables continuous operation with minimal label change stoppage
- Available in left and right configurations
- Supports 6-inch, 8-inch, and 10-inch label mandrel diameters
- Maximum material roll diameter: 500mm
- Servo motor control for precise material feeding
- Large label cache for stable operation and high production volume
- Stores 8 rolls of labels per trolley

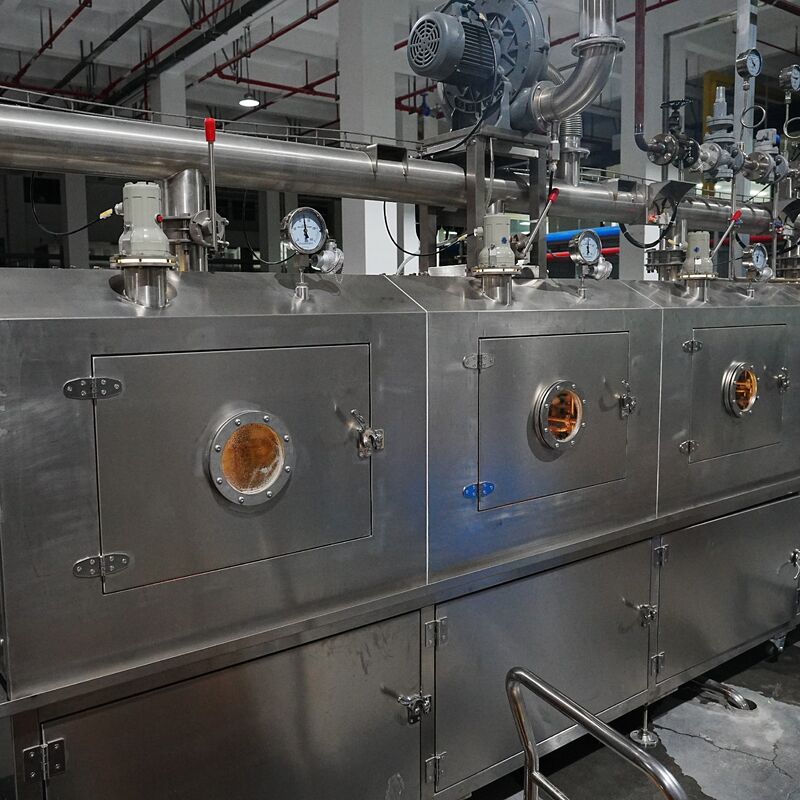

Steam Shrink Tunnel
Main Components
Filter, pressure gauge, pressure reducing valve, angle seat valve, manual ball valve, steam trap, proportional valve
Key Features
- Adjustable nozzle height and width for different bottle types
- External perspective window for process monitoring
- 4 temperature zones with individual adjustment capability
- Condensation prevention design with steam leakage protection
- 304 stainless steel construction with insulation
- Waterproof design with condensate collection system
- Adjustable exhaust duct for pressure stabilization
Technical Parameters
| Parameter |
Specification |
| Shrinkage Furnace Power |
1.6KW |
| Steam Pressure |
0.2-0.4MPa |
| Steam Consumption |
70-110 kg/hour |
| Dimensions (5 sections) |
L5400mm * W760mm * H2665mm |
Pricing & Delivery
Quotation Validity: 1 month
Payment Methods: T/T, L/C
Sample Requirement: Customer provides product and packaging samples for factory trial
Delivery Time: 60 working days from deposit receipt and sample delivery
Quality Assurance
- Brand new equipment with latest design and suitable materials
- Performance verification within 15 days of system operation
- 12-month quality assurance period post-acceptance
- Responsibility for defects, failures, and damages during warranty
- Guaranteed mechanical performance and consumption indicators
Warranty & Support
Equipment Warranty: 12 months standard
Control System Warranty: 24 months (Inovance brand)
On-site Support: 48-hour response time for故障排除
Post-Warranty: Lifetime technical support and spare parts supply
Packaging & Transportation
Packaging: New sturdy special packaging boxes/frames for long-distance transport
Protection: Moisture-proof, rust-proof, shock-proof design
Transport Methods: Land transportation, sea transportation
