60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

60 Packs Per Minute Shrink Wrapping Machine

30-260 Cartons/Minute Shrink Packer

380V 50Hz Heat Shrink Packaging Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power
60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container:
Pet/PE/PP Bottles, Glass Bottles, Cans
Applicable Container Size:
100g-3kg Customized
Equipment Model:
SPCSW.E2
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Highlight:

60 Packs Per Minute Shrink Wrapping Machine

,

30-260 Cartons/Minute Shrink Packer

,

380V 50Hz Heat Shrink Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
60 Packs Per Minute Shrink Film Packaging Machine for Canned Soda Line
Scope of Application
This industrial-grade heat shrink packaging machine is designed for packaging glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries. With a production capacity range of 12,000 to 48,000 bottles/hour, it handles 30-260 packages per minute depending on packaging specifications.
Equipment Principle
The machine evenly distributes products via entrance plate chain, checks for bottle shortage, arranges them through gate mechanisms, and pushes them to the film winding belt. Film rolls pass through splicing and tensioning mechanisms before being applied to products, which then enter the heat shrinking furnace.
Key Features
  • Compact structure with small footprint
  • User-friendly LCD touch screen control system with electronic detection
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rod components
Technical Specifications
Equipment Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Applicable Container Types Cans, glass bottles, PET bottles
Conveyor Belt Elevation 1050mm
Equipment Weight Approx. 6000Kg
Operating Voltage 380V AC 50HZ; 24V DC/AC
Input Power 75KW
Main Components
Component Brand
PLC Inovance, China
Servo Motor & Control System Inovance, China
Configuration Software Ab Optix
Frequency Converter Inovance, China
Electronic Switches SICK or equivalent
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 0
Quality Assurance
  • 12-month equipment warranty (24 months for control system)
  • On-site repair service within 48 hours of failure notification
  • Lifetime technical support and spare parts supply
  • ISO9001 certified manufacturing with European CE certification

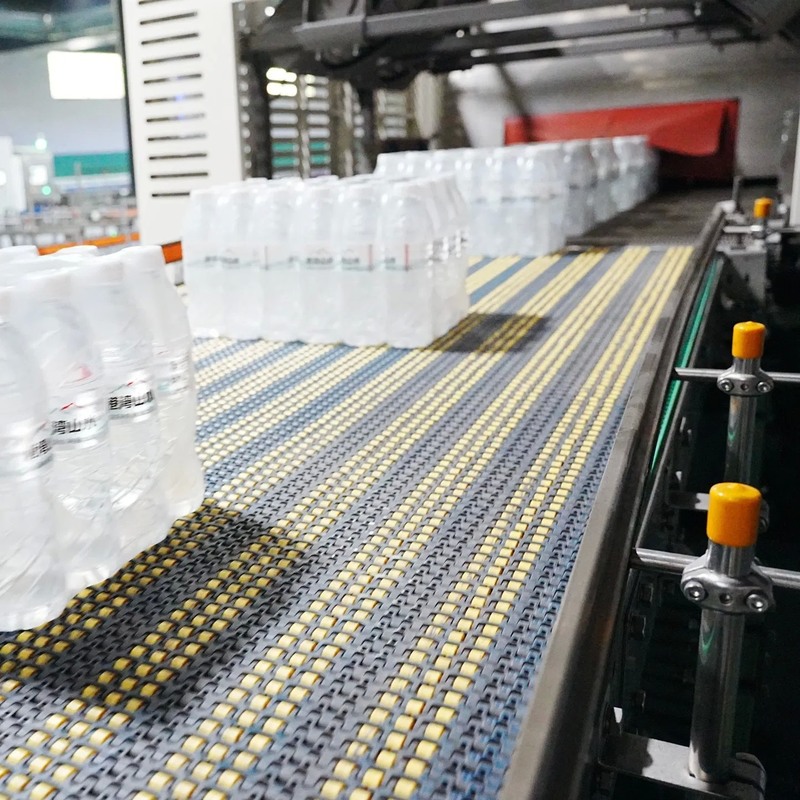

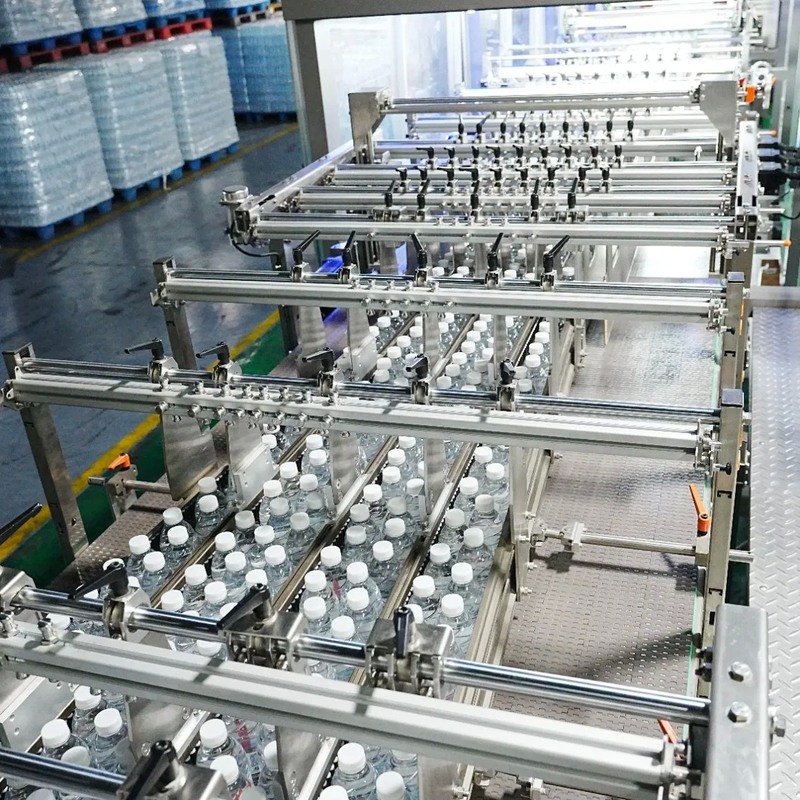

Product Images
60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 1 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 2 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 3
Company Profile
Peiyu Enterprise provides complete intelligent packaging solutions for global liquid and solid product companies, with extensive experience in mechanical design and manufacturing. Our products serve major brands worldwide and are exported to North America, South America, Africa, Europe, and the Middle East.
60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 4
