Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Single Double Layer Stacking Shrink Wrapping Machine

Half Tray Shrink Packer

30-260 Cartons/Minute Heat Shrink Packaging Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity
Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Input Power:
75KW
Highlight:

Single Double Layer Stacking Shrink Wrapping Machine

,

Half Tray Shrink Packer

,

30-260 Cartons/Minute Heat Shrink Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Single Double Layer Stacking Half Tray Shrink Wrapping Machine Automatic
Application Scope
This industrial-grade heat shrink packaging machine is designed for high-speed packaging of glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries.
Key Specifications
  • Production capacity: 12,000 to 48,000 bottles/hour
  • Packaging speed: 30 to 260 packages per minute
  • Compatible with various packaging configurations including single/double layer stacking
Technical Specifications
Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Compatible Containers Cans, glass bottles, PET bottles
Conveyor Height 1050mm
Weight Approx. 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Power Consumption 75KW
Premium Component Configuration
Component Brand
PLC Inovance, China
Servo Motor & Control System Inovance, China
Configuration Software Ab Optix
Frequency Converter Inovance, China
Electronic Components SICK or equivalent
Equipment Operation Principle
The machine evenly distributes products to each channel via entrance plate chain with bottle shortage detection. Products are arranged through gate mechanisms, pushed to film winding belts, and wrapped with precisely controlled film application before entering the heat shrinking furnace.
Key Features
  • Compact footprint with modern industrial design
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection systems
  • Micro-vibration bottle separation to prevent jams
  • Torque-limited push rod protection mechanism
Packaging Requirements
Film roll specifications: 78mm axis hole diameter, ≤650mm width, ≤400mm diameter. Special bottle types or packaging methods require custom engineering consultation.
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 0
Quality Assurance
  • 12-month equipment warranty (24 months for control system)
  • 48-hour on-site response for critical issues
  • Lifetime technical support and spare parts availability
  • ISO9001 certified manufacturing with CE compliance
Delivery & Payment
Quotation Validity:
1 month
Payment Methods:
T/T, L/C
Lead Time:
60 working days after deposit receipt

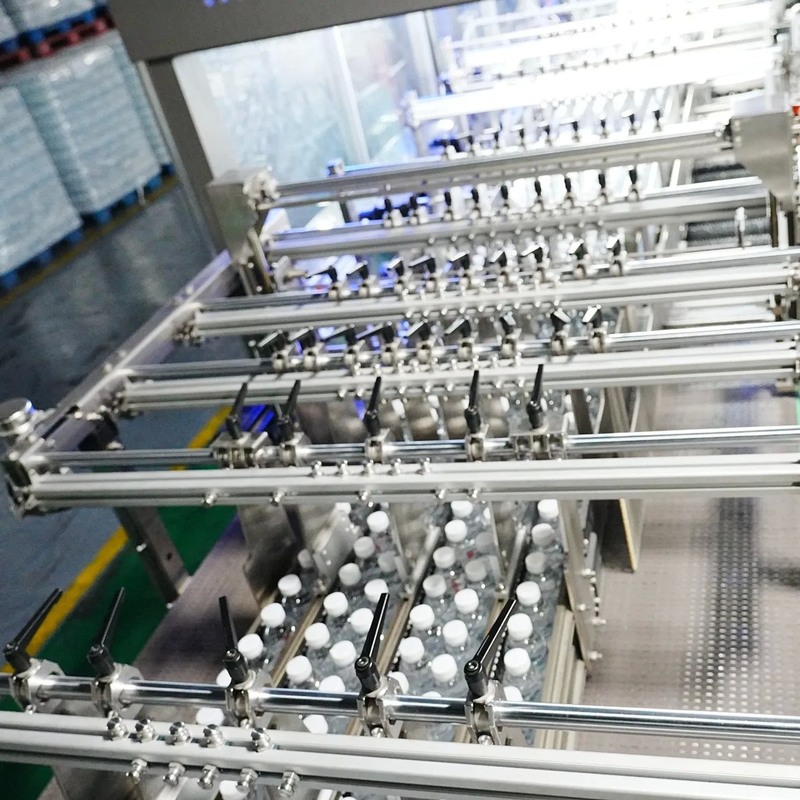

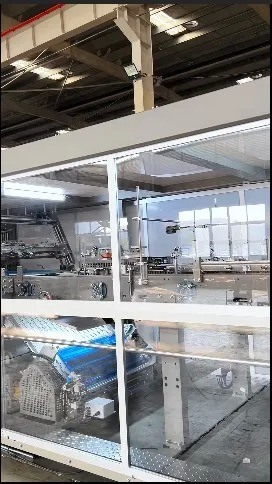

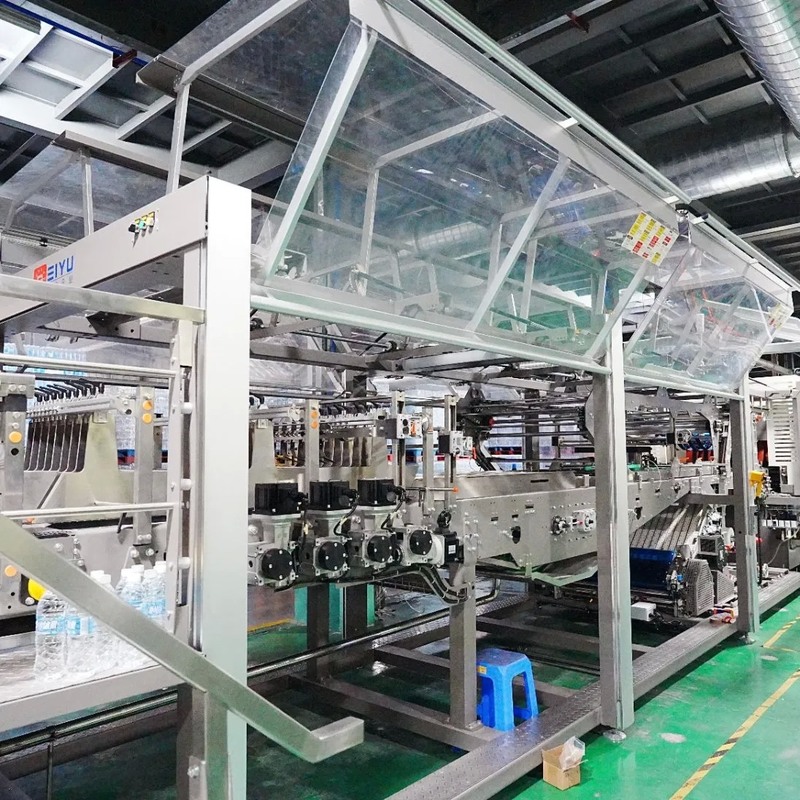

Equipment Images
Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 1 Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 2 Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 3
Manufacturing Quality
Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 4 Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 5 Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity 6
