80 Cases Per Minute Glass Bottle Wrap Around Case Packer for Juice Production Line

80 Cases Per Minute Wrap Around Case Packer

Glass Bottle Carton Packer

Juice Production Line Wrap Around Carton Packer

Request A Quote

80 Cases Per Minute Glass Bottle Wrap Around Case Packer for Juice Production Line

Product Details

Production Capacity:

80 Packs/minute

Carton Length:

150mm-420mm

Carton Width:

130mm-350mm

Carton Height:

100mm-335mm

Product Diameter:

φ52mm-106mm

Product Height:

95mm-330mm

Equipment Dimensions:

15850mm×4050mm×2150mm

Equipment Weight:

11000Kg

Operating Air Pressure:

6bar

Air Consumption:

160L/min Max

Working Voltage:

380V AC 50HZ

Control Voltage:

24V DC/AC

Installed Power:

30KW

Operating Power:

20KW

Number Of Servos:

20 Sets

Highlight:

80 Cases Per Minute Wrap Around Case Packer

Glass Bottle Carton Packer

Juice Production Line Wrap Around Carton Packer

Payment & Shipping Terms

Minimum Order Quantity

Price

60000

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

80 Cases Per Minute Glass Bottle Carton Packer for Juice Production Line

Product Overview

Applicable bottle types: square bottles, flat bottles, round bottles.

This case wrapping machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.

Key Specifications

Production capacity: 35-100 packs per minute (depending on packaging specifications)
Also known as: Carton Packer, Case Packer, Wrap Around Packer, and various other industry names

Main Components Configuration

Component	Brand
PLC	Inovance, China
Servo motor and control system	Inovance, China
Upper configuration software	Ab Optix
Frequency converter	Inovance, China
Proximity electronic switch	SICK or equivalent brand

Equipment Technical Parameters

Parameter	Value
Production capacity	80 packs/minute (depending on bottle type and packaging method)
Carton dimensions after molding	Length: 150-420mm, Width: 130-350mm, Height: 100-335mm
Product height range	95mm-330mm
Equipment dimensions (L×W×H)	≈15850mm×4050mm×2150mm
Equipment weight	≈11000Kg
Operating power	20KW (30KW installed)

Carton Folding Process

Equipment Components & Process Flow

The equipment consists of rack, bottle feeding conveyor, pressure control module, product grouping system, bottle pushing parts, cardboard handling system, forming sections, and control systems.

Process flow: Cardboard is manually placed on buffer conveyor, separated by vacuum suction cups, then combined with grouped products before entering forming area to complete automatic wrapping process.

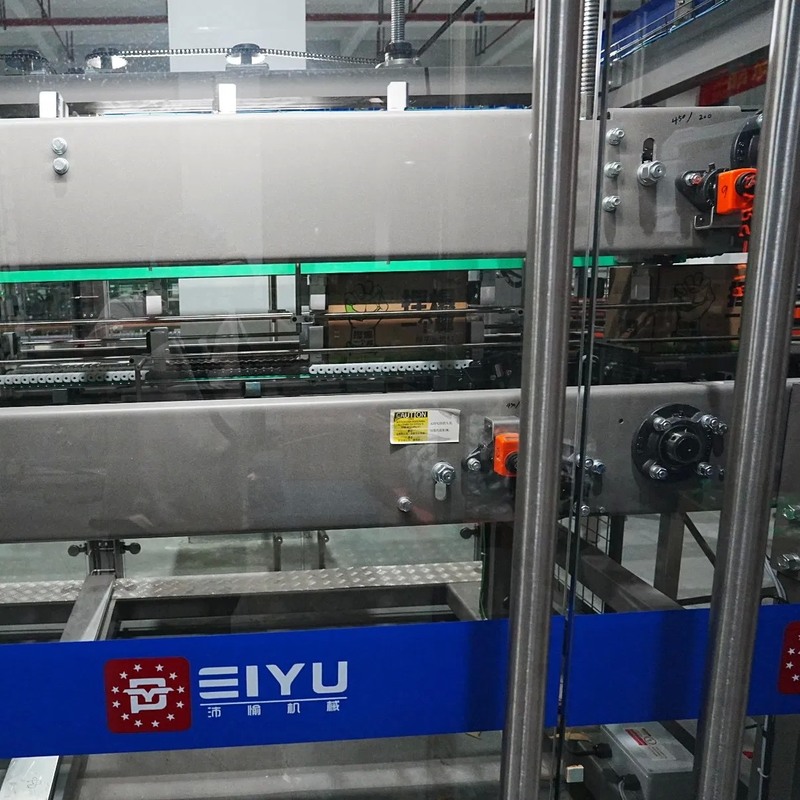

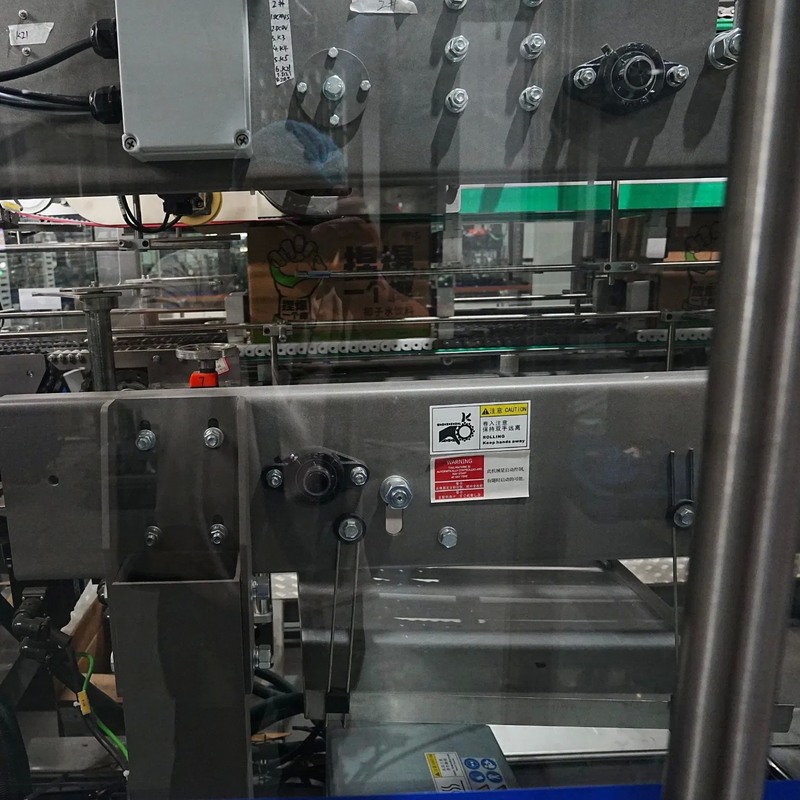

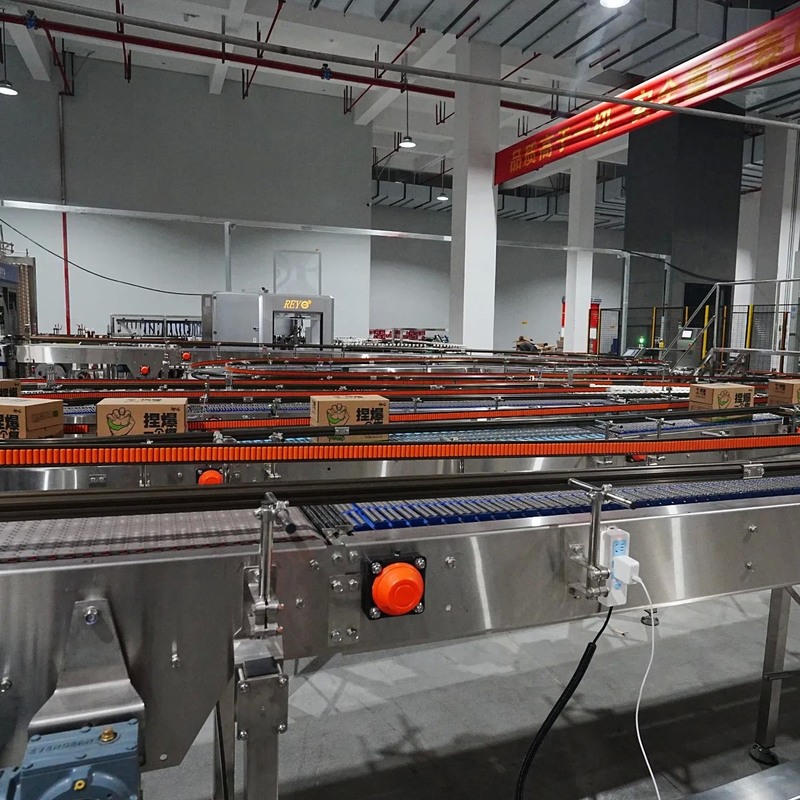

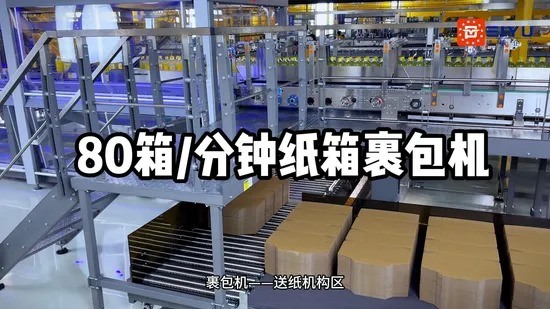

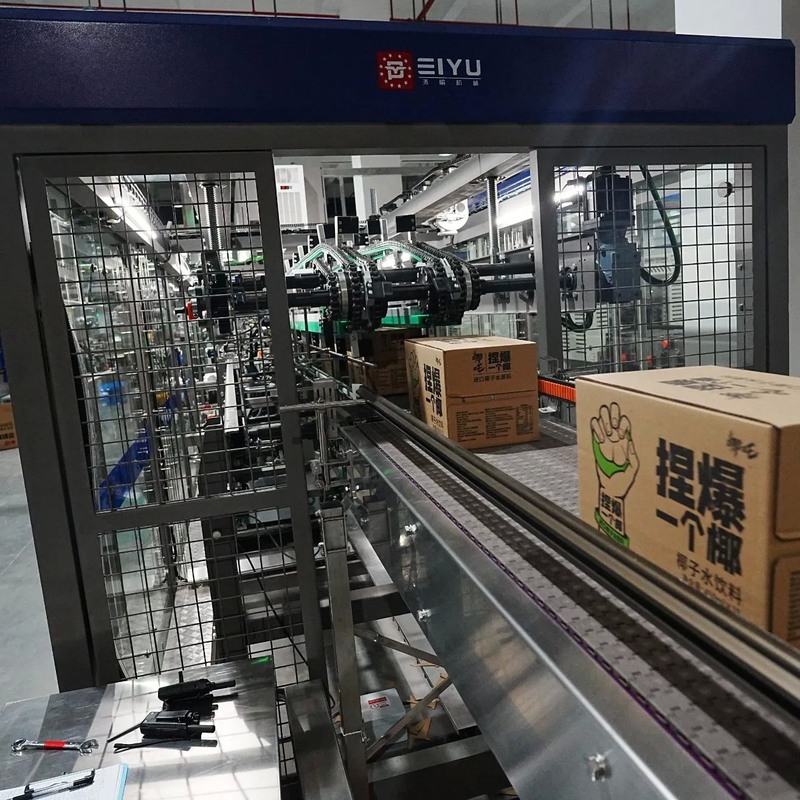

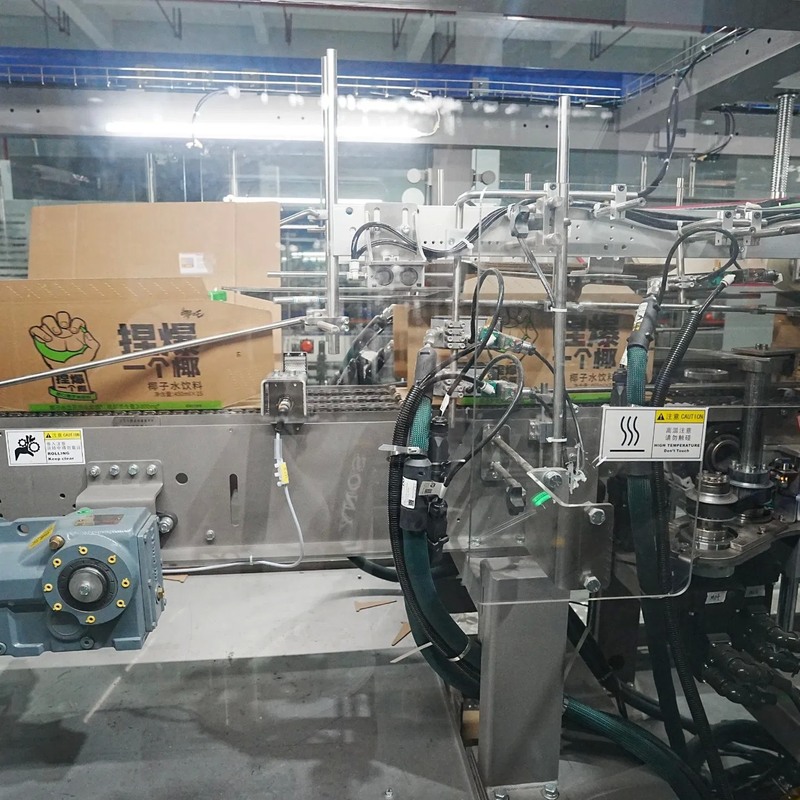

Detailed Equipment Photos

Manufacturer Profile

Peiyu Enterprise owns multiple subsidiaries including Shanghai Peiyu Packaging Technology Co., Ltd. and Anhui Peiyu Packaging Technology Co., Ltd., providing complete intelligent equipment solutions for liquid and solid product packaging lines.

With a 60,000 square meter production base and advanced manufacturing equipment, the company serves global clients including major brands in beverages, dairy, pharmaceuticals and other industries.

Certifications: ISO9001, CE, audited by German TUV.
