Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

medium-speed carton wrapping machine

narrow-edge wrap around packer

vertical feeder widened frame

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCWM.NA1K

Contact Us
Request A Quote
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

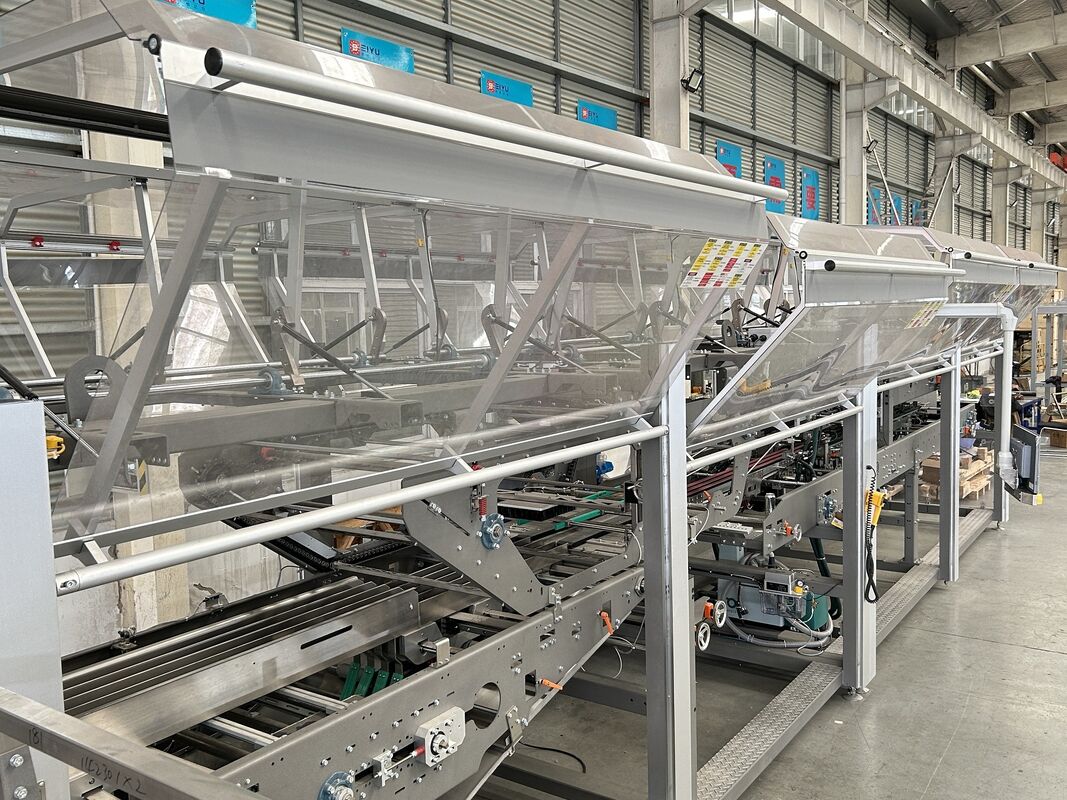

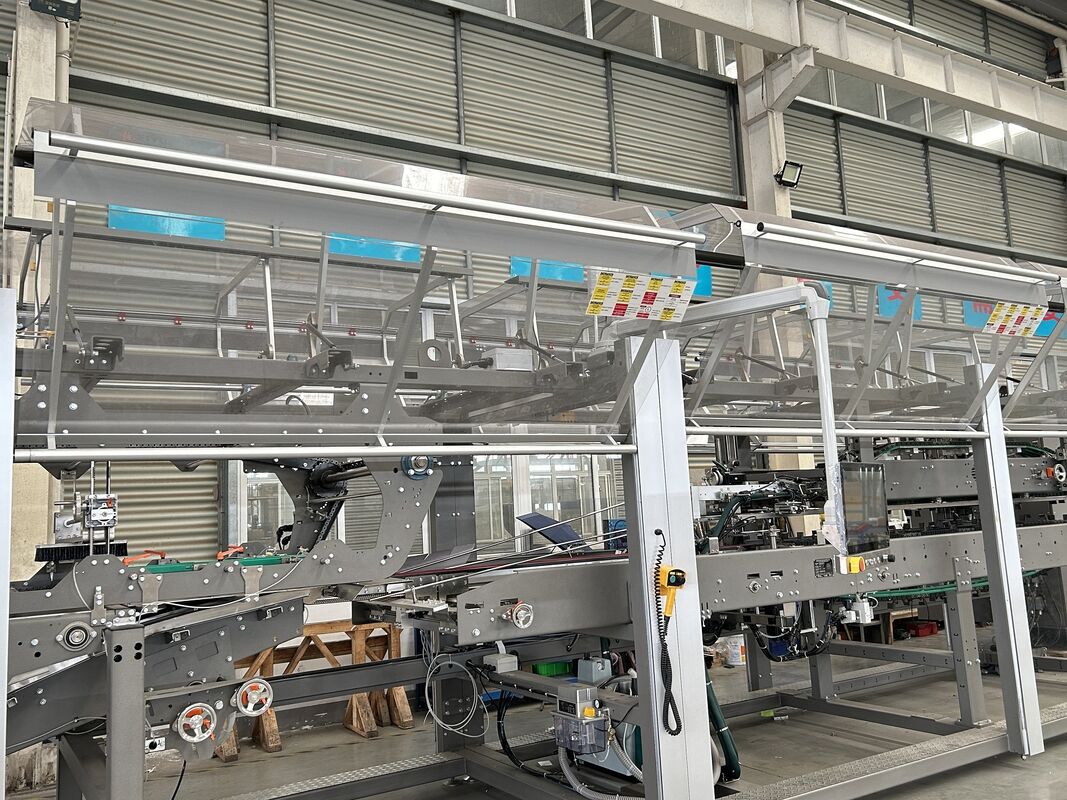

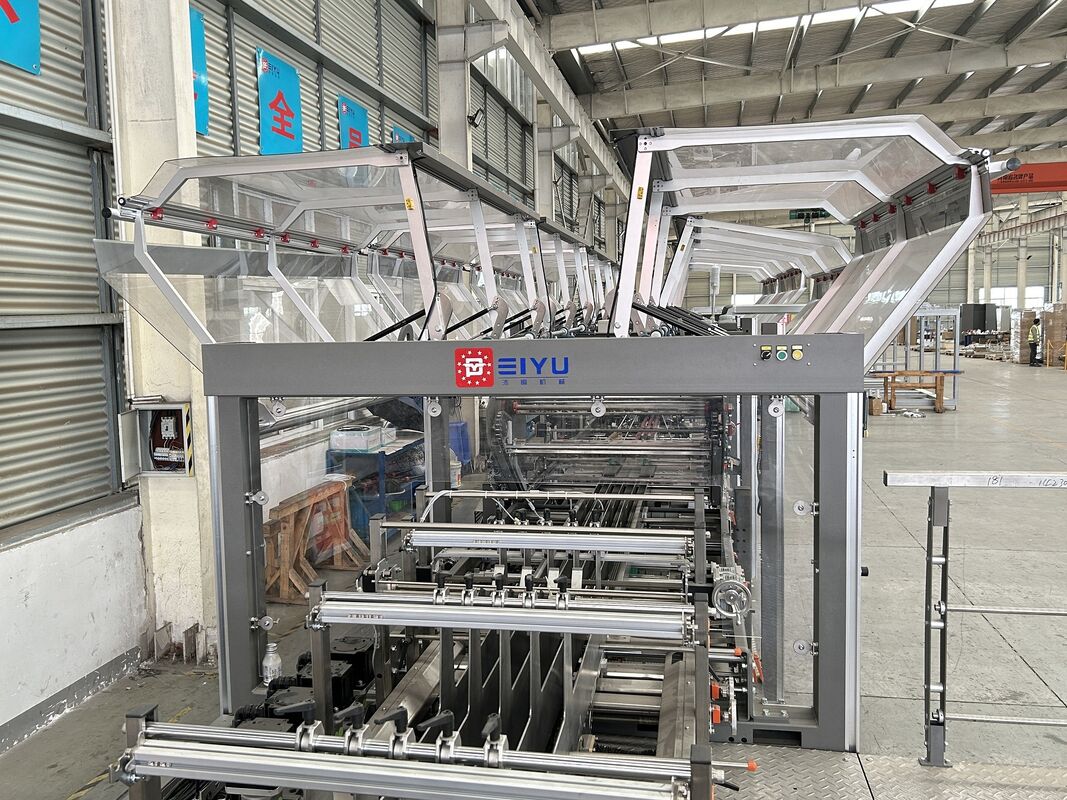

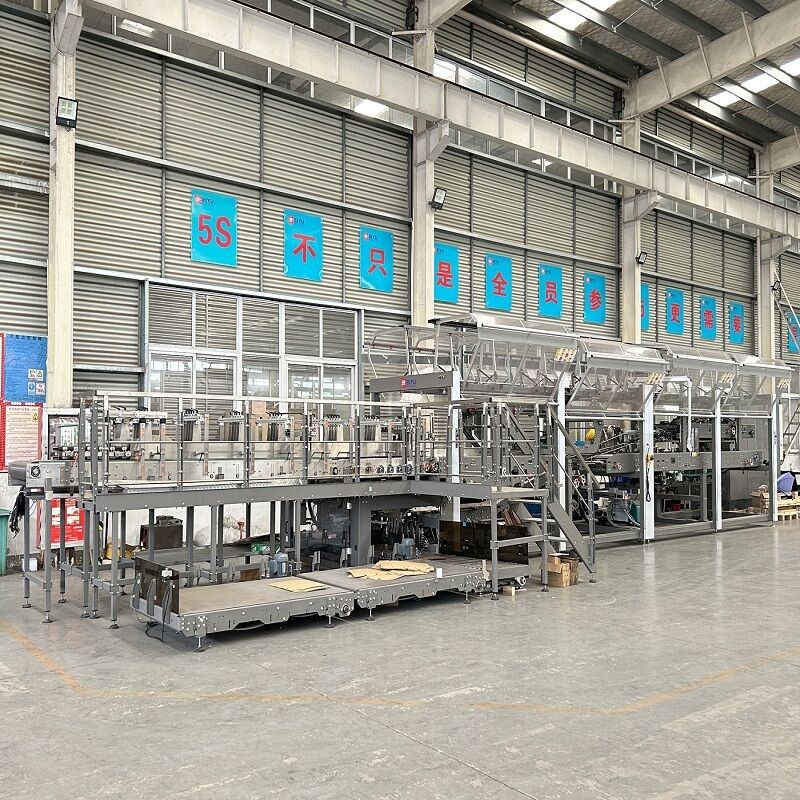

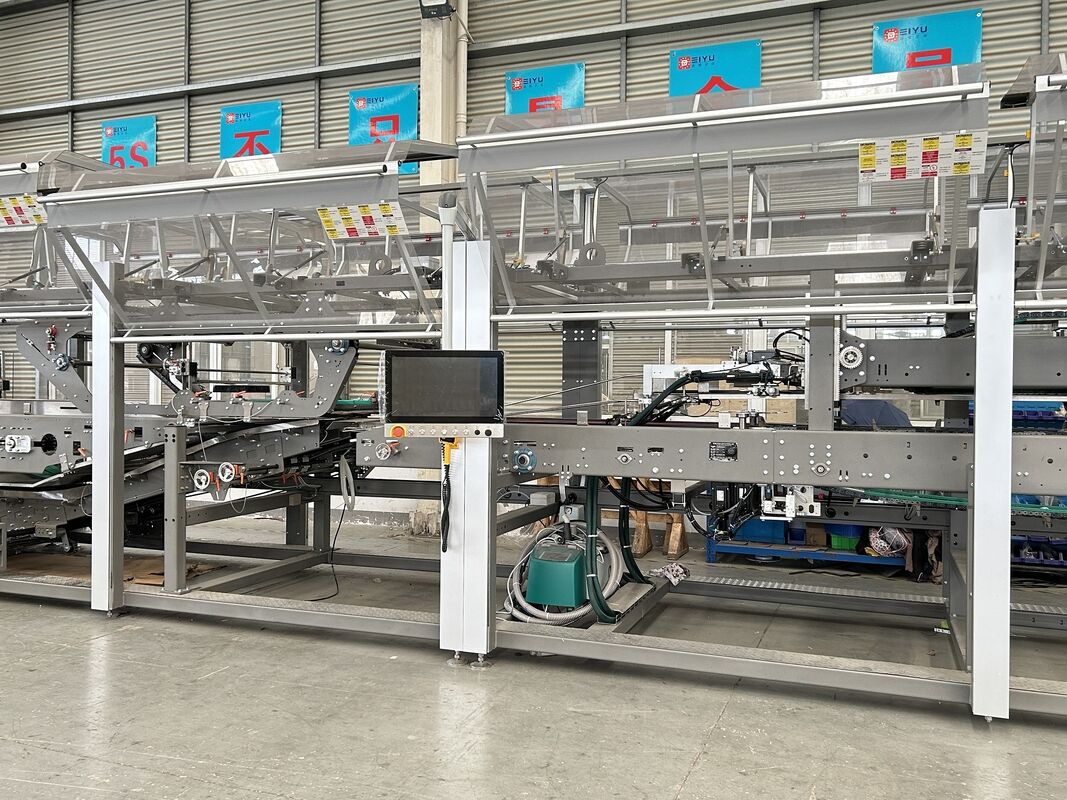

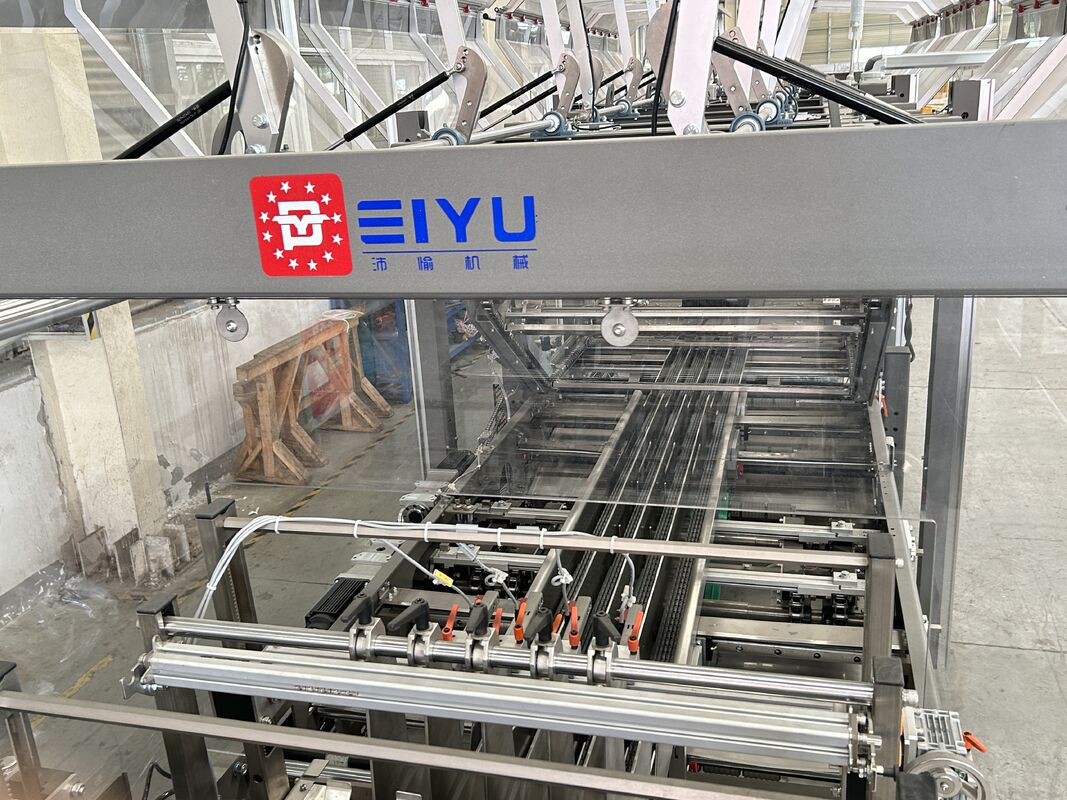

Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)
Product Details
Name:
Carton Wrapping Machine
Model:
SPCWM.NA1K
Equipment Production Capacity:
30-70 Boxes/minute
Applicable Can Types:
Cans, Glass Bottles, PET, Etc.
Container Conveyor Belt Elevation:
450mm±30mm
Bottle Carrying Height:
1300mm±30mm
Equipment Weight:
About 7500Kg
Operating Air Pressure:
6 Bar
Air Consumption:
60L/min Max
Highlight:

medium-speed carton wrapping machine

,

narrow-edge wrap around packer

,

vertical feeder widened frame

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 workdays
Payment Terms
T/T,L/C
Supply Ability
30 pcs per month
RELATED PRODUCTS
Good price High-speed fully automatic narrow-edge wrap around case packer with 80 packs per minute capacity online Video

High-speed fully automatic narrow-edge wrap around case packer with 80 packs per minute capacity

Get Best Price
Good price Fully Automatic Wrap Around Case Packer 18kw for Beverage Production Line with Customized Bottles and PET/PE/PP Bottles online Video

Fully Automatic Wrap Around Case Packer 18kw for Beverage Production Line with Customized Bottles and PET/PE/PP Bottles

Get Best Price
Good price 80 Cases Per Minute Glass Bottle Wrap Around Case Packer for Juice Production Line online Video

80 Cases Per Minute Glass Bottle Wrap Around Case Packer for Juice Production Line

Get Best Price
Good price Pneumatic CE ISO Certified Wrap Around Case Packer with Schneider Electrics for Food and Beverage Packaging online Video

Pneumatic CE ISO Certified Wrap Around Case Packer with Schneider Electrics for Food and Beverage Packaging

Get Best Price
CONTACT US
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Medium-speed Narrow-edge Carton Wrapping Machine SPCWM.NA1K (Vertical Feeder - Widened Frame)
Product Model: SPCWM.NA1K (Vertical Feeder - Widened Frame)
Renderings and Top View
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 0 Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 1
Folding Diagrams
Flowchart of Inner Tongue Forming Process
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 2
Schematic diagram of the outer tongue forming process
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 3
Equipment Components and Process Flow
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 4
The equipment mainly consists of:
  • Frame
  • Inlet conveyor
  • Group conveyor
  • Bottle sorting group
  • Bottle pushing group
  • Intermediate section conveyor
  • Folding and hinge group
  • Lower conveyor forming
  • Upper conveyor forming
  • Cardboard buffer bin
  • Cardboard inclined conveyor
  • Control box
  • Electrical cabinet
The cardboard is manually placed on the cardboard buffer conveyor chain. A reciprocating swing arm suction cup picks up the cardboard and places it on the cardboard inclined conveyor. The cardboard climbs the incline and is conveyed to the point where it connects with the product. The product is conveyed to the grouping area, and after grouping, the products enter the bottle pushing area at equal intervals and are then conveyed to the point where they connect with the cardboard. After the product connects with the cardboard, it undergoes folding and glue spraying before entering the forming area to complete the automatic wrapping process.
Device Servo Configuration
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 5
Organization Name Number of Servos (Sets)
Upper Forming 3
Lower Forming 2
Side Folding 4
Forming Transition Zone 1
Bottle Pushing Group 1
Group Conveying 1
Incline Paper Feeding 2
Product Grouping 2
Total 16
Paper Supply System
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 6
Suitable for various can/bottle types, with quick and convenient can/bottle type conversion and arrangement changes.
Cardboard Size Requirements
Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) 7
Equipment Parameters
Parameter Specification
Equipment Production Capacity Packets/Minute (Based on Bottle Type and Packaging Method)
Packaging Specifications Packaging methods include 3×4, 3×5, 4×6, 2×3, 2×4, etc. Specific requirements depend on bottle size and style
Product Diameter For multi-row differential speed models at the inlet, bottle diameter requirements are φ52mm < round bottle diameter ≤ 106mm, and for square or rectangular bottles, the shortest side length (in the running direction) must be greater than 52mm. For models without differential speed at the inlet, bottle diameter requirements are φ48mm < round bottle diameter ≤ 106mm, and for square or rectangular bottles, the shortest side length must be greater than 48mm. Specific requirements depend on the actual bottle size and style. Automatic packaging requirements must be determined based on actual bottle size and style.
Product Height 90mm～330mm
Standard Equipment Dimensions L=13000mm × W=2500mm × H=3000mm
Applicable Can Types Aluminum cans, glass bottles, PET, etc.
Carrier Belt Elevation 450mm±30mm
Bottle Belt Elevation 1300mm±30mm
Equipment Weight Approx. 7500Kg
Operating Air Pressure 6bar
Air Consumption 60L/min Max
Operating Voltage Control Voltage 380V AC 50HZ; 24V DC/AC
Installed Power 36KW
Operating Power 15KW
Equipment Configuration
Component Brand/Type
PLC Huichuan
Servo Motor and Controller Systems Huichuan
Frequency Inverters Huichuan
Proximity Switches SICK or equivalent
Air Switches SICK or equivalent
Motor Protectors SICK or equivalent
Contactors SICK or equivalent
Push Buttons SICK or equivalent
Intermediate Relays SICK or equivalent
Phase Loss Protectors SICK or equivalent
Terminal Blocks Phoenix
General Motor Gearboxes SEW/Hengchi
Servo Motors with Gearboxes Domestic Precision Gearboxes
Servo Motors Huichuan
Hot Melt Glue Machines Leibode
Pneumatic Systems Festo/SMC
Note: The configuration in the above plan is our standard configuration. If the delivery cycle of external suppliers affects the availability of components, we will select a brand with equivalent configuration at our discretion, without further notice.
