Fully Automatic Canned Food Production Line with 500-10000kg/Day Capacity and 380V 50Hz Power

Fully Automatic Canned Food Production Line

500-10000kg/Day Capacity Canned Food Packaging Machine

380V 50Hz Power Canned Food Processing Line

Request A Quote

Fully Automatic Canned Food Production Line with 500-10000kg/Day Capacity and 380V 50Hz Power

Product Details

Model NO.:

SPC

Packaging Material:

Glass Bottle Tin Can

Driven Type:

Mechanical

Capacity:

500-10000kg/Day Customized

Power:

380V 50Hz Customized

Applicable Container:

Glass Bottle Jar Or Tin Can Or Pouch

Container Size:

100g-3kg Customized

Production Capacity:

500 Sets/Year

Output Speed:

80-400 Cans/minute

Function:

Transport Packaging, Storage And Packaging

Packaging Technology:

Rustproof Packaging

Soft And Hardness:

Rigid Package

Circulation Function:

Outer Packing

Frequency Of Use:

Several Packaging

Mode Of Operation:

Packaging Of Export Products

Highlight:

Fully Automatic Canned Food Production Line

500-10000kg/Day Capacity Canned Food Packaging Machine

380V 50Hz Power Canned Food Processing Line

Payment & Shipping Terms

Minimum Order Quantity

Price

60000

Fully Automatic High-Speed Packing Machine for Glass Bottle Tin Can Packaging

Get Best Price

Customized Canned Food Production Line with 500 Sets/Year Capacity and 100g-3kg Container Size

Get Best Price

Customized Canned Food Production Line with 100g-3kg Container Size and 500 Sets/Year Capacity

Get Best Price

Customized Canned Food Production Line for Glass Bottle Tin Can Packaging of Vegetable Fruit Meat Meal

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

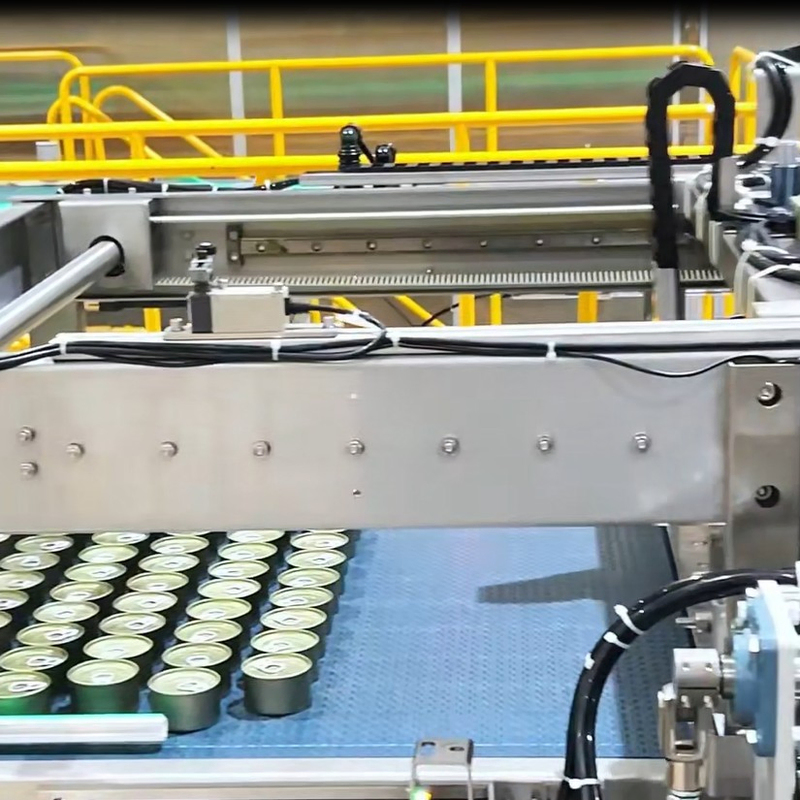

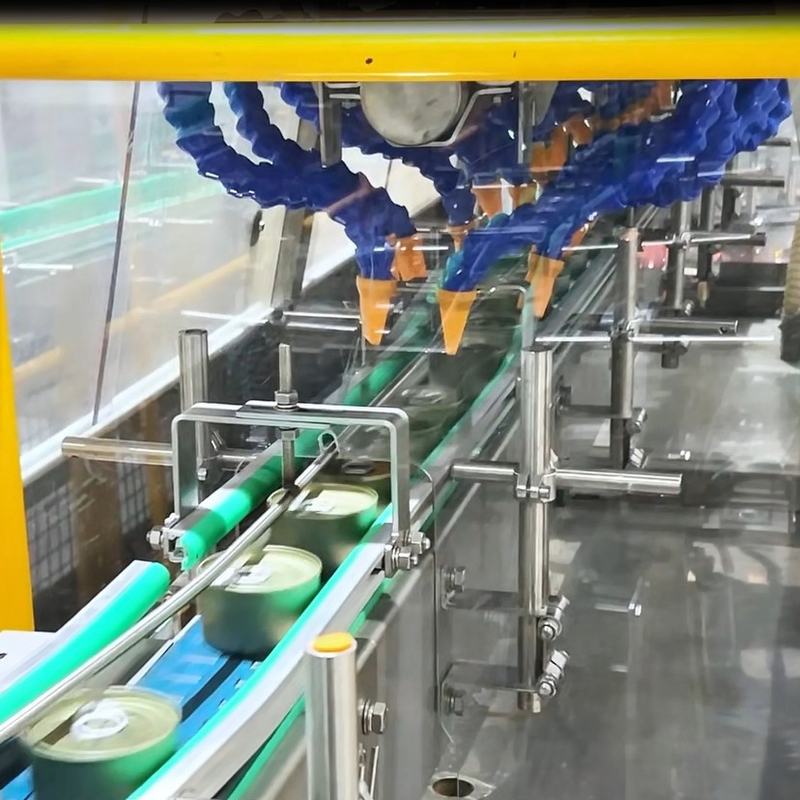

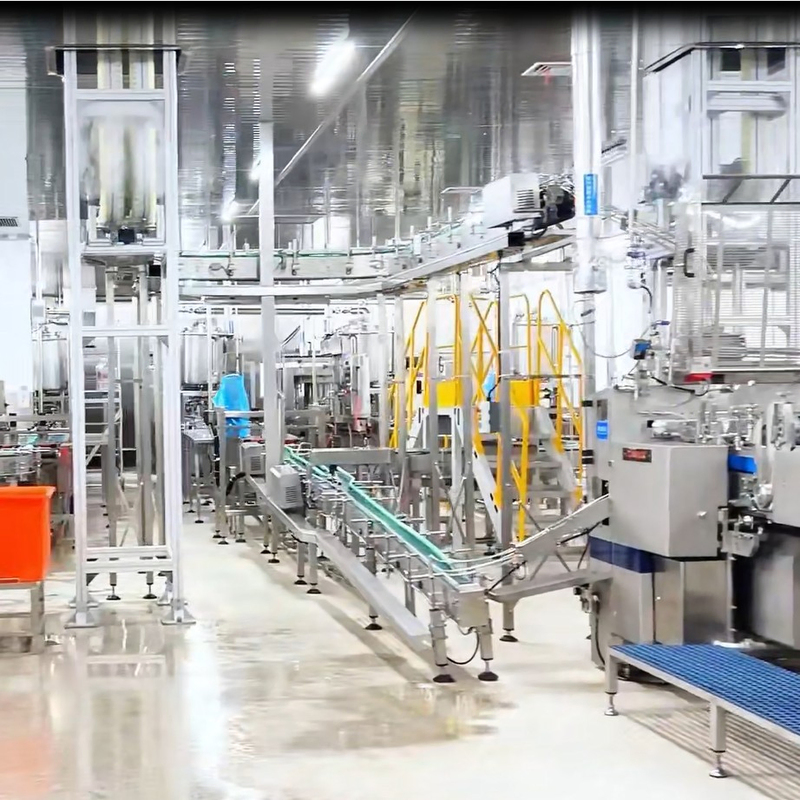

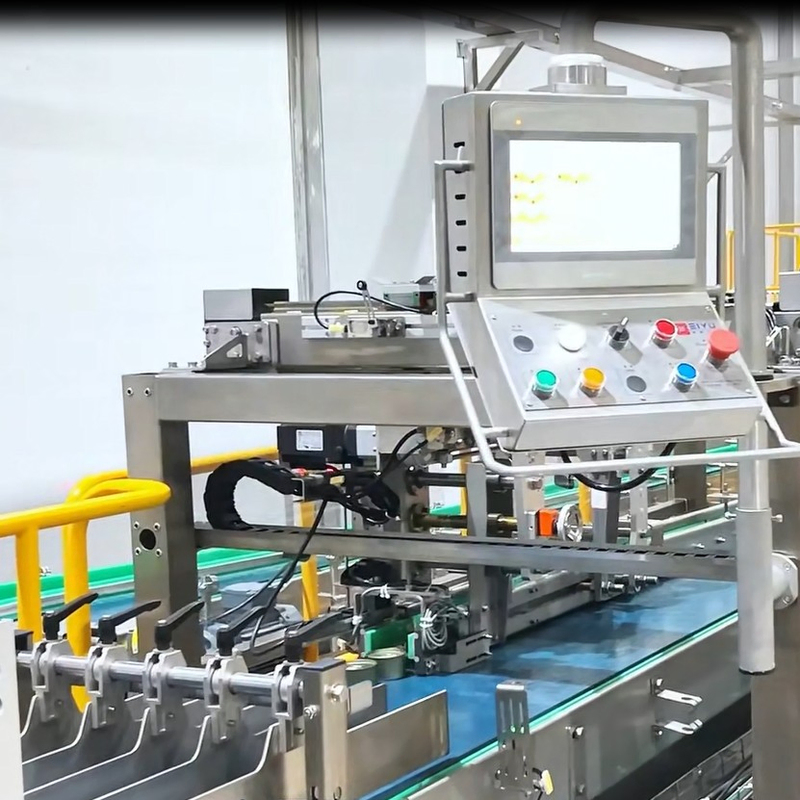

Fully Automatic Canned Tuna Production Line Canned Salmon Production Line

Our modern canned food production line integrates advanced canning machinery to streamline processing, ensuring hygiene, efficiency, and extended shelf life. This automated system handles can washing, filling, sealing, sterilization (retort), and packaging, designed for vegetables, fruits, meats, and seafood.

Key Components

Can Cleaning & Drying: Prepares cans for contamination-free filling
Automatic Filling: Precise liquid/solid filling with weight control
Seaming/Sealing: Hermetic sealing to preserve freshness

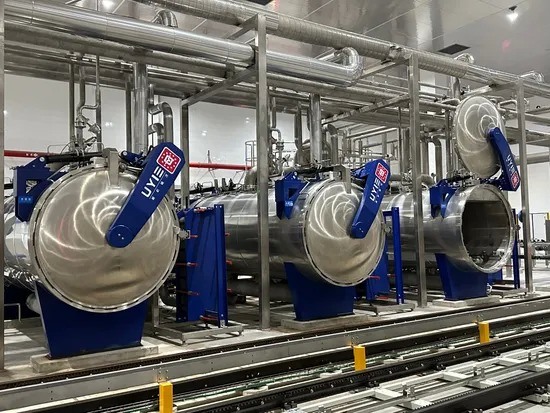

Retort Sterilization: High-temperature sterilization for safety compliance

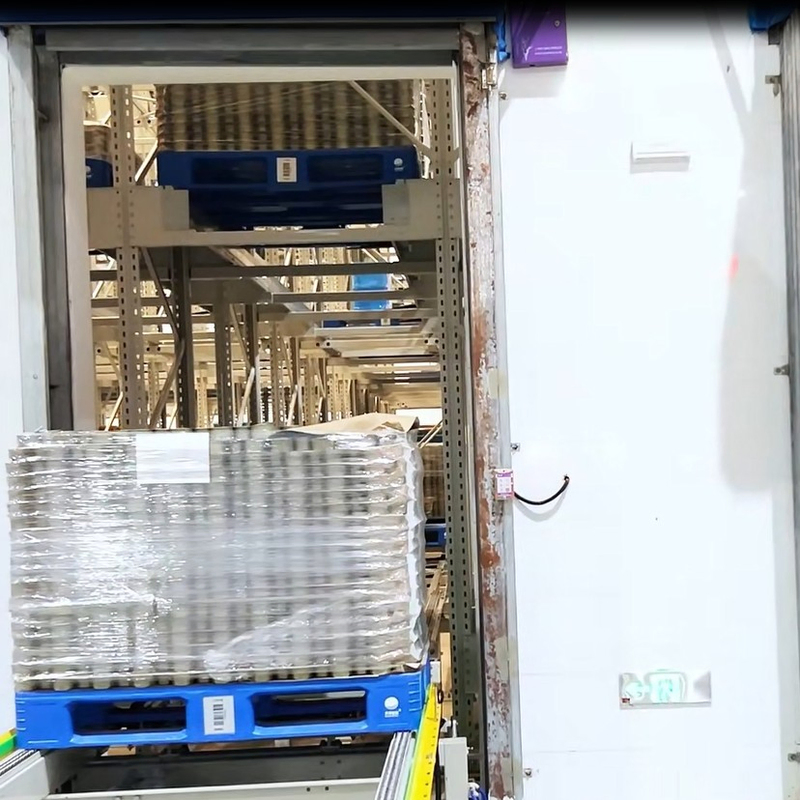

Labeling & Packaging: Automated packing for retail readiness

Production Benefits

High-Speed Output (up to 1,000+ cans/minute)
Food-Grade Materials (stainless steel, corrosion-resistant)
Customizable for various can sizes and food types
Energy-Efficient with reduced waste
Compliant with FDA, ISO, and BRC standards
Durable industrial food preservation technology
Minimal downtime for continuous production

Production Process Overview

The canning process begins with fresh produce (fruit, vegetables, meat or fish) being picked at peak quality and transported to the factory. After thorough washing, the produce is prepared (peeled, trimmed, cored, sliced) and packed into cans moving along a conveyor system.

Liquid (brine, water, oil, syrup or juice) is added before sealing. Each can undergoes airtight testing before sterilization in large cookers that apply precise temperature and pressure conditions to eliminate microorganisms while preserving nutrients.

After cooling, cans are labeled and packaged for distribution, maintaining freshness until opened by the end consumer.

1	Production line range	Complete plant planning and production line layout design; full packaging production line solutions; back-end packaging line implementation
2	Production line type	Food canned production and packaging line for luncheon meat, pork, beef, lamb, seafood, vegetables and fruits
3	Production line equipment	Includes filling/capping machine, empty can depalletizer, sterilization/cleaning machine, conveying system, electrical controls, water blower, can turnover machine, sterilization kettle, shrink film wrapper, carton wrapper, palletizer, packing machine; optional configurations include spray tunnels, cage machines, automatic trolleys, and can palletizers/depalletizers
4	Auxiliary equipment	Finished product inspection, inkjet printer, weighing inspection machine
5	Production line output	80 cans per hour to 400 cans per minute
