Name: Intelligent Robot Palletizer Automatic Packing Cartons Loading Electric Palletizer Machine
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: customized
Availability: InStock

Home > Products > Beverage Palletizer >

Intelligent Robot Palletizer Automatic Packing Cartons Loading Electric Palletizer Machine

intelligent robot palletizer machine

automatic packing carton loader

electric palletizer for beverage

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

customized

Request A Quote

Product Details

Model NO.:

SPCPAM. C1

Capacity:

420 Times/H (as Demanded)

Power:

21kw

Weight:

9200kg

Dimension:

14500*7000*3750mm

Transport Package:

Film Packing Or Wooden Case

Specification:

13600*9500*4300 Mm

Trademark:

PEIYU

Origin:

China

Production Capacity:

300 Sets/Year

Highlight:

intelligent robot palletizer machine

automatic packing carton loader

electric palletizer for beverage

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Tray Bags Carton Case Bottle Jars Tin Can Box Gantry Palletizer

Get Best Price

Video

High Quality Automatic Single Channel Gantry Palletizer Loading Crate Machine

Get Best Price

Video

Fully Automatic Robotic Single Column Palletizer for Boxes Unloading

Get Best Price

Video

Automatic Gantry Stacker Can Double Channel Palletizer

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Intelligent Robot Palletizer Automatic Packing Cartons Loading Electric Palletizer Machine

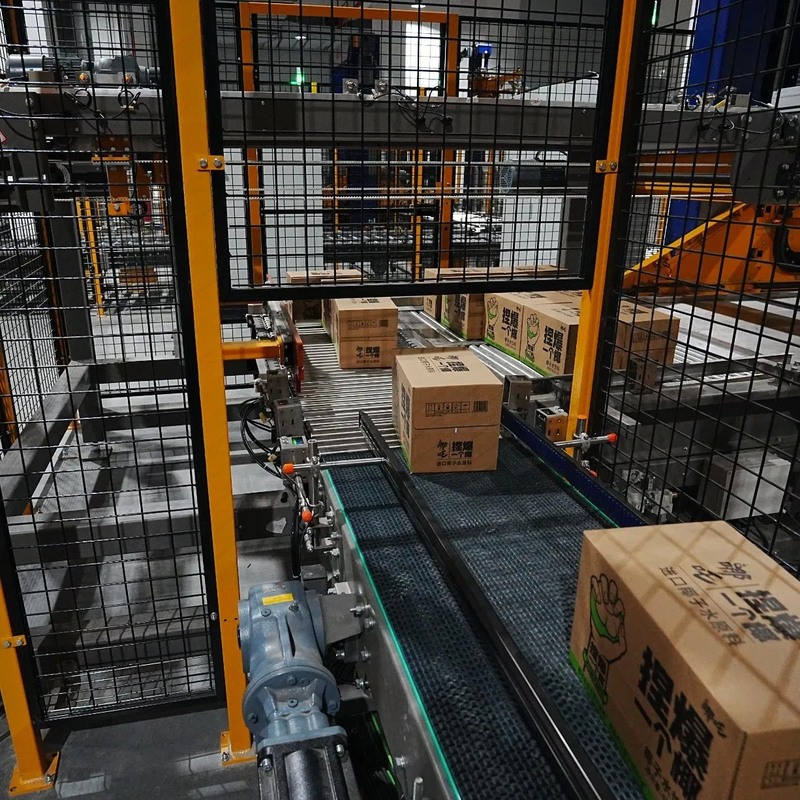

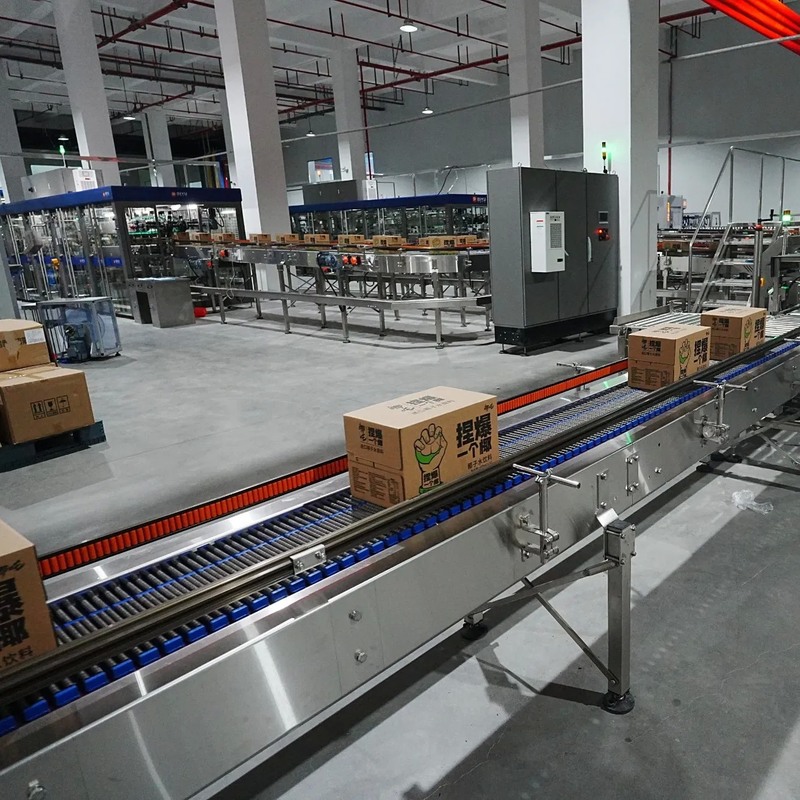

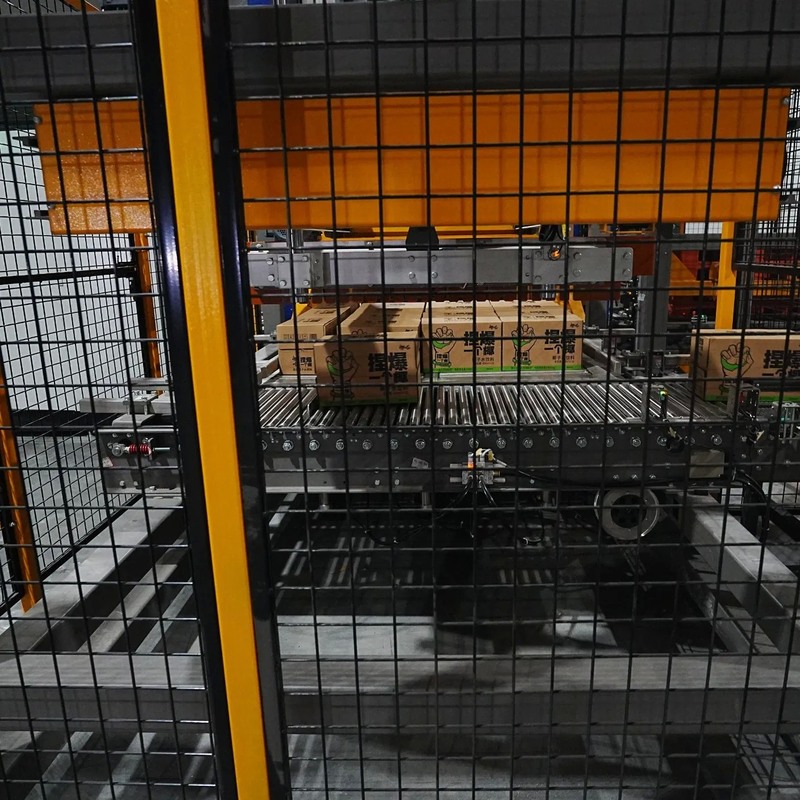

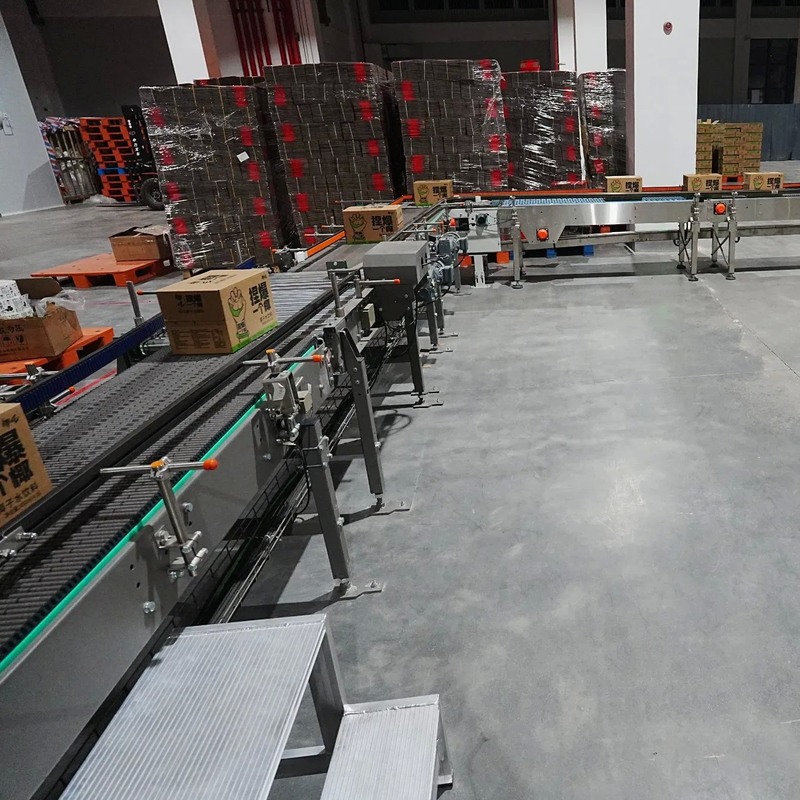

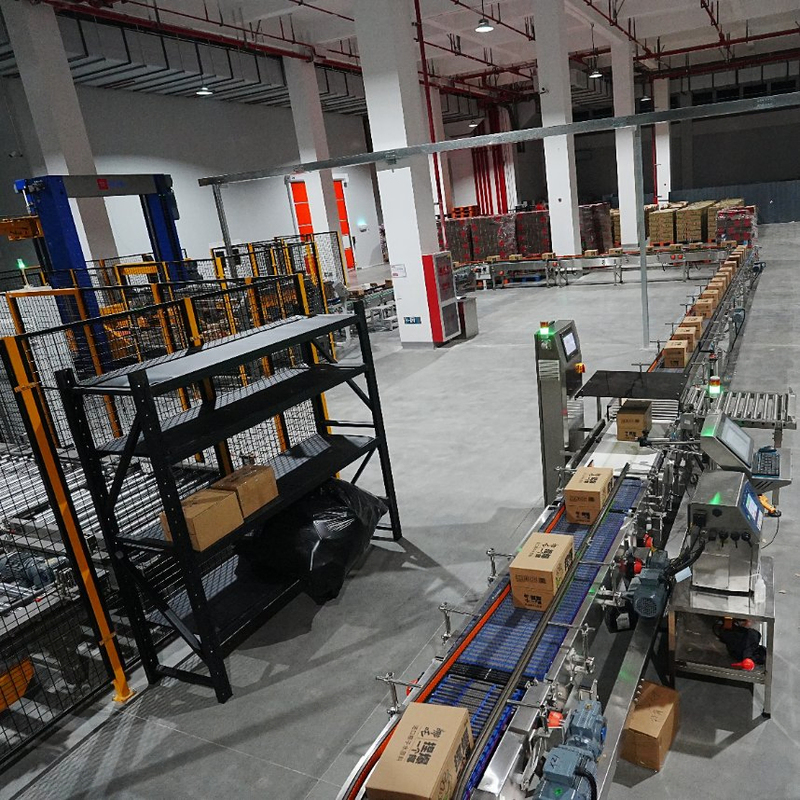

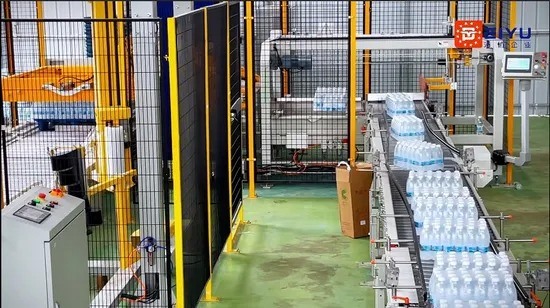

The robot palletizer is applied to various case-shaped for automatic convey, tidy, and palletizing operations. The case body is automatically conveyed into the differential conveying line, and it is automatically arranged by the rotary conveying device according to the requirement, then it is pushed into the designated position by the automatic pushing mechanism, the pallet is automatically conveyed to the specific position through the conveying line, and the case is arranged under the robot operation. Automatic stacking of the finished cases are carried out under the operation of the robot and it is ready for storage. The machine push type can be selected as continuous action or single cycle action, the operation adaptability is high. At the same time, it is applicable to the packing operation of the package of the back section of various drinking articles. It adopts PLC programmable computer automatic controller, photoelectric switch, travel switch, pneumatic control and other control systems. The accuracy of mechanical action is high and the operation is easy. The palletizing system uses high-precision robot operation, which is stable in operation, less in failure.

Classification	Robot Loading Machine	Capacity	420 times/h (as demanded)
Operating Mode	Grab Palletizing	Conveyor Height	As demanded
Driven Type	Electric	Pallet Conveyor Height	As demanded
Pallet Size	Standard Pallet (as demanded)	Case Size	As demanded
Dimension	1360095004300 mm	Applicable Product	Plastic Case, Carton
Palletizing Storage	15 pallets	Total Power	27KW
Weight	≈11200kg	Transport Package	Film Packing or Wooden Case
