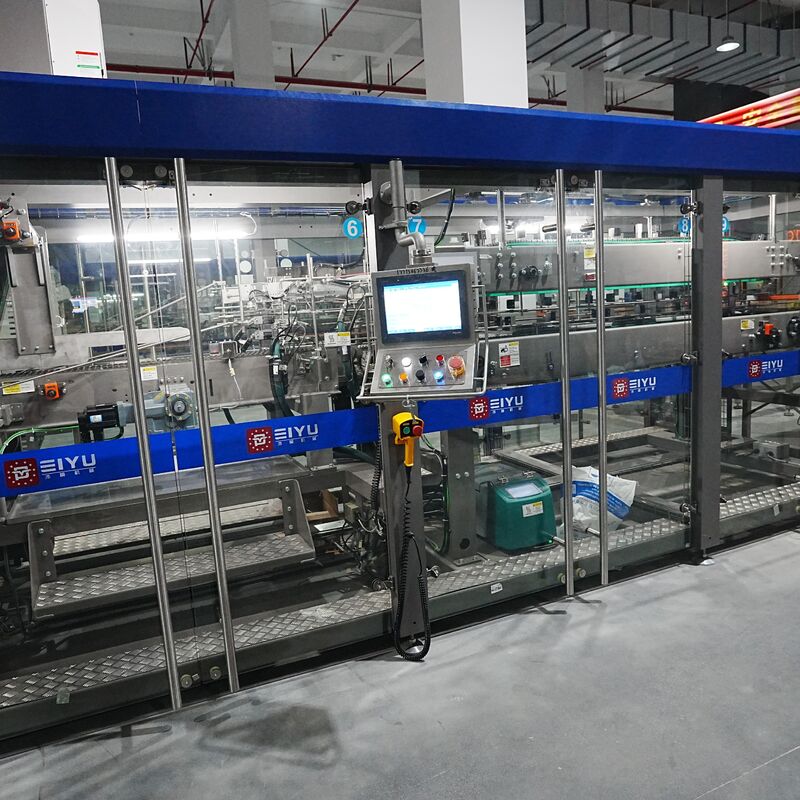

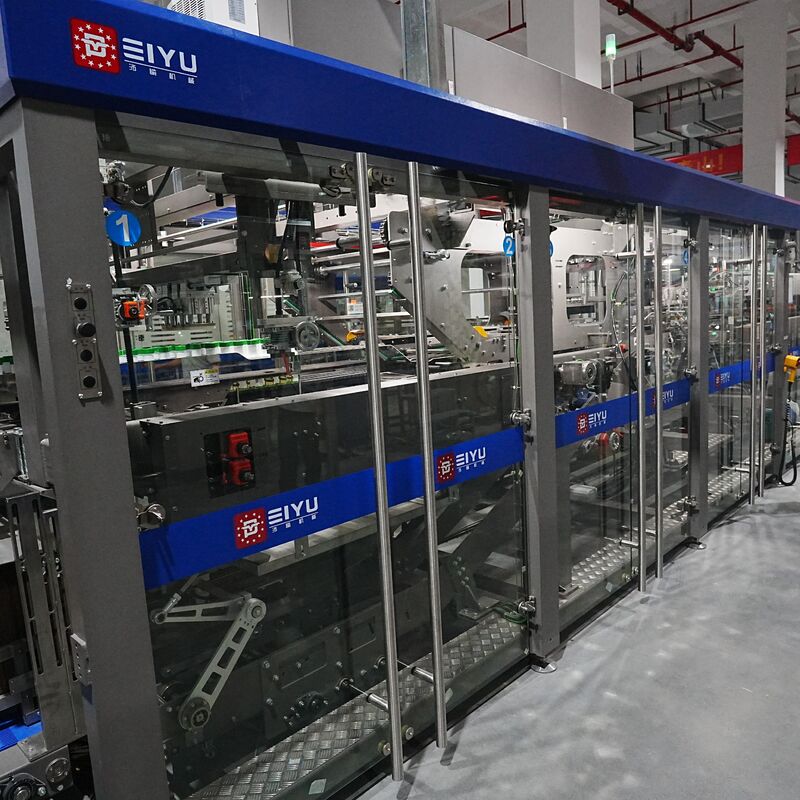

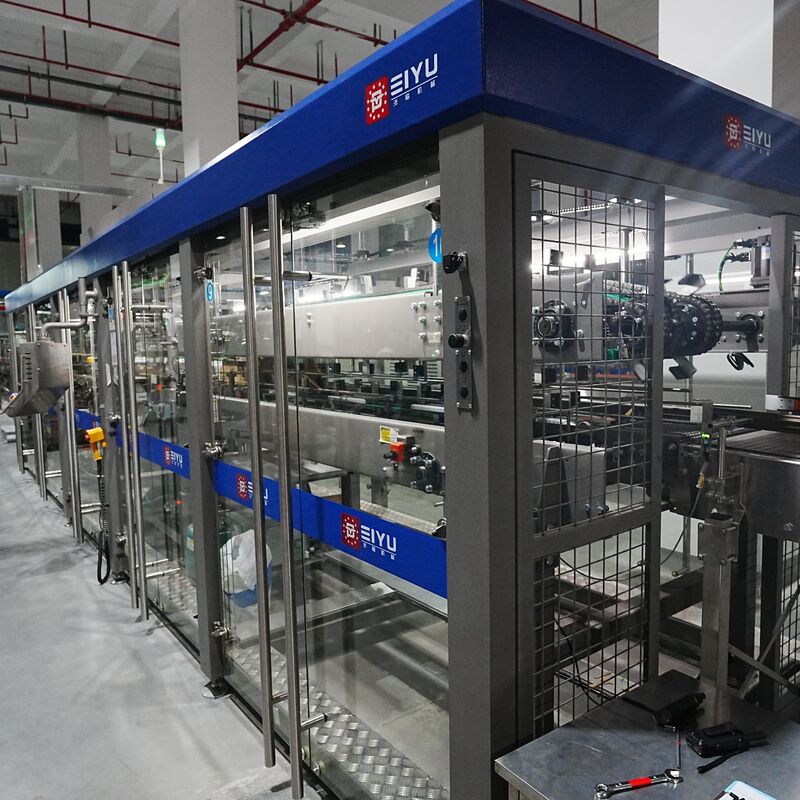

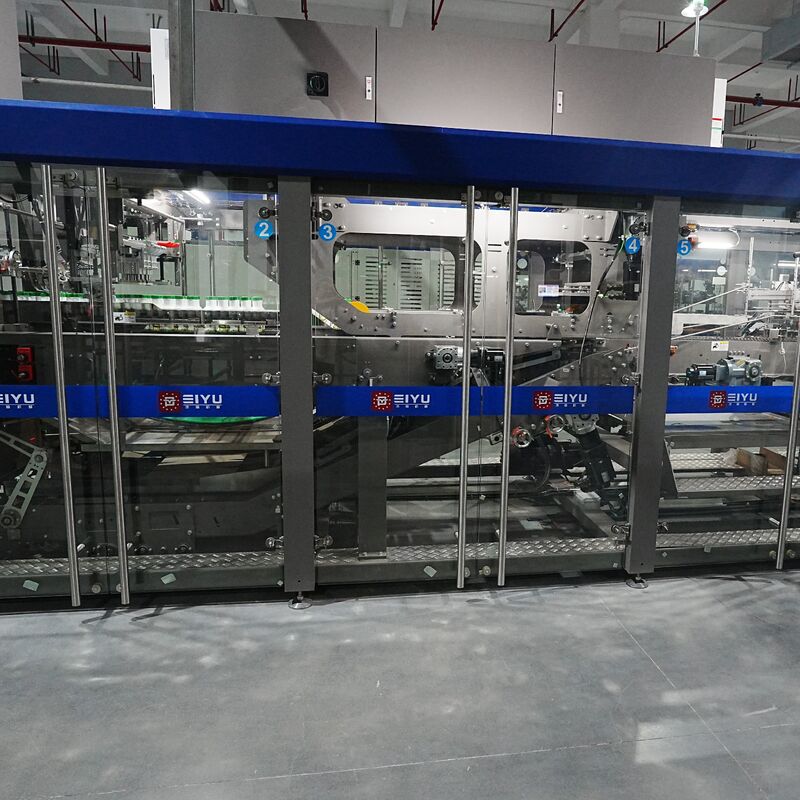

High-Speed Fully Automatic Narrow-Edge Carton Wrapping Machine SCWM.NA1H
High-performance carton wrapping solution delivering up to 80 packs per minute for efficient secondary packaging operations.
Manufacturer Information
Shanghai Peiyu Packaging Technology Co., Ltd.
Application Range
This machine is widely used for secondary packaging of PET bottles, glass bottles, or metal cans, and can replace cartoning machines and their ancillary equipment.
Production capacity range: 35-100 packs per minute depending on packaging specifications.
Equipment Components and Process Flow
The equipment consists of frame, bottle conveying system, pressure control module, product grouping unit, bottle pushing unit, cardboard buffer area, cardboard conveying section, cardboard supply and transfer unit, cardboard inclined conveying section, cardboard folding and forming transition section, lower side gluing and forming section, upper side gluing and forming section, control box, and electrical cabinet.

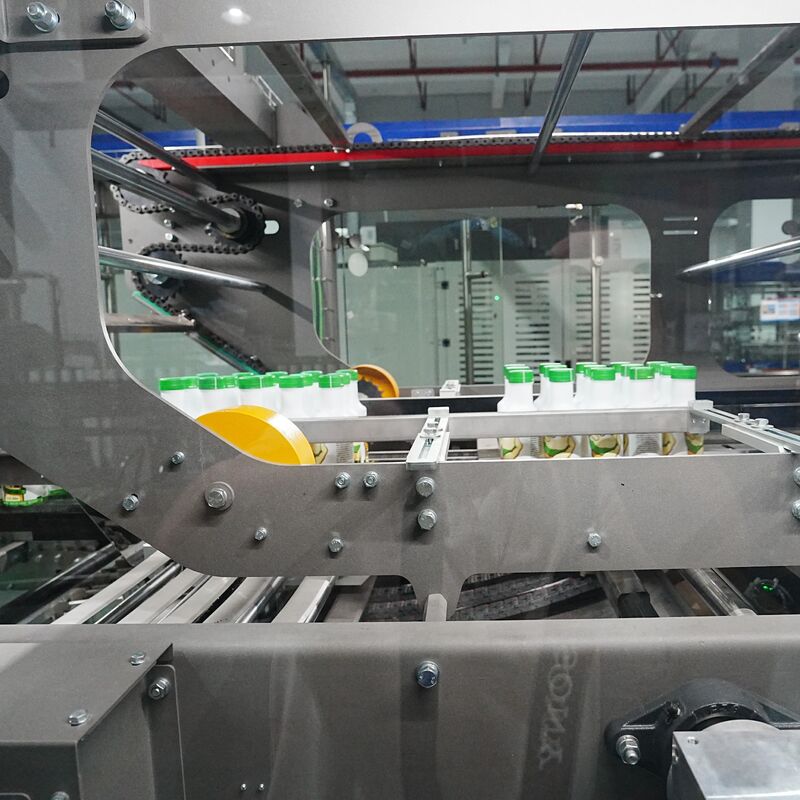

Operation process: Cardboard is manually placed on the buffer conveyor and transported to the lifting area. Vacuum suction cups separate individual cardboard sheets, which are conveyed to the product assembly point. Products are grouped and conveyed to meet the cardboard at the assembly point, where automatic wrapping is completed through folding and gluing processes.
Cardboard Dimension Requirements
Unfolded cardboard dimensions: 250mm ≤ A ≤ 630mm, 430mm ≤ B ≤ 1260mm, C ≤ 460mm, and D ≤ 800mm.
Cardboard Quality and Storage Requirements
Flatness Specifications
Maximum deflection in length direction: ≤ 0.5% of cardboard length
Maximum deflection in width direction: ≤ 0.5% of cardboard width
Storage Guidelines
- Maximum storage time: 6 months
- Optimal climate: 18-25°C at 50-70% relative humidity
- Store flat on pallets with top flattened
- Avoid direct sunlight or heat exposure
- Remove film wrapping shortly before processing in humid environments
- Reseal broken film areas with moisture-proof packaging before storage
Application Scenarios
Narrow-edge carton wrapping machine is widely used in water production lines, beverage production lines, canned food production lines, pet food production lines, beer production lines, and liquid seasoning production lines.
Technical Specifications
| Specification |
Value |
| Production Capacity |
80 packs/minute (depending on bottle type and packaging method) |
| Formed Carton Length |
150mm (min) - 420mm (max) |
| Formed Carton Width |
110mm (min) - 350mm (max) |
| Formed Carton Height |
100mm (min) - 335mm (max) |
| Packaging Patterns |
3×4, 3×5, 4×6, 2×3, 2×4, etc. |
| Product Diameter |
φ52mm-106mm (with differential feed) or φ48mm-106mm (without differential feed) |
| Product Height |
95mm-330mm |
| Equipment Dimensions |
Approximately 15850mm×4150mm×3150mm (L×W×H) |
| Applicable Container Types |
Cans, glass bottles, PET bottles |
| Conveyor Height |
1350mm |
| Equipment Weight |
Approximately 11000Kg |
| Operating Air Pressure |
6 bar |
| Air Consumption |
160L/min Max |
| Operating Voltage |
380V AC 50HZ; 24V DC/AC |
| Installed Power |
55KW |
| Operating Power |
40KW |
Electrical Configuration
| Component |
Brand/Type |
| PLC |
Inovance |
| Servo Motor and Controller System |
Inovance |
| HMI/SCADA Software |
AB Optix |
| Frequency Converter |
Inovance |
| Proximity Switch |
SICK or equivalent |
| Circuit Breaker |
Schneider or equivalent |
| Motor Protector |
Schneider or equivalent |
| Contactor |
Schneider or equivalent |
| Push Button |
Schneider/Goto Electrical or equivalent |
| Intermediate Relay |
Schneider or equivalent |
| Phase Failure Protector |
Schneider or equivalent |
| Terminal Blocks |
Phoenix Contact |
| Standard Motor and Gearbox |
SEW |
| Servo Motor with Gearbox |
Domestic precision gearbox |
| Servo Motor |
Inovance |
| Hot Melt Glue Machine |
Robatech (with automatic glue feeding) |
| Pneumatics |
Festo |
| Vacuum Pump |
BECKER |
Note: Configuration may be substituted with equivalent brands based on supplier availability without additional notification.
