The Fully Automatic Can Sleeve Labeling Machine Was Tested In Workshop And Exported To Indonesia

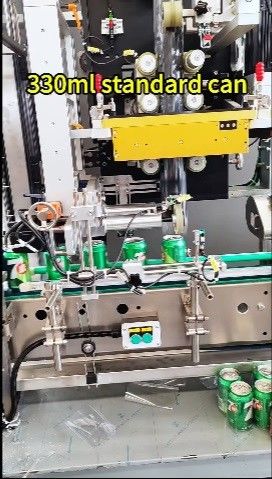

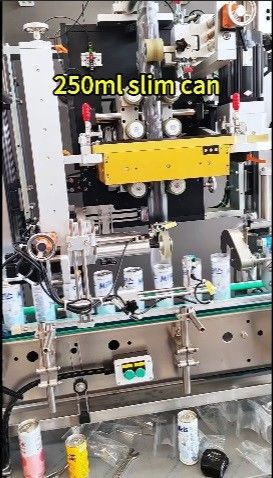

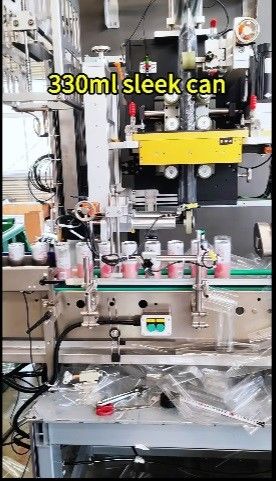

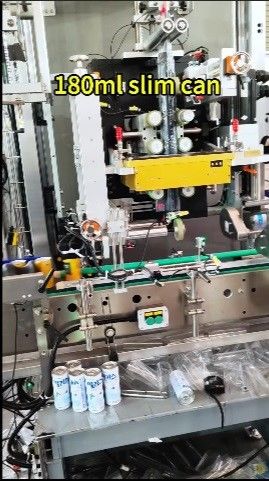

The fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia

Applicable bottle types: Applicable to the packaging of various bottle types, including but not limited to round, oval, square or other special-shaped bottles.

Applicable bottle materials: PET/PE/PP bottles, glass bottles, cans,etc.

Labeling speed range: 12000BPH-72000BPH

Different names for Shrinking sleeve labeling:

Shrinking sleeve labeling machine
Sleeve labeler
Double Head Sleeve Labeling Machine
Single head sleeve labeling machine
Can sleeve labeling machine
Labeler
Automatic sleeving machine
Bottle sleeve machine
Automatic sleeve labeling machine
Beer can shrink sleeve applicator
Shrink Sleeve Labeling Machine
Label Sleeving Machine
Shrink Sleever
Shrink Labeling Machine
Sleeving Labeler
Shrink Sleeve Label Labeling Machine

Shrink Sleeve Labeling Machines, Tunnels, and Applicators

1.Main component configuration for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:

2.Main technical parameters of the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:

3.Equipment Overview for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:
Peiyu High-speed Hob Sleeve Labeling Machine: Hob Sleeve Labeling Machine + Horizontal Automatic Feeding Station System (Most Advanced Sleeve Labeling Technology, Zero Burr Hob Cutting Label Sleeve Labeling Machine)
As one of the most technologically advanced sleeve labeling machines in the world, the Peiyu High-speed Hob Sleeve Labeling Machine only requires one unit and can package up to 58,000 containers per hour.
Compared with traditional machines, the label burrs generated by the cutter disc cutting are eliminated from the labeling process and design principles. The Peiyu High-speed Hob Sleeve Labeling Machine adopts a cutter disc-free design, and separates the labels with a unique drive control and continuous movement of the brush-down mechanism, rather than intermittent operation in a beat-type manner, thereby achieving high-speed sleeve labeling packaging.
Using a rotary perforation tool to pierce micro-holes on the sleeve label, zero burrs are generated, and the sleeve label works continuously without beat pauses.

4.High-speed roller labeling machine structure for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:

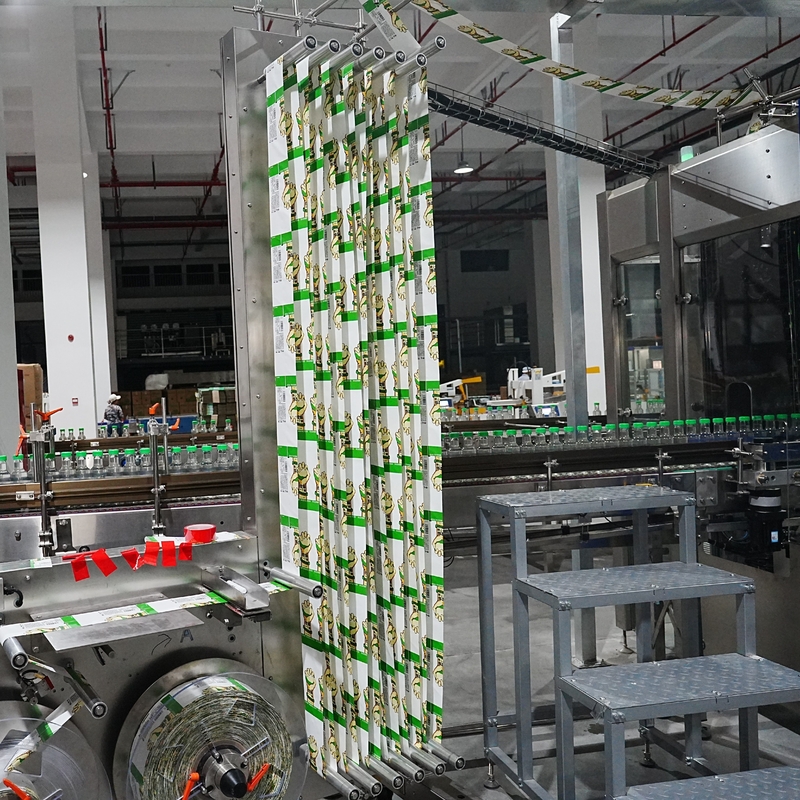

1.Horizontal automatic feeding station (can store 8 rolls of labels, reduce the frequency of changeover and improve production efficiency).

2.Touch screen

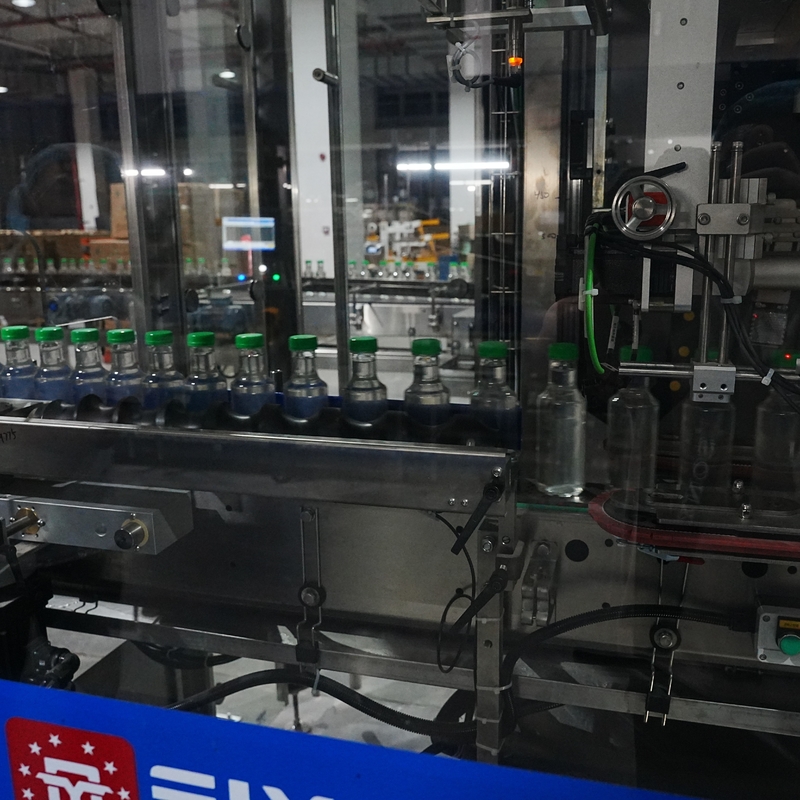

3.Floor-standing transparent frame (visually observe the operating status of the labeling machine)
4.Bottle separation screw (modular design can realize single screw, double screw, single-side double screw, double-side double screw combination)
5.Main machine conveyor

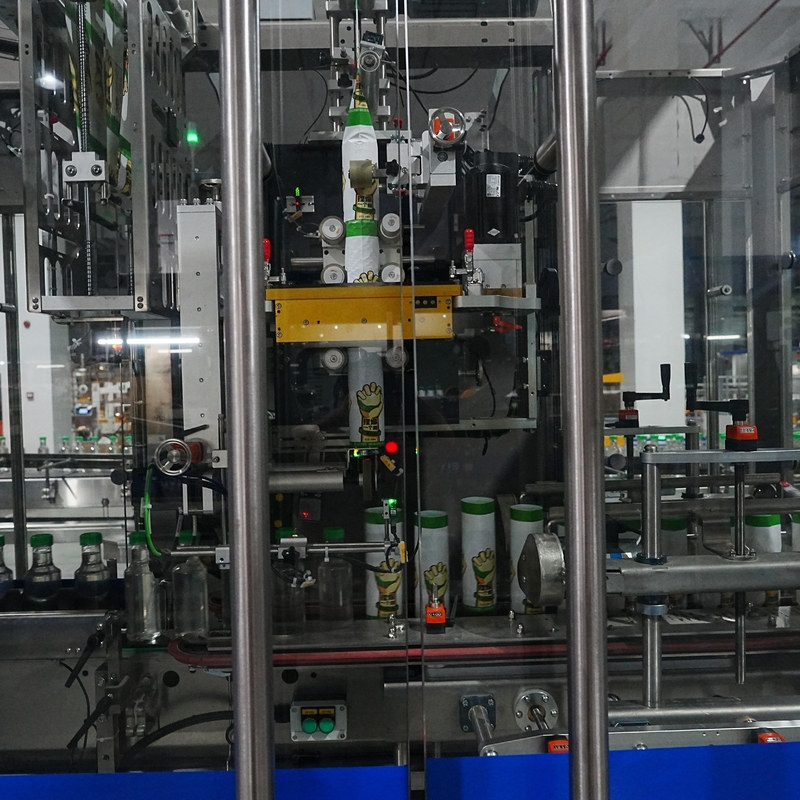

6.Labeling machine head

7.Label brushing mechanism
8.Roller label punching assembly
9.Steam shrinking furnace (modular design 3-stage, 4-stage, 5-stage combination)

5.Steam shrinking oven (constant temperature shrinking oven controlled by steam proportional valve) for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:

1).Main accessories of steam furnace:
Filter, pressure gauge, pressure reducing valve, angle seat valve, manual ball valve, steam trap, proportional valve (four sections and above)
2).Main features of steam furnace:

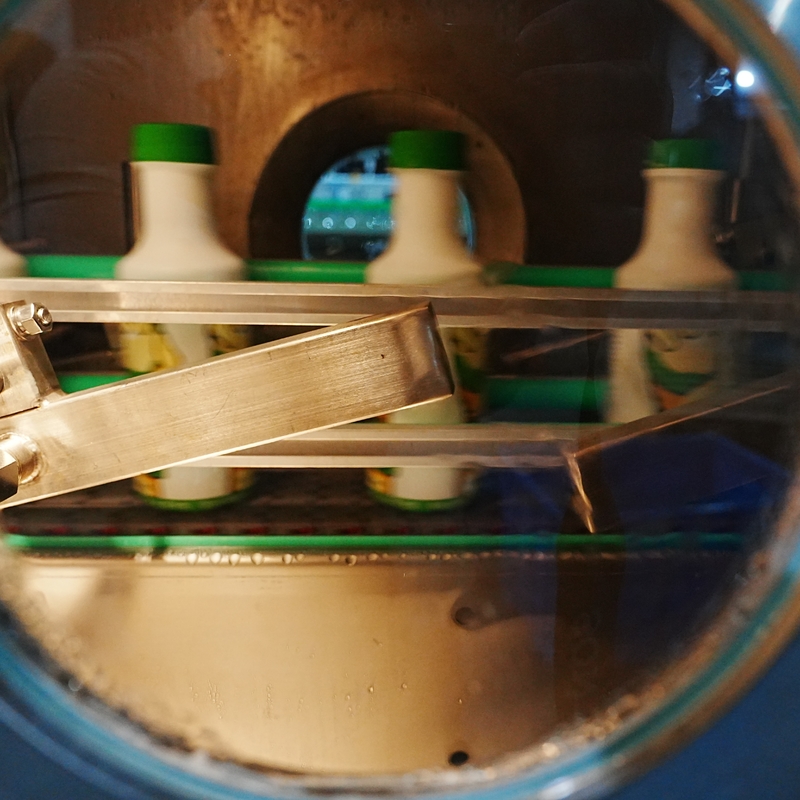

2.1.The shrinking furnace is uniquely designed according to the shrinking characteristics of the label. The height, width and narrowness of the nozzle can be adjusted. The perspective window can observe the entire shrinking process. The shrinking furnace is divided into 3/4/5 temperature zones. The temperature of each zone is adjusted according to the shrinking requirements to achieve the best shrinking effect.
2.2.The unique inlet and outlet design can condense steam to prevent steam leakage. Double-layer insulation, steam trap and steam filter are used to effectively discharge steam moisture. The bottom integral water tray collects condensed water and takes over the pipe for centralized discharge.
2.3.The adjustable exhaust duct design can adjust the exhaust volume according to the shrinkage of each section, adjust the steam in the shrinking furnace, and send the steam away under the action of the fan to improve the working environment of the workshop.
2.4.Steam decompression is completed in 2 steps. The first step is to reduce the pressure to 0.4Mp. The second step is to reduce the pressure to 0.2-0.1Mpa using a Japanese pressure reducing valve to meet the requirements of high temperature and low pressure shrinkage.
3).The steam energy saving scheme of the steam shrinkage furnace is configured with a proportional valve to achieve the steam energy saving function. The working principle is as follows:
3.1.During normal production, the steam proportional valve is configured to increase the opening and closing degree according to the temperature required by the production speed.
3.2.When the production speed is reduced, the steam proportional valve is reduced in opening and closing, reducing the steam flow.
3.3.During short-term standby, the steam proportional valve has a small opening and closing degree to maintain the furnace cavity temperature and reduce steam loss.

3.4.When the machine is shut down for a long time, the angle seat valve is closed to stop the steam from entering.

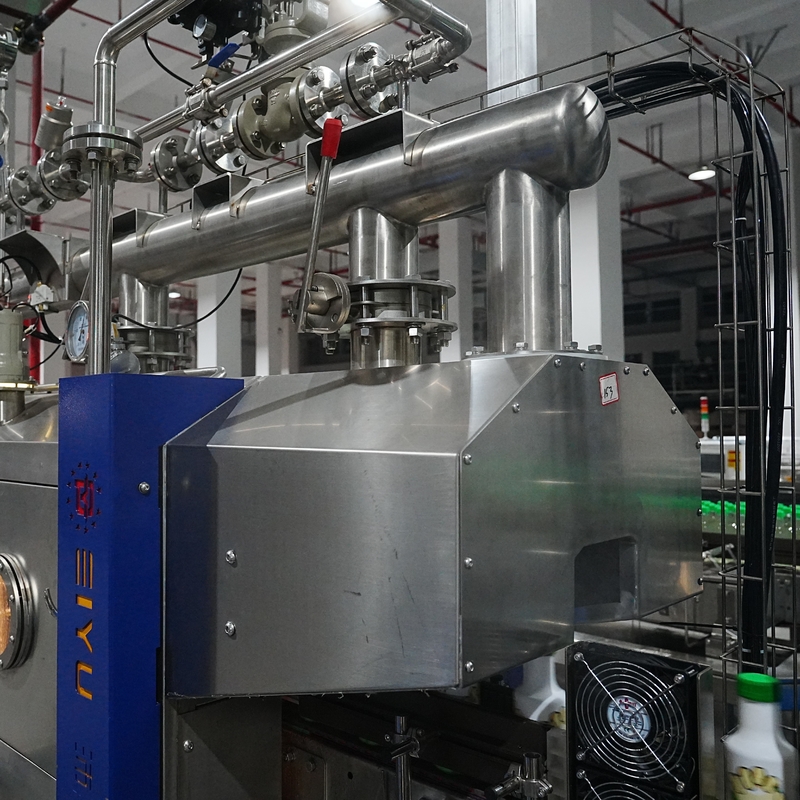

4).Steam shrinking furnace structure:
1.Bottle input port
2.Temperature gauge
3.One pressure reducing valve (domestic high quality)
4.Two pressure reducing valves (Japanese valve)
5.Pressure gauge
6.Steam proportional valve
7.Steam exhaust fan
8.Bottle output port

6.Quotation and delivery time for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:

(1).Quotation validity period: 1 month;
(2).Payment method: T/T, L/C.
(3).Customers provide the product and packaging samples required for factory trial free of charge;
(4).Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.

7.Quality Assurance for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:
(1).The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2).The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3).The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4).The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5).The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.

8.Equipment warranty for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:
(1).After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2).If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3).After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life;

9.Packaging and transportation for the fully automatic can sleeve labeling machine was tested in the workshop and exported to Indonesia:
(1).Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2).Transportation method: land transportation, sea transportation.
