Name: Automatic Shrink Sleeve Labeling Machine 9000-72000bph for Bottles
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > products > Sleeve Labeler >

Automatic Shrink Sleeve Labeling Machine 9000-72000bph for Bottles

automatic shrink sleeve labeling machine

high-speed bottle labeling machine

industrial sleeve labeler with warranty

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Automatic Shrink Sleeve Labeling Machine 9000-72000bph for Bottles

Product Details

Capacity:

9000-72000bph/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75 Mm -280 Mm

Packaging Verticality:

≤0.25 °

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Paper Core:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Labeling Machine Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Source Pressure:

0.2-0.4MPa

Highlight:

automatic shrink sleeve labeling machine

high-speed bottle labeling machine

industrial sleeve labeler with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles

Get Best Price

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

Get Best Price

Automatic Can Sleeve Labeling Machine 500bpm for Beverage Production

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

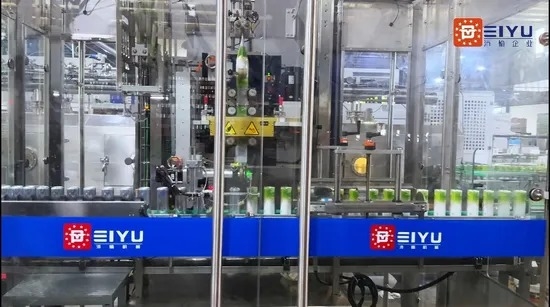

Fully Automatic High Capacity Shrink Sleeve Labeling Machine

Product Overview

This high-speed sleeve labeling machine delivers precision labeling for various container types with a production capacity up to 72,000 bottles per hour (BPH). The advanced hob cutting technology eliminates label burrs while maintaining exceptional speed and accuracy.

Key Features

Versatile Compatibility: Handles square, flat, and round bottles made of PET, PE, PP, glass, or metal
High-Speed Operation: 9,000-72,000 BPH depending on container specifications
Advanced Technology: Cutter disc-free design with continuous brush-down mechanism
Precision Labeling: ≥99.9% qualified rate with ≤0.25° packaging verticality
Energy Efficient: Steam proportional valve system reduces consumption during operation

Technical Specifications

Parameter	Specification
Model	SPCTB.C1C100
Max Capacity	970 bottles/minute (height ≤100mm)
Bottle Diameter Range	50-95mm (custom sizes available)
Bottle Height Range	75-280mm (custom heights available)
Label Materials	PVC, PET, OPS
Label Dimensions	Length: 45-240mm \| Thickness: 0.045-0.06mm
Power Requirements	AC380V, 50/60Hz, 3 phases (Labeler: 26KW \| Furnace: 1.6KW)
Machine Dimensions	4000×2100×2750mm (L×W×H)

Core Components

Component	Brand
PLC System	Inovance (China)
Servo Motor & Control	Inovance (China)
Proximity Sensors	SICK/Keyence or equivalent
Pneumatic Components	SMC
Terminals	Phoenix

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Transparent observation frame
Modular bottle separation screw system
Main conveyor with labeling head
Roller label punching assembly
Steam shrinking furnace (3-5 stage configuration)

Steam Shrinking Furnace Features

Adjustable nozzle design for optimal label shrinkage
3-5 temperature zones with independent controls
Double-layer insulation with steam trap and filter
Integrated water collection tray with drainage
Two-stage pressure reduction system (Japanese valves)
Proportional valve for energy-efficient steam usage

Manufacturer Profile

Peiyu Enterprise operates multiple manufacturing facilities across China, specializing in complete packaging solutions for liquid and solid products. Our 60,000m² production base features advanced equipment including laser cutting machines, processing centers, and comprehensive quality control systems.

Certified to ISO9001 and European CE standards, we serve global clients in beverage, dairy, pharmaceutical, and food industries, with exports to North America, South America, Africa, Europe, and the Middle East.
