Name: Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > products > Sleeve Labeler >

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 72000bph

can labeling machine with warranty

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Product Details

Model NO.:

Customized

Automatic Grade:

Automatic

Capacity:

9000-72000bph/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75 Mm -280 Mm

Packaging Verticality:

≤0.25 °

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Paper Core:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Voltage:

AC380V, 50/60HZ, 3 Phases

Labeling Machine Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Source Pressure:

0.2-0.4MPa

Steam Consumption:

70kg/hour - 110kg/hour

Dimensions:

4000x2100x2750 (length X Width X Height)

Highlight:

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 72000bph

can labeling machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles

Get Best Price

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

Get Best Price

Automatic Can Sleeve Labeling Machine 500bpm for Beverage Production

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Efficient and Fast Thermal Shrink Tunnel for Sleeve Labeling Machine

Product Overview

High-performance thermal shrink tunnel designed for sleeve labeling applications across various bottle types and materials with labeling speeds ranging from 9,000 to 72,000 bottles per hour.

Compatible Containers

Bottle Types: Square, flat, and round bottles

Materials: PET, PE, PP, glass, metal, and cans

Industry Applications

Ideal for water, beverage, canned food, pet food, beer, liquid seasoning, and similar production lines.

Technical Specifications

Parameter	Value
Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Labeling Accuracy	≥99.9%
Bottle Diameter Range	50mm-95mm (custom sizes available)
Label Materials	PVC, PET, OPS
Power Requirements	AC380V, 50/60HZ, 3 phase

Key Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Pneumatic Components	SMC
Terminals	Phoenix

Advanced Features

Hob cutting technology eliminates label burrs
Continuous brush-down mechanism for high-speed operation
Rotary perforation tool creates micro-holes without burrs
Modular design for flexible configuration
Steam proportional valve for energy efficiency

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Floor-standing transparent observation frame
Modular bottle separation screw system
Main conveyor with labeling head
Steam shrinking furnace (3-5 stage configuration)

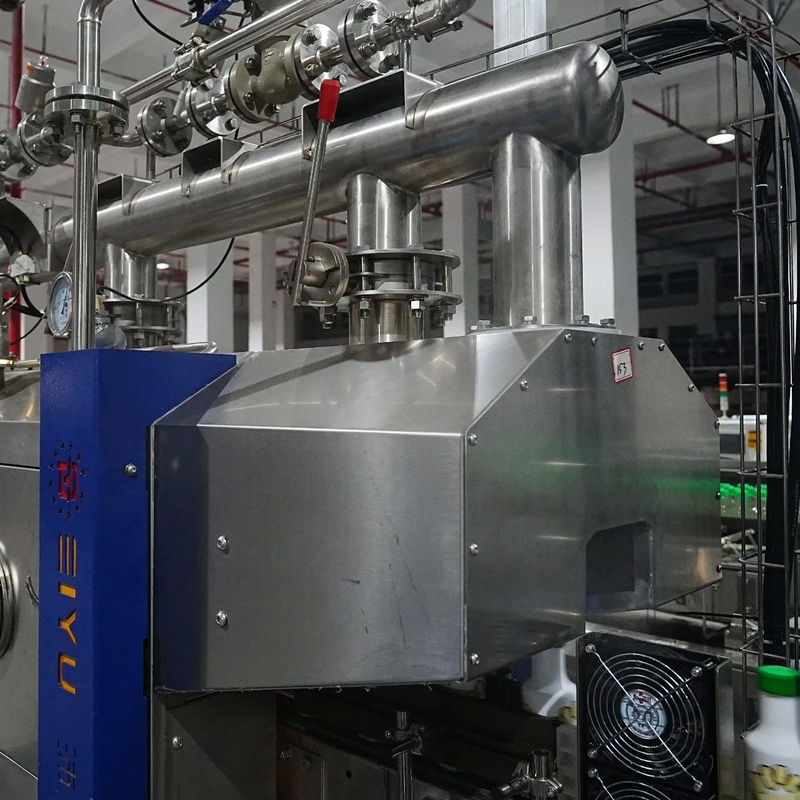

Steam Shrinking Oven Features

Adjustable nozzle height, width, and narrowness
Perspective window for process monitoring
3/4/5 temperature zone configuration
Double-layer insulation with steam trap
Adjustable exhaust duct design
Two-step steam pressure reduction system

Company Profile

Peiyu Enterprise is a leading manufacturer of packaging machinery with multiple production bases across China. We specialize in complete line solutions for various packaging formats and serve global clients across food, beverage, pharmaceutical, and cosmetic industries.

Our products meet ISO9001 quality standards and carry European CE certification. With advanced manufacturing facilities and R&D centers, we deliver reliable, high-performance equipment to clients worldwide.
