Fully Automatic and High Capacity Sleeve Labeling Machine
Product Description
Applicable bottle types: Square bottles, flat bottles, round bottles.
Applicable bottle materials: PET/PE/PP bottles, glass bottles, metal bottles, cans, etc.
Labeling speed range: 9,000BPH-72,000BPH
This sleeve labeler is widely used in water production lines, beverage production lines, canned food production lines, pet food production lines, beer production lines, and liquid seasoning production lines.
Alternative Names
Shrinking sleeve labeling, Sleeve labeler, Double Head Sleeve Labeling Machine, Single head sleeve labeling machine, Can sleeve labeling machine, Labeler, Automatic sleeving machine, Bottle sleeve machine, Automatic sleeve labeling machine, Beer can shrink sleeve applicator, Shrink Sleeve Labeling Machine, Label Sleeving Machine, Shrink Sleever, Shrink Labeling Machine, Sleeving Labeler, Shrink Sleeve Label Labeling Machine.
Main Components
| Component | Brand |
| PLC | Inovance, China |
| Servo motor and control system | Inovance, China |
| Inverter | Inovance, China |
| Proximity electronic switch | SICK/Keyence or equivalent brand |
| Touch screen | HMI or equivalent brand |
| Air switch | Equivalent brand |
| Motor protector | Equivalent brand |
| Contactor | Equivalent brand |
| Button | Equivalent brand |
| Intermediate relay | Equivalent brand |
| Phase loss protector | Equivalent brand |
| Terminal | Phoenix |
| Ordinary reducer | Hengchi/domestic precision reducer |
| Pneumatic components | SMC |
Main Technical Parameters
| Parameter | Specification |
| Model | SPCTB.C1C100 |
| Production capacity | 970 bottles/minute (height ≤100 mm) |
| Qualified rate of labeling | ≥99.9% |
| Bottle diameter | 50mm ~ 95mm (special sizes available) |
| Bottle height | 75mm - 280mm (special heights available) |
| Packaging verticality | ≤0.25° (special bottle types available) |
| Applicable labels | PVC, PET, OPS |
| Label length | 45mm ~ 240mm |
| Label thickness | 0.045mm ~ 0.06mm |
| Label material | PVC, PET, OPS |
| Label transparent spacing | ≥5mm |
| Label paper core inner diameter | ≥5" (127mm) |
| Label outer diameter | ≤500mm |
| Voltage | AC380V, 50/60HZ, 3 phases |
| Labeling machine power | 26KW |
| Shrinking furnace power | 1.6KW |
| Steam source pressure | 0.2-0.4MPa |
| Steam consumption | 70kg/hour - 110kg/hour |
| Dimensions (Main unit) | 4000x2100x2750 (LxWxH in mm) |
Equipment Overview
The Peiyu High-speed Hob Sleeve Labeling Machine represents the most advanced sleeve labeling technology available, featuring a zero-burr hob cutting system. This innovative machine can package up to 58,000 containers per hour using just one unit.
Unlike traditional machines that generate label burrs from cutter disc cutting, our machine features a cutter disc-free design. It utilizes a unique drive control system with continuous brush-down mechanism movement rather than intermittent operation, enabling high-speed sleeve labeling.
The machine employs a rotary perforation tool to create micro-holes on sleeve labels, eliminating burrs and enabling continuous operation without beat pauses.
Machine Structure
- Horizontal automatic feeding station (stores 8 rolls of labels to reduce changeover frequency)
- Touch screen control interface
- Floor-standing transparent frame for operational visibility
- Modular bottle separation screw system (supports various configurations)
- Main machine conveyor system
- Labeling machine head
- Label brushing mechanism
- Roller label punching assembly
- Modular steam shrinking furnace (3-stage, 4-stage, or 5-stage configuration)

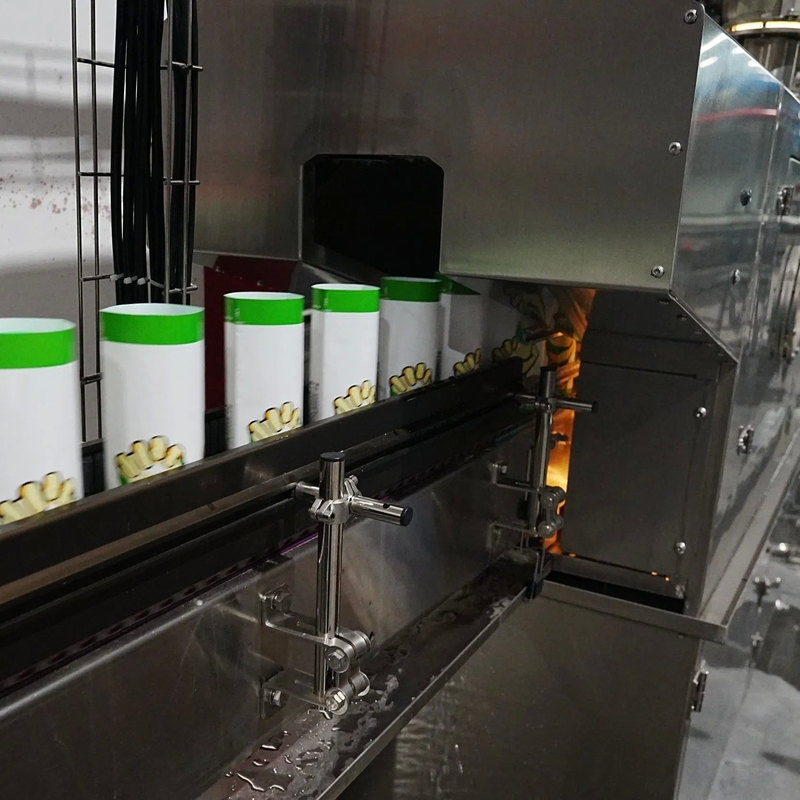

Steam Shrinking Oven Features
The steam shrinking oven features precise temperature control through steam proportional valves and includes:
- Filter, pressure gauge, pressure reducing valve, angle seat valve, manual ball valve, steam trap, proportional valve
- Adjustable nozzle design for optimal shrinking performance
- 3/4/5 temperature zones with individual temperature control
- Unique inlet/outlet design to prevent steam leakage
- Double-layer insulation with effective moisture discharge
- Adjustable exhaust duct system
- Two-step steam decompression system
- Energy-saving proportional valve configuration
Product Images
Company Profile
Peiyu Enterprise owns multiple subsidiaries specializing in packaging technology and machinery manufacturing. We provide complete intelligent equipment solutions and turnkey engineering services for liquid and solid product companies worldwide.
Our product range includes hundreds of mature packaging machinery covering aluminum bottle/can filling machines, sterilization kettles, loading/unloading systems, sleeve labeling machines, and complete production line solutions.
We serve major international brands across beverages, dairy, water, condiments, alcohol, cosmetics, and pharmaceutical industries, with exports to North America, South America, Africa, Europe, and the Middle East.
