Label Multi Roll Feeding System for Labeling Machine or Sleeve Labeling Machine
Product Description
Applicable bottle types: square bottles, flat bottles, round bottles.
Applicable bottle materials: PET/PE/PP bottles, glass bottles, metal bottles, cans, etc.
Labeling speed range: 9000BPH-72000BPH
Sleeve labeler is widely used in water production line, beverage production line, canned food production line, pet food production line, beer production line, liquid seasoning production line, etc.
Alternative Names:
- Shrinking sleeve labeling
- Sleeve labeler
- Double Head Sleeve Labeling Machine
- Single head sleeve labeling machine
- Can sleeve labeling machine
- Labeler
- Automatic sleeving machine
- Bottle sleeve machine
- Automatic sleeve labeling machine
- Beer can shrink sleeve applicator
- Shrink Sleeve Labeling Machine
- Label Sleeving Machine
- Shrink Sleever
- Shrink Labeling Machine
- Sleeving Labeler
- Shrink Sleeve Label Labeling Machine
Main Components of Peiyu Sleeve Labeler
| Component |
Brand |
| PLC |
Inovance, China |
| Servo motor and control system |
Inovance, China |
| Inverter |
Inovance, China |
| Proximity electronic switch |
SICK/Keyence or equivalent brand |
| Touch screen |
HMI or equivalent brand |
| Air switch |
Equivalent brand |
| Motor protector |
Equivalent brand |
| Contactor |
Equivalent brand |
| Button |
Equivalent brand |
| Intermediate relay |
Equivalent brand |
| Phase loss protector |
Equivalent brand |
| Terminal |
Phoenix |
| Ordinary reducer |
Hengchi/domestic precision reducer |
| Pneumatic components |
SMC |
Main Technical Parameters
| Parameter |
Specification |
| Model |
SPCTB.C1C100 |
| Production capacity |
970 bottles/minute (height ≤100 mm) |
| Qualified rate of labeling |
≥99.9% |
| Bottle diameter |
50mm ~ 95mm, special size can be designed separately |
| Bottle height |
75 mm -280 mm, special height can be designed separately |
| Packaging verticality |
≤0.25 °Special bottle type can be designed separately |
| Applicable labels |
PVC, PET, OPS |
| Label length |
45mm ~ 240mm |
| Label thickness |
0.045mm ~ 0.06mm |
| Label material |
PVC, PET, OPS |
| Label transparent spacing |
≥5mm |
| Label paper core inner diameter |
≥5" (127mm) |
| Label outer diameter |
≤500mm |
| Voltage |
AC380V, 50/60HZ, 3 phases |
| Labeling machine power |
26KW |
| Shrinking furnace power |
1.6KW |
| Steam source pressure |
0.2-0.4MPa |
| Steam consumption |
70kg/hour - 110kg/hour |
| Dimensions Main unit |
4000x2100x2750 (length x width x height) |
Equipment Overview
Peiyu High-speed Hob Sleeve Labeling Machine: Hob Sleeve Labeling Machine + Horizontal Automatic Feeding Station System (Most Advanced Sleeve Labeling Technology, Zero Burr Hob Cutting Label Sleeve Labeling Machine)
As one of the most technologically advanced sleeve labeling machines in the world, the Peiyu High-speed Hob Sleeve Labeling Machine only requires one unit and can package up to 58,000 containers per hour.
Compared with traditional machines, the label burrs generated by the cutter disc cutting are eliminated from the labeling process and design principles. The Peiyu High-speed Hob Sleeve Labeling Machine adopts a cutter disc-free design, and separates the labels with a unique drive control and continuous movement of the brush-down mechanism, rather than intermittent operation in a beat-type manner, thereby achieving high-speed sleeve labeling packaging.
Using a rotary perforation tool to pierce micro-holes on the sleeve label, zero burrs are generated, and the sleeve label works continuously without beat pauses.
High-speed Roller Labeling Machine Structure
- Horizontal automatic feeding station (can store 8 rolls of labels, reduce the frequency of changeover and improve production efficiency)
- Touch screen
- Floor-standing transparent frame (visually observe the operating status of the labeling machine)
- Bottle separation screw (modular design can realize single screw, double screw, single-side double screw, double-side double screw combination)
- Main machine conveyor
- Labeling machine head
- Label brushing mechanism
- Roller label punching assembly
- Steam shrinking furnace (modular design 3-stage, 4-stage, 5-stage combination)

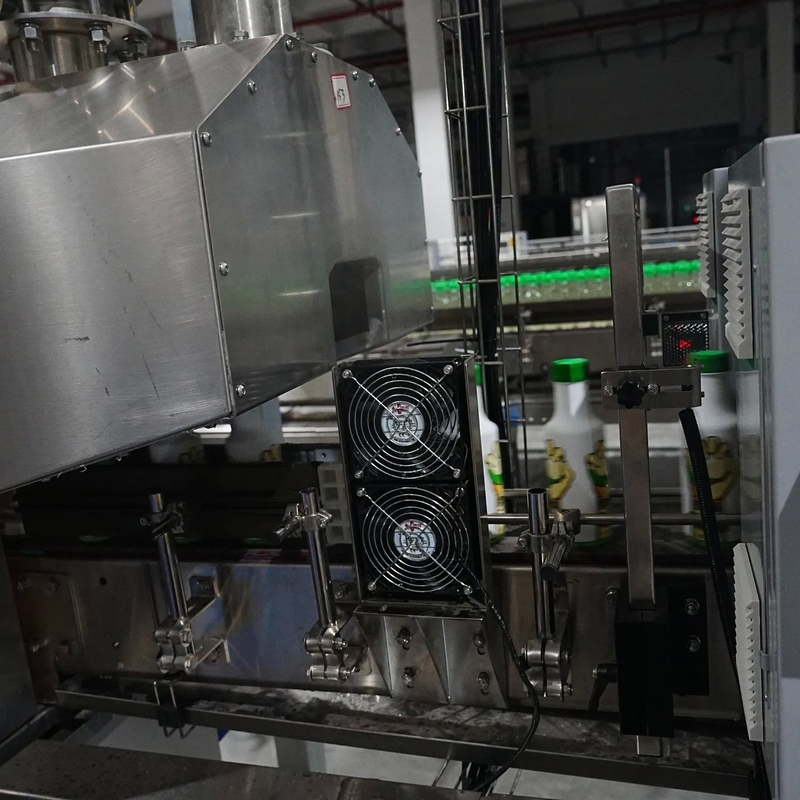

Steam Shrinking Oven
Main Accessories of Steam Furnace:
Filter, pressure gauge, pressure reducing valve, angle seat valve, manual ball valve, steam trap, proportional valve (four sections and above)
Main Features of Steam Furnace:
1. The shrinking furnace is uniquely designed according to the shrinking characteristics of the label. The height, width and narrowness of the nozzle can be adjusted. The perspective window can observe the entire shrinking process. The shrinking furnace is divided into 3/4/5 temperature zones. The temperature of each zone is adjusted according to the shrinking requirements to achieve the best shrinking effect.
2. The unique inlet and outlet design can condense steam to prevent steam leakage. Double-layer insulation, steam trap and steam filter are used to effectively discharge steam moisture. The bottom integral water tray collects condensed water and takes over the pipe for centralized discharge.
3. The adjustable exhaust duct design can adjust the exhaust volume according to the shrinkage of each section, adjust the steam in the shrinking furnace, and send the steam away under the action of the fan to improve the working environment of the workshop.
4. Steam decompression is completed in 2 steps. The first step is to reduce the pressure to 0.4Mp. The second step is to reduce the pressure to 0.2-0.1Mpa using a Japanese pressure reducing valve to meet the requirements of high temperature and low pressure shrinkage.
Steam Energy Saving Scheme
The steam shrinkage furnace is configured with a proportional valve to achieve the steam energy saving function. The working principle is as follows:
- During normal production, the steam proportional valve is configured to increase the opening and closing degree according to the temperature required by the production speed.
- When the production speed is reduced, the steam proportional valve is reduced in opening and closing, reducing the steam flow.
- During short-term standby, the steam proportional valve has a small opening and closing degree to maintain the furnace cavity temperature and reduce steam loss.
- When the machine is shut down for a long time, the angle seat valve is closed to stop the steam from entering.
Steam Shrinking Furnace Structure:
- Bottle input port
- Temperature gauge
- One pressure reducing valve (domestic high quality)
- Two pressure reducing valves (Japanese valve)
- Pressure gauge
- Steam proportional valve
- Steam exhaust fan
- Bottle output port
