Name: Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > products > Sleeve Labeler >

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

automatic beer can labeler 72000bph

shrink sleeve labeler for cans

high-speed beer can labeler

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

Product Details

Model NO.:

Customized

Automatic Grade:

Automatic

Capacity:

9000-72000bph/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

500 Sets/Year

Labeling Speed:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75mm -280mm

Packaging Verticality:

≤0.25°

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Outer Diameter:

≤500mm

Voltage:

AC380V, 50/60HZ, 3 Phases

Labeling Machine Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Source Pressure:

0.2-0.4MPa

Steam Consumption:

70kg/hour - 110kg/hour

Dimensions:

4000x2100x2750 (length X Width X Height)

Highlight:

automatic beer can labeler 72000bph

shrink sleeve labeler for cans

high-speed beer can labeler

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles

Get Best Price

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

Get Best Price

Automatic Can Sleeve Labeling Machine 500bpm for Beverage Production

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Fully Automatic and High Capacity Beer Can Shrink Sleeve Applicator

Product Overview

High-speed automatic sleeve labeling machine designed for various bottle types including square, flat, and round containers. Compatible with PET/PE/PP bottles, glass bottles, metal bottles, and cans with labeling speeds ranging from 9,000 to 72,000 bottles per hour.

Key Features

Advanced hob cutting technology eliminates label burrs
Continuous brush-down mechanism for high-speed operation
Rotary perforation tool creates micro-holes with zero burrs
Modular design for flexible configuration
Steam shrinking furnace with precise temperature control
Horizontal automatic feeding station for efficient operation

Technical Specifications

Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Labeling Accuracy	≥99.9% qualified rate
Bottle Dimensions	Diameter: 50-95mm, Height: 75-280mm (custom sizes available)
Label Specifications	Materials: PVC, PET, OPS \| Length: 45-240mm \| Thickness: 0.045-0.06mm
Power Requirements	AC380V, 50/60HZ, 3 phases \| Labeling machine: 26KW \| Shrinking furnace: 1.6KW
Dimensions	4000×2100×2750mm (L×W×H)

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Proximity Electronic Switch	SICK/Keyence or equivalent
Pneumatic Components	SMC
Touch Screen	HMI or equivalent

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Transparent observation frame
Modular bottle separation screw system
Main conveyor system
Labeling head assembly
Label brushing mechanism
Roller label punching assembly
Modular steam shrinking furnace (3-5 stage configuration)

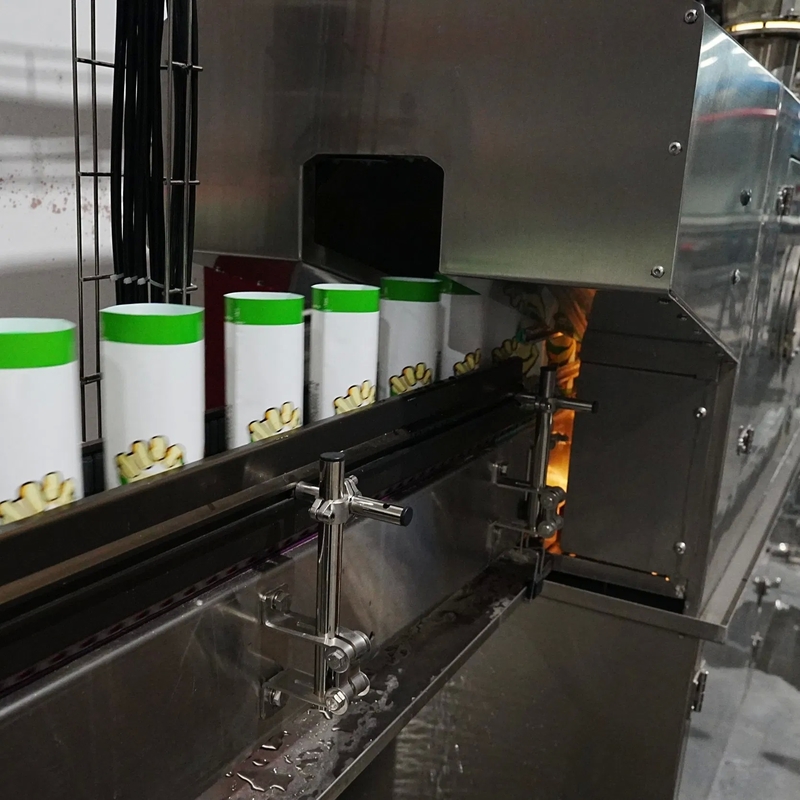

Steam Shrinking Furnace Features

Adjustable nozzle design for optimal shrinking
3-5 temperature zones with independent control
Double-layer insulation with steam trap and filter
Adjustable exhaust duct system
Two-stage pressure reduction system
Proportional valve for energy-efficient operation

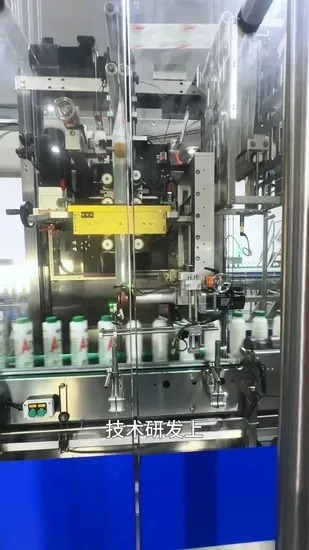

High-speed sleeve labeling machine in production environment

Company Profile

Peiyu Enterprise provides complete intelligent equipment solutions for liquid and solid product packaging, with facilities in Shanghai, Anhui, and Jiangsu. Our product range includes filling machines, sterilization systems, labeling machines, and complete production lines for various industries.

Quality certifications including ISO9001 and CE

State-of-the-art manufacturing facility
