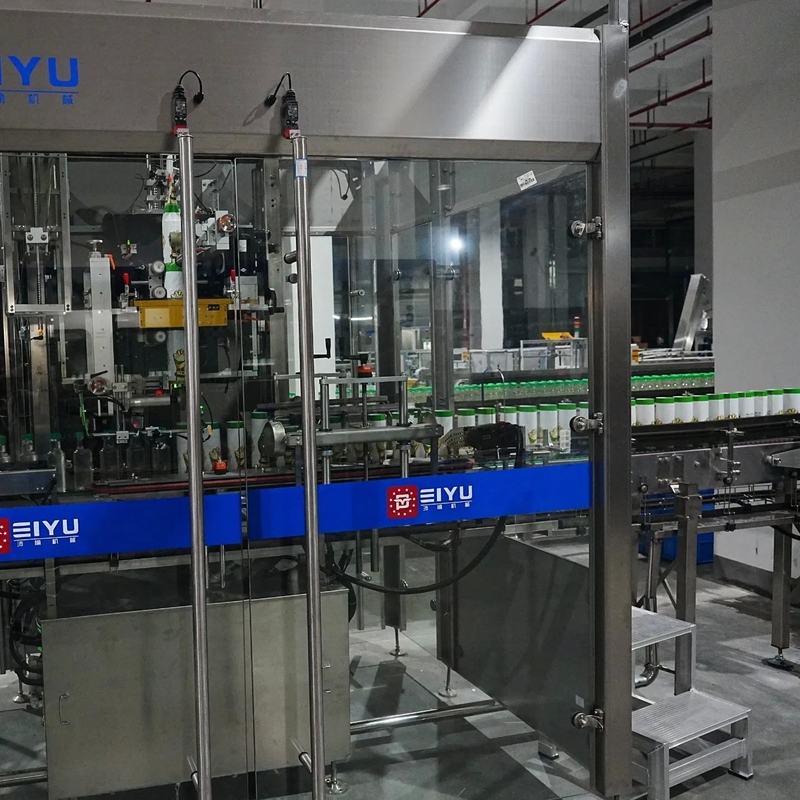

Name: Automatic Double Head Sleeve Labeler 9000-72000bph for Beverage Bottles
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > products > Sleeve Labeler >

Automatic Double Head Sleeve Labeler 9000-72000bph for Beverage Bottles

automatic sleeve labeler for beverage bottles

double head sleeve labeler 9000-72000bph

high speed sleeve labeler with warranty

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Automatic Double Head Sleeve Labeler 9000-72000bph for Beverage Bottles

Product Details

Model NO.:

Customized

Automatic Grade:

Automatic

Capacity:

9000-72000bph/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75 Mm -280 Mm

Packaging Verticality:

≤0.25 °

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Paper Core:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Labeling Machine Power:

26KW

Highlight:

automatic sleeve labeler for beverage bottles

double head sleeve labeler 9000-72000bph

high speed sleeve labeler with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles

Get Best Price

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

Get Best Price

Automatic Can Sleeve Labeling Machine 500bpm for Beverage Production

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

High Speed Double Head Sleeving Labeler for Peanut Milk Beverage Production Line

Product Overview

Applicable bottle types: Square bottles, flat bottles, round bottles
Applicable bottle materials: PET/PE/PP bottles, glass bottles, metal bottles, cans
Labeling speed range: 9,000BPH-72,000BPH

This sleeve labeler is widely used in water production lines, beverage production lines, canned food production lines, pet food production lines, beer production lines, and liquid seasoning production lines.

Main Components

Component	Brand
PLC	Inovance, China
Servo motor and control system	Inovance, China
Inverter	Inovance, China
Proximity electronic switch	SICK/Keyence or equivalent brand
Touch screen	HMI or equivalent brand
Air switch	Equivalent brand
Motor protector	Equivalent brand
Contactor	Equivalent brand
Button	Equivalent brand
Intermediate relay	Equivalent brand
Phase loss protector	Equivalent brand
Terminal	Phoenix
Ordinary reducer	Hengchi/domestic precision reducer
Pneumatic components	SMC

Technical Specifications

Parameter	Specification
Model	SPCTB.C1C100
Production capacity	970 bottles/minute (height ≤100 mm)
Qualified rate of labeling	≥99.9%
Bottle diameter	50mm ~ 95mm (special size available)
Bottle height	75mm -280mm (special height available)
Packaging verticality	≤0.25° (special bottle type available)
Applicable labels	PVC, PET, OPS
Label length	45mm ~ 240mm
Label thickness	0.045mm ~ 0.06mm
Label material	PVC, PET, OPS
Label transparent spacing	≥5mm
Label paper core inner diameter	≥5" (127mm)
Label outer diameter	≤500mm
Voltage	AC380V, 50/60HZ, 3 phases
Labeling machine power	26KW
Shrinking furnace power	1.6KW
Steam source pressure	0.2-0.4MPa
Steam consumption	70kg/hour - 110kg/hour
Dimensions (Main unit)	4000x2100x2750mm (LxWxH)

Equipment Features

Advanced sleeve labeling technology with zero burr hob cutting
Capable of packaging up to 58,000 containers per hour
Cutter disc-free design for high-speed operation
Unique drive control and continuous movement brush-down mechanism
Rotary perforation tool creates micro-holes with zero burrs
Continuous operation without beat pauses

Machine Structure

Horizontal automatic feeding station (stores 8 rolls of labels)
Touch screen control interface
Floor-standing transparent frame for operational visibility
Modular bottle separation screw design
Main machine conveyor system
Labeling machine head
Label brushing mechanism
Roller label punching assembly
Modular steam shrinking furnace (3-5 stage combinations)

Steam Shrinking Oven Features

Unique nozzle design adjustable for height, width and narrowness
Perspective window for process observation
3-5 temperature zones with individual adjustment
Double-layer insulation with steam trap and filter
Adjustable exhaust duct design
Two-step steam decompression system
Proportional valve for energy-saving steam control

Company Profile

Peiyu Enterprise owns multiple subsidiaries specializing in packaging technology, machinery manufacturing, and beverage production. We provide complete intelligent equipment solutions and turnkey engineering services for global liquid and solid product companies.

Our product range includes hundreds of mature packaging machinery covering aluminum bottle/can filling machines, sterilization kettles, loading/unloading systems, sleeve labeling machines, and complete production line solutions.
