Name: Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > Products > Sleeve Labeler >

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 72000bph

can labeling machine with warranty

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Product Details

Production Capacity:

9000-72000bph/Customized

Power Supply:

380V 50Hz Customized

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75mm -280mm

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Material:

PVC, PET, OPS

Labeling Speed:

970 Bottles/minute (height ≤100 Mm)

Labeling Qualified Rate:

≥99.9%

Labeling Machine Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Source Pressure:

0.2-0.4MPa

Steam Consumption:

70kg/hour - 110kg/hour

Machine Dimensions:

4000x2100x2750 (length X Width X Height)

Label Paper Core:

≥5" (127mm)

Highlight:

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 72000bph

can labeling machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

Get Best Price

Video

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Fully Automatic and High Speed Label Shrink Tunnel Label Feeding System

Product Overview

The Peiyu High-speed Hob Sleeve Labeling Machine is one of the most technologically advanced sleeve labeling machines in the world, capable of packaging up to 58,000 containers per hour with zero burr production.

Key Features

Applicable to various bottle types: square, flat, and round bottles
Compatible materials: PET/PE/PP bottles, glass bottles, metal bottles, and cans
High labeling speed range: 9,000-72,000 bottles per hour
Cutter disc-free design eliminates label burrs
Continuous brush-down mechanism for high-speed operation
Rotary perforation tool creates micro-holes with zero burrs

Technical Specifications

Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Qualified Rate	≥99.9%
Bottle Dimensions	Diameter: 50-95mm, Height: 75-280mm (custom sizes available)
Label Specifications	Materials: PVC, PET, OPS \| Length: 45-240mm \| Thickness: 0.045-0.06mm
Power Requirements	AC380V, 50/60HZ, 3 phases \| Labeling machine: 26KW \| Shrinking furnace: 1.6KW

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Inverter	Inovance, China
Proximity Electronic Switch	SICK/Keyence or equivalent
Touch Screen	HMI or equivalent

Machine Structure

Horizontal automatic feeding station (stores 8 rolls of labels)
Touch screen control interface
Floor-standing transparent frame for operation monitoring
Modular bottle separation screw system
Main machine conveyor
Labeling machine head
Label brushing mechanism
Roller label punching assembly
Modular steam shrinking furnace (3-5 stage configuration)

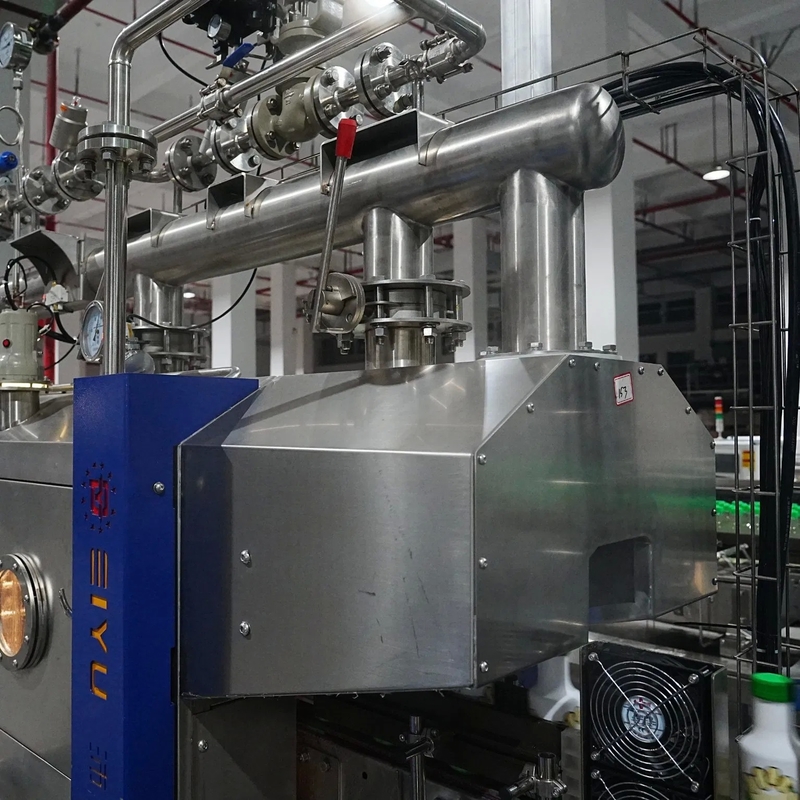

Steam Shrinking Oven Features

Unique nozzle design with adjustable height, width and narrowness
3/4/5 temperature zones with independent adjustment
Double-layer insulation with steam trap and filter
Adjustable exhaust duct design for optimal steam control
Two-step steam decompression system (0.4Mp to 0.2-0.1Mpa)
Proportional valve for energy-saving steam control

Product Images

Company Profile

Peiyu Enterprise owns multiple manufacturing and technology companies in China, providing complete intelligent equipment and turnkey engineering services for global liquid and solid product companies. With a 60,000 square meter production base and advanced processing equipment, we deliver high-precision packaging solutions for various industries including beverages, dairy, pharmaceuticals, and more.

Our products are ISO9001 certified and have passed TUV audits, with European CE certification. We serve major international brands and export to North America, South America, Africa, Europe, and the Middle East.
