Name: Automatic Sleeve Labeler Machine 9000-72000bph for Bottles Cans
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > Products > Sleeve Labeler >

Automatic Sleeve Labeler Machine 9000-72000bph for Bottles Cans

automatic sleeve labeler machine for bottles

high-speed sleeve labeler 72000bph

sleeve labeler machine with warranty

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Product Details

Capacity:

9000-72000bph/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75 Mm -280 Mm

Packaging Verticality:

≤0.25 °

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Paper Core:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Labeling Machine Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Source Pressure:

0.2-0.4MPa

Highlight:

automatic sleeve labeler machine for bottles

high-speed sleeve labeler 72000bph

sleeve labeler machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

Get Best Price

Video

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

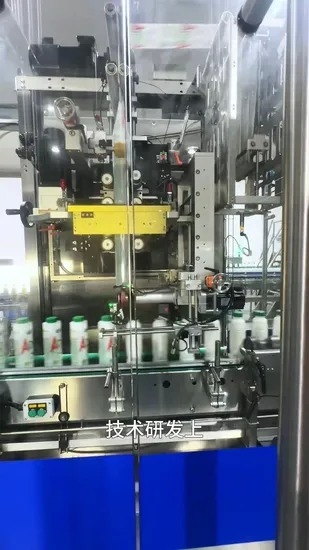

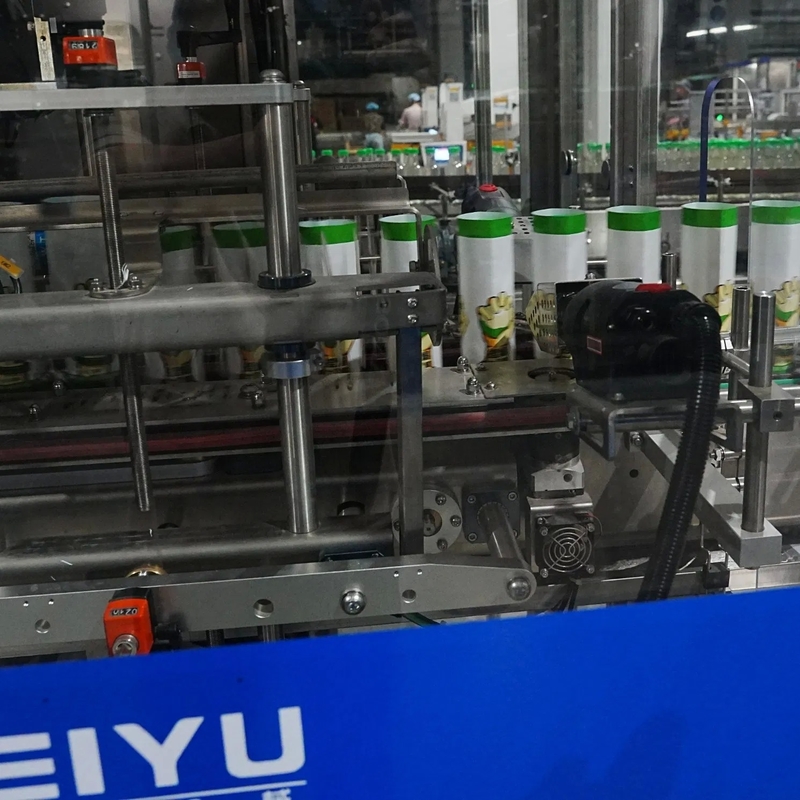

Fully Automatic High Capacity Shrinking Sleeve Labeler

Product Overview

The Peiyu High-speed Hob Sleeve Labeling Machine is a technologically advanced solution for high-volume production lines, capable of processing up to 58,000 containers per hour. This fully automatic system eliminates label burrs through innovative cutter disc-free design and continuous brush-down mechanism.

Key Features

Versatile Compatibility: Handles square, flat, and round bottles (PET/PE/PP, glass, metal)
High-Speed Operation: 9000BPH-72000BPH labeling speed range
Advanced Technology: Rotary perforation tool creates micro-holes with zero burrs
Precision Labeling: ≥99.9% qualified rate with ≤0.25° packaging verticality
Energy Efficient: Steam proportional valve system reduces consumption

Technical Specifications

Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Bottle Diameter Range	50mm ~ 95mm (custom sizes available)
Label Materials	PVC, PET, OPS (45mm ~ 240mm length)
Power Requirements	AC380V, 50/60HZ, 3 phases (26KW machine + 1.6KW furnace)
Dimensions	4000x2100x2750mm (LxWxH)

System Components

Core Components: Inovance PLC & servo system, SMC pneumatic components, Phoenix terminals, precision reducers

Complete System Includes:

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Modular bottle separation screw system
Roller label punching assembly
Steam shrinking furnace (3-5 stage configuration)

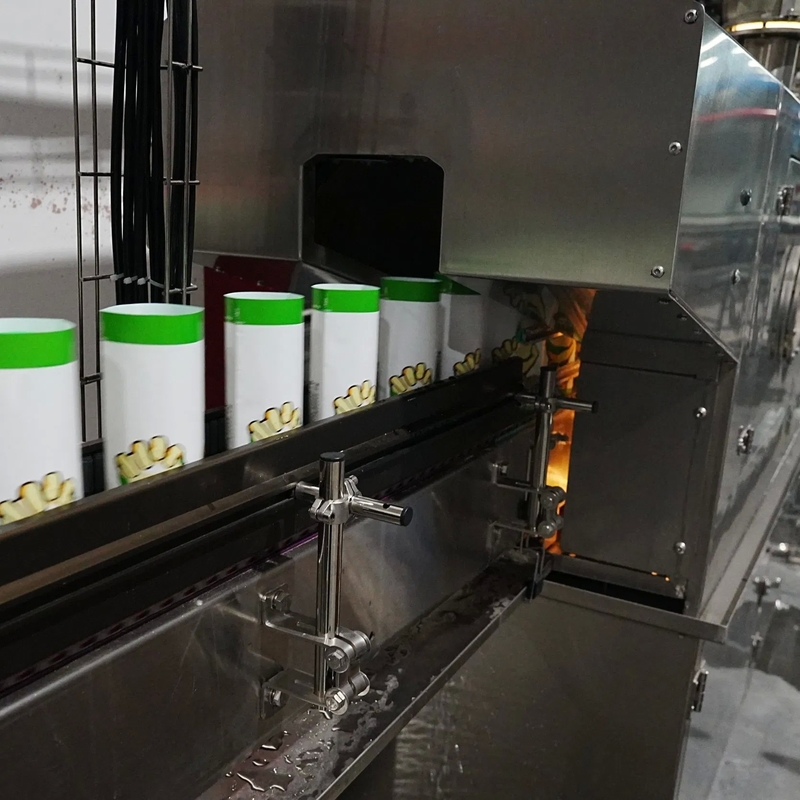

Steam Shrinking Furnace Features

Dual-stage pressure reduction system with Japanese valves
Adjustable nozzle height/width for optimal shrinking
Perspective window for process monitoring
Double-layer insulation with steam trap and filter
Integrated water tray for condensed water collection

Manufacturer Profile

Peiyu Enterprise operates multiple manufacturing facilities across China, specializing in complete packaging line solutions. With ISO9001 certification and European CE compliance, our equipment serves global clients including Danone, Unilever, Mars, and major beverage producers.
