Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

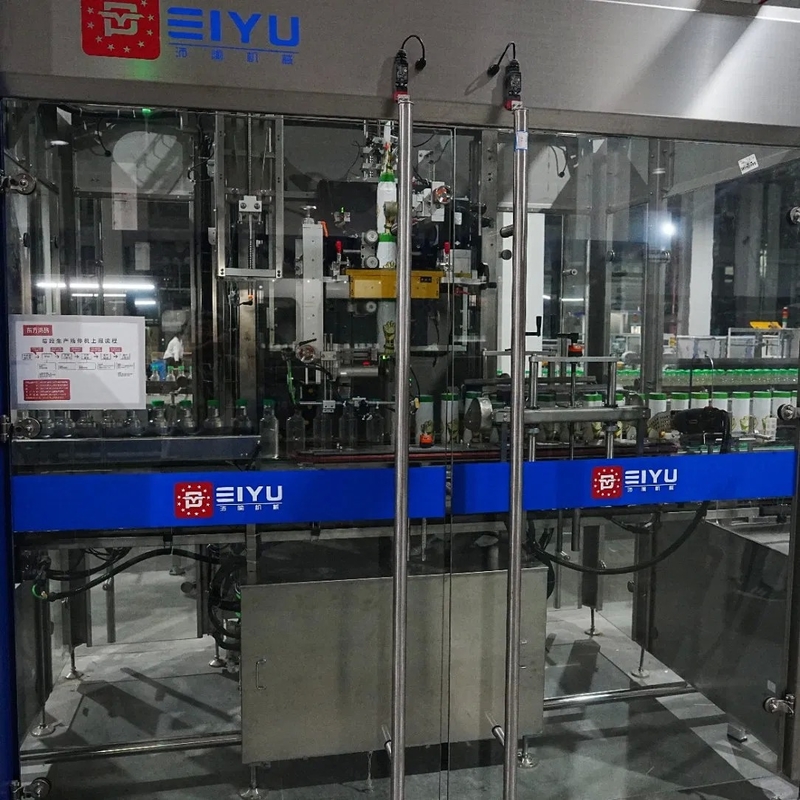

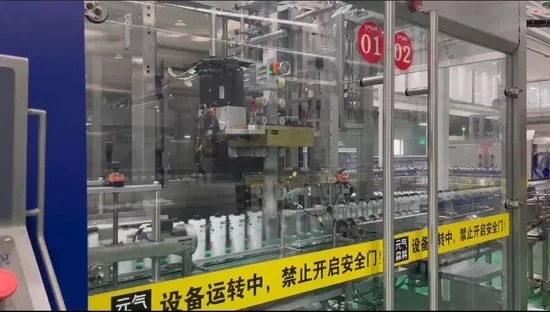

This high-speed shrink sleeve labeling machine is designed for aseptic packaging lines, offering exceptional performance with labeling speeds ranging from 9,000 to 72,000 bottles per hour (BPH). It accommodates various bottle types including square, flat, and round bottles made from PET, PE, PP, glass, or metal.

• Wide application across multiple production lines: water, beverages, canned food, pet food, beer, and liquid seasonings
• Also known as: Sleeve labeler, Double Head Sleeve Labeling Machine, Shrink Labeling Machine, and more
• Advanced hob cutting technology eliminates label burrs
• Continuous movement brush-down mechanism for high-speed operation

1. Horizontal automatic feeding station (stores 8 rolls of labels)
2. Touch screen control interface
3. Floor-standing transparent frame for operational visibility
4. Modular bottle separation screw design
5. Main machine conveyor system
6. Labeling machine head
7. Label brushing mechanism
8. Roller label punching assembly
9. Modular steam shrinking furnace (3-5 stage configurations)

• Unique nozzle design with adjustable height, width, and narrowness
• 3/4/5 temperature zones with individual adjustment capability
• Double-layer insulation with steam trap and filter
• Adjustable exhaust duct design for optimal steam control
• Two-step steam decompression system (0.4Mpa → 0.2-0.1Mpa)
• Proportional valve configuration for energy-saving operation
