Fully Automatic and High Capacity Shrink Sleeve Applicator
Versatile Application Capabilities
This high-performance sleeve labeler handles various container types and materials with precision:
- Bottle types: square, flat, and round containers
- Materials: PET/PE/PP bottles, glass bottles, metal bottles, cans
- Labeling speed: 9,000-72,000 BPH
Ideal for production lines including beverages, canned foods, pet food, beer, and liquid seasonings.
Alternative Names
Shrinking sleeve labeling Sleeve labeler Double Head Sleeve Labeling Machine single head sleeve labeling machine can sleeve labeling machine Labeler automatic sleeving machine bottle sleeve machine automatic sleeve labeling machine beer can shrink sleeve applicator Shrink Sleeve Labeling Machine Label Sleeving Machine Shrink Sleever Shrink Labeling Machine Sleeving Labeler Shrink Sleeve Label Labeling Machine
Premium Components
| Component | Brand |
| PLC | Inovance, China |
| Servo motor and control system | Inovance, China |
| Inverter | Inovance, China |
| Proximity electronic switch | SICK/Keyence or equivalent |
| Touch screen | HMI or equivalent |
| Air switch | Equivalent brand |
| Motor protector | Equivalent brand |
| Contactor | Equivalent brand |
| Button | Equivalent brand |
| Intermediate relay | Equivalent brand |
| Phase loss protector | Equivalent brand |
| Terminal | Phoenix |
| Ordinary reducer | Hengchi/domestic precision reducer |
| Pneumatic components | SMC |
Technical Specifications
| Parameter | Value |
| Model | SPCTB.C1C100 |
| Production capacity | 970 bottles/minute (height ≤100 mm) |
| Qualified rate of labeling | ≥99.9% |
| Bottle diameter | 50mm ~ 95mm (special sizes available) |
| Bottle height | 75mm -280mm (special heights available) |
| Packaging verticality | ≤0.25° (special bottle types available) |
| Applicable labels | PVC, PET, OPS |
| Label length | 45mm ~ 240mm |
| Label thickness | 0.045mm ~ 0.06mm |
| Label material | PVC, PET, OPS |
| Label transparent spacing | ≥5mm |
| Label paper core inner diameter | ≥5" (127mm) |
| Label outer diameter | ≤500mm |
| Voltage | AC380V, 50/60HZ, 3 phases |
| Labeling machine power | 26KW |
| Shrinking furnace power | 1.6KW |
| Steam source pressure | 0.2-0.4MPa |
| Steam consumption | 70kg/hour - 110kg/hour |
| Dimensions (Main unit) | 4000x2100x2750mm (LxWxH) |

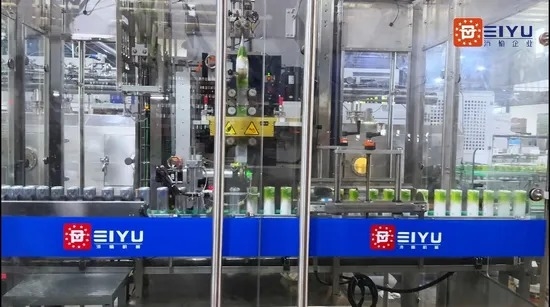

Advanced Equipment Overview
The Peiyu High-speed Hob Sleeve Labeling Machine represents cutting-edge sleeve labeling technology, combining Hob Sleeve Labeling with Horizontal Automatic Feeding Station System. This zero-burr hob cutting technology eliminates label imperfections while achieving remarkable throughput of up to 58,000 containers per hour.
Key technological advantages:
- Cutter disc-free design eliminates traditional labeling burrs
- Unique drive control with continuous brush-down mechanism operation
- Rotary perforation tool creates micro-holes without burrs
- Continuous sleeve label operation without beat pauses

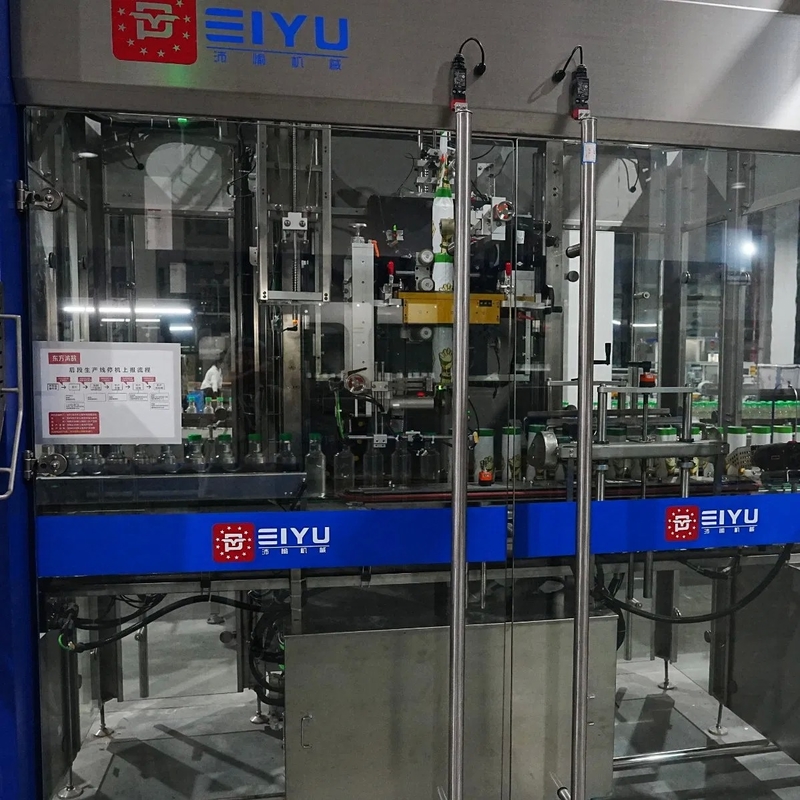

Machine Structure
- Horizontal automatic feeding station (stores 8 label rolls for efficient changeovers)
- User-friendly touch screen interface
- Floor-standing transparent frame for operational visibility
- Modular bottle separation screw system
- Main conveyor system

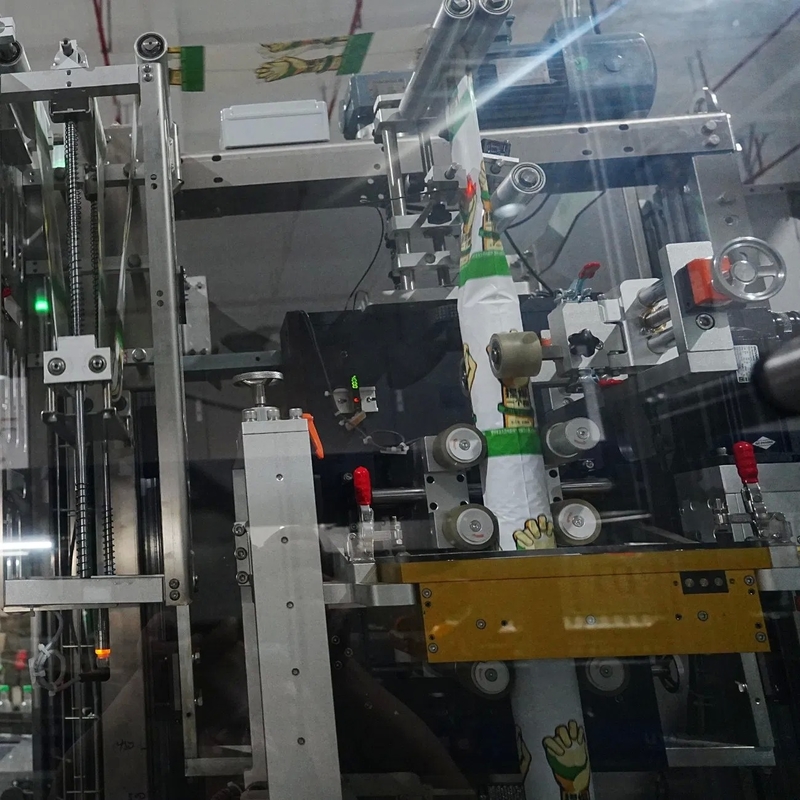

- Precision labeling head
- Label brushing mechanism
- Roller label punching assembly
- Modular steam shrinking furnace (3-5 stage configurations)
Steam Shrinking Oven Features
The steam shrinking oven features precise temperature control through steam proportional valve technology:
Main Components
- Filter, pressure gauge, and pressure reducing valve
- Angle seat valve and manual ball valve
- Steam trap and proportional valve (for 4+ sections)
Key Features
- Customizable nozzle adjustments for optimal shrinking
- 3-5 temperature zones with independent controls
- Perspective window for process monitoring
- Condensation-preventing inlet/outlet design
- Double-layer insulation with effective moisture management
- Adjustable exhaust duct for workspace comfort
- Two-stage steam pressure reduction system
Energy Efficient Operation
- Proportional valve adjusts steam flow based on production speed
- Reduced steam consumption during slower operation
- Minimal steam loss during standby periods
- Complete steam shutoff for extended downtime
Oven Structure Components
- Bottle input port
- Precision temperature gauge
- Primary pressure reducing valve (high-quality domestic)
- Secondary pressure reducing valve (Japanese)
- Pressure gauge
- Steam proportional valve
- Steam exhaust fan
- Bottle output port
Manufacturing Excellence
Peiyu Enterprise operates multiple manufacturing facilities across China, offering comprehensive intelligent equipment solutions for liquid and solid product packaging. Our capabilities span flexible packaging, cans, bottles, and aseptic carton production lines.
With hundreds of mature packaging machinery designs, we serve industries including beverages, dairy, pharmaceuticals, and cosmetics. Our global clientele includes major brands like Red Bull, Mars, Danone, Unilever, and many others.
Quality Assurance
Our 60,000 square meter production base features:
- Advanced processing equipment including laser cutting machines
- Precision machining centers
- Comprehensive testing facilities
Certified to ISO9001 standards with European CE certification and TUV audit compliance.
