Name: Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > Products > Sleeve Labeler >

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 72000bph

sleeve labeling machine for cans

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Product Details

Capacity:

9000-72000bph/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Qualified Rate:

≥99.9%

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75 Mm -280 Mm

Packaging Verticality:

≤0.25 °

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Material:

PVC, PET, OPS

Label Transparent Spacing:

≥5mm

Label Paper Core:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Labeling Machine Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Source Pressure:

0.2-0.4MPa

Steam Consumption:

70kg/hour - 110kg/hour

Dimensions:

4000x2100x2750 (length X Width X Height)

Highlight:

automatic sleeve labeling machine for bottles

high-speed sleeve labeler 72000bph

sleeve labeling machine for cans

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

Get Best Price

Video

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Fully Automatic High Capacity Sleeve Labeling Machine

Advanced shrink sleeve labeling solution for various container types with production speeds up to 72,000 bottles per hour.

Key Features

Applicable to multiple bottle types: square, flat, and round containers
Compatible materials: PET/PE/PP, glass, and metal containers
Production capacity: 9,000-72,000 BPH
Hob cutting technology eliminates label burrs
Modular design for flexible configuration
Advanced steam shrinking furnace with temperature control

Technical Specifications

Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Labeling Accuracy	≥99.9%
Container Dimensions	Diameter: 50-95mm, Height: 75-280mm (custom sizes available)
Label Specifications	Length: 45-240mm, Thickness: 0.045-0.06mm (PVC/PET/OPS)
Power Requirements	AC380V, 50/60Hz, 3 phase (Labeler: 26KW, Shrinking furnace: 1.6KW)

Core Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Pneumatic Components	SMC
Terminals	Phoenix

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Transparent observation frame
Modular bottle separation screw system
Main conveyor system

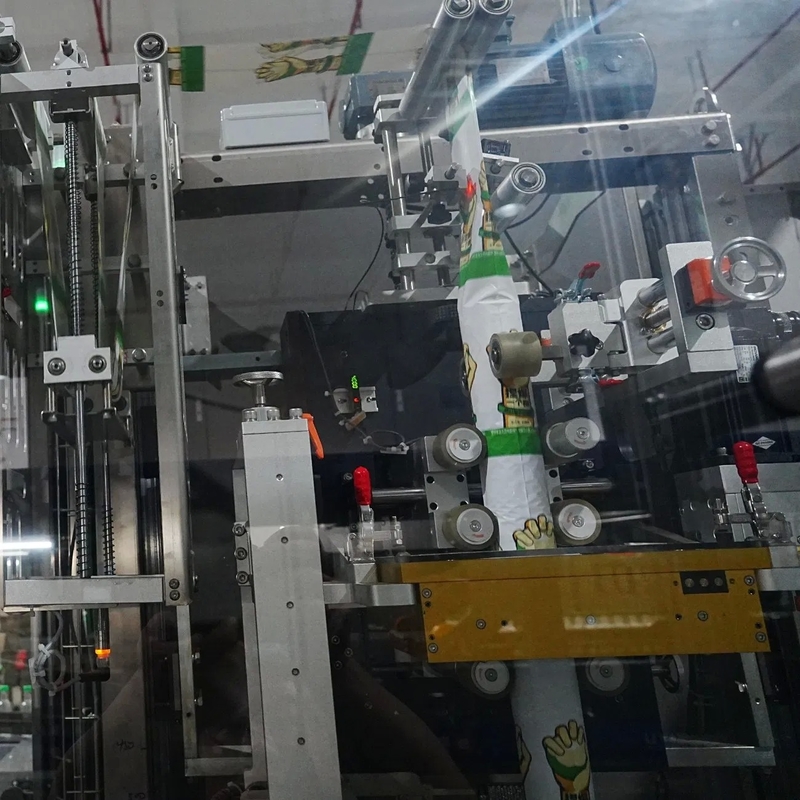

Labeling head assembly
Label brushing mechanism
Roller label punching assembly
Modular steam shrinking furnace (3-5 stage)

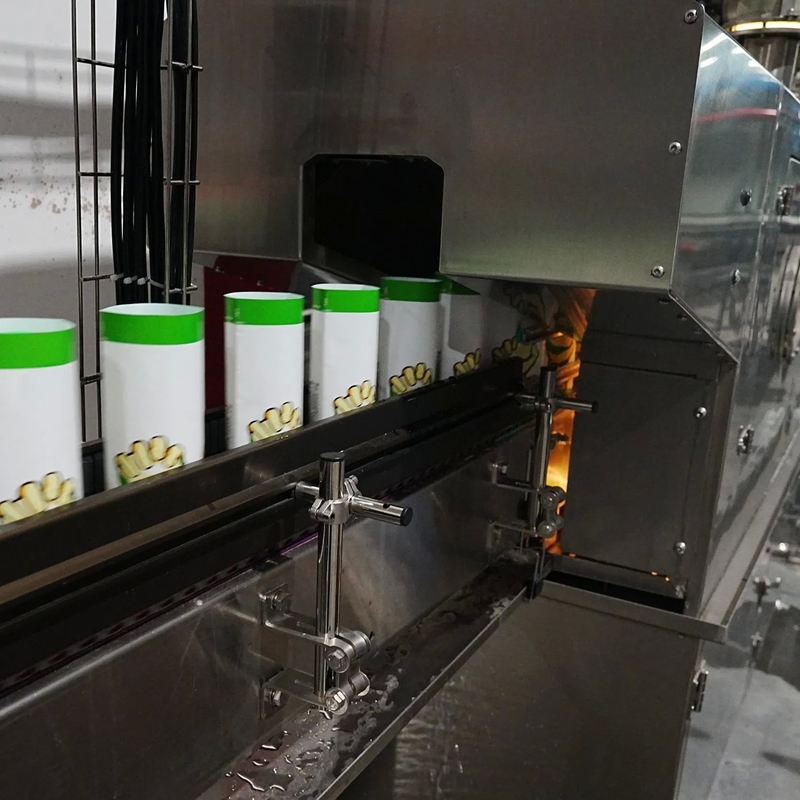

Steam Shrinking Furnace Features

Multi-zone temperature control with proportional valves
Adjustable nozzle design for optimal shrinking
Double-layer insulation with steam condensation management
Two-stage pressure reduction system (Japanese valves)
Energy-saving operation modes for different production states

Product Images

Manufacturer Profile

Peiyu Enterprise operates multiple manufacturing facilities across China, specializing in complete packaging line solutions for beverage, food, pharmaceutical, and cosmetic industries. Our product range includes filling machines, sterilization systems, labeling equipment, and complete packaging lines.

Certified to ISO9001 standards with CE certification, we serve global clients including major brands like Danone, Unilever, Mars, and Yili Group. Our 60,000 sqm production base features advanced manufacturing equipment and R&D facilities.
