Name: Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > Products > Sleeve Labeler >

Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles

automatic sleeve labeling machine for bottles

high speed sleeve labeler 9000-72000bph

beverage bottle sleeve labeling machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Product Details

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Labeling Speed:

9000BPH-72000BPH

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75mm -280mm

Packaging Verticality:

≤0.25°

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Material:

PVC, PET, OPS

Label Spacing:

≥5mm

Label Core Diameter:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Voltage:

AC380V, 50/60HZ, 3 Phases

Labeling Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Pressure:

0.2-0.4MPa

Highlight:

automatic sleeve labeling machine for bottles

high speed sleeve labeler 9000-72000bph

beverage bottle sleeve labeling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

Get Best Price

Video

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Fully Automatic Sleeve Labeler 26500bph for Water Beverage Production Line

Product Overview

High-speed automatic sleeve labeling machine with production capacity up to 970 bottles per minute (height ≤100 mm) and labeling qualification rate ≥99.9%. Suitable for various bottle types including square, flat, and round bottles made of PET, PE, PP, glass, or metal.

Key Features

Advanced hob cutting technology eliminates label burrs
Continuous movement brush-down mechanism for high-speed operation
Rotary perforation tool creates micro-holes with zero burrs
Modular design allows for various configurations
Steam shrinking furnace with proportional valve for energy efficiency
Touch screen control interface

Technical Specifications

Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Bottle Diameter Range	50mm ~ 95mm (special sizes available)
Bottle Height Range	75mm ~ 280mm (special heights available)
Label Materials	PVC, PET, OPS
Label Thickness	0.045mm ~ 0.06mm
Power Requirements	AC380V, 50/60HZ, 3 phases
Machine Dimensions	4000x2100x2750mm (LxWxH)

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Proximity Electronic Switch	SICK/Keyence or equivalent
Pneumatic Components	SMC
Touch Screen	HMI or equivalent

Machine Structure

Horizontal automatic feeding station (stores 8 rolls of labels)
Floor-standing transparent frame for operation visibility
Modular bottle separation screw design
Main machine conveyor system
Labeling machine head
Label brushing mechanism
Roller label punching assembly
Steam shrinking furnace (3/4/5 stage configurations)

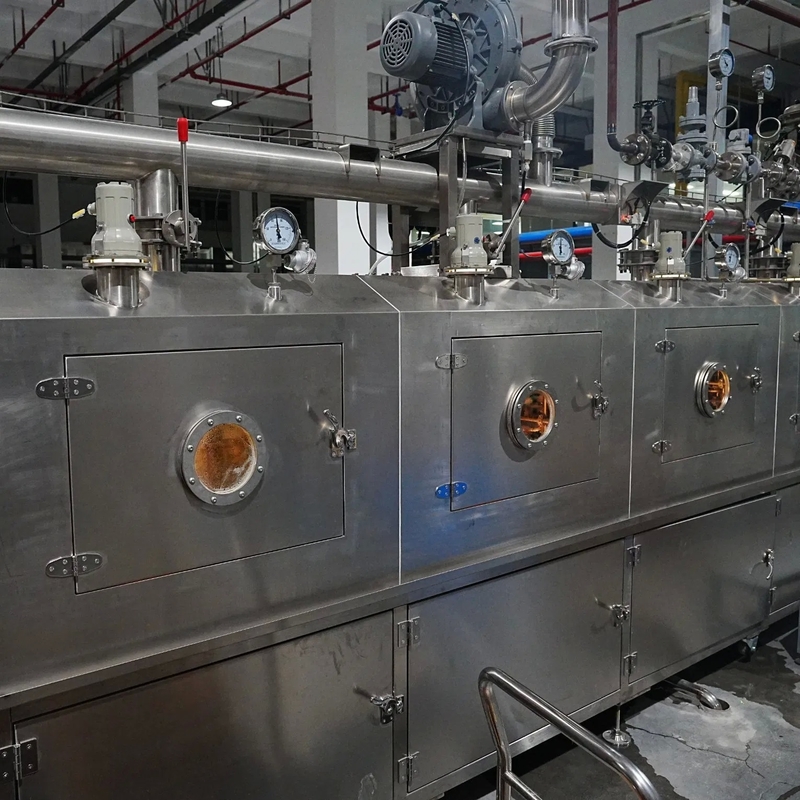

Steam Shrinking Furnace Features

Adjustable nozzle design for optimal shrinking
Perspective window for process observation
Double-layer insulation with steam trap and filter
Adjustable exhaust duct design
Two-step steam pressure reduction system
Proportional valve for energy saving

Company Profile

Peiyu Enterprise provides complete intelligent equipment and turnkey engineering services for global liquid and solid product companies. With multiple production bases and R&D centers in China, we offer comprehensive solutions for various packaging production lines including flexible packaging, cans, PET bottles, and glass bottles.

Our products are widely used in beverage, dairy, pure water, condiment, alcohol, oil, cosmetic, and pharmaceutical industries, serving renowned companies worldwide. We maintain strict quality control with ISO9001 certification and European CE certification.
