Name: Automatic Sleeve Labeling Machine 26000bph for Bottles Cans 380V
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPC-550
Availability: InStock

Home > Products > Sleeve Labeler >

Automatic Sleeve Labeling Machine 26000bph for Bottles Cans 380V

Automatic sleeve labeling machine 380V

High-speed sleeve labeler 26000bph

Bottle can sleeve labeling machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPC-550

Request A Quote

Product Details

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Labeling Speed:

9000BPH-72000BPH

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75mm -280mm

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Material:

PVC, PET, OPS

Label Spacing:

≥5mm

Label Core Diameter:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Voltage:

AC380V, 50/60HZ, 3 Phases

Labeling Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Pressure:

0.2-0.4MPa

Steam Consumption:

70kg/hour - 110kg/hour

Highlight:

Automatic sleeve labeling machine 380V

High-speed sleeve labeler 26000bph

Bottle can sleeve labeling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Video

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles Cans

Get Best Price

Video

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

26000bph High Speed Automatic Labeling Machine Label Sleeving Machine Labeler

Product Overview

The Peiyu High-speed Hob Sleeve Labeling Machine is an advanced labeling solution capable of processing up to 58,000 containers per hour. This innovative machine eliminates label burrs through its unique cutter disc-free design and continuous movement brush-down mechanism.

Key Features

Applicable to various bottle types: square, flat, and round bottles
Compatible with PET/PE/PP bottles, glass bottles, metal bottles, and cans
Labeling speed range: 9000BPH-72000BPH
Hob cutting technology for zero burr labeling
Continuous movement operation for high-speed performance
Modular design for flexible configuration

Technical Specifications

Parameter	Specification
Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100 mm)
Qualified Rate	≥99.9%
Bottle Diameter	50mm ~ 95mm (custom sizes available)
Bottle Height	75mm - 280mm (custom heights available)
Label Materials	PVC, PET, OPS
Power Requirements	AC380V, 50/60HZ, 3 phases

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Proximity Electronic Switch	SICK/Keyence or equivalent
Pneumatic Components	SMC

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Floor-standing transparent frame for operation visibility
Modular bottle separation screw system
Main conveyor system
Labeling head assembly
Label brushing mechanism
Roller label punching assembly
Steam shrinking furnace (3-5 stage configuration)

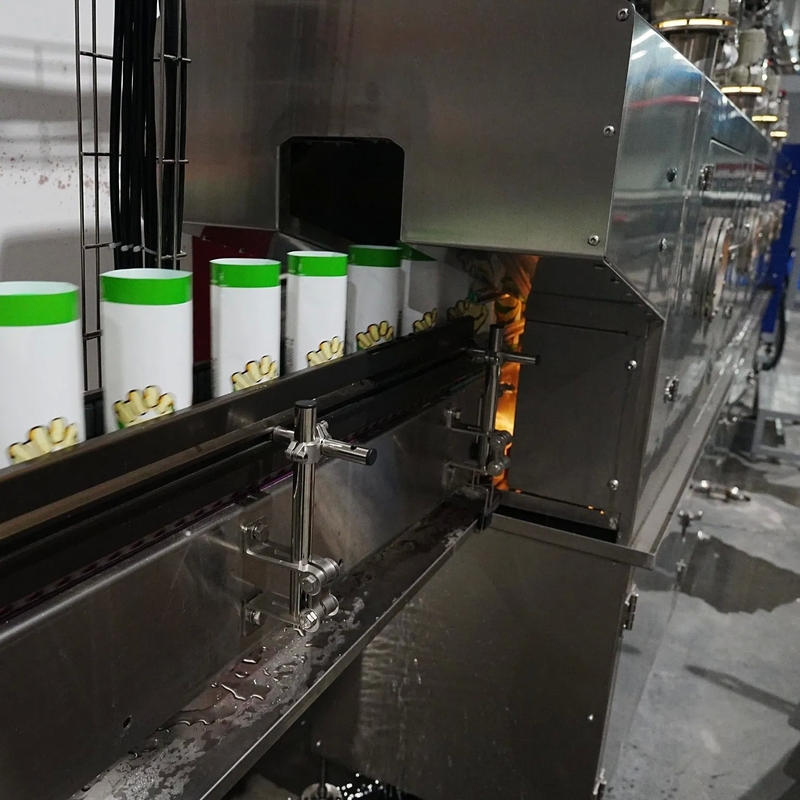

Steam Shrinking Oven Features

Precision temperature control via steam proportional valve
Adjustable nozzle design for optimal shrinking
3/4/5 temperature zone configuration
Double-layer insulation with steam trap and filter
Energy-saving operation modes
Perspective window for process monitoring

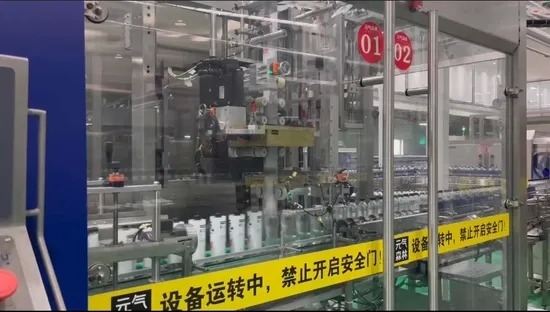

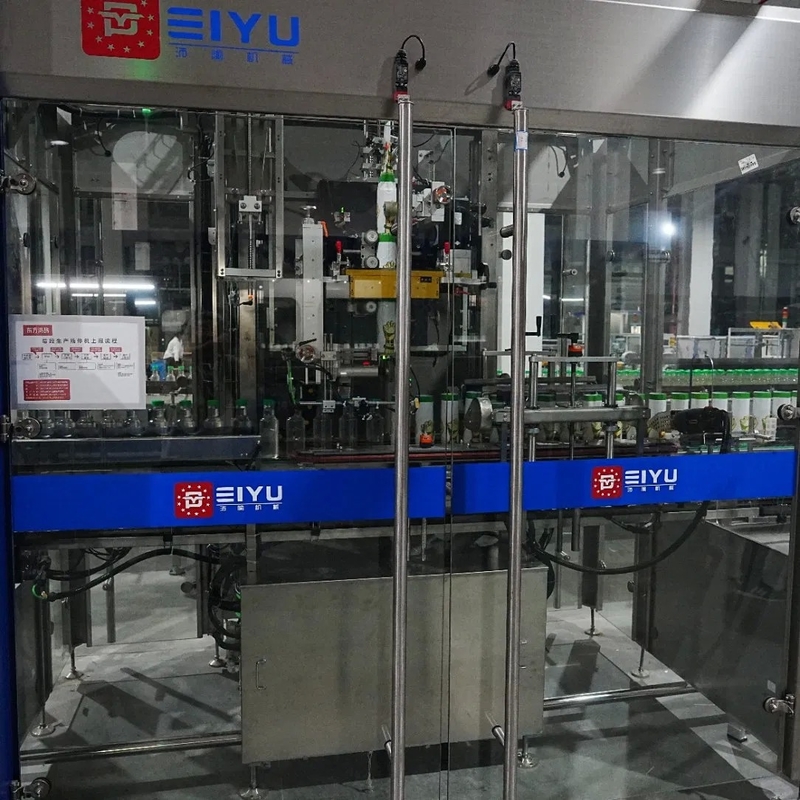

Product Images

Company Profile

Peiyu Enterprise provides complete intelligent equipment and turnkey engineering services for global liquid and solid product companies. With multiple production bases and technical R&D centers, we offer comprehensive solutions for various packaging production lines.
