Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

automatic sleeve labeler for bottles

high speed sleeve labeler 42000 BPH

sleeve labeler for 50-95mm bottles

Request A Quote

Automatic Sleeve Labeler 42,000 BPH for Bottles 50-95mm

Product Details

Production Capacity:

970 Bottles/minute (height ≤100 Mm)

Labeling Speed:

9000BPH-72000BPH

Bottle Diameter:

50mm ~ 95mm

Bottle Height:

75mm -280mm

Label Length:

45mm ~ 240mm

Label Thickness:

0.045mm ~ 0.06mm

Label Material:

PVC, PET, OPS

Label Spacing:

≥5mm

Label Core Diameter:

≥5" (127mm)

Label Outer Diameter:

≤500mm

Voltage:

AC380V, 50/60HZ, 3 Phases

Labeling Power:

26KW

Shrinking Furnace Power:

1.6KW

Steam Pressure:

0.2-0.4MPa

Steam Consumption:

70kg/hour - 110kg/hour

Highlight:

automatic sleeve labeler for bottles

high speed sleeve labeler 42000 BPH

sleeve labeler for 50-95mm bottles

Payment & Shipping Terms

Minimum Order Quantity

Price

60000

Automatic Sleeve Labeling Machine 9000-72000bph for Beverage Bottles

Get Best Price

Automatic Sleeve Labeling Machine 9000-72000bph for Bottles and Cans

Get Best Price

Automatic Beer Can Shrink Sleeve Labeler 9000-72000bph

Get Best Price

Automatic Can Sleeve Labeling Machine 500bpm for Beverage Production

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

42,000 BPH Label Length 100mm Single-Head Fully Automatic Sleeving Labeler

Product Overview

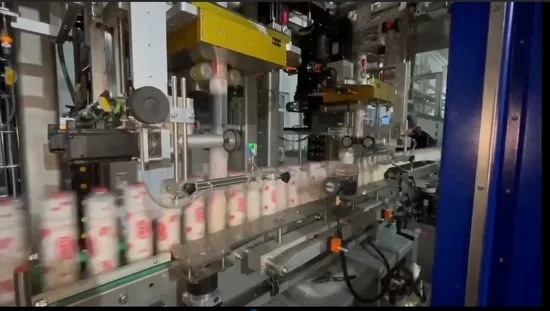

High-speed automatic sleeving labeler with production capacity up to 42,000 bottles per hour, designed for various bottle types and materials including PET, PE, PP, glass, and metal containers.

Key Features

Versatile Application: Suitable for square, flat, and round bottles across multiple industries
High-Speed Operation: Labeling speed range from 9,000 to 72,000 BPH
Advanced Technology: Hob cutting system eliminates label burrs for superior finish
Precision Labeling: ≥99.9% qualified rate with packaging verticality ≤0.25°
Flexible Configuration: Modular design allows customization for various production needs

Technical Specifications

Parameter	Specification
Model	SPCTB.C1C100
Production Capacity	970 bottles/minute (height ≤100mm)
Bottle Diameter Range	50mm-95mm (custom sizes available)
Bottle Height Range	75mm-280mm (custom heights available)
Label Specifications	Length: 45-240mm \| Thickness: 0.045-0.06mm \| Materials: PVC, PET, OPS
Power Requirements	AC380V, 50/60Hz, 3 phases (Labeling machine: 26KW \| Shrinking furnace: 1.6KW)
Dimensions	4000×2100×2750mm (L×W×H)

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Proximity Electronic Switch	SICK/Keyence or equivalent
Pneumatic Components	SMC
Terminal	Phoenix

Machine Structure

Horizontal automatic feeding station (8-roll capacity)
Touch screen control interface
Floor-standing transparent frame for operation monitoring
Modular bottle separation screw system
Main conveyor with labeling head
Label brushing mechanism
Roller label punching assembly
Modular steam shrinking furnace (3-5 stage configuration)

Steam Shrinking Furnace Features

Precision Temperature Control

Multi-zone temperature adjustment with proportional valve control for optimal shrinking results.

Energy Efficient Design

Steam flow automatically adjusts to production speed, reducing consumption during standby.

Improved Work Environment

Adjustable exhaust system removes steam from workspace with double-layer insulation.

Manufacturer Profile

Peiyu Enterprise is a leading manufacturer of packaging machinery with multiple production bases across China. Our products are certified to ISO9001 and CE standards, serving global clients in beverage, food, pharmaceutical, and cosmetic industries.
