High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing

High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing

High-Speed 60BPM Wrap Around Case Packer

Multi-Format Compatibility Beverage Carton Packer

380V AC Power Case Packer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCWM.NA1H

Contact Us
Request A Quote
High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing
High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing High-Speed 60BPM Wrap Around Case Packer with Multi-Format Compatibility and 380V AC Power for Beverage Carton Packing
Product Details
Model NO.:
SPCWM. NA1
Speed:
40-60bpm
Weight:
8000kg
Air Pressure:
0.6MPa
Size:
L=13000mm* W=2500mm*H=3000mm
Air Consumption:
60NL/min
Products:
Glass,PETbottl,Can
Voltage:
380V AC 50Hz 24V DC/AC
Conveyor Altitude:
1300mm
Power:
36kw
Servo Motor:
Inovance/Beckhoff
Frequency Converter:
Germany Brand/Inovance
Proximity Switch:
SICK
Pneumatic System:
SMC
Hot Melt Adhesive:
Robatech
Highlight:

High-Speed 60BPM Wrap Around Case Packer

,

Multi-Format Compatibility Beverage Carton Packer

,

380V AC Power Case Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price Fully Automatic Wrap Around Case Packer 18kw for Beverage Production Line with Customized Bottles and PET/PE/PP Bottles online Video

Fully Automatic Wrap Around Case Packer 18kw for Beverage Production Line with Customized Bottles and PET/PE/PP Bottles

Get Best Price
Good price Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame) online Video

Medium-speed narrow-edge carton wrapping machine SPCWM.NA1K (vertical feeder - widened frame)

Get Best Price
Good price 80 Cases Per Minute Glass Bottle Wrap Around Case Packer for Juice Production Line online Video

80 Cases Per Minute Glass Bottle Wrap Around Case Packer for Juice Production Line

Get Best Price
Good price Pneumatic CE ISO Certified Wrap Around Case Packer with Schneider Electrics for Food and Beverage Packaging online Video

Pneumatic CE ISO Certified Wrap Around Case Packer with Schneider Electrics for Food and Beverage Packaging

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Packer for Beverage Bottle Water Factory
High-performance packer for bottle or can products. The palletized products enter through the inlet conveyor. The bottle-pushing rods separate them into individual units. The cardboard is fed via a buffer and climbing mechanism, wrapping the products from below. The middle and upper/lower forming conveyors then fold, spray adhesive, and seal the carton for final shaping.
Structure
  • Frame components: Lower forming conveyor, upper forming conveyor, middle conveyor, cardboard climbing conveyor, grouping conveyor, bottle-pushing unit, cardboard buffer storage, inlet conveyor, flap folding unit, and bottle separation unit
  • Electrical control cabinet

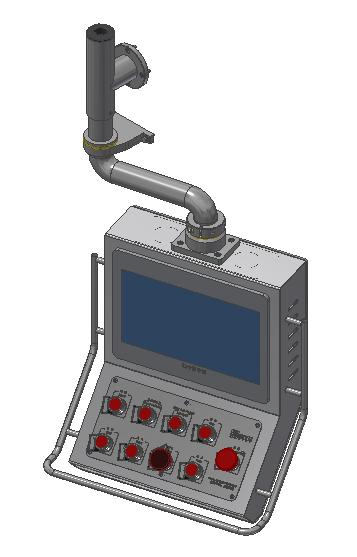

  • HMI (Human-Machine Interface)
  • Adhesive dispensing system
Features & Advantages
  • Linear bottle/can separation: Two servo motors coordinate for rapid division on the conveyor line
  • Multi-format compatibility: Quick adjustment for varying bottle/can types and arrangements
  • Patented carton compression: Ensures secure adhesion and aesthetic finish
  • High-capacity cardboard storage: Optimized for high-speed operation with ergonomic loading
  • Premium components: Motors, reducers, PLCs, and sensors from global brands ensure durability and stability
  • Integrated safety systems: Includes automatic protection, detection, and branded adhesive spraying
  • Streamlined design: Seamless safety enclosures enhance operational security and visual appeal

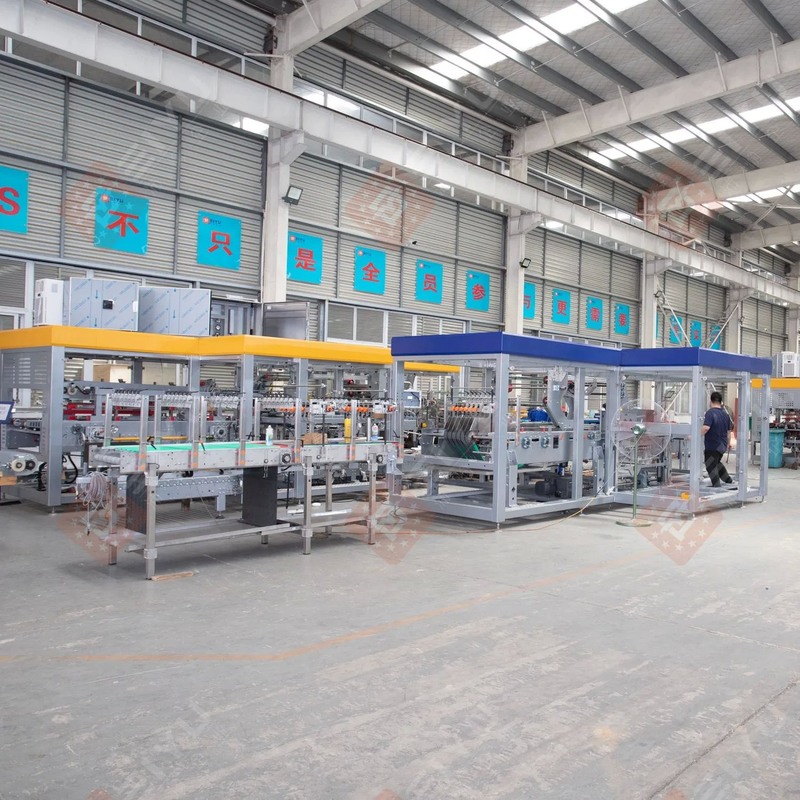

Packer for Beverage Bottle Water Factory in operation
Technical Specifications
(Custom configurations available upon request.)
Machine No. SPCWM.NA1 Weight 8000kg
Speed 60BPM Air pressure 0.6MPa
Size L=13000mm* W=2500mm*H=3000mm Air consumption 60NL/min
Products Glass, PET bottle, Can Voltage 380V AC 50Hz 24V DC/AC
Conveyor altitude 1300mm Power 36kw
Servo motor and controller system Inovance/Beckhoff
Frequency converter Germany brand/Inovance
Proximity electronic switch SICK
Air switch Germany brand
Motor protector Germany brand
Contactor (switch) Germany brand
Button Germany brand
Intermediate relay Germany brand
Open-phase safeguard Germany brand
Amphenol connector Phoenix
Motor reducing gear Germany brand/EVERGEAR
Hot melt adhesive machine Robatech
Pneumatic SMC
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available

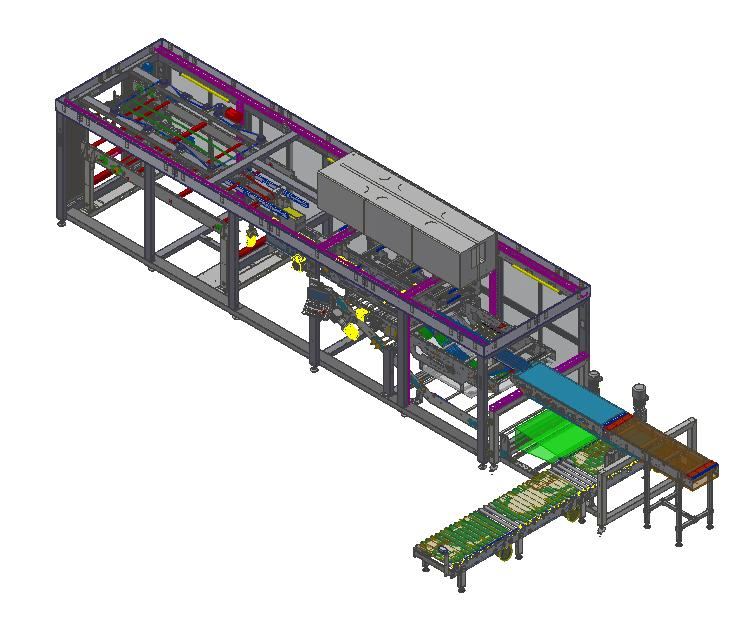

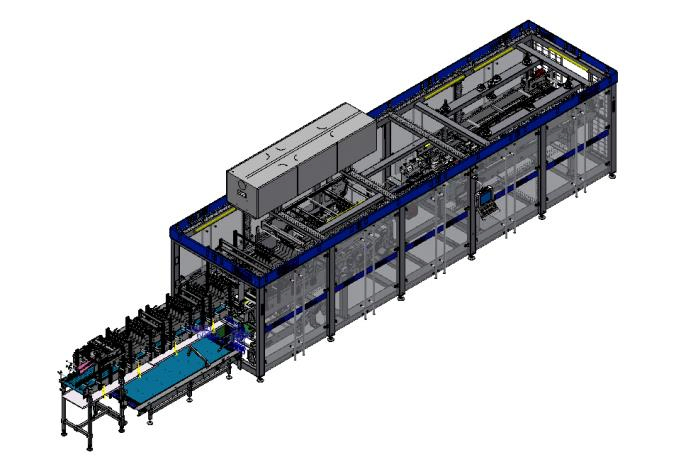

Technical drawing of Packer for Beverage Bottle Water Factory
After Sales Service
  • Standard Warranty: 12 months
  • Extended Warranty: Optional coverage up to 36 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
Company Profile
Peiyu Enterprise facility
Peiyu Enterprise wholly-owned below companies: Shanghai Peiyu Packaging technology Co, ltd, Anhui Peiyu Packaging technology Co,ltd. Through our long-term accumulated mechanical design and manufacturing experience, we currently have hundreds of mature and stable packaging machinery and equipment, including retorts, palletizer&depalletizer, loading& unloading machine, case packer,labeling machine, conveyor system etc.
Our Certificates
Company certificate 1 Company certificate 2 Company certificate 3 Laser cutting machine certificate
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15-30 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
