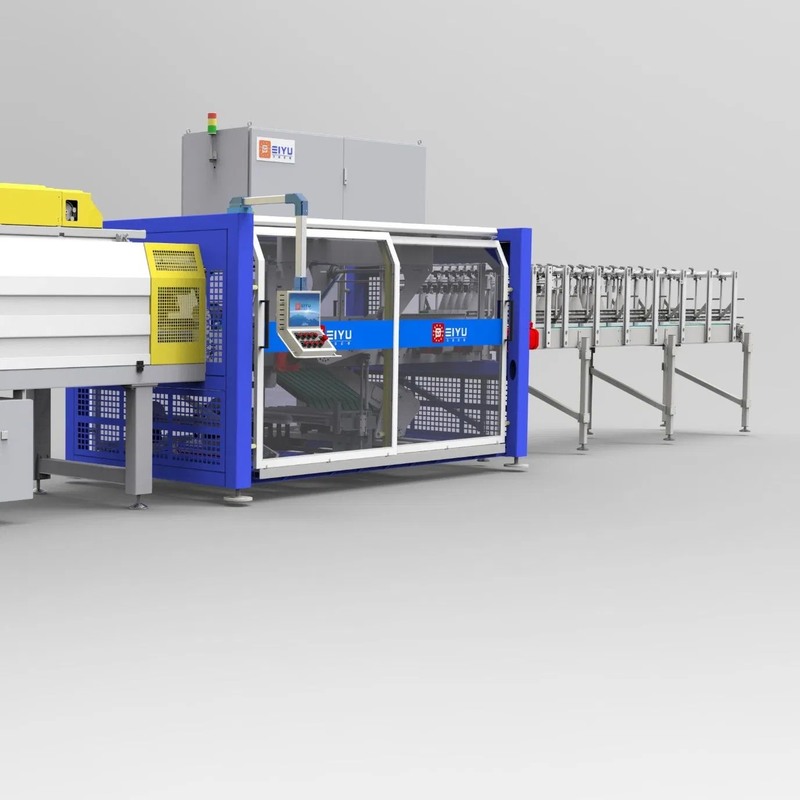

Water Bottle PE Film Wrapping Machine and Shrink Tunnel Packaging Machine
Automatic Liquid Mineral Water Filling Machine in high-speed 8,000-60,000bph Production Complete Line.
We supply complete solution for the juice filling machine, including Water treatment system / Juice mixing system / UHT Sterilizer / Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system.
Containers and Specifications
| Project Name |
Full Automatic Complete Juice 8000-60000bph Production Line | Hot Filling Fruit Juice |
| Material |
Shape |
Filling volume |
Filling level(mm) |
Neck type |
| PET Bottle |
Square or Round Bottle |
100-2000ml |
Distance from bottle neck |
According request |
Adjustable specifications of the bottle type: (Middle Mould Base) Bottle diameter ≤105mm Bottle Height≤335mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
System Components
- Juice Preparation: Fruit, Concentrate, Powder mixing
- Container Label & Control Mode: Hot Melt Roll-Fed, PVC Shrink Label, Full Label/Half Label, Manual/Automatic
- Packaging system: Film shrinker, Wrap Around packer, Robert Packing Machine

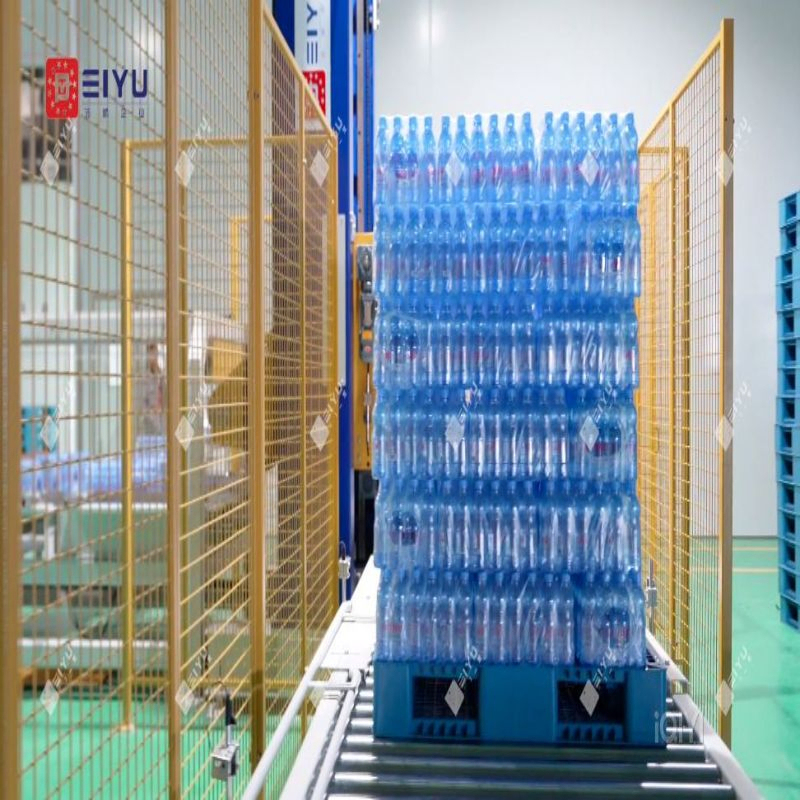

- Palletizing system: Low position gantry palletizer, Robot Palletizer, High position gantry palletizer, Single Arm Palletizer, Manual Palletizer
Technical Specifications
- User Ambient Conditions: Temperature:10~40ºC; Humidity:No dew
- User Electrical Supply Specification: Voltage:380V±5%, 3phase; Frequency:50HZ±1%

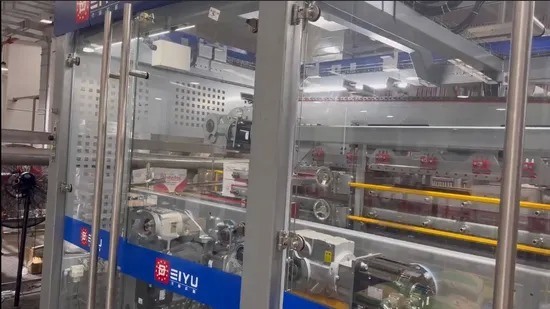

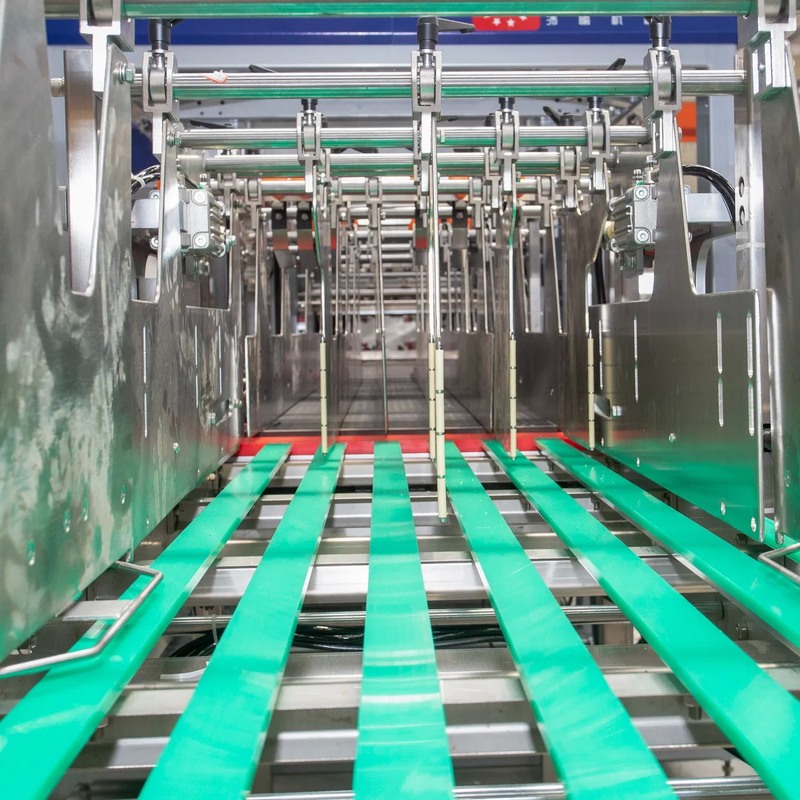

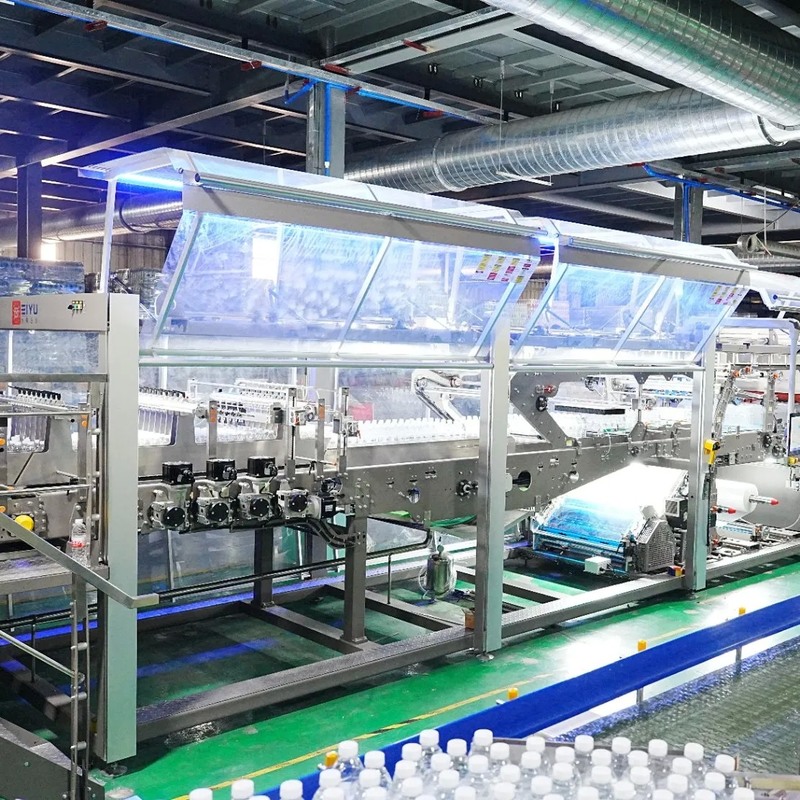

Detailed Photos
Company Profile
As the high level filling machine and packaging machinery manufacturer in beverage, food, pharmaceutical and pet food industry, Peiyu company was established in the year 2004 in Shanghai.
Peiyu company has grown from a sleeve labeling machine manufacturer at the beginning of its establishment to a complete line provider with dozens of product portfolios today. Anhui Peiyu production base has the production and R&D capabilities of the whole line of filling and packaging equipment, and is constantly committed to the development of compact and more cost-effective systems and equipment. Develops, plans and manufactures machines and complete plants for various process, filling and packaging technologies.
Peiyu machines are processing tens of thousands of glass or PET bottles, cans, aluminum cans and special-shaped containers every day for soft drink, water and juice manufacturers, as well as dairies, beer, sparkling wine manufacturers. The production lines of the food industry, pet wet food and pharmaceutical industry companies also use customized machines from Peiyu.
Peiyu has set up R&D in Chuzhou, Anhui, Xi'an, Shanxi, and Zhangjiagang, Jiangsu for the application of filling, labeling and packaging technologies.
Peiyu equipment covers can unloading (bottle) machine series, sleeve labeling series, labeling series, packing machine series, depalletizing series, automatic loading and unloading cage series, conveying and air conveying system and auxiliary equipment for production lines.
Benefited from 20 years of experience in machinery manufacturing and customer service, as well as an engineer team, Peiyu has invested heavily in manufacturing processes and new technology research and development.
Multi-servo motion control sleeve labeling machine, 100 boxes/min high-speed wrapping machine, fully automatic sterilizer loading and unloading cage system with patented energy-saving system and other equipment are advanced in technology and stable in operation.
Our Advantages
- Standardized workshop of total 40,000 square meters. We have our own part manufacturing center so as to guarantee the part quality. And also assembling center to make sure a strong capacity of yearly yield.
- Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
- International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine. Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS, COC, TUV. National Certificate of equipment verification: standard organisation of Nigeria, CNCA certificate, Logo trademark registration, etc.
- The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
- Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
- The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
- Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
- World top brands parts to guarantee high quality.
After Sales Service
- Installation, debug: After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.
- Training: Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment.
- Quality guarantee: We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
- After sales: After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand.
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries. If we get the permission of the customer who has brought the machines from us, we can tell you their contact information, you can go to visit their factory. And you are always welcome to come to visit our company, and see the machine running in our factory.
Q2: Do you provide customized service?
A2: We can design the machines according your requirements (material, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.
Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q4: How long time for installation?
A4: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.
