Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing

Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing

70KW Power Shrink Packing Machine

180ºC~240ºC Shrinking Temperature Shrink Wrapping Machine

Less Than 40KW Consumption Heat Sealer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing
Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing
Product Details
Model NO.:
Customized
Packaging Material:
PE
Capacity:
25-120 Packs/Min
Air Pressure:
0.6~0.8MPa
Weight:
4500kg
Conveyor Height:
1060mm
Dimension:
20070*2800*3000mm
Driven Type:
Electric
Heating Mode:
Electric Heating
Shrinking Temperature:
180ºC~240ºC
Film Roll Diameter:
≤400mm
Operating Noise:
≤65dB
Film Thickness:
0.06~0.12mm
Operating Pressure:
0.4~0.7Mpa
Main Machine Power:
30kW
Highlight:

70KW Power Shrink Packing Machine

,

180ºC~240ºC Shrinking Temperature Shrink Wrapping Machine

,

Less Than 40KW Consumption Heat Sealer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Automatic Heat Sealer Shrink Packing Machine for Mineral Water
This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Its combination design ensures easy maintenance, while servo motor drive allows quick product changeovers. The removable HMI operation panel displays machine information clearly.
Key Features
  • Special film reel and cutter devices with innovative tension transfer system
  • Easy film length adjustment with color film positioning device
  • Firm packaging with film secured at product bottom
  • Advanced electric heating tunnel (70KW) with efficient shrinking at 200°C (actual consumption <40KW)
  • Removable operation panel with HMI interface
Technical Specifications
Model SPCSW
Capacity 60 packs (single channel)
120 packs (double channel)
Classification Film Wrapping Package Machine
Package Arrangement 4*6, 2*3 and others
Driven Type Electric
Air Consumption 0.1N m³/min
Shrinking Temperature 180°C~240°C
Film Roll Diameter ≤400mm
Dimension 20070*2800*3000mm
Operating Noise ≤65dB
Film Roll Width ≤900mm
Packaging Bottles
Film Thickness 0.06~0.12mm
Transport Package Film Packing or Wooden Case
Operating Pressure 0.4~0.7Mpa
Main Machine Power 30kW
Weight 10.5T
Shrink Machine Power 160kW
Product Images

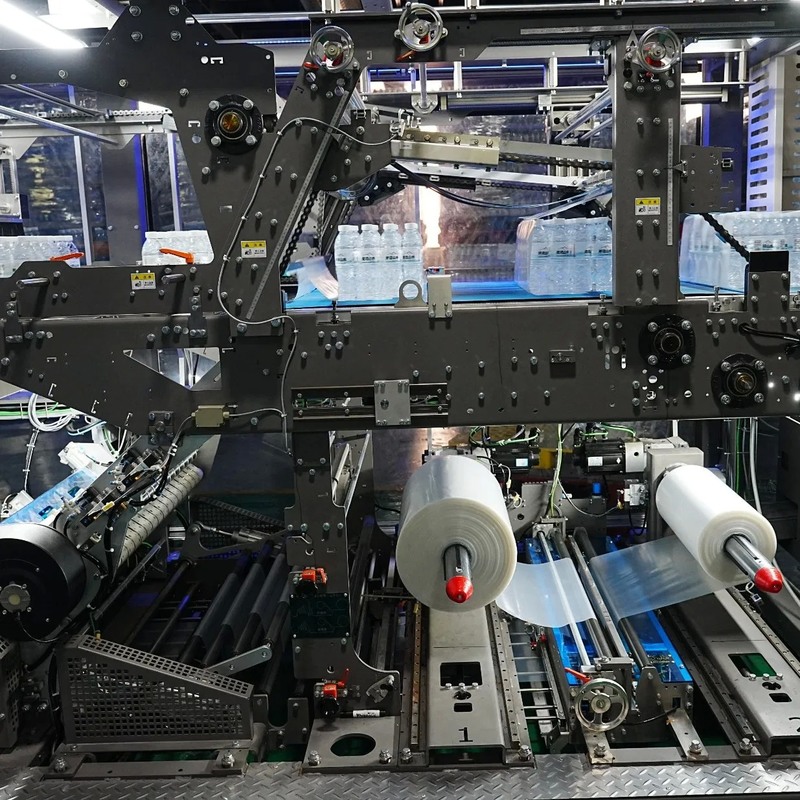

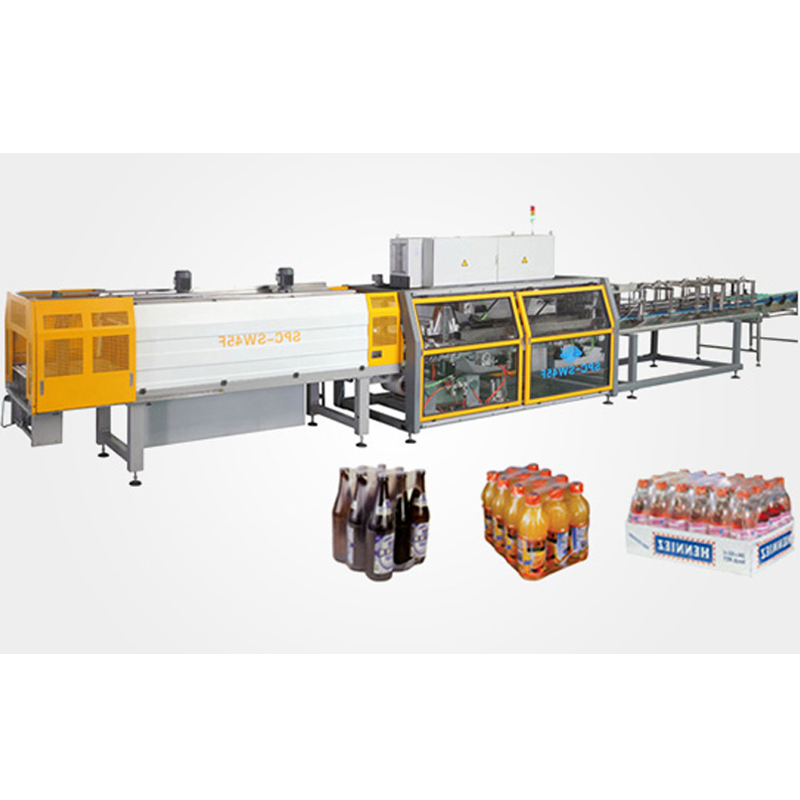

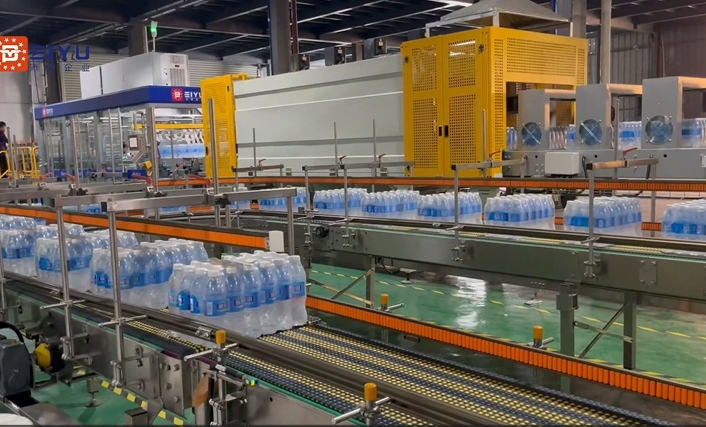

Automatic Shrink Packing Machine with 70KW Power and 180ºC~240ºC Shrinking Temperature for Efficient Heat Sealing 0
