Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production

Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production

30BPM Shrink Wrapping Machine

1050mm Conveyor Altitude Shrink Packer

100 Sets/Year Heat Shrink Film Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production
Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production
Product Details
Model NO.:
SPCSW. E2
Automatic Grade:
Automatic
Driven Type:
Electric
Manner Of Packing:
Four Side Seal Type
Adjust Speed:
Frequency Conversion Speed Regulation
Type:
PE Shrink Film Machine
Heating Mode:
Quartz Heating Tube
Packaging Material:
Film
Production Capacity:
100 Sets/Year
Speed:
30BPM(round Bottle 3*4)
Conveyor Altitude:
1050mm
Weight:
About 6000Kg
Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Voltage:
380V AC 50HZ;24VDC/AC
Power:
75KW
Highlight:

30BPM Shrink Wrapping Machine

,

1050mm Conveyor Altitude Shrink Packer

,

100 Sets/Year Heat Shrink Film Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description

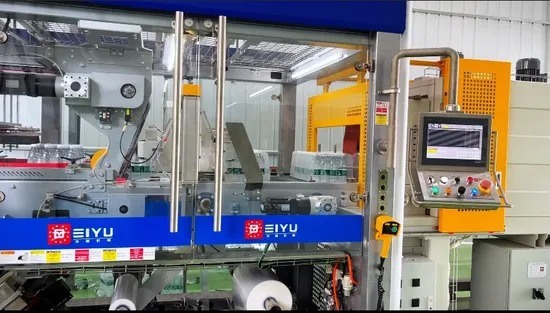

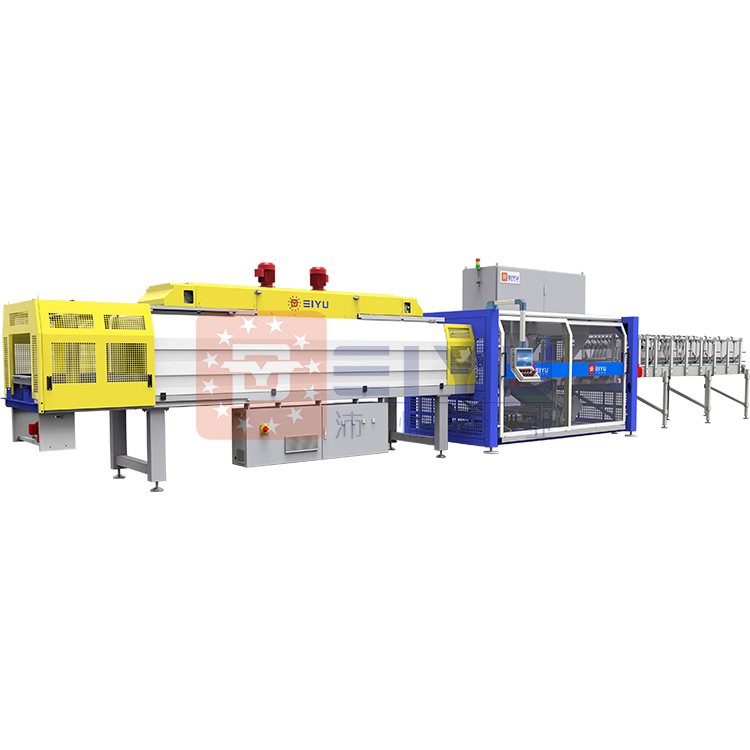

Heat Shrink Film Wrapping Machine for Bottle Water and Beverage
Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production 0
Equipment Principle

Products are evenly distributed into each channel via the inlet chain conveyor while undergoing missing-bottle detection. They are then arranged into the required formation by gate mechanisms or bottle-pressing units before being transferred to the film-wrapping belt by push-rod assemblies. Synchronized film feeding from below enables wrapping on the conveyor belt. The wrapped products are finally discharged via the outlet conveyor into the shrink tunnel.

Key Features
  • Compact structure with small footprint and aesthetically pleasing design
  • User-friendly LCD touchscreen control system with electronic detection functions
  • Comprehensive safety devices including protection and detection systems
  • Micro-vibration bottle dividing method prevents jamming in round bottle channels
  • Torque-limiting protection in push-rod components prevents damage from bottle tipping

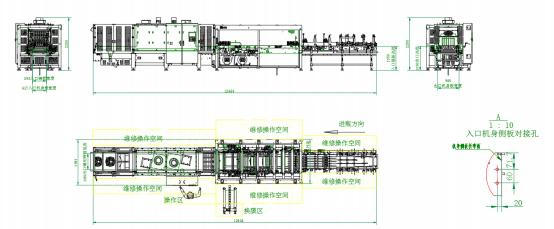

Packaging Dimension Parameters

The shrink-wrapped product dimensions must satisfy both the packaged form and single-layer film specifications.

Film case specifications: Film Roll Core 78mm, Film roll width <50mm, Film max diameter ≤400mm

Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production 1 Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production 2
Technical Specifications
Parameter Specification Component Brand
Equipment No. SPCSW.E2 Variable Frequency Drive Inovance
Speed 30BPM (round bottle 3*4) Proximity Electronic Switch SICK
Bottle Compatibility CAN, GLASS or PET bottle Air Switch Germany brand
Conveyor Height 1050mm Motor Protector Germany brand
Weight About 6000Kg Contactor Germany brand
Air Pressure 0.5-0.7MPa Push Button Germany brand
Air Consumption 100L/min Max Intermediate Relay Germany brand
Voltage 380V AC 50HZ;24VDC/AC Phase Failure Protector Germany brand
Power 75KW Terminal Block Phoenix
Servo and Control System Inovance Motor Reducer China
Pneumatic Components Airtac
Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production 3 Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production 4 Automatic Shrink Wrapping Machine with 30BPM Speed and 1050mm Conveyor Altitude for 100 Sets/Year Production 5
Manufacturer Profile

Peiyu Enterprise includes Shanghai Peiyu Packaging Technology Co., Ltd and Anhui Peiyu Packaging Technology Co., Ltd. With extensive experience in mechanical design and manufacturing, we offer hundreds of mature packaging machinery solutions for food & beverage, condiment, wine, pharmaceutical, and medical industries.

Our clients include major brands like Yili Group, Mengniu Group, Unilever, and many others. Our products are exported worldwide and maintain high market reputation. We operate advanced manufacturing facilities with German and American equipment, maintaining ISO9001 certification with TÜV and CE certificates.

After Sales Service
  • Standard Warranty: 12 months
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
Frequently Asked Questions
What's the lead time for orders?

Standard models ship in 60-90 days

Do you provide after-sales service overseas?

Yes.

Can I request a customized bucket size?

Absolutely!

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

How do I place an order?

Contact us via email/phone for a quote, then confirm with a PO.
