Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature

Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature

70KW Power Shrink Wrapping Machine

Less than 40KW Consumption PE Film Packing Machine

200ºC~280ºC Shrink Temperature Shrink Packer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature
Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature
Product Details
Model NO.:
SPC-MSW45F
Automatic Grade:
Automatic
Driven Type:
Electric
Manner Of Packing:
Both Ends Open
Adjust Speed:
Frequency Conversion Speed Regulation
Heating Mode:
Quartz Heating Tube
Capacity:
25-120 Packs/Min
Air Pressure:
0.6-0.8MPa
Film Material:
PE
Weight:
4500kg
Conveyor Height:
1060mm
Shrink Temperature:
200ºC~280ºC
Film Width:
≤900mm
Film Thickness:
0.06~0.12mm
Power:
380V/50Hz
Highlight:

70KW Power Shrink Wrapping Machine

,

Less than 40KW Consumption PE Film Packing Machine

,

200ºC~280ºC Shrink Temperature Shrink Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Automatic Linear Type PE Film Shrink Stretch Wrapping Packing Machine
Product Overview
This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Designed with an integrated structure for easy maintenance and servo motor drive system for quick product changeovers. Includes removable HMI operation panel for machine monitoring and control.
Key Features
  • Special film reel and cutter mechanism with innovative tension transfer system
  • Adjustable film length with color film positioning device
  • Secure bottom sealing for firm and reliable packaging
  • Advanced electric heating tunnel (70KW) with efficient shrinking performance
  • Actual power consumption below 40KW at 200°C operating temperature
  • Removable operation panel with HMI interface
Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 0
Technical Specifications
Parameter Specification
Capacity 60packs/min; Dual channel 60*2 packs/min
Packing Pattern 3*4; 4*6, 4*7 (D.55-62mm)
Shrink Temperature 200°C~280°C
Compatible Products PET bottles, tin cans, cases
Container Shape Cylinder / Square
Film Width ≤900mm
Film Thickness 0.06~0.12mm
Film Diameter ≤400mm
Noise Level ≤65dB
Power Supply 380V/50Hz
Air Pressure 0.6~0.8Mpa
Air Consumption 100NL/min
Main Machine Power 35kW
Dimensions (mm) L*W*H: 20695*2890*3000
Weight 10.5 tons
Certifications & Components
Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 1 Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 2

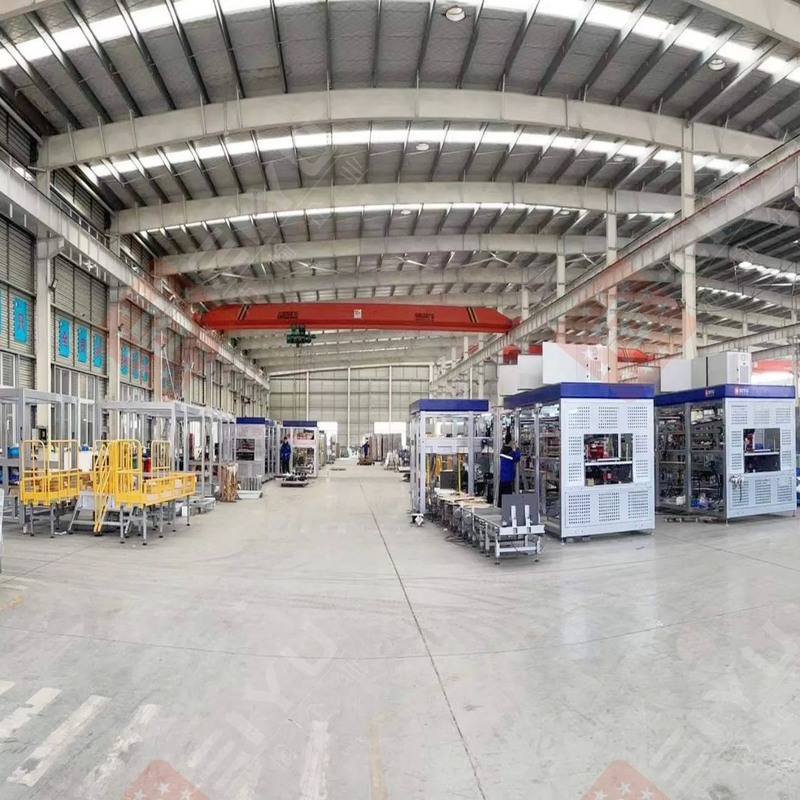

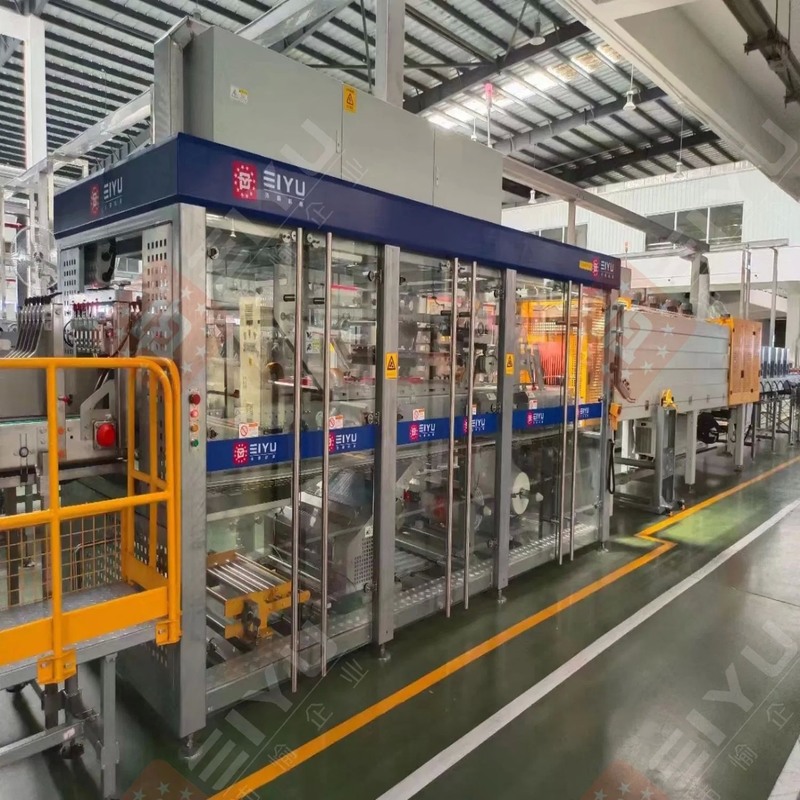

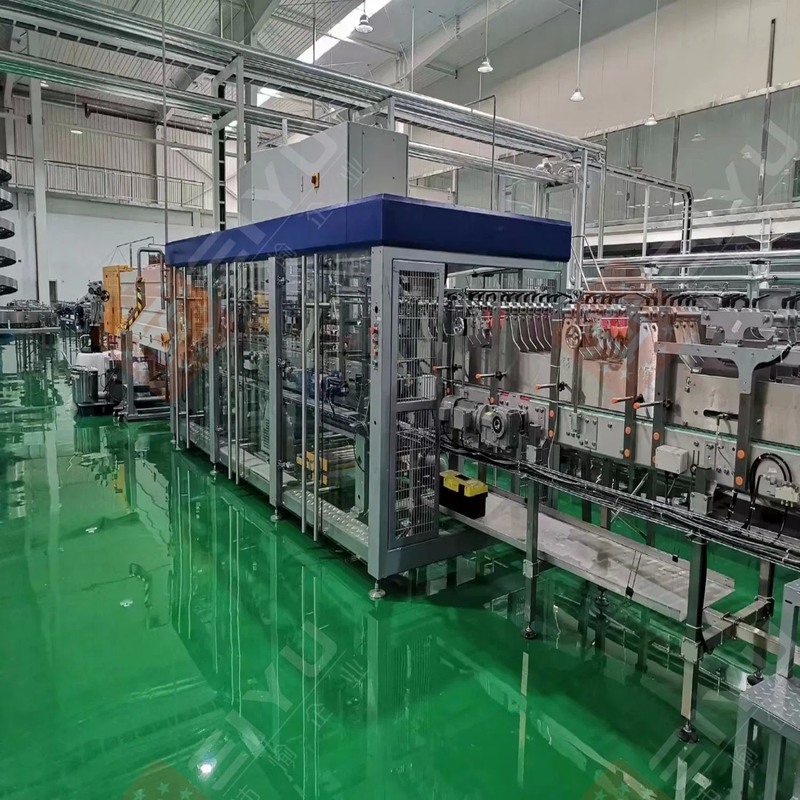

Production Environment
Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 3 Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 4 Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 5

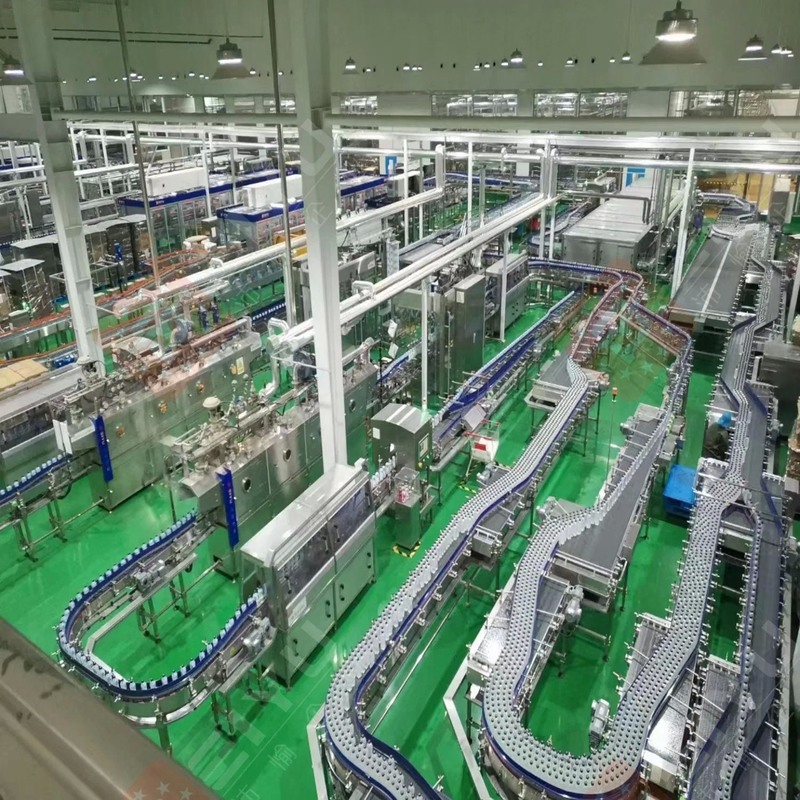

Global Customers
Automatic Linear Type PE Film Shrink Wrapping Machine with 70KW Power and Less than 40KW Consumption for 200ºC~280ºC Shrink Temperature 6
