Home > Products > Shrink Packer >

Automatic PE Shrink Film Wrapper with 1060mm Conveyor Height and Frequency Conversion Speed Regulation for Efficient Packaging

1060mm Conveyor Height Shrink Wrapper

Frequency Conversion Speed Regulation Shrink Packer

PE Shrink Film Packaging Machine

Request A Quote

Automatic PE Shrink Film Wrapper with 1060mm Conveyor Height and Frequency Conversion Speed Regulation for Efficient Packaging

Product Details

Model NO.:

SPCFM. CON

Automatic Grade:

Automatic

Driven Type:

Electric

Manner Of Packing:

Both Ends Open

Adjust Speed:

Frequency Conversion Speed Regulation

Type:

PE Shrink Film Machine

Heating Mode:

Quartz Heating Tube

Capacity:

25-120 Packs/Min

Air Pressure:

0.6-0.8MPa

Film Material:

Weight:

4500kg

Conveyor Height:

1060mm

Shrink Temperature:

200ºC~280ºC

Film Width:

≤900mm

Film Thickness:

0.06~0.12mm

Highlight:

1060mm Conveyor Height Shrink Wrapper

Frequency Conversion Speed Regulation Shrink Packer

PE Shrink Film Packaging Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

80000

Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price

Fully Automatic PET Bottle Heat Packer Shrink Wrapping Machine High Speed 30-260 Cartons/Minute 380V 50Hz

Get Best Price

50 Packs Per Minute Automatic Shrink Wrapping Machine with Both Ends Open and Mechanical Driven for Beverage Production Line

Get Best Price

Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

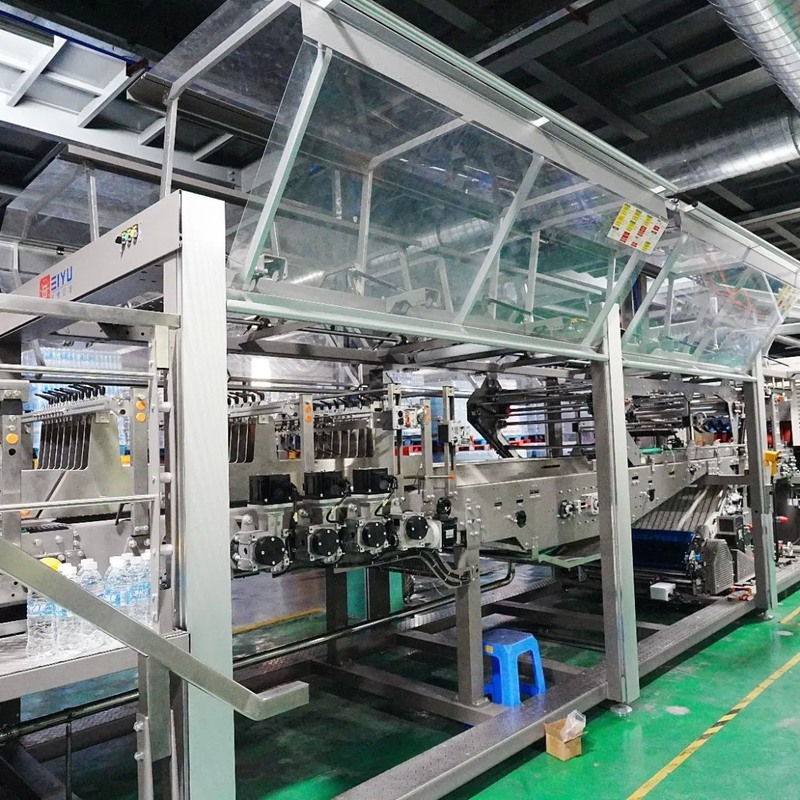

Sparkling Water Soda Water Drinks Case Carton Shrink Wrapper

This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Designed with an integrated structure for easy maintenance and servo motor drive system for quick product changeovers.

Key Features

Removable HMI operation panel displaying machine information
Special film reel and cutter devices with innovative tension transfer system
Precision film length adjustment and color film positioning
Bottom film adhesion for secure and reliable packaging
Advanced electric heating tunnel (70KW) with efficient shrinking at 200°C (actual consumption <40KW)

Technical Specifications

Parameter	Specification
Capacity	60packs/min; Dual channel 60×2 packs/min
Packing Pattern	3×4; 4×6, 4×7 (D.55-62mm)
Shrink Temperature	200°C~280°C
Compatible Products	PET bottles, tin cans, cases
Container Shapes	Cylinder / Square
Film Width	≤900mm
Film Thickness	0.06~0.12mm
Film Diameter	≤400mm
Noise Level	≤65dB
Power Supply	380V/50Hz
Air Pressure	0.6~0.8Mpa
Air Consumption	100NL/min
Main Power	35kW
Dimensions (mm)	L×W×H: 20695×2890×3000
Weight	10.5 tons
