Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping

Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping

30-260 Cartons/Minute Shrink Packer

380V 50Hz Heat Shrink Packaging Machine

12

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping
Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Input Power:
75KW
Equipment Dimensions:
L=12444mm × W=2010mm × H=2295mm
Highlight:

30-260 Cartons/Minute Shrink Packer

,

380V 50Hz Heat Shrink Packaging Machine

,

12

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Dual Channel Heat Automatic Shrink Packaging Machine for Plastic Bottle Wrapping
Application Scope

This industrial-grade shrink packaging machine is designed for wrapping glass bottles, PET bottles, and cans in industries including beverages, food, pharmaceuticals, and more. It handles production capacities from 12,000 to 48,000 bottles/hour (30-260 packages/minute).

Equipment Principle

The machine evenly distributes products through plate chains, checks for bottle shortages, arranges them through gating mechanisms, and pushes them to film winding belts. Film rolls pass through splicing mechanisms before being applied to products, which then enter the heat shrinking furnace.

Key Features
  • Compact structure with small footprint
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rods
Technical Specifications
Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Applicable Containers Cans, glass bottles, PET bottles
Conveyor Height 1050mm
Weight Approx. 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Input Power 75KW
Component Configuration
Component Brand
PLC Inovance, China
Servo Motor & Control Inovance, China
Configuration Software Ab Optix
Frequency Converter Inovance, China
Electronic Switches SICK or equivalent
Equipment Dimensions

L=12444mm * W=2010mm * H=2295mm

Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 0
Quality Assurance
  • 12-month equipment warranty (24 months for control systems)
  • On-site repair response within 48 hours
  • Lifetime technical support and spare parts availability
  • ISO9001 certified with European CE certification
Shipping & Payment
  • Quotation valid for 1 month
  • Payment methods: T/T, L/C
  • Delivery time: 60 working days after deposit
  • Packaging: Sturdy crates suitable for land/sea transport
Product Images

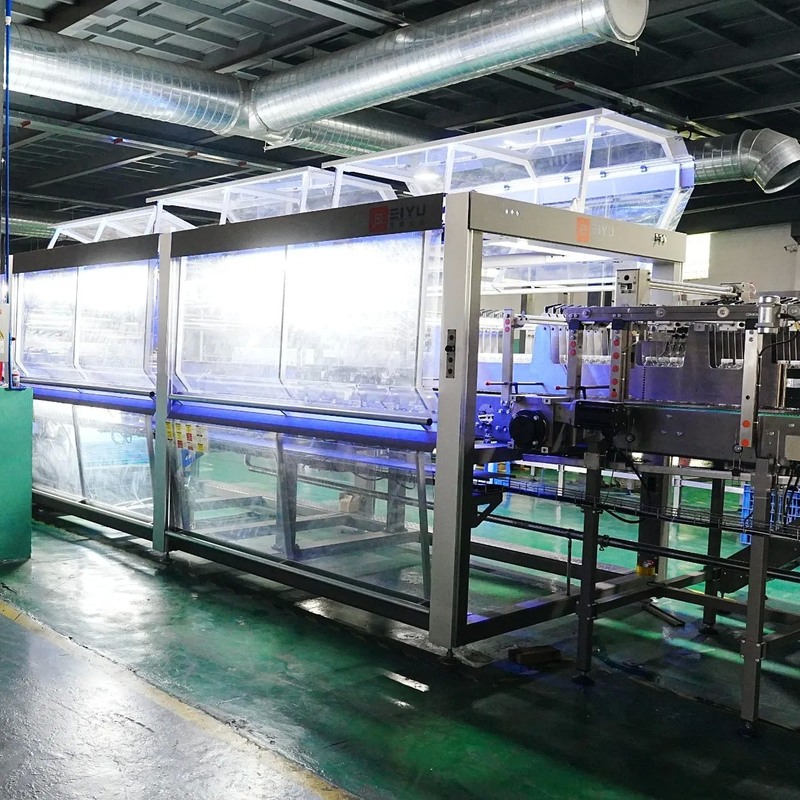

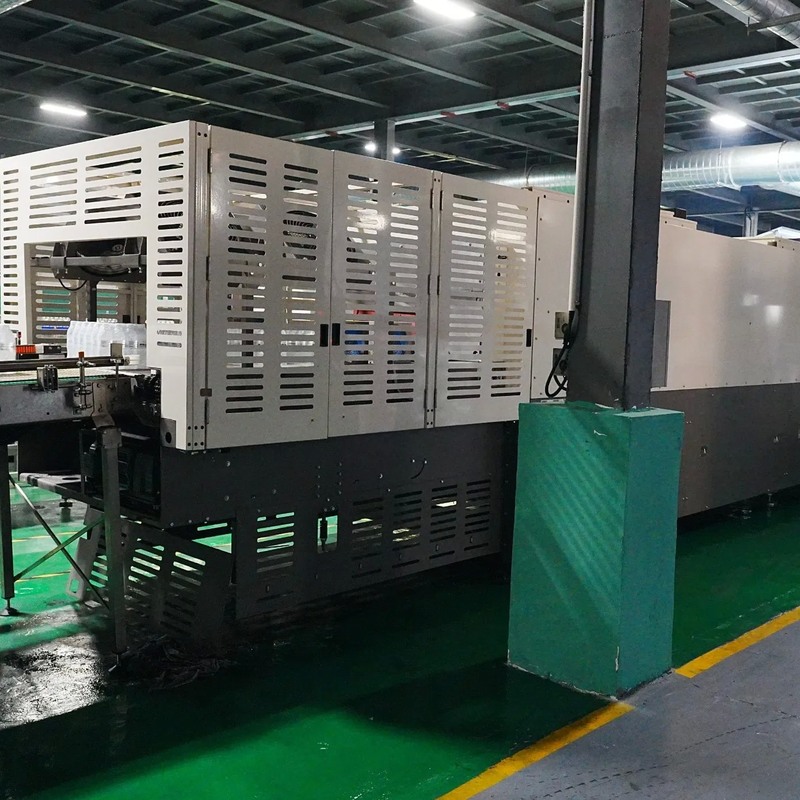

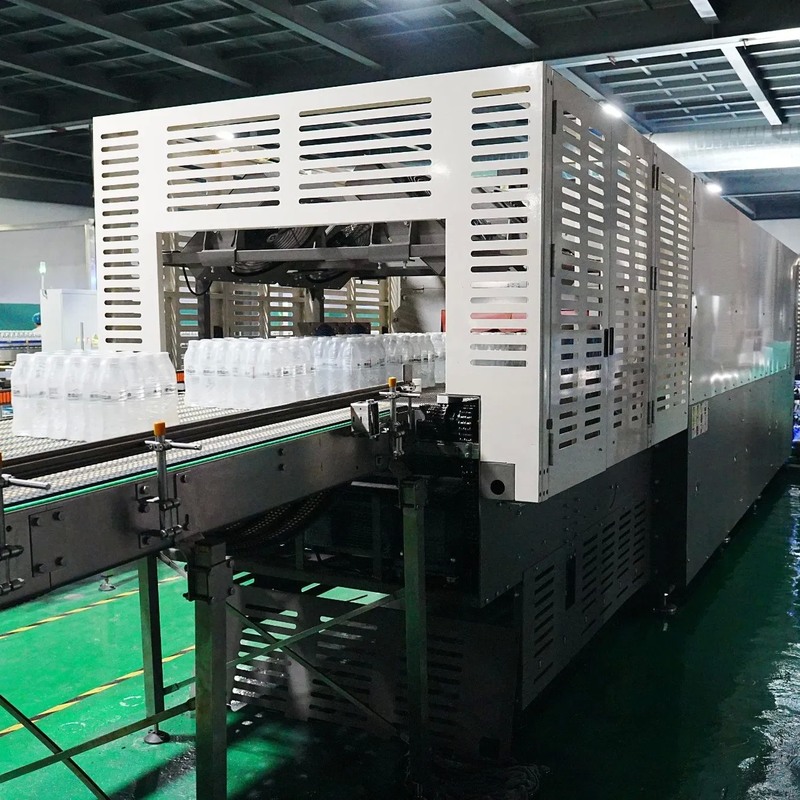

Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 1 Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 2 Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 3
Manufacturer Profile

Peiyu Enterprise is a leading manufacturer of packaging machinery with extensive experience serving global brands in food, beverage, pharmaceutical, and cosmetic industries. Our 60,000 sqm production base features advanced manufacturing equipment and strict quality control systems.

Certifications

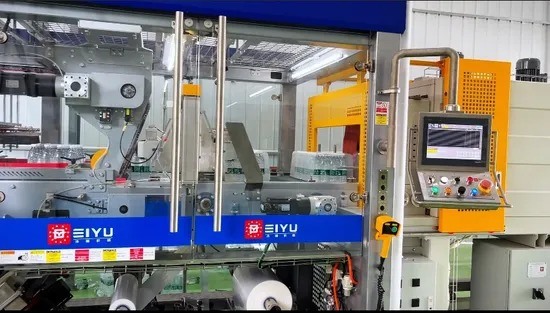

Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 4
Production Facilities

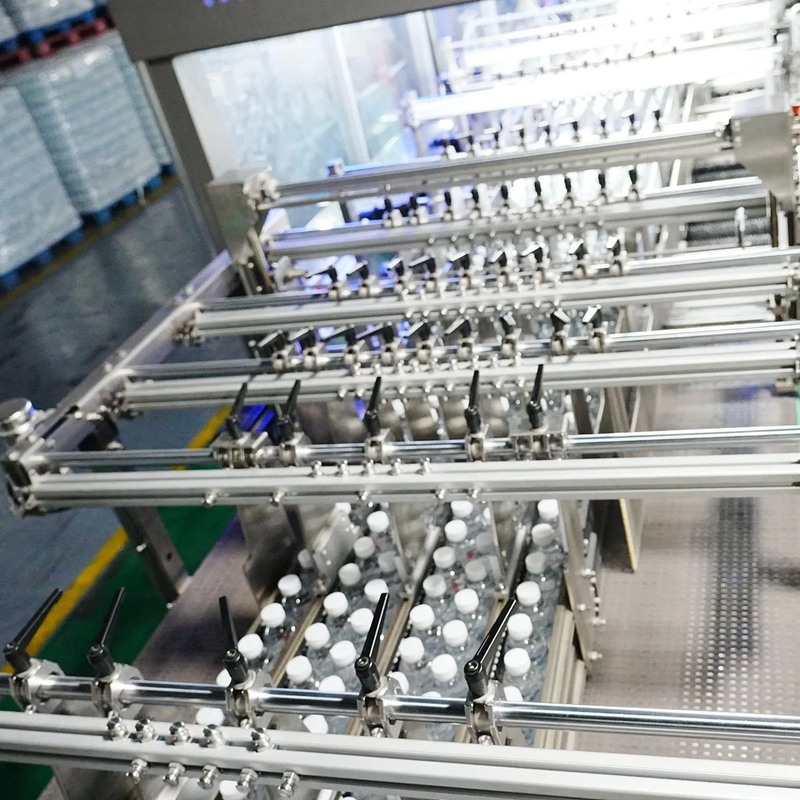

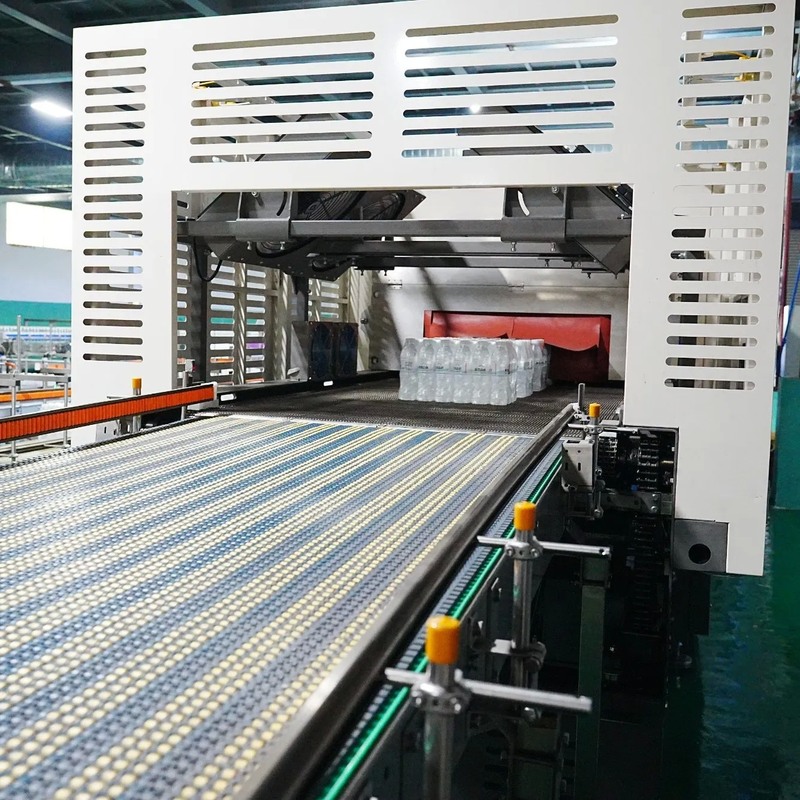

Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 5 Dual Channel Automatic Shrink Packer with 30-260 Cartons/Minute Capacity and 380V 50Hz Power for Plastic Bottle Wrapping 6
