Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel

Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel

Vertical Water Bag Shrink Packer

Heat Shrinking Shrink Wrapping Machine

Removable Operation Panel Film Wrapping Package Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel
Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel
Product Details
Model NO.:
SPC-FW
Packaging Material:
PE
Capacity:
25-120 Packs/Min
Air Pressure:
0.6~0.8MPa
Weight:
4500kg
Conveyor Height:
1060mm
Dimension:
20070*2800*3000mm
Shrinking Temperature:
180ºC~240ºC
Film Roll Diameter:
≤400mm
Operating Noise:
≤65dB
Film Roll Width:
≤900mm
Film Thickness:
0.06~0.12mm
Operating Pressure:
0.4~0.7Mpa
Main Machine Power:
30kW
Shrink Machine Power:
160kW
Highlight:

Vertical Water Bag Shrink Packer

,

Heat Shrinking Shrink Wrapping Machine

,

Removable Operation Panel Film Wrapping Package Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description

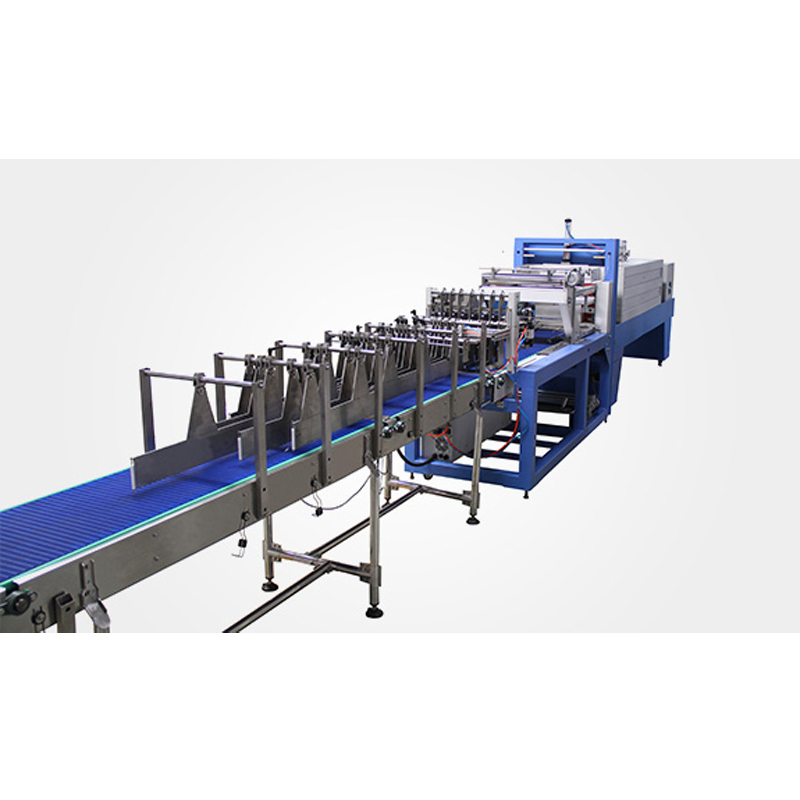

Vertical Water Bag Heat Shrinking Packing Machine
This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Its overall combination design ensures easy maintenance, while servo motor drive allows quick product changeovers.
Key Features
  • Removable operation panel with HMI interface for machine information display

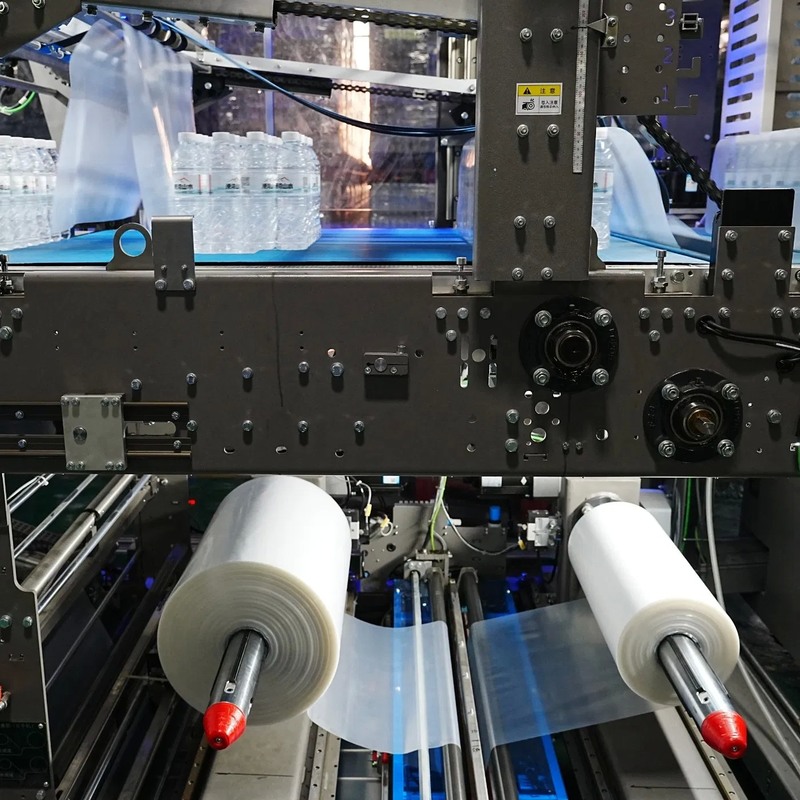

  • Special film reel and cutter devices with innovative tension transfer system
  • Easy film length adjustment and color film positioning
  • Film adheres to product bottom for firm, reliable packaging
  • Advanced electric heating tunnel (70KW) with efficient shrinking at 200ºC (actual consumption under 40KW)
Technical Specifications
Model SPCSW Capacity 60 packs (single channel)
120 packs (double channel) as demanded
Classification Film Wrapping Package Machine Package Arrangement 4*6, 2*3 and others
Driven Type Electric Air Consumption 0.1N m3/min
Shrinking Temperature 180ºC~240ºC Film Roll Diameter ≤400mm
Dimension 20070*2800*3000mm Operating Noise ≤65dB
Film Roll Width ≤900mm Packaging Bottles
Film Thickness 0.06~0.12mm Transport Package Film Packing or Wooden Case
Operating Pressure 0.4~0.7Mpa Main Machine Power 30kW
Weight 10.5T Shrink Machine Power 160kW
Product Gallery

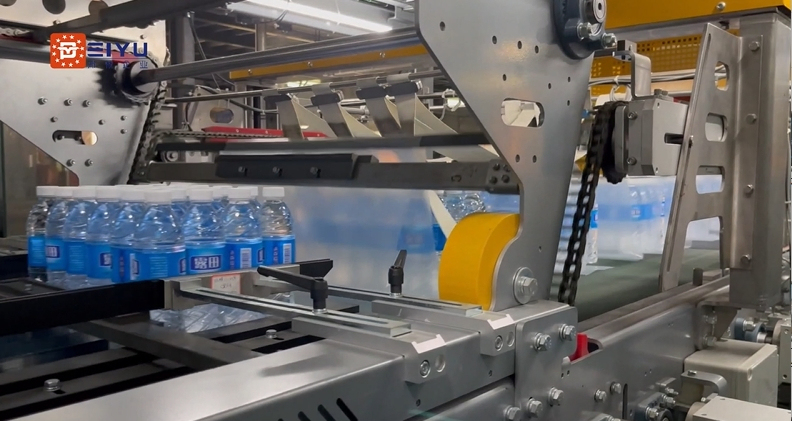

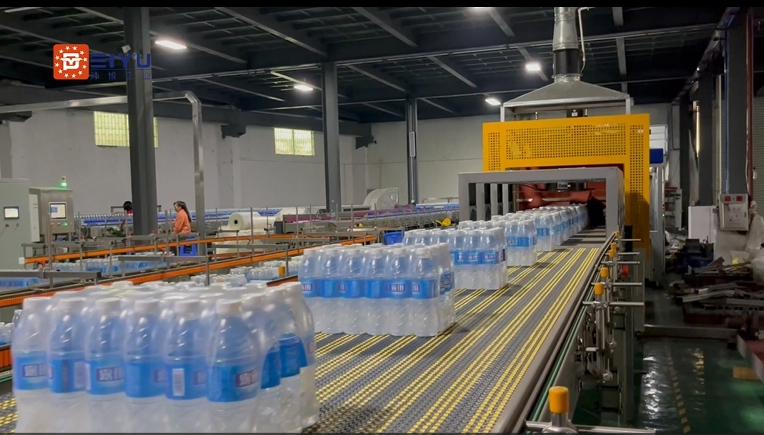

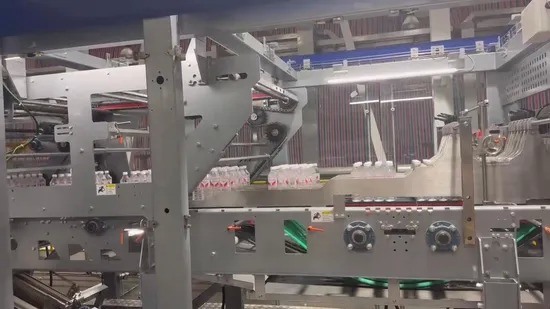

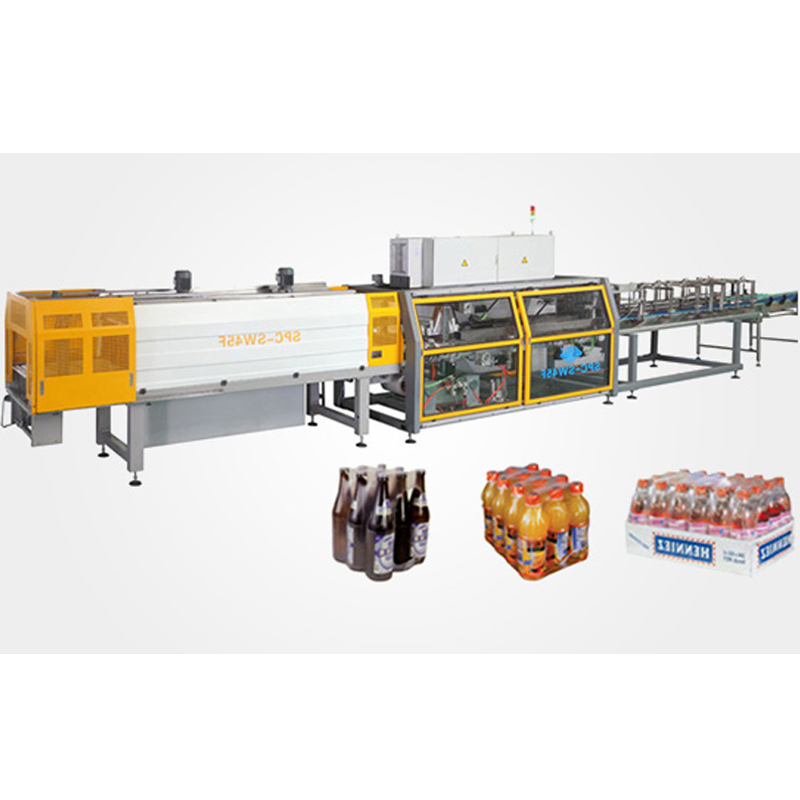

Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 0 Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 1 Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 2 Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 3 Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 4
Certifications
Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 5
Workshops
Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 6 Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 7
Our Clients
Vertical Water Bag Heat Shrinking Automatic Shrink Packer with Removable Operation Panel 8
