80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line

80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line

80 Packs Per Minute Shrink Packer

30-260 Cartons/Minute Shrink Packer

380V 50Hz Shrink Packer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line
80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Input Power:
75KW
Equipment Dimensions:
L=12444mm × W=2010mm × H=2295mm
Highlight:

80 Packs Per Minute Shrink Packer

,

30-260 Cartons/Minute Shrink Packer

,

380V 50Hz Shrink Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
80 Packs Per Minute Half Tray Wrapping Machine for Pet Food Line
Application Scope
This heat shrink packaging machine is primarily designed for industrial packaging of glass bottles, PET bottles, and cans in industries including beverages, food, pharmaceuticals, and pet food. Suitable for production capacities ranging from 12,000 to 48,000 bottles/hour (30-260 packs/minute).
Equipment Principle
The product is evenly distributed through the entrance plate chain, checked for bottle shortage, arranged through the gate mechanism, then pushed to the film winding belt. The film roll passes through splicing and tensioning mechanisms before being applied to products and sent to the heat shrinking furnace.
Key Features
  • Compact structure with small footprint

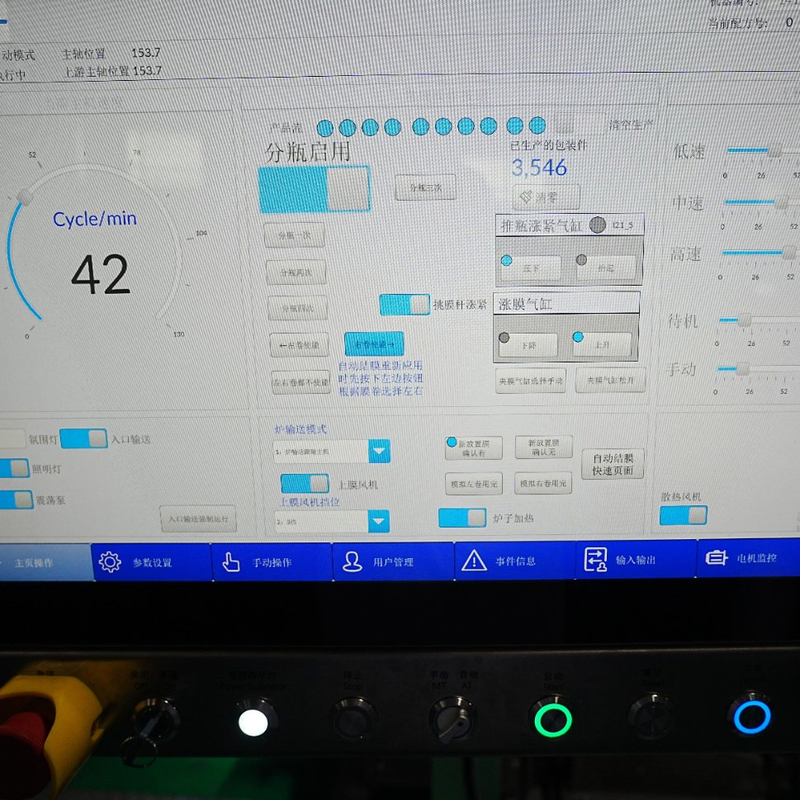

  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rod components
Technical Specifications
Parameter Value
Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Applicable Container Types Cans, glass bottles, PET containers
Conveyor Height 1050mm
Equipment Weight Approx. 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Input Power 75KW
Main Components
Component Brand
PLC Inovance, China
Servo Motor & Control System Inovance, China
Configuration Software Ab Optix
Frequency Converter Inovance, China
Electronic Switches SICK or equivalent
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 0
Pricing & Delivery
  • Quotation valid for 1 month
  • Payment methods: T/T, L/C
  • Delivery time: 60 working days after deposit receipt
  • Customers must provide product samples for factory testing
Quality Assurance
  • 12-month equipment warranty (24 months for control systems)
  • On-site support within 48 hours for critical issues
  • Lifetime technical support and spare parts availability
  • ISO9001 certified manufacturing
  • CE certified equipment
Product Images

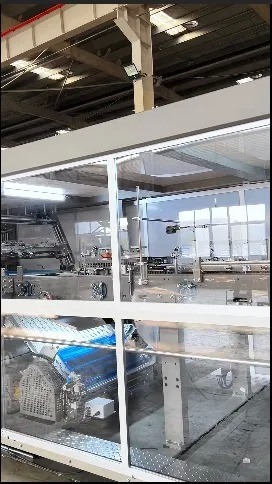

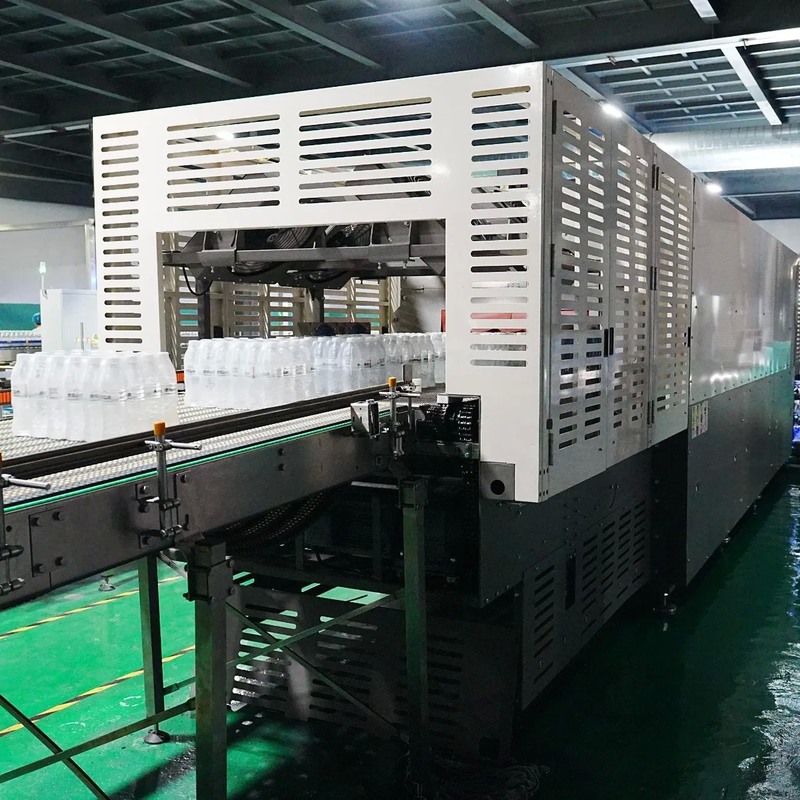

80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 1 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 2 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 3
Manufacturer Information
Peiyu Enterprise operates multiple manufacturing facilities in China, specializing in intelligent packaging equipment for liquid and solid products. With extensive experience serving global brands, our 60,000 sqm production base features advanced manufacturing equipment and strict quality control systems.
80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 4 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 5 80 Packs Per Minute 30-260 Cartons/Minute 380V 50Hz Automatic Shrink Packer for Pet Food Line 6
