Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging

Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging

30kW Main Machine Power Flow Wrapping Machine

160kW Shrink Machine Power Flow Wrapping Machine

4500kg Weight Shrink Wrapping Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging
Product Details
Model NO.:
SPC-FW
Driven Type:
Electric
Adjust Speed:
Frequency Conversion Speed Regulation
Heating Mode:
Electric Heating
Packaging Material:
PE
Capacity:
25-120 Packs/Min
Air Pressure:
0.6~0.8MPa
Film Material:
PE
Weight:
4500kg
Conveyor Height:
1060mm
Dimension:
20070*2800*3000mm
Shrinking Temperature:
180ºC~240ºC
Film Roll Diameter:
≤400mm
Operating Noise:
≤65dB
Film Roll Width:
≤900mm
Highlight:

30kW Main Machine Power Flow Wrapping Machine

,

160kW Shrink Machine Power Flow Wrapping Machine

,

4500kg Weight Shrink Wrapping Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Flow Wrapping Machine Heat Shrink Wrapper Packing Machine

This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. With its combination design, easy maintenance, and servo motor drive system, it significantly reduces product changeover time.

Key Features
  • Removable HMI operation panel displaying machine information
  • Special film reel and cutter devices with innovative tension transfer system
  • Easy film length adjustment with color film positioning device
  • Firm and reliable packaging with film secured at product bottom
  • Advanced electric heating tunnel (70KW) with efficient shrinking results
  • Actual power consumption under 40KW at 200°C operating temperature
Technical Specifications
Model SPCSW
Capacity 60 packs (single channel)
120 packs (double channel) as demanded
Classification Film Wrapping Package Machine
Package Arrangement 4*6, 2*3 and others
Driven Type Electric
Air Consumption 0.1N m³/min
Shrinking Temperature 180°C~240°C
Film Roll Diameter ≤400mm
Dimension 20070*2800*3000mm
Operating Noise ≤65dB
Film Roll Width ≤900mm
Packaging Bottles
Film Thickness 0.06~0.12mm
Transport Package Film Packing or Wooden Case
Operating Pressure 0.4~0.7Mpa
Main Machine Power 30kW
Weight 10.5T
Shrink Machine Power 160kW
Product Images

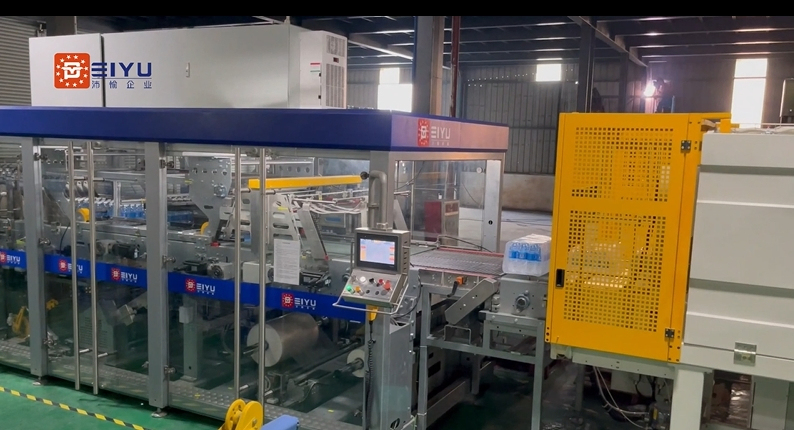

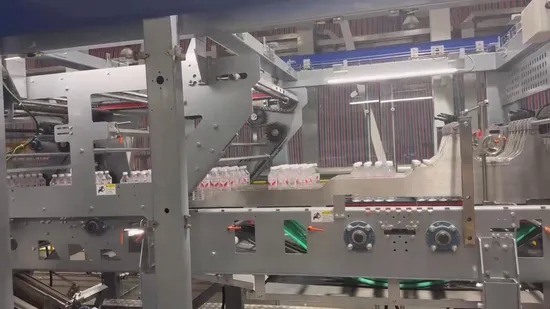

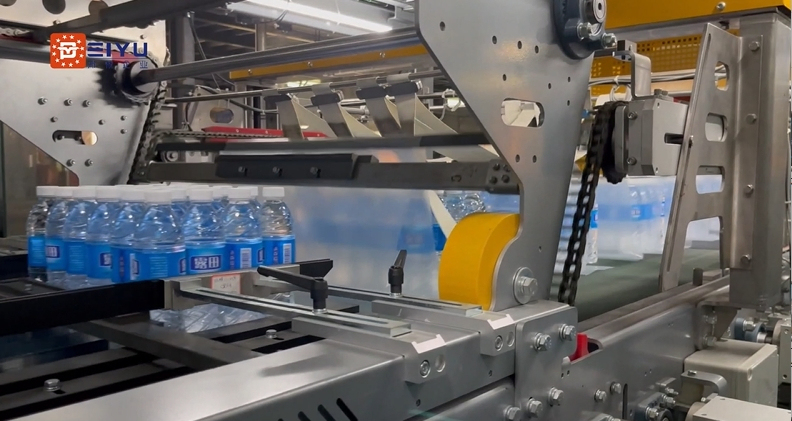

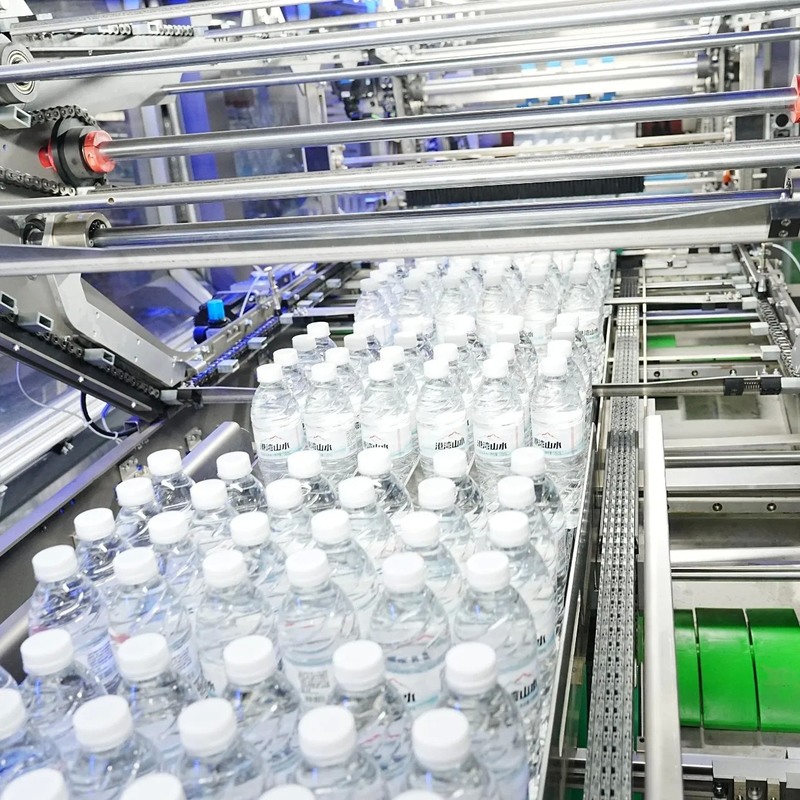

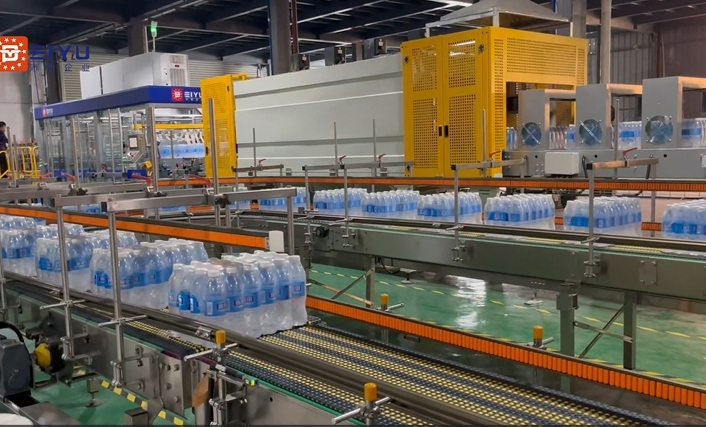

Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 0
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 1
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 2
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 3
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 4
Certifications
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 5
Our Workshops
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 6
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 7
Our Clients
Automatic Flow Wrapping Machine with 30kW Main Machine Power and 160kW Shrink Machine Power for Efficient Packaging 8
