Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping

Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping

Removable Operation Panel Shrink Packer

20070*2800*3000mm Film Wrapping Package Machine

4500kg Weight Shrink Film Packing Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping
Product Details
Model NO.:
SPCSW
Capacity:
25-120 Packs/Min
Air Pressure:
0.6-0.8MPa
Weight:
4500kg
Conveyor Height:
1060mm
Dimension:
20070*2800*3000mm
Operating Noise:
≤65dB
Film Roll Diameter:
≤400mm
Film Roll Width:
≤900mm
Film Thickness:
0.06~0.12mm
Operating Pressure:
0.4~0.7Mpa
Main Machine Power:
30kW
Shrink Machine Power:
160kW
Shrinking Temperature:
180ºC~240ºC
Air Consumption:
0.1N M3/min
Highlight:

Removable Operation Panel Shrink Packer

,

20070*2800*3000mm Film Wrapping Package Machine

,

4500kg Weight Shrink Film Packing Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Automatic Wrapping Packer Shrink Film Packing Machine
The shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Its overall combination design ensures easy maintenance, while servo motor drive allows quick product changeovers.
Key Features
  • Removable HMI operation panel displaying machine information
  • Special film reel and cutter devices with innovative tension transfer system
  • Easy film length adjustment with color film positioning device
  • Film adheres to product bottom for firm, reliable packaging
  • Advanced electric heating tunnel (70KW) with efficient shrinking at 200ºC (actual consumption <40KW)
Technical Specifications
Model SPCSW Capacity 60 packs (single channel)
120 packs (double channel) as demanded
Classification Film Wrapping Package Machine Package Arrangement 4*6, 2*3 and others
Driven Type Electric Air Consumption 0.1N m³/min
Shrinking Temperature 180ºC~240ºC Film Roll Diameter ≤400mm
Dimension 20070*2800*3000mm Operating Noise ≤65dB
Film Roll Width ≤900mm Packaging Bottles
Film Thickness 0.06~0.12mm Transport Package Film Packing or Wooden Case
Operating Pressure 0.4~0.7Mpa Main Machine Power 30kW
Weight 10.5T Shrink Machine Power 160kW

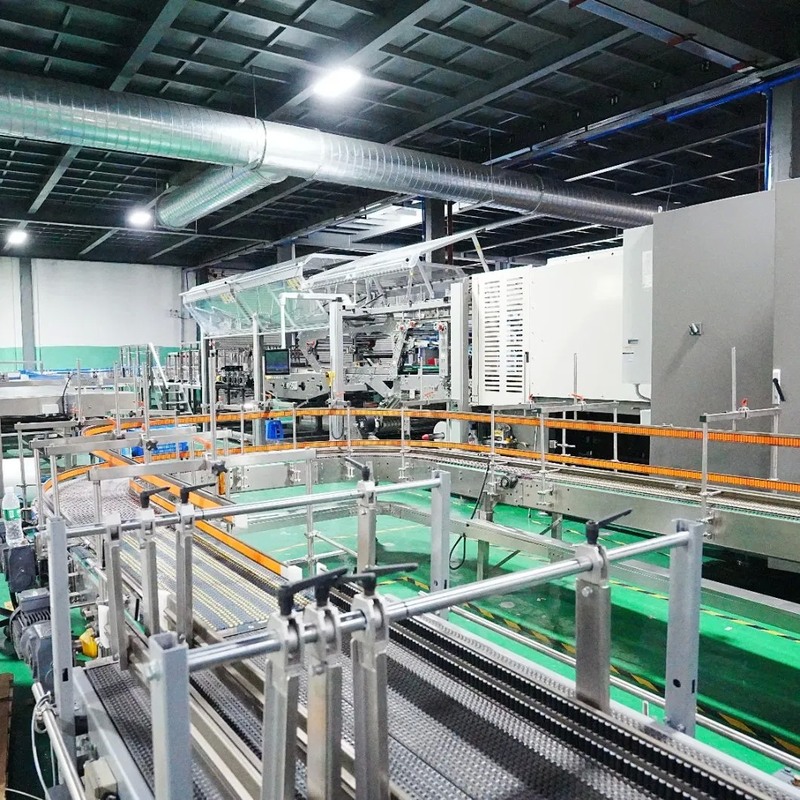

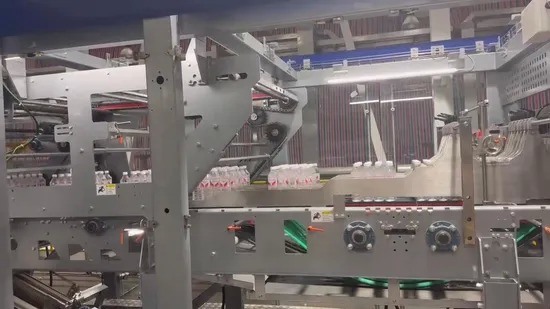

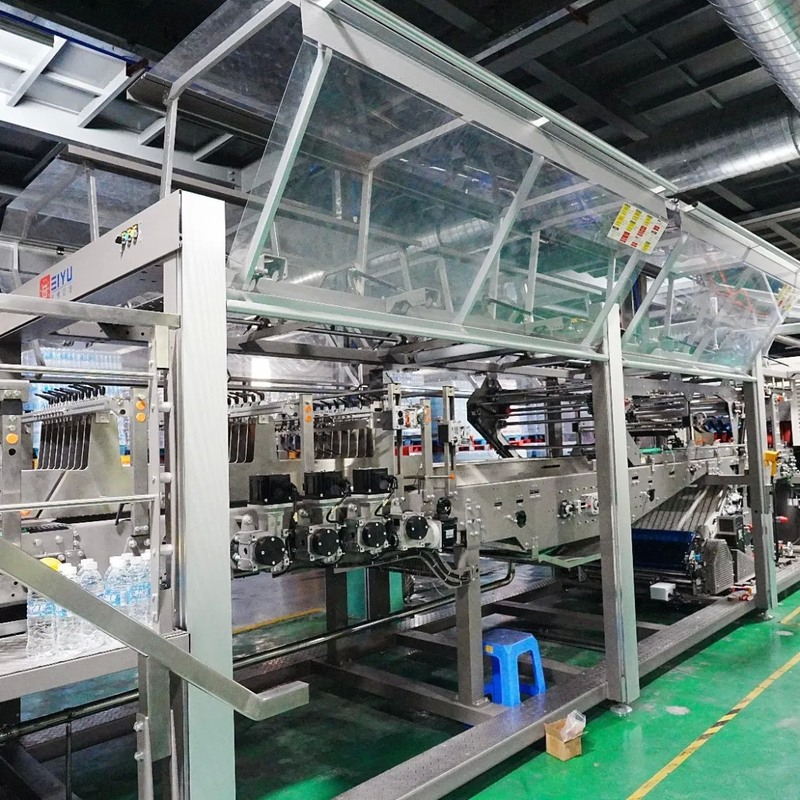

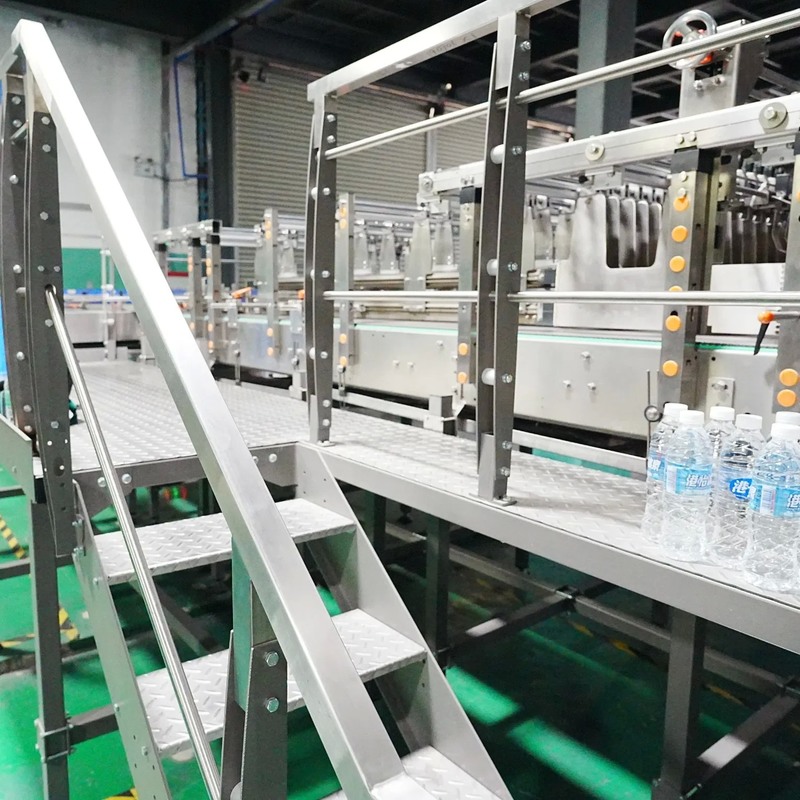

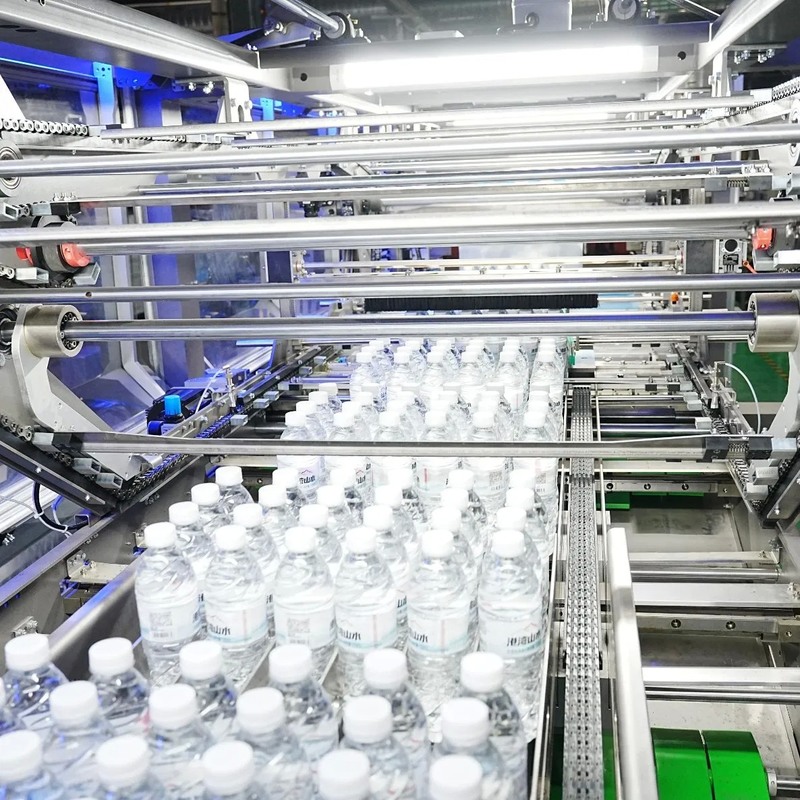

Product Images
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 0
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 1
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 2
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 3
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 4
Certifications
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 5
Workshops
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 6
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 7
Our Clients
Automatic Shrink Packer with Removable Operation Panel and 20070*2800*3000mm Dimensions for Efficient Film Wrapping 8
