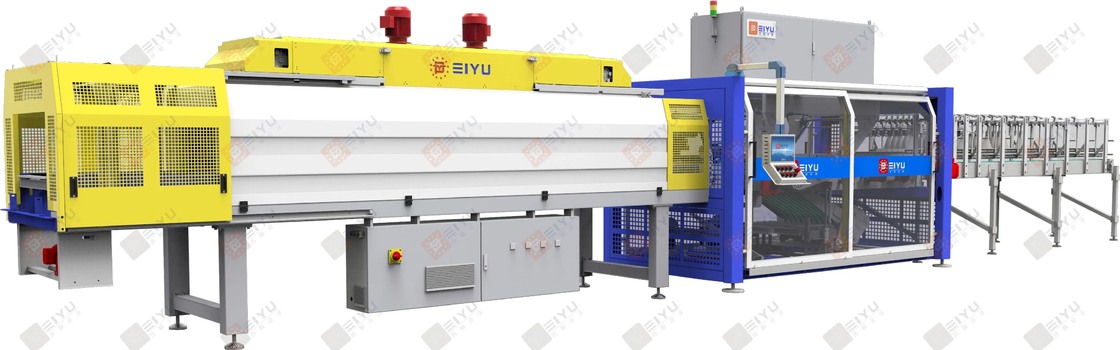

Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel

Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel

Quartz Heating Tube Shrink Packer

Servo Motors Shrink Wrapping Machine

Removable Operation Panel Heat Shrink Film Packaging Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel
Product Details
Model NO.:
SPC-MSW45F
Driven Type:
Electric
Adjust Speed:
Frequency Conversion Speed Regulation
Heating Mode:
Quartz Heating Tube
Capacity:
25-120 Packs/Min
Air Pressure:
0.6-0.8MPa
Film Material:
PE
Weight:
4500kg
Conveyor Height:
1060mm
Shrink Temperature:
200ºC~280ºC
Film Width:
≤900mm
Film Thickness:
0.06~0.12mm
Film Diameter:
≤400mm
Noise Level:
≤65dB
Power:
380V/50Hz
Highlight:

Quartz Heating Tube Shrink Packer

,

Servo Motors Shrink Wrapping Machine

,

Removable Operation Panel Heat Shrink Film Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Automatic Beverage Bottle Heat Shrink Tunnel Film Wrap Wrapping Packing Machine
Product Overview
This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Designed with an integrated structure for easy maintenance and servo motor drive system for quick product changeovers. Features a removable HMI operation panel for machine monitoring and control.
Key Features
  • Special film reel and cutter device with innovative tension transfer system
  • Adjustable film length with color film positioning capability
  • Bottom film adhesion for secure and reliable packaging
  • Advanced electric heating tunnel with efficient shrinking performance
  • 70KW power rating with actual consumption below 40KW at 200°C
  • Removable operation panel with HMI interface
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 0
Technical Specifications
Parameter Specification
Capacity 60packs/min; Dual channel 60*2 packs/min
Packing Pattern 3*4; 4*6, 4*7 (D.55-62mm)
Shrink Temperature 200°C~280°C
Compatible Products PET bottles, tin cans, cases
Container Shape Cylinder / Square
Film Width ≤900mm
Film Thickness 0.06~0.12mm
Film Diameter ≤400mm
Noise Level ≤65dB
Power Supply 380V/50Hz
Air Pressure 0.6~0.8Mpa
Air Consumption 100NL/min
Main Machine Power 35kW
Dimensions (mm) L*W*H: 20695*2890*3000
Weight 10.5 tons
Certifications
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 1

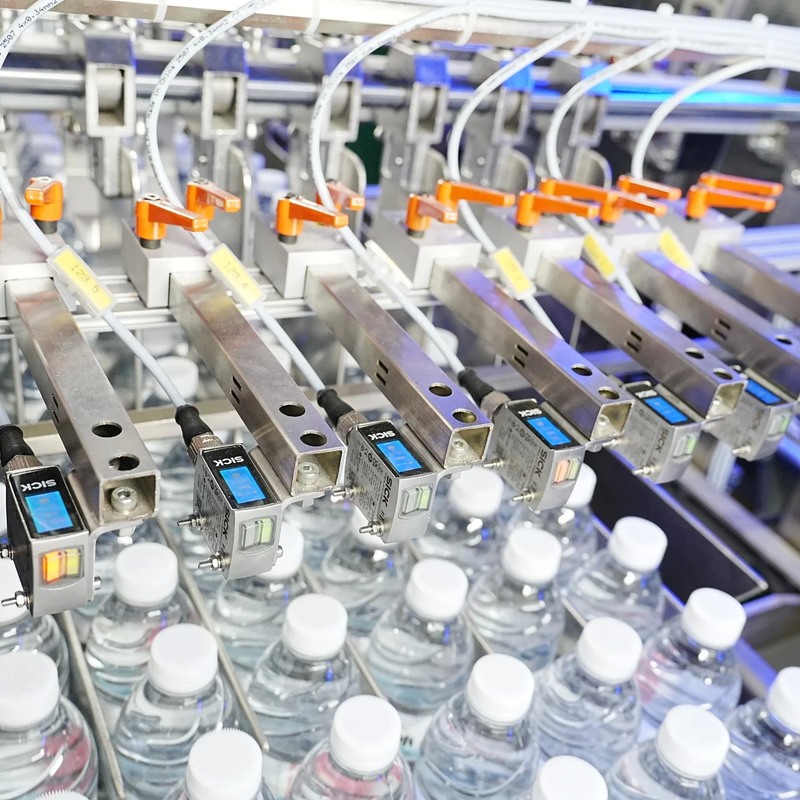

Electrical Components
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 2

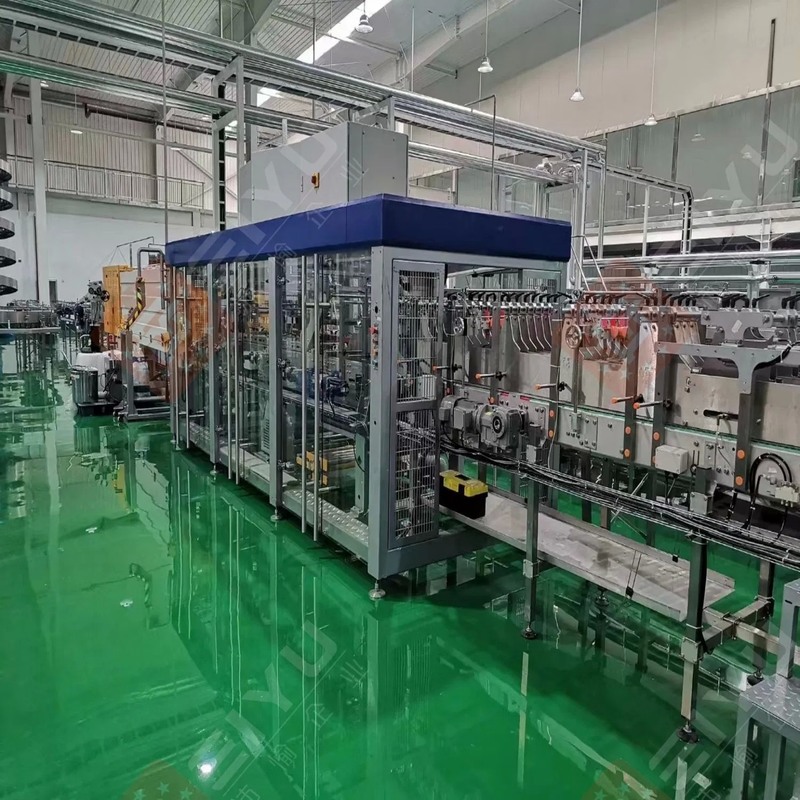

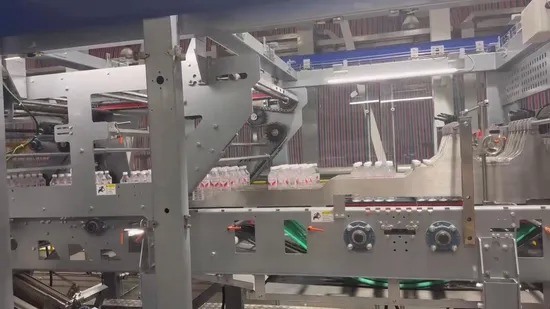

Workshop
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 3
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 4
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 5
Our Customers
Automatic Shrink Packer with Quartz Heating Tube and Servo Motors Featuring Removable Operation Panel 6
