22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line

22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line

22 Packs Per Minute Shrink Packer

Stainless Steel Heating Shrink Packer

Electronic Speed Control Shrink Packer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container:
Pet/PE/PP Bottles, Glass Bottles, Cans
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Highlight:

22 Packs Per Minute Shrink Packer

,

Stainless Steel Heating Shrink Packer

,

Electronic Speed Control Shrink Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
22 Packs Per Minute Only Film Packing Machine for Bottled Water Line
Application Scope
This industrial heat shrink packaging machine is designed for packaging glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries. Suitable for production lines with capacity ranging from 12,000 to 48,000 bottles/hour (30-260 packages per minute).
Key Features
  • Compact structure with small footprint
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection for push rod mechanism
Equipment Principle
The machine evenly distributes products to each channel via entrance plate chain, checks for bottle shortage, arranges bottles through gate mechanism, then pushes them to film winding belt. Film is fed through splicing mechanism and cut to size before wrapping products, which then enter the heat shrinking furnace.
Technical Specifications
Parameter Value
Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Applicable Containers Cans, glass bottles, PET bottles
Conveyor Height 1050mm
Weight Approx. 6000Kg
Air Pressure 0.5-0.7MPa
Power Supply 380V AC 50HZ; 24V DC/AC
Main Components
Component Brand
PLC Inovance, China
Servo Motor & Control Inovance, China
Configuration Software Ab Optix
Frequency Converter Inovance, China
Electronic Switches SICK or equivalent
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 0
Ordering Information
  • Quotation validity: 1 month
  • Payment methods: T/T, L/C
  • Delivery time: 60 working days after deposit receipt
  • Customer provides product samples for factory testing
Quality Assurance
  • 12-month equipment warranty (24 months for control system)
  • On-site support within 48 hours for critical issues
  • Lifetime technical support and spare parts availability
  • Performance guarantee for mechanical properties and product quality
Packaging & Transportation
Equipment is packed in sturdy, moisture-proof packaging suitable for land and sea transportation, with shock-proof and rust-proof protection.
Product Images

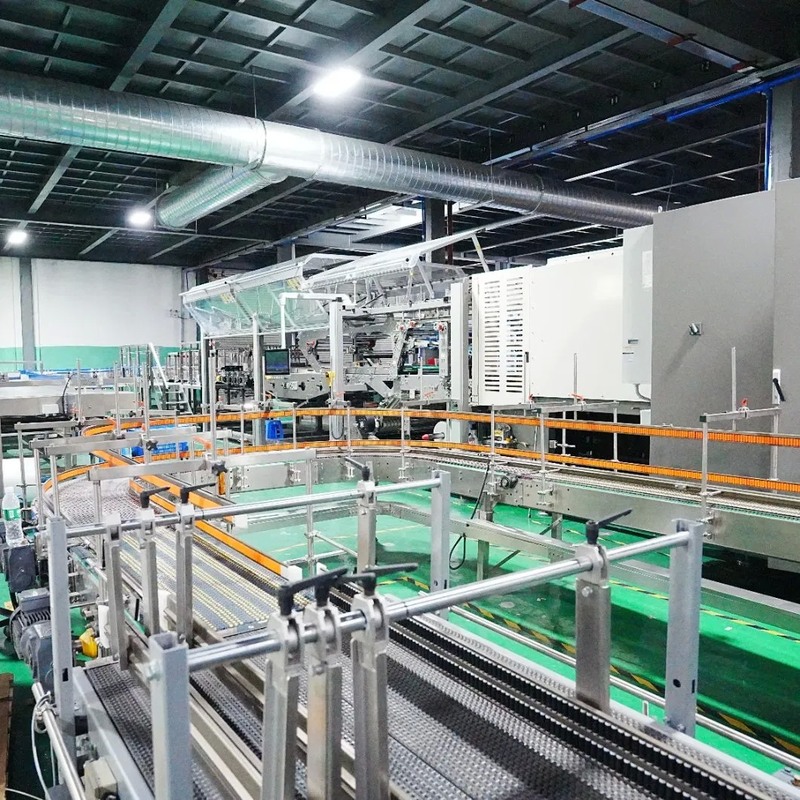

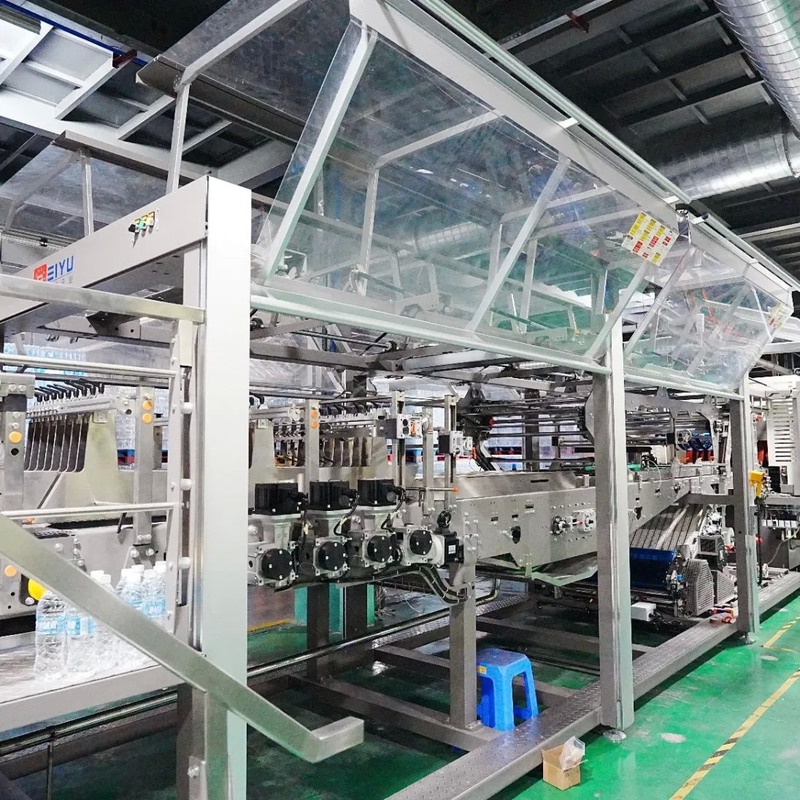

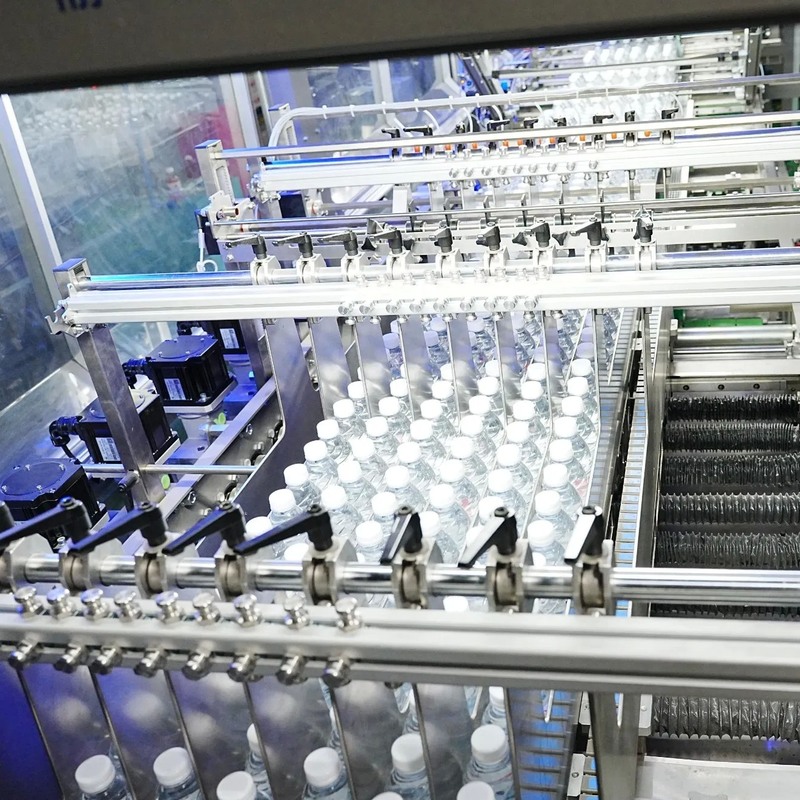

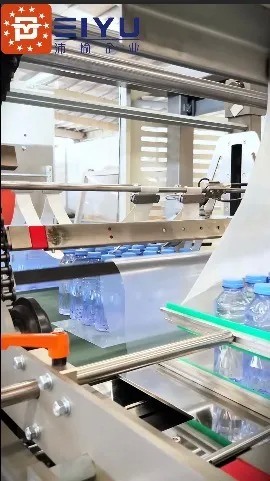

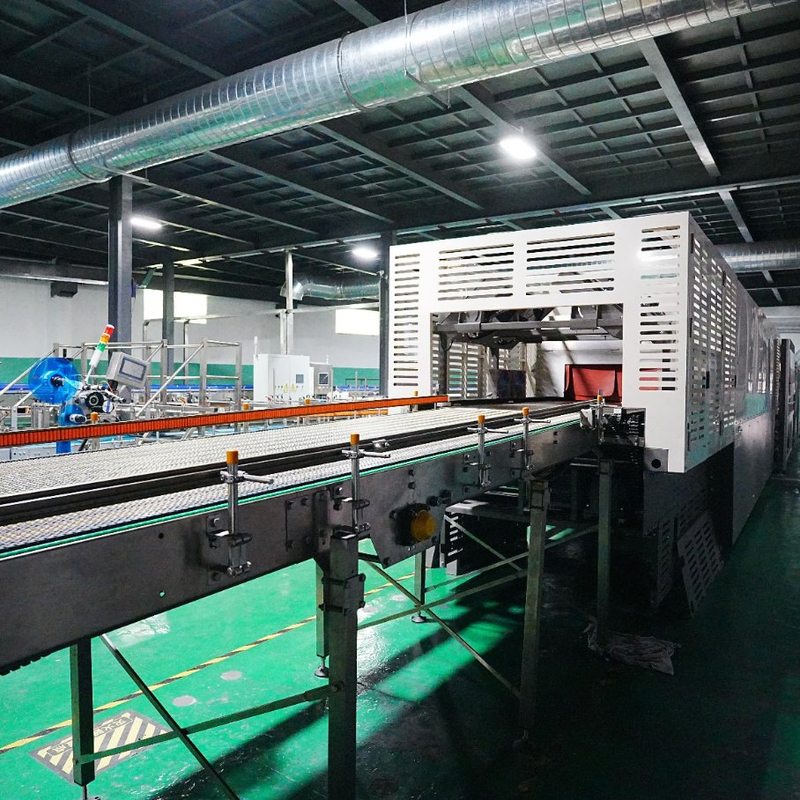

22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 1 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 2 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 3
Certifications
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 4
Workshop
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 5 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 6
Electrical Components
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 7 22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 8
Our Customers
22 Packs Per Minute Automatic Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Bottled Water Line 9
