Name: Automated Shrink Wrap Machine with Stainless Steel Heating and Electronic Speed Control for 80packsminute
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPCSW.G1
Availability: InStock

Home > Products > Shrink Packer >

Automated Shrink Wrap Machine with Stainless Steel Heating and Electronic Speed Control for 80packsminute

80packsminute Shrink Wrap Machine

Stainless Steel Heating Shrink Packer

Electronic Speed Control Heat Shrink Packaging Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Request A Quote

Automated Shrink Wrap Machine with Stainless Steel Heating and Electronic Speed Control for 80packsminute

Product Details

Model NO.:

Customized

Automatic Grade:

Automatic

Driven Type:

Mechanical

Manner Of Packing:

Both Ends Open

Adjust Speed:

Electronic Speed Control

Type:

PE Shrink Film Machine

Heating Mode:

Stainless Steel Heating

Packaging Material:

Film

Capacity:

30-260 Cartons/Minute/Customized

Power:

380V 50Hz Customized

Applicable Container:

Pet/PE/PP Bottles, Glass Bottles, Cans

Applicable Container Size:

100g-3kg Customized

Equipment Weight:

6000Kg

Operating Air Pressure:

0.5-0.7MPa

Air Consumption:

100L/min Max

Highlight:

80packsminute Shrink Wrap Machine

Stainless Steel Heating Shrink Packer

Electronic Speed Control Heat Shrink Packaging Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

30-40 work days

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price

Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price

Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price

Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

ODM Automated Shrink Wrap Machines for Canned Bottles (80 packs/minute)

This industrial-grade heat shrink packaging machine is designed for high-speed packaging of glass bottles, PET bottles, and cans in beverage, food, pharmaceutical, and related industries.

Key Applications

Industrial packaging for water, beverages, beer, food, and medicine containers
Production capacity range: 12,000-48,000 bottles/hour
Packaging speed: 30-260 packages per minute (depending on specifications)

Equipment Principle

The machine evenly distributes products through plate chain channels, checks for bottle shortages, arranges them through gating mechanisms, and pushes them to the film winding belt. The film is fed through a splicing mechanism, tensioned, and applied to products before entering the heat shrinking furnace.

Key Features

Compact structure with small footprint
User-friendly LCD touch screen control system with electronic detection
Comprehensive safety protection devices
Micro-vibration bottle separation for round bottles
Torque limit protection on push rods

Technical Specifications

Model	SPCSW.E2
Production Capacity	30 packs/minute (round bottles)
Applicable Container Types	Cans, glass bottles, PET bottles
Conveyor Height	1050mm
Equipment Weight	Approx. 6000Kg
Power Requirements	380V AC 50HZ; 24V DC/AC
Input Power	75KW

Main Components

Component	Brand
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Configuration Software	Ab Optix
Frequency Converter	Inovance, China
Electronic Switches	SICK or equivalent

Equipment Dimensions

L=12444mm * W=2010mm * H=2295mm

Quality Assurance

12-month equipment warranty (24 months for control system)
On-site support within 48 hours for critical issues
Lifetime technical support and spare parts availability
ISO9001 certified manufacturing
CE certified equipment

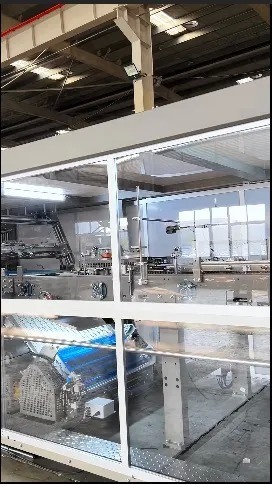

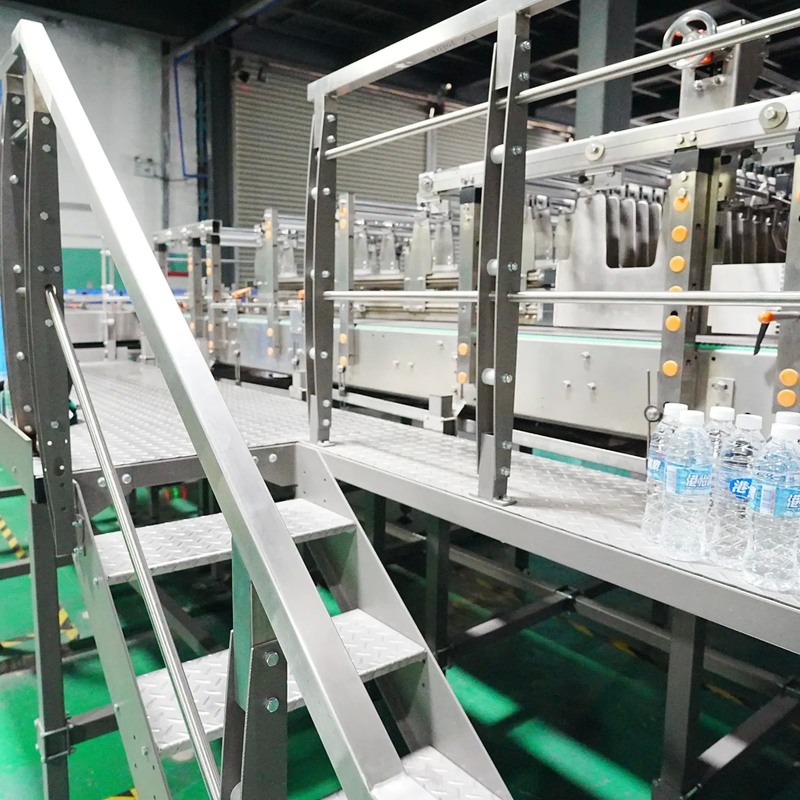

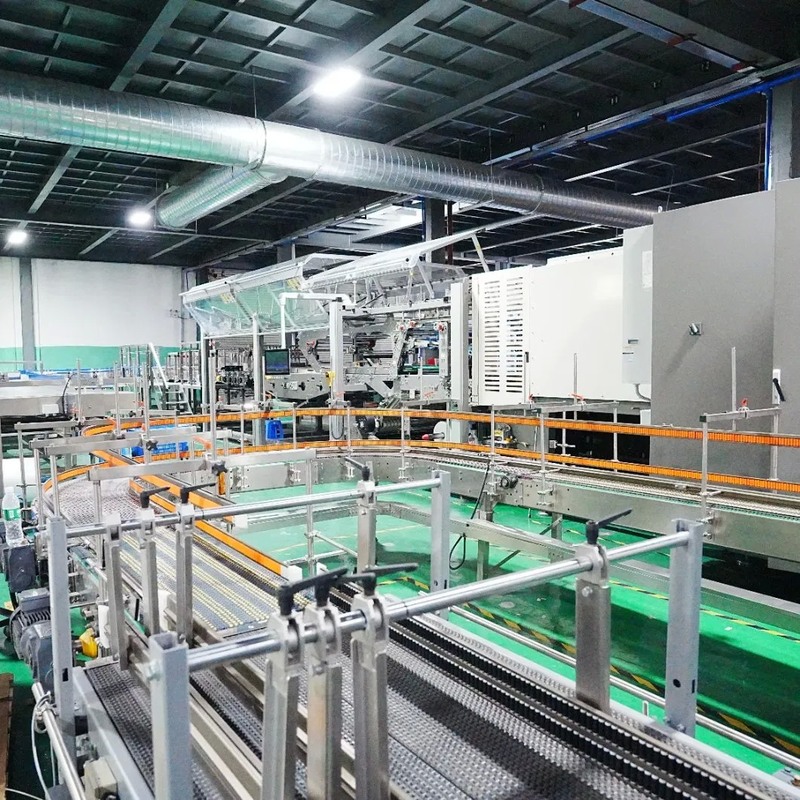

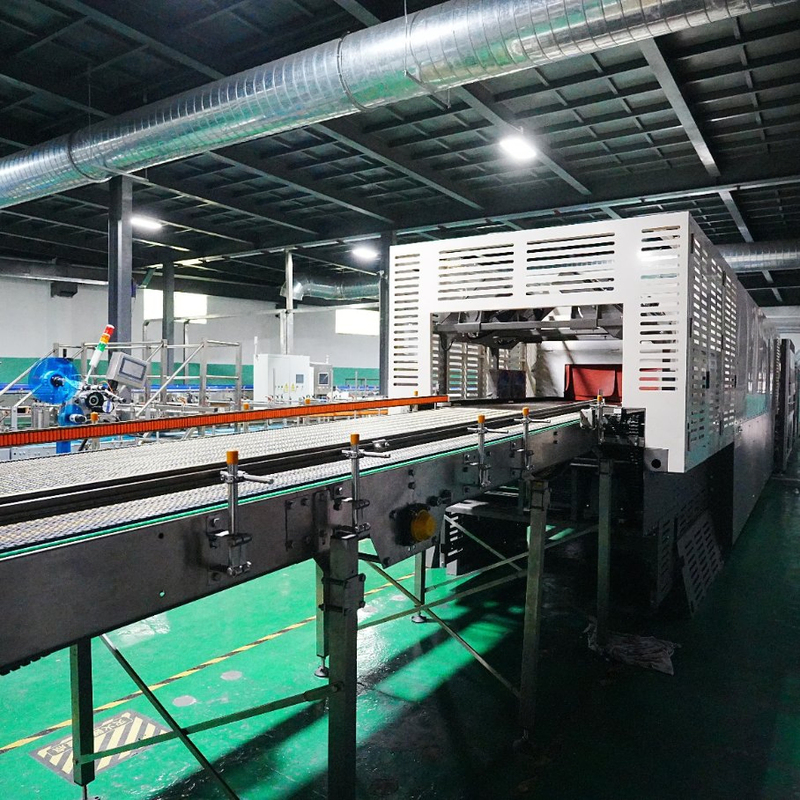

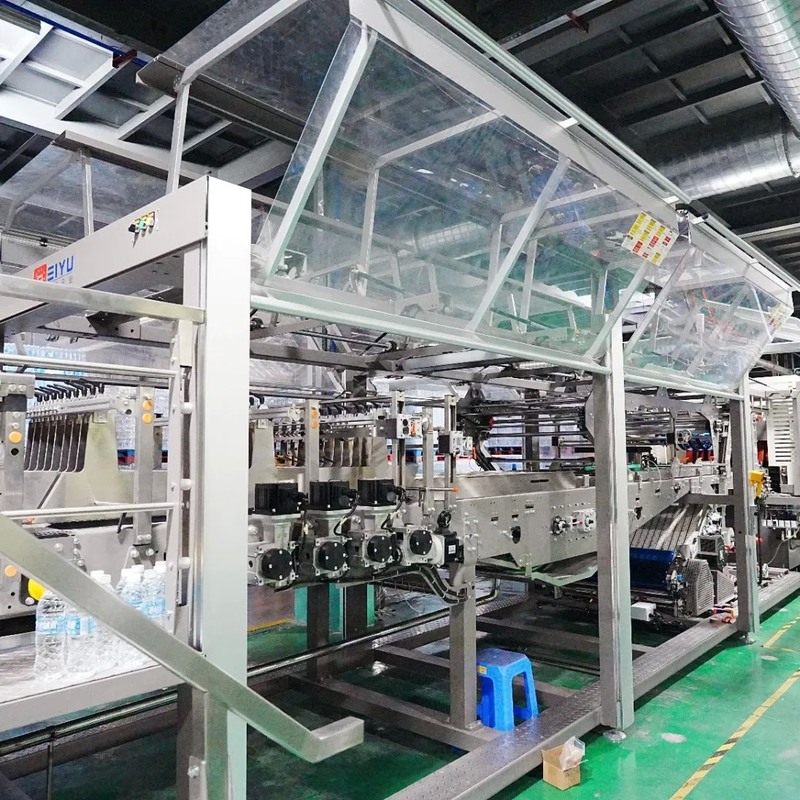

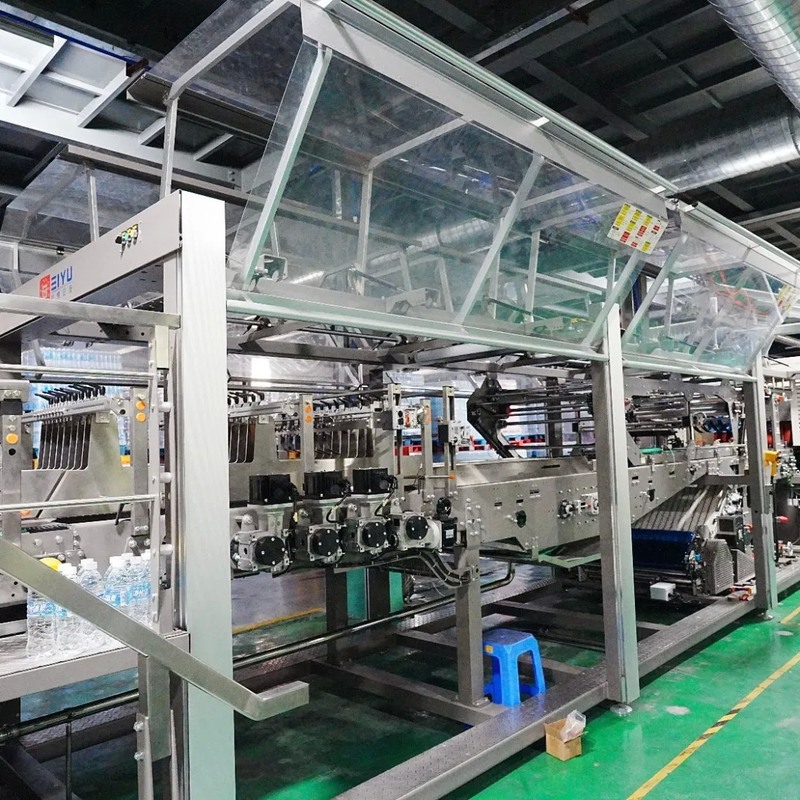

Product Images

Manufacturing Capabilities

Our 60,000 square meter production facility features advanced equipment including laser cutting machines, processing centers, and comprehensive quality control systems. We serve global clients across beverage, dairy, pharmaceutical, and related industries.
