60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour

60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour

60 Packs Per Minute Shrink Packer

1050mm Conveyor Height Shrink Packer

12

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour
60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container:
Pet/PE/PP Bottles, Glass Bottles, Cans
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Input Power:
75KW
Equipment Dimensions:
L=12444mm × W=2010mm × H=2295mm
Highlight:

60 Packs Per Minute Shrink Packer

,

1050mm Conveyor Height Shrink Packer

,

12

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
60 Packs Per Minute Plastic Bottle Wrapping Machine for Salty Soda Line
Scope of Application
This heat shrink packaging machine is designed for industrial packaging of glass bottles, PET bottles, and cans in industries including beverages, beer, food, and pharmaceuticals.
Production Capacity: 12,000 to 48,000 bottles/hour
Packaging Speed: 30 to 260 packages per minute
Equipment Principle
The product is evenly distributed through the entrance plate chain, checked for bottle shortage, arranged through the gate mechanism, and pushed to the film winding belt. The film roll passes through splicing and tensioning mechanisms before being applied to the product and sent to the heat shrinking furnace.
Key Features
  • Compact structure with small footprint
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rod components
Packaging Specifications
Film roll requirements:
  • Axis hole diameter: 78mm
  • Film roll width: <650mm
  • Film roll diameter: ≤400mm
Technical Specifications
Parameter Value
Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Applicable Container Types Cans, glass bottles, PET
Conveyor Elevation 1050mm
Equipment Weight Approx. 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Component Configuration
Component Brand
PLC Inovance, China
Servo Motor & Control Inovance, China
Frequency Converter Inovance, China
Proximity Switches SICK or equivalent
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 0
Ordering Information
  • Quotation validity: 1 month
  • Payment methods: T/T, L/C
  • Delivery time: 60 working days after deposit receipt
  • Customer provides product samples for factory trials
Quality Assurance
  • 12-month equipment warranty
  • 24-month control system warranty
  • On-site support within 48 hours for critical issues
  • Lifetime technical support after warranty period
Product Images

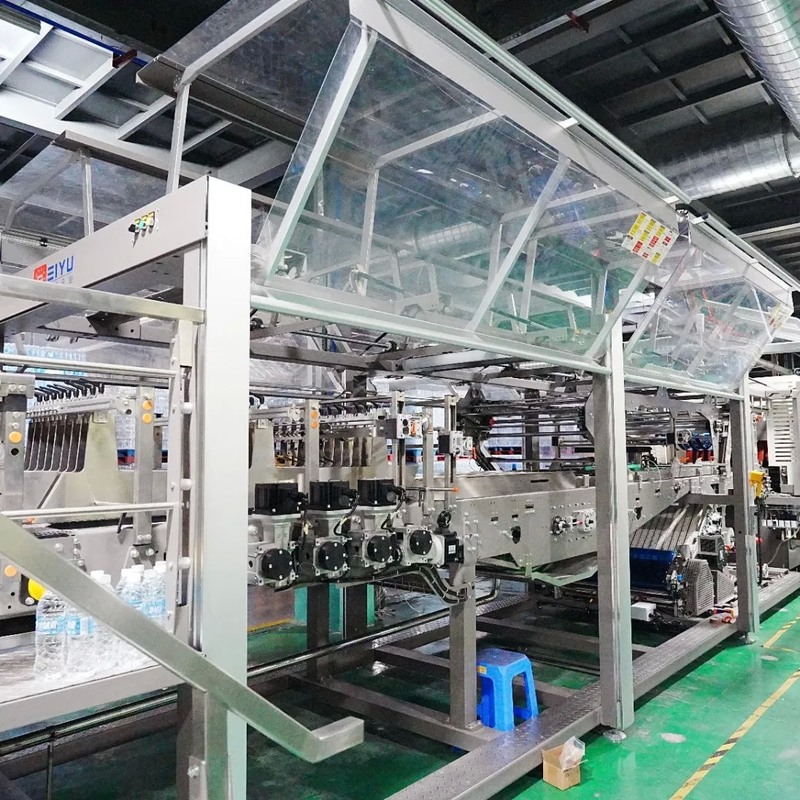

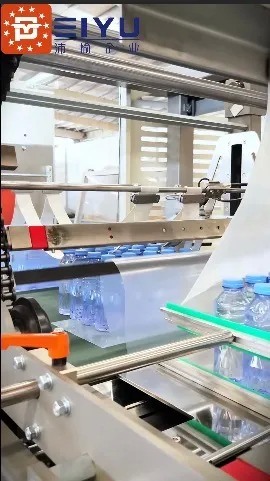

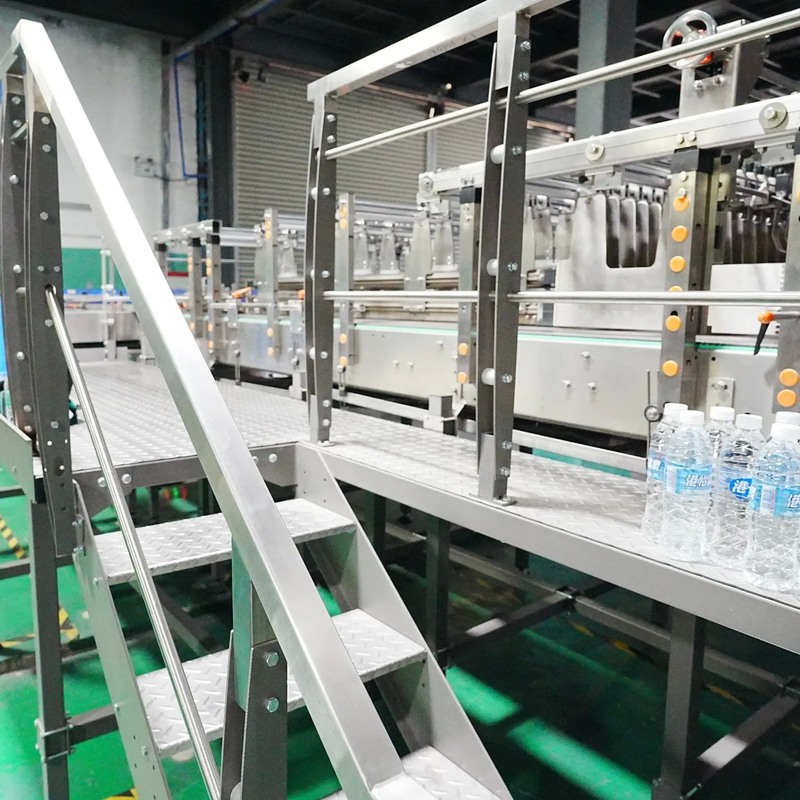

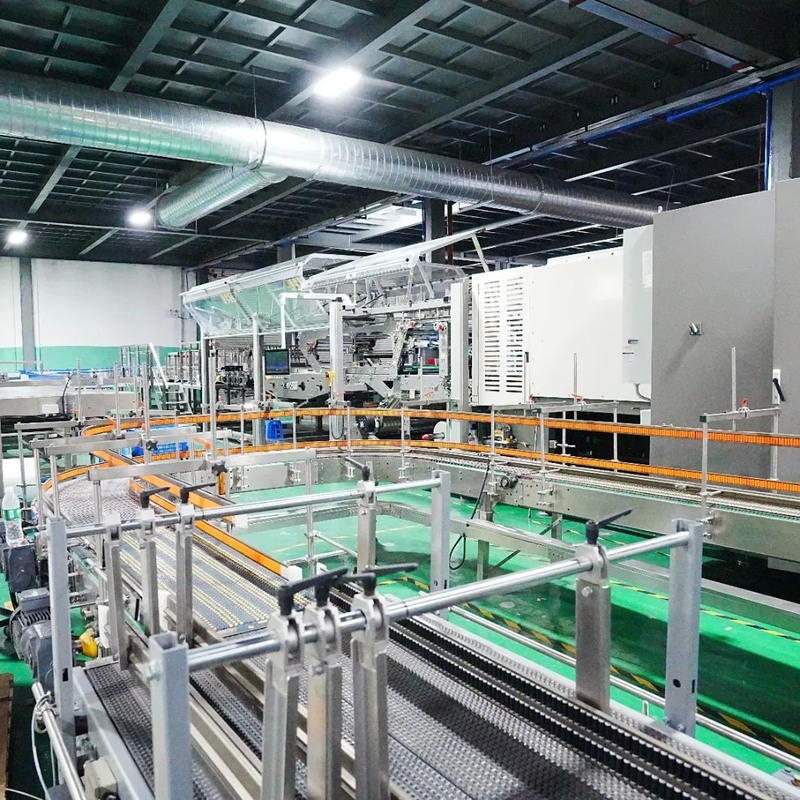

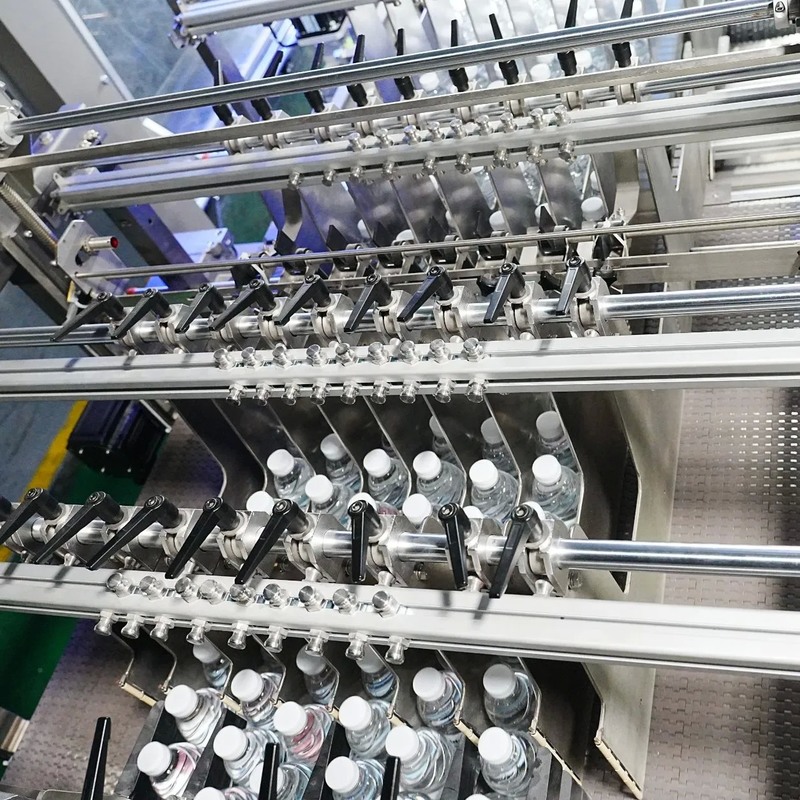

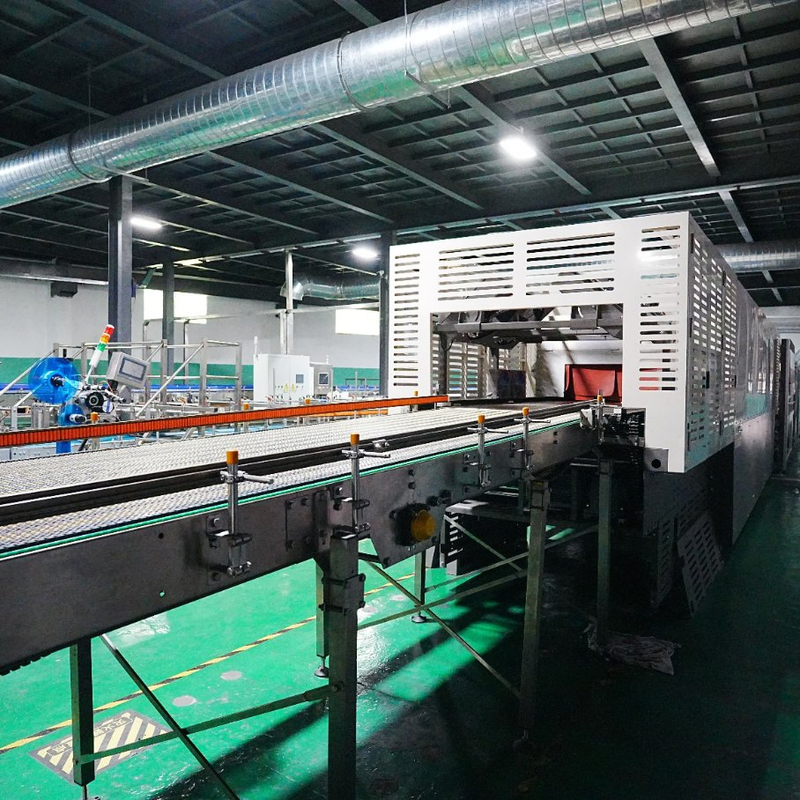

60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 1 60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 2
Manufacturer Information
Peiyu Enterprise provides complete intelligent packaging solutions for global liquid and solid product companies, with extensive experience serving major brands worldwide.
60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 3
Certifications
60 Packs Per Minute Automatic Shrink Packer with 1050mm Conveyor Height for 12,000 to 48,000 Bottles/Hour 4
