Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power

Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power

500ml Pet Bottle Shrink Wrapping Machine

380V 50Hz Shrink Packer

Stainless Steel Heating Heat Shrink Packaging Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Input Power:
75KW
Equipment Dimensions:
L=12444mm × W=2010mm × H=2295mm
Highlight:

500ml Pet Bottle Shrink Wrapping Machine

,

380V 50Hz Shrink Packer

,

Stainless Steel Heating Heat Shrink Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
Product Description
Automatic Water Bottle Shrink Wrapping Machine for 500ml Pet Bottle
Application Scope
This industrial-grade shrink wrapping machine is designed for packaging glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries.
Key Specifications
  • Production capacity: 12,000 to 48,000 bottles/hour
  • Packaging rate: 30-260 packages per minute
  • Compatible with various container types and sizes
Alternative Names
Shrink packer Heat shrink packer Tray shrink wrapping machine Automatic shrink wrap machine PE Film Packaging Machine
Technical Specifications
Equipment Principle
The machine evenly distributes products through an entrance plate chain, checks for bottle shortages, arranges them through gating mechanisms, and pushes them to the film winding belt. The film is precisely cut and applied before products enter the heat shrinking furnace.
Workflow Features
  • Compact structure with minimal footprint
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rod components
Packaging Parameters
Film package size must meet single-stage film requirements. Special bottle types or packaging methods require engineer consultation.
  • Film roll axis hole diameter: 78mm
  • Film roll width: <650mm
  • Film roll diameter: ≤400mm
Equipment Parameters
Model SPCSW.E2
Production Capacity 30 packs/minute (round bottles)
Compatible Containers Cans, glass bottles, PET containers
Conveyor Height 1050mm
Weight Approx. 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Component Configuration
Component Brand
PLC Inovance, China
Servo Motor System Inovance, China
Control Software Ab Optix
Frequency Converter Inovance, China
Sensors SICK or equivalent
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 0
Commercial Details
Quotation & Delivery
  • Quote validity: 1 month
  • Payment methods: T/T, L/C
  • Customer provides product samples for testing
  • Delivery time: 60 working days after deposit
Quality Assurance
  • 12-month equipment warranty
  • 24-month control system warranty
  • On-site support within 48 hours
  • Lifetime technical support
Packaging & Shipping
Equipment is packed in sturdy, weatherproof containers suitable for land and sea transportation.
Product Images

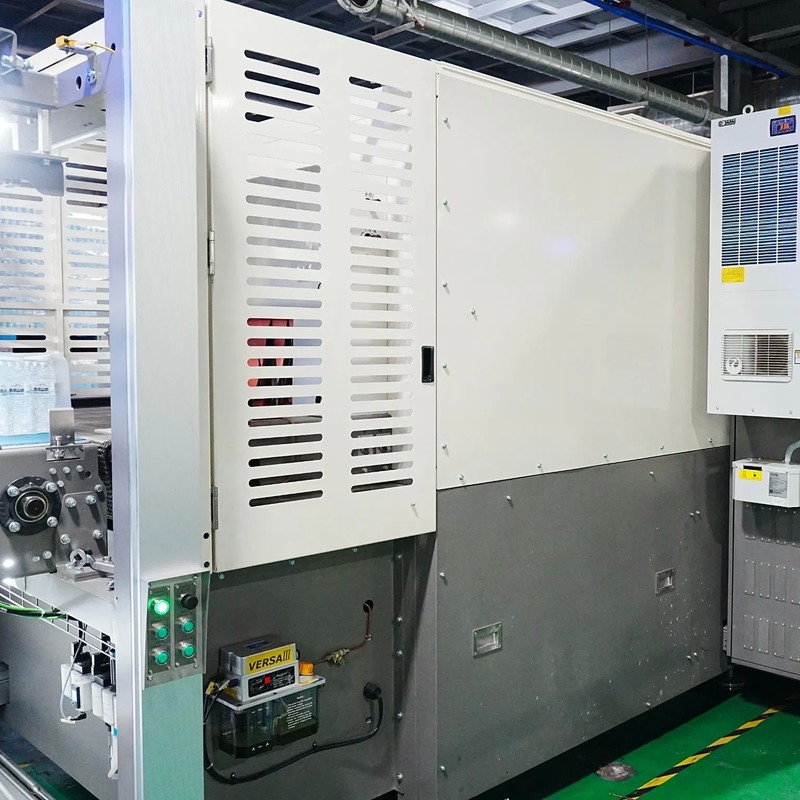

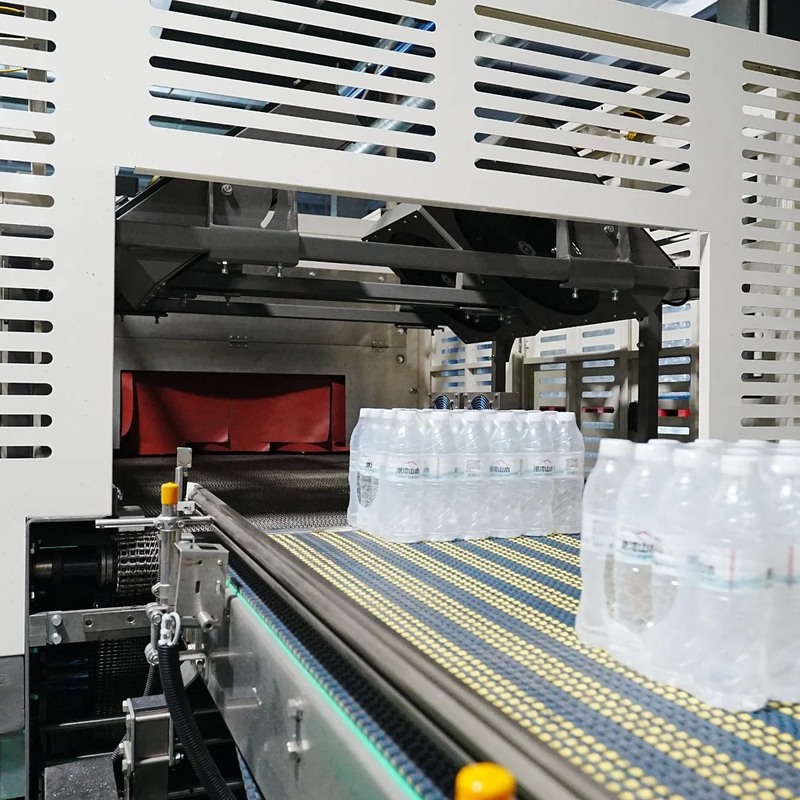

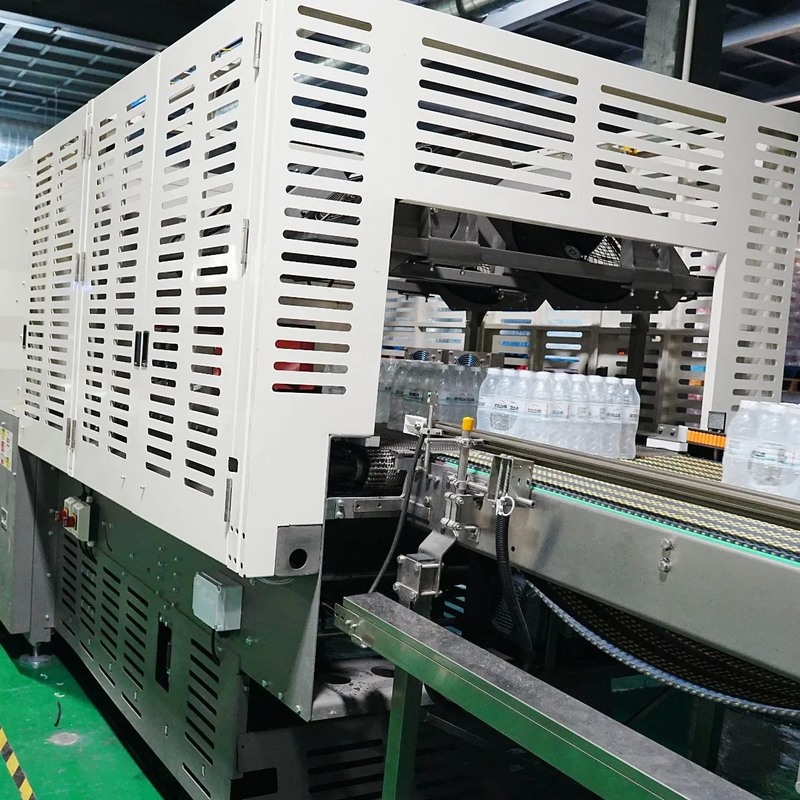

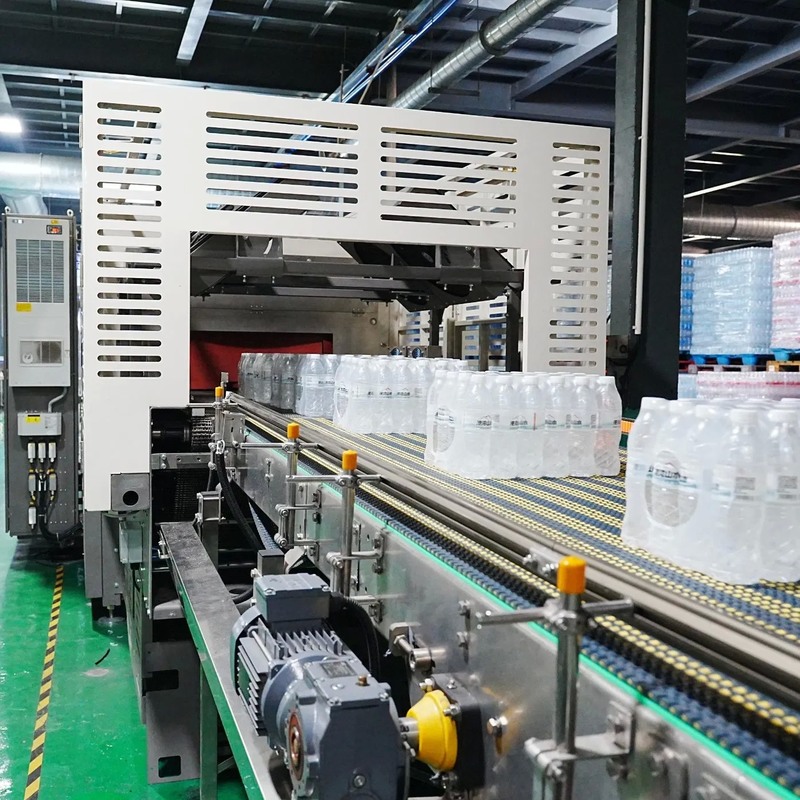

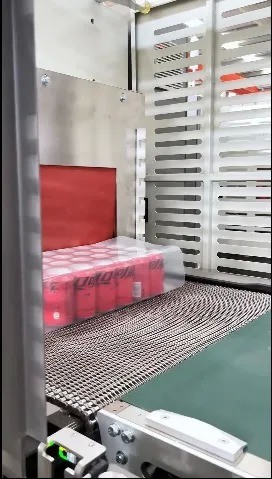

Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 1 Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 2 Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 3 Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 4 Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 5 Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 6 Automatic Shrink Wrapping Machine for 500ml Pet Bottle with Stainless Steel Heating and 380V 50Hz Power 7
