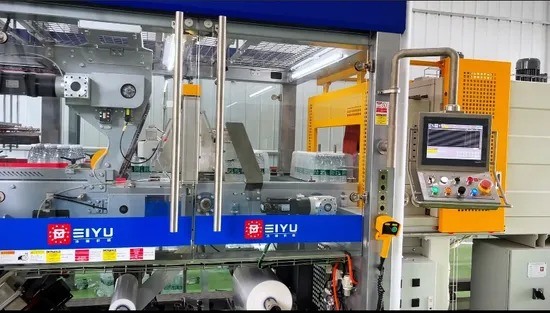

High Speed Shrink Packer with Stainless Steel Heating and Electronic Speed Control for Efficient Packaging

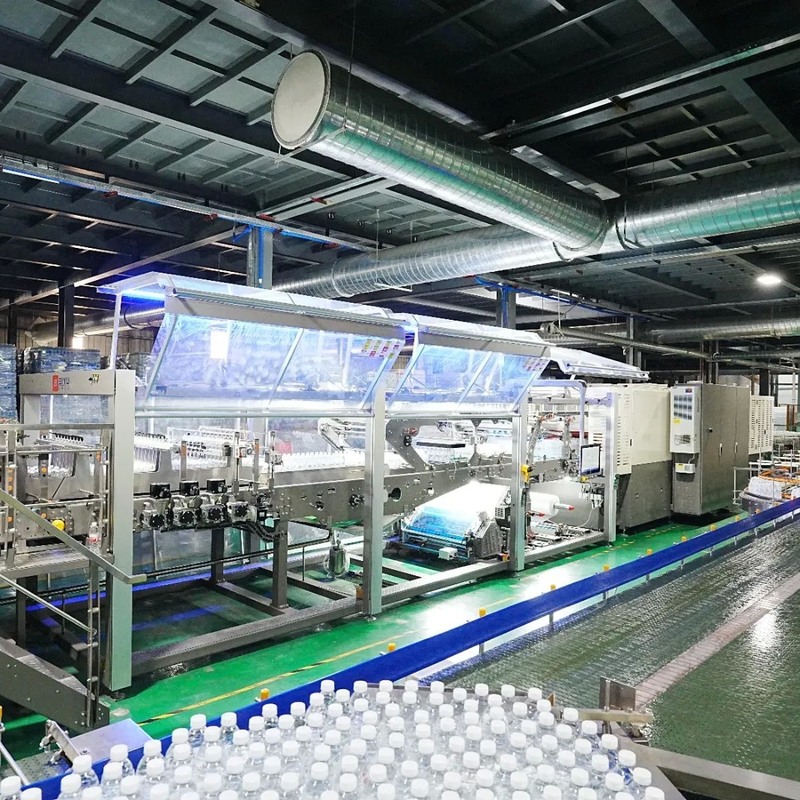

This equipment is mainly suitable for industrial packaging of glass bottles/PET bottles/cans in industries such as water, beverages, beer, food, and medicine.

• Applicable production line capacity range: 12,000 to 48,000 bottles/hour
• Capacity range according to different packaging specifications: 30 packages to 260 packages per minute

The product is evenly distributed to each channel by the entrance plate chain and checked for bottle shortage. It is divided into the required arrangement through the gate or bottle pressing mechanism, and then pushed to the film winding belt by the bottle pushing rod mechanism. The film roll passes through the film splicing mechanism (used for hot splicing of the film head when changing the film roll) from the film placing device, and then connected to the film feeding and cutting mechanism through the film arrangement and tensioning mechanism. When the product passes, the film is sent out from the bottom at the same time, and the film is put on the film putting belt conveyor through the film putting mechanism. Finally, it is sent out by the discharging belt conveyor and enters the heat shrinking furnace.

• Compact structure with small footprint and aesthetic appearance
• User-friendly operation interface with LCD touch screen control system and electronic detection function
• Comprehensive safety protection devices and detection systems
• Micro-vibration bottle separation method for round bottles to prevent jamming
• Torque limit protection design for push rod parts

Note: Capacity parameters are based on standard bottle types and packaging designs.

The size of the film package after molding must meet the requirements of the unfolded size of the single-stage film at the same time. For special bottle types or packaging methods, please consult our engineers.

• Film roll axis hole diameter: 78mm
• Film roll width: <650mm
• Film roll diameter: ≤400mm

L=12444mm * W=2010mm * H=2295mm

• Quotation validity: 1 month
• Payment methods: T/T, L/C
• Customers provide product and packaging samples for factory trials
• Delivery time: 60 working days after receiving deposit and samples

• Brand new equipment meeting all technical specifications
• Performance guarantee within 15 days of operation
• 12-month quality assurance period
• Guaranteed mechanical performance and product quality

• 12-month equipment warranty (24 months for control system)
• On-site repair service within 48 hours
• Lifetime technical support and spare parts supply

• Sturdy packaging suitable for long-distance transport
• Moisture-proof, rust-proof, and shock-proof
• Available for land and sea transportation
