Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output

Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output

100g-3kg Shrink Packer

12

000 to 48

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output
Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Input Power:
75KW
Equipment Size:
L=12444mm × W=2010mm × H=2295mm
Highlight:

100g-3kg Shrink Packer

,

12

,

000 to 48

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Paper Tray Heat Film Shrink Packer Packaging Machine for Plastic Bottle Wrapping
Application Scope
This industrial packaging equipment is designed for glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries.
Production Capacity: 12,000 to 48,000 bottles/hour (30-260 packages per minute depending on specifications)
Shrink packer
Shrink wrapper
Heat shrink packer
Single/Dual Channel packaging machine
Tray shrink wrapping machine
Automatic shrink wrap machine
PE Film Packaging Machine
Equipment Principle
The machine evenly distributes products through plate chains, checks for bottle shortages, arranges them through gates or pressing mechanisms, then pushes them to the film winding belt. Film rolls pass through splicing and tensioning mechanisms before being applied to products and sent to the heat shrinking furnace.
Key Features
  • Compact structure with small footprint
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rod components
Packaging Specifications
Film roll requirements: 78mm axis hole diameter, <650mm width, ≤400mm diameter.
Technical Parameters
Model SPCSW.E2
Capacity 30 packs/minute (round bottles)
Applicable Containers Cans, glass bottles, PET
Conveyor Height 1050mm
Weight 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Component Configuration
Component Brand
PLC Inovance, China
Servo System Inovance, China
Frequency Converter Inovance, China
Sensors SICK or equivalent
Equipment Dimensions
L=12444mm * W=2010mm * H=2295mm
Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output 0
Quality Assurance
  • 12-month equipment warranty (24 months for control system)
  • On-site support within 48 hours for critical issues
  • Lifetime technical support and spare parts availability
  • ISO9001 certified with TUV audit and CE certification

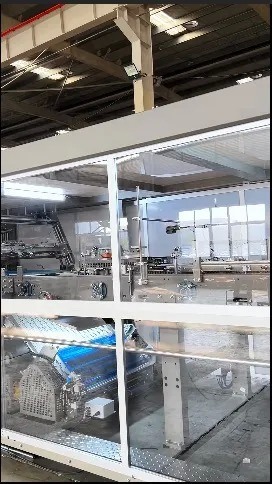

Product Images
Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output 1 Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output 2 Automatic Shrink Packer for Food and Beverage with 100g-3kg Capacity and 12,000 to 48,000 Bottles/Hour Output 3
