Fully Automatic PET Bottle Heat Packer Shrink Wrapping Machine High Speed 30-260 Cartons/Minute 380V 50Hz

This industrial-grade heat shrink packaging machine is designed for packaging glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries.

• Production capacity range: 12,000 to 48,000 bottles/hour
• Packaging speed: 30 to 260 packages per minute (depending on specifications)

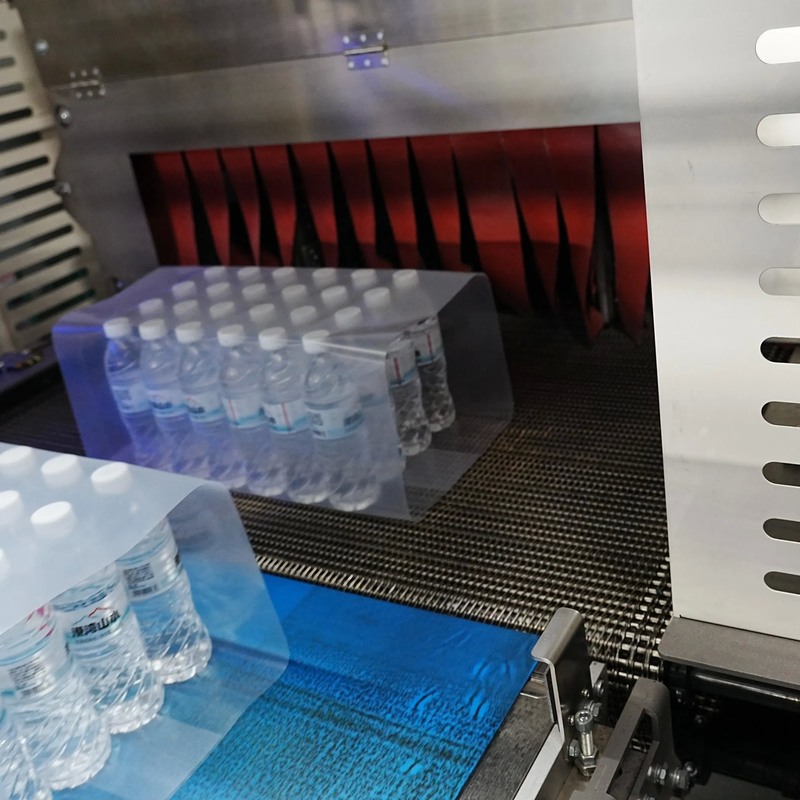

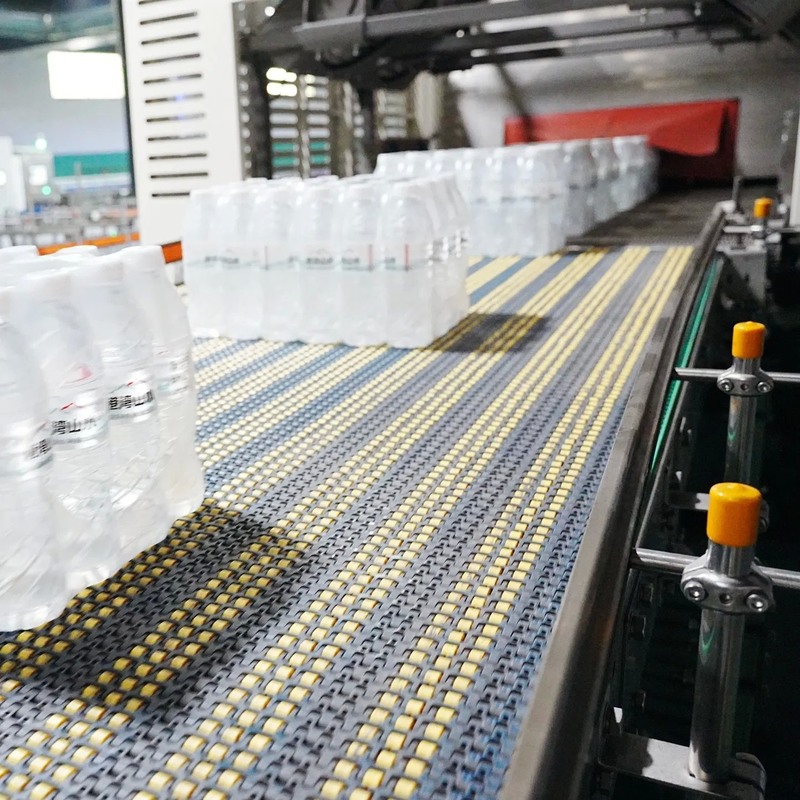

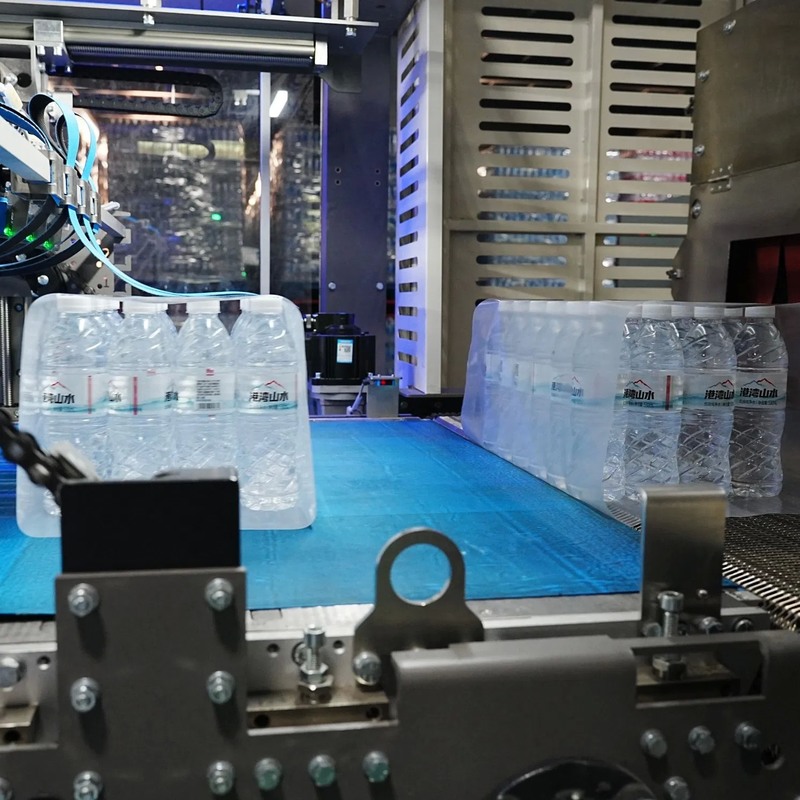

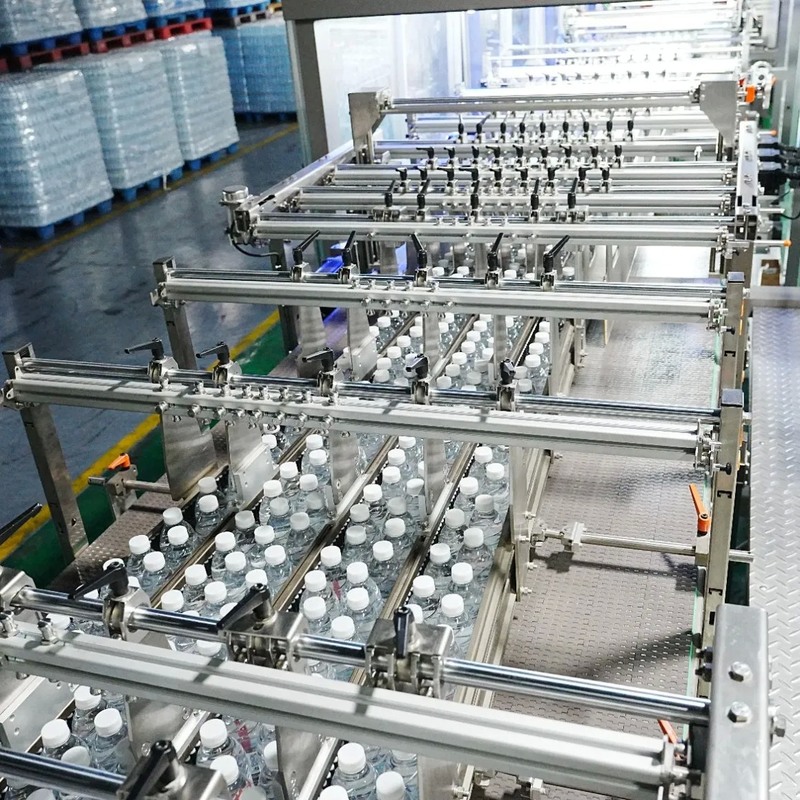

The machine evenly distributes products to each channel via entrance plate chain with bottle shortage detection. Products are arranged through gate/bottle pressing mechanism, then pushed to film winding belt by push rod mechanism. Film is fed through splicing mechanism, tensioned, and applied to products before entering heat shrinking furnace.

• Compact structure with small footprint

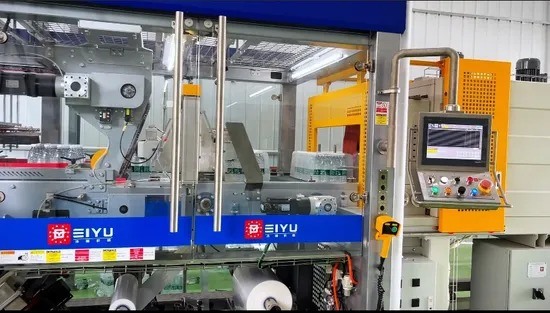

• User-friendly LCD touch screen control system with electronic detection
• Comprehensive safety protection devices
• Micro-vibration bottle separation for round bottles
• Torque limit protection on push rods

Note: Capacity parameters are based on standard bottle types and packaging configurations.

Film package must meet single-stage film size requirements:

• Film roll axis hole diameter: 78mm
• Film roll width: <650mm
• Film roll diameter: ≤400mm

Consult our engineers for special bottle types or packaging methods.

L=12444mm * W=2010mm * H=2295mm

• Quotation valid for 1 month
• Payment methods: T/T, L/C
• Customer provides product/packaging samples for factory trials
• Delivery time: 60 working days after deposit receipt

• Brand new equipment meeting all technical specifications
• Performance guaranteed within 15 days of operation
• 12-month warranty on mechanical components
• 24-month warranty on control systems (Huichuan brand)
• On-site support within 48 hours for critical issues
• Lifetime technical support after warranty period

Equipment is packaged in sturdy, specialized crates suitable for long-distance transport by land or sea, with protection against moisture, rust, and shock.
