Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Double Channel Shrink Wrapper Machine

30-260 Cartons/Minute Shrink Packer

380V 50Hz Heat Shrink Packaging Machine

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCSW.G1

Contact Us
Request A Quote
Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power
Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power
Product Details
Model NO.:
Customized
Automatic Grade:
Automatic
Driven Type:
Mechanical
Manner Of Packing:
Both Ends Open
Adjust Speed:
Electronic Speed Control
Type:
PE Shrink Film Machine
Heating Mode:
Stainless Steel Heating
Packaging Material:
Film
Capacity:
30-260 Cartons/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container:
Pet/PE/PP Bottles, Glass Bottles, Cans
Applicable Container Size:
100g-3kg Customized
Equipment Weight:
6000Kg
Operating Air Pressure:
0.5-0.7MPa
Air Consumption:
100L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Input Power:
75KW
Equipment Size:
L=12444mm × W=2010mm × H=2295mm
Highlight:

Double Channel Shrink Wrapper Machine

,

30-260 Cartons/Minute Shrink Packer

,

380V 50Hz Heat Shrink Packaging Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
30-40 work days
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price 60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power online Video

60 Packs Per Minute Automatic Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power

Get Best Price
Good price Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers online Video

Single Double Layer Stacking Half Tray and Film Shrink Wrapper Packing Machine for 100g-3kg Containers

Get Best Price
Good price 50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers online Video

50 Packs Per Minute Automatic Shrink Packer with 30-260 Cartons/Minute Capacity for 100g-3kg Containers

Get Best Price
Good price Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity online Video

Automatic Single Double Layer Stacking Half Tray Shrink Wrapping Machine with 30-260 Cartons/Minute Capacity

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Double Channel Auto Sleeve Packager Shrink Wrapper Machine for Drink Line
Application Scope

This industrial heat shrink packaging machine is designed for glass bottles, PET bottles, and cans in water, beverage, beer, food, and pharmaceutical industries.

Production Capacity
  • Production line capacity: 12,000-48,000 bottles/hour
  • Packaging speed: 30-260 packages/minute (varies by specification)
Alternative Names
Shrink packer Shrink wrapper Heat shrink packer Automatic shrink wrap machine PE Film Packaging Machine Heat Shrink Tunnel
Equipment Principle

The machine distributes products evenly through entrance plate chains, checks for bottle shortage, arranges them through gating mechanisms, and pushes them to film winding belts. Film rolls pass through splicing mechanisms and are fed to the product via precise cutting mechanisms before entering the heat shrinking furnace.

Key Features
  • Compact structure with small footprint
  • User-friendly LCD touch screen control system
  • Comprehensive safety protection devices
  • Micro-vibration bottle separation for round bottles
  • Torque limit protection on push rod components
Packaging Specifications

Film package size requirements:

  • Film roll axis hole diameter: 78mm
  • Film roll width: <650mm
  • Film roll diameter: ≤400mm
Technical Specifications
Model SPCSW.E2
Capacity 30 packs/minute (round bottles)
Applicable Containers Cans, glass bottles, PET bottles
Conveyor Height 1050mm
Weight Approx. 6000Kg
Power Requirements 380V AC 50HZ; 24V DC/AC
Component Configuration
Component Brand
PLC Inovance, China
Servo System Inovance, China
Configuration Software Ab Optix
Frequency Converter Inovance, China
Sensors SICK or equivalent
Equipment Dimensions

L=12444mm * W=2010mm * H=2295mm

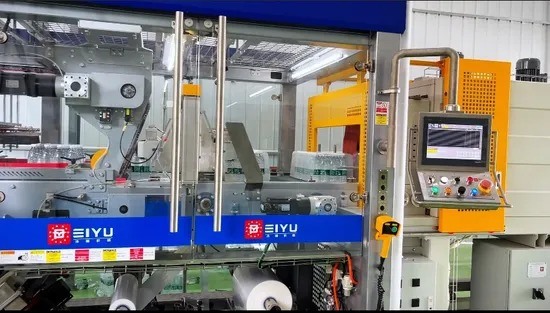

Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 0

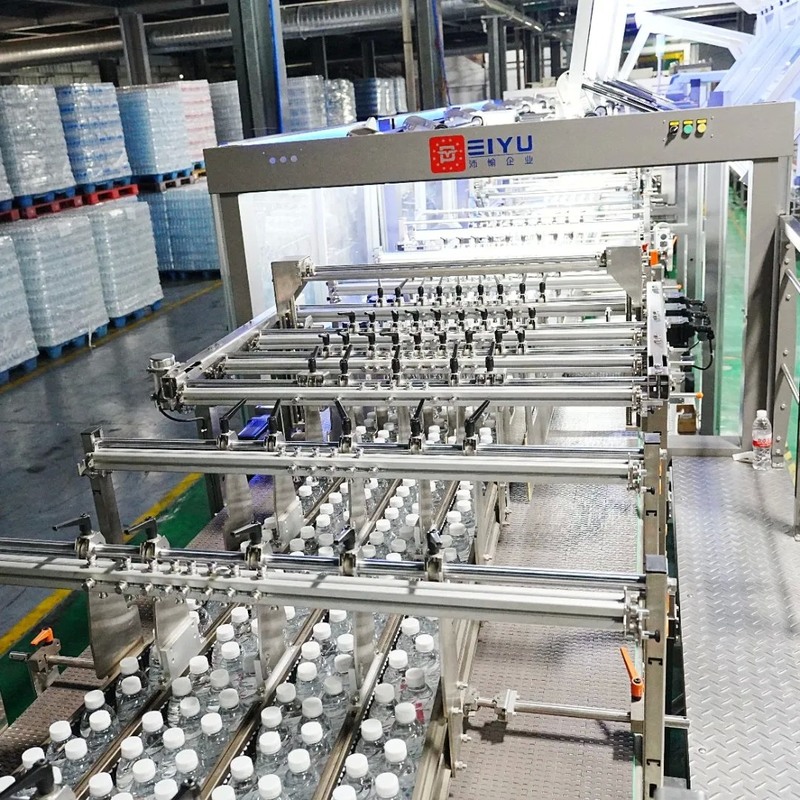

Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 1
Ordering Information
  • Quotation validity: 1 month
  • Payment methods: T/T, L/C
  • Delivery time: 60 working days after deposit and sample receipt
Quality Assurance
  • 12-month equipment warranty (24 months for control system)
  • On-site support within 48 hours for critical issues
  • Lifetime technical support after warranty period
  • Performance guarantee for mechanical properties and product quality
Additional Images

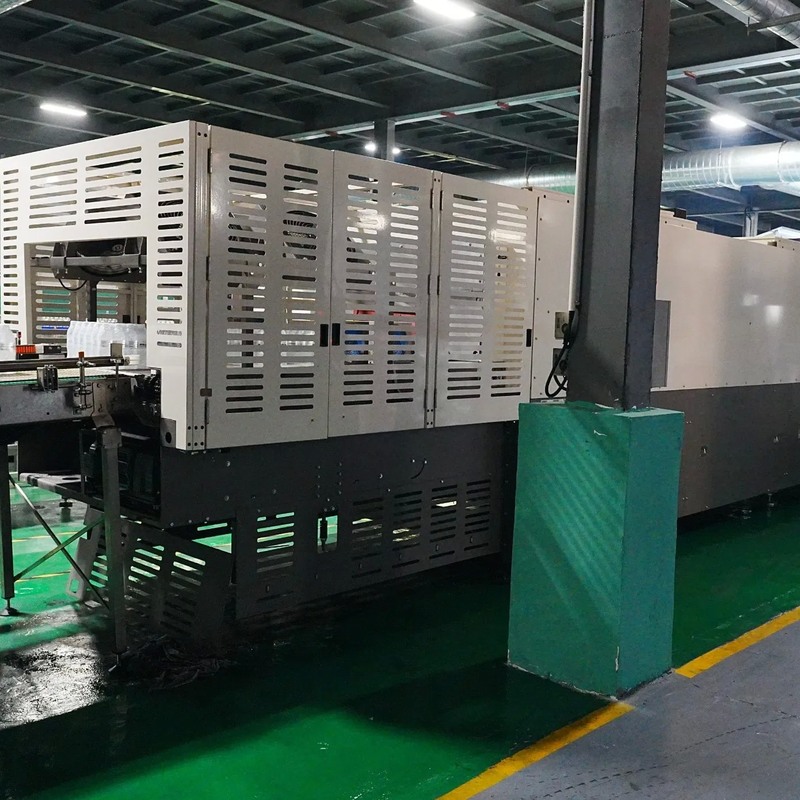

Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 2

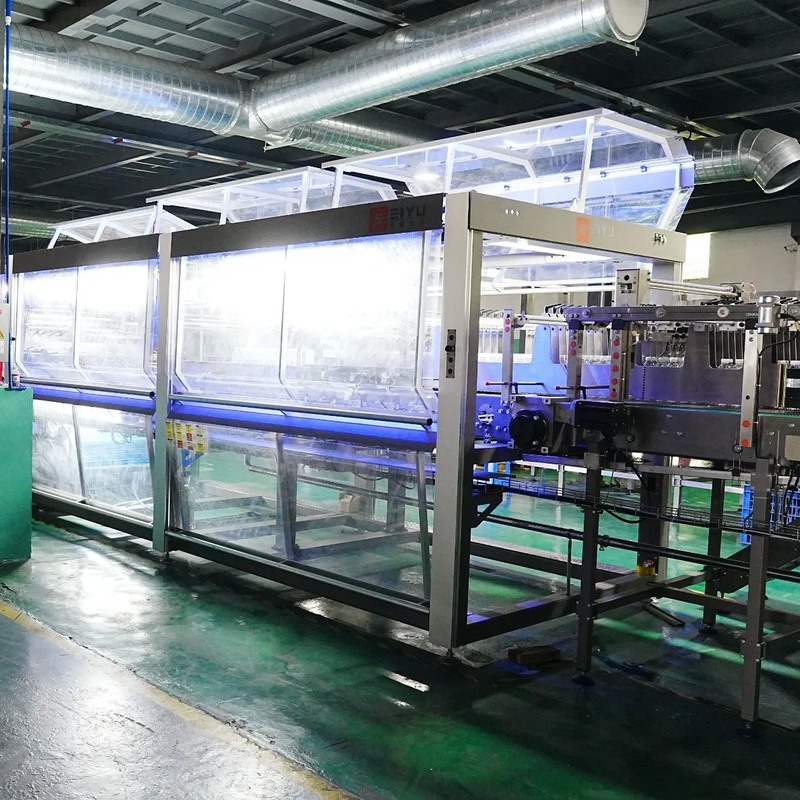

Double Channel Automatic Shrink Wrapper Machine with 30-260 Cartons/Minute Capacity and 380V 50Hz Power 3
